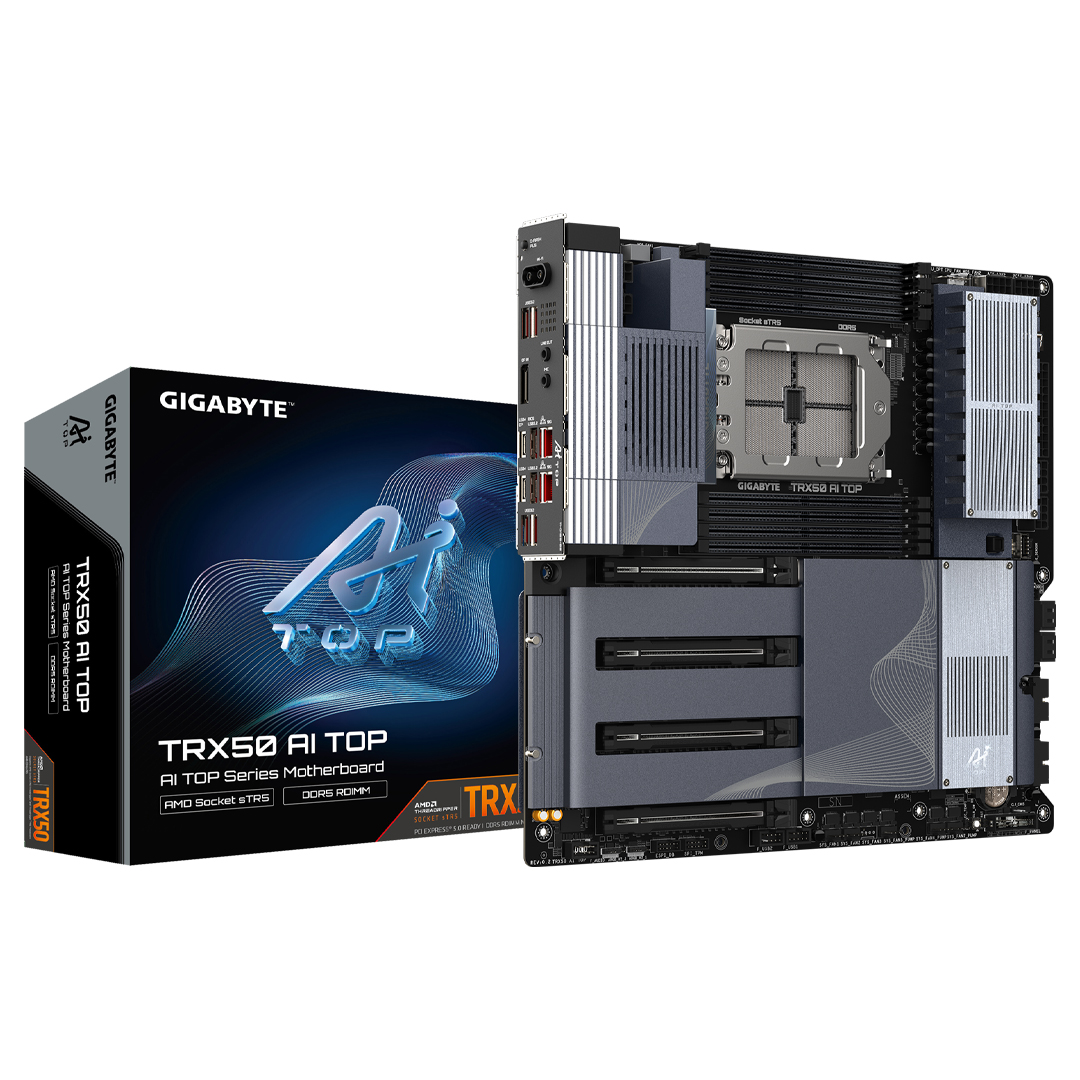

Unlock workstation-class performance with the Gigabyte TRX50 AI TOP WiFi DDR5 Motherboard, purpose-built for the most demanding compute workloads. Designed for AMD Ryzen Threadripper PRO 9000-WX, 7000-WX, and Ryzen Threadripper 9000 and 7000 Series processors on the sTR5 socket, featuring the AMD TRX50 chipset, AI-focused optimisation, and support for up to 2TB of 8-channel DDR5 ECC Registered memory, this high-performance motherboard delivers exceptional computing power and scalability. With four PCIe 5.0 x16 slots, four PCIe 5.0 M.2 slots, dual USB4 Type-C connectivity, dual 10GbE LAN, and ultra-fast WiFi 7, experience outstanding bandwidth for multi-GPU systems, high-speed storage, and next-generation networking. Advanced cooling solutions including VRM Thermal Armour Advanced, M.2 Thermal Guard, and Smart Fan 6 maintain optimal operating temperatures, while the robust 16+8+4 phase digital VRM design, Ultra Durable components, and E-ATX form factor provide the stability and flexibility required for intensive AI training, rendering, and professional workstation applications.
Warning: This product contains a button battery
- If swallowed, a lithium battery can cause severe or fatal injuries with 2 hours.
- Keep batteries out of reach of children.
- If you think batteries may have been swallowed or placed inside any of the body, seek immediate medical attention.
|
Features

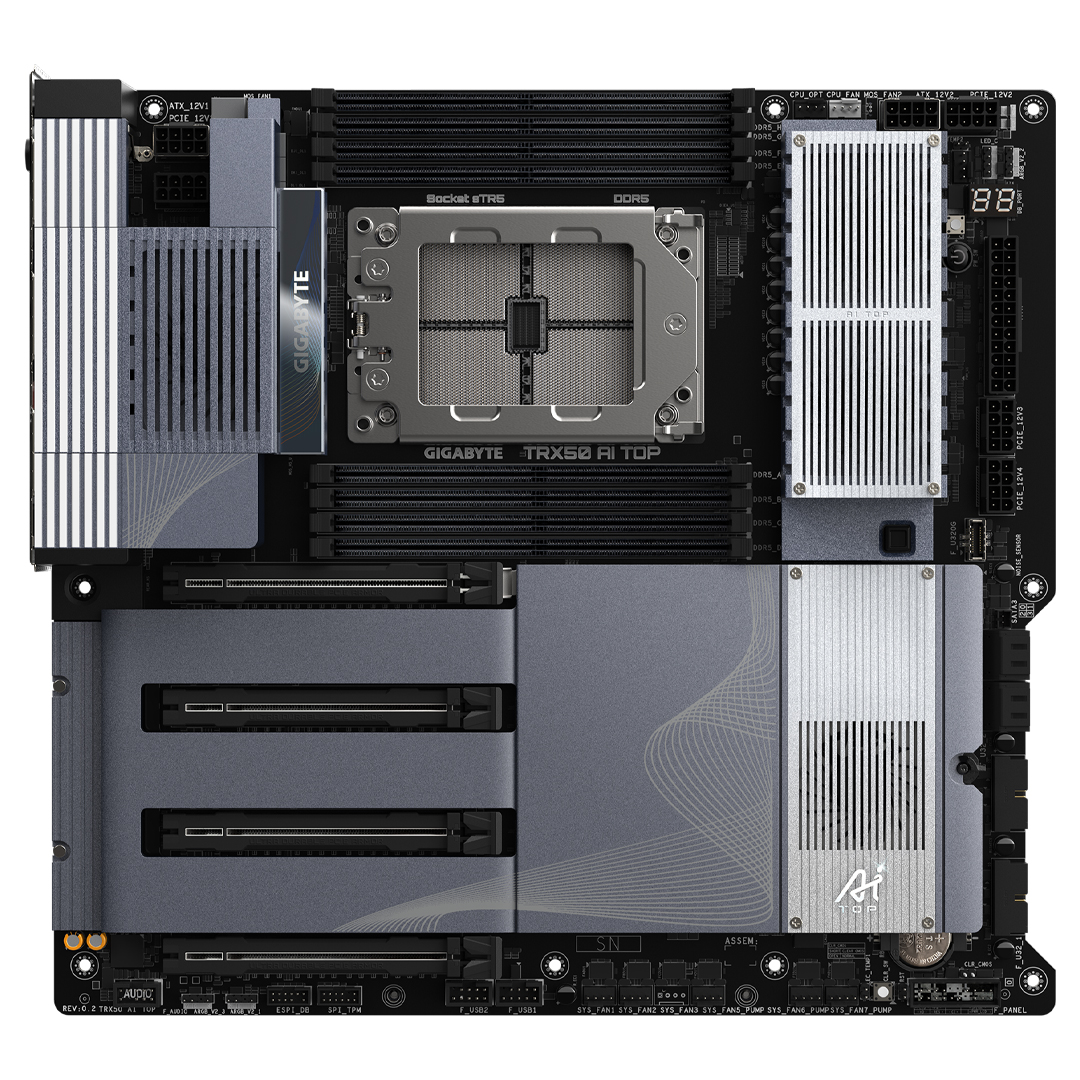

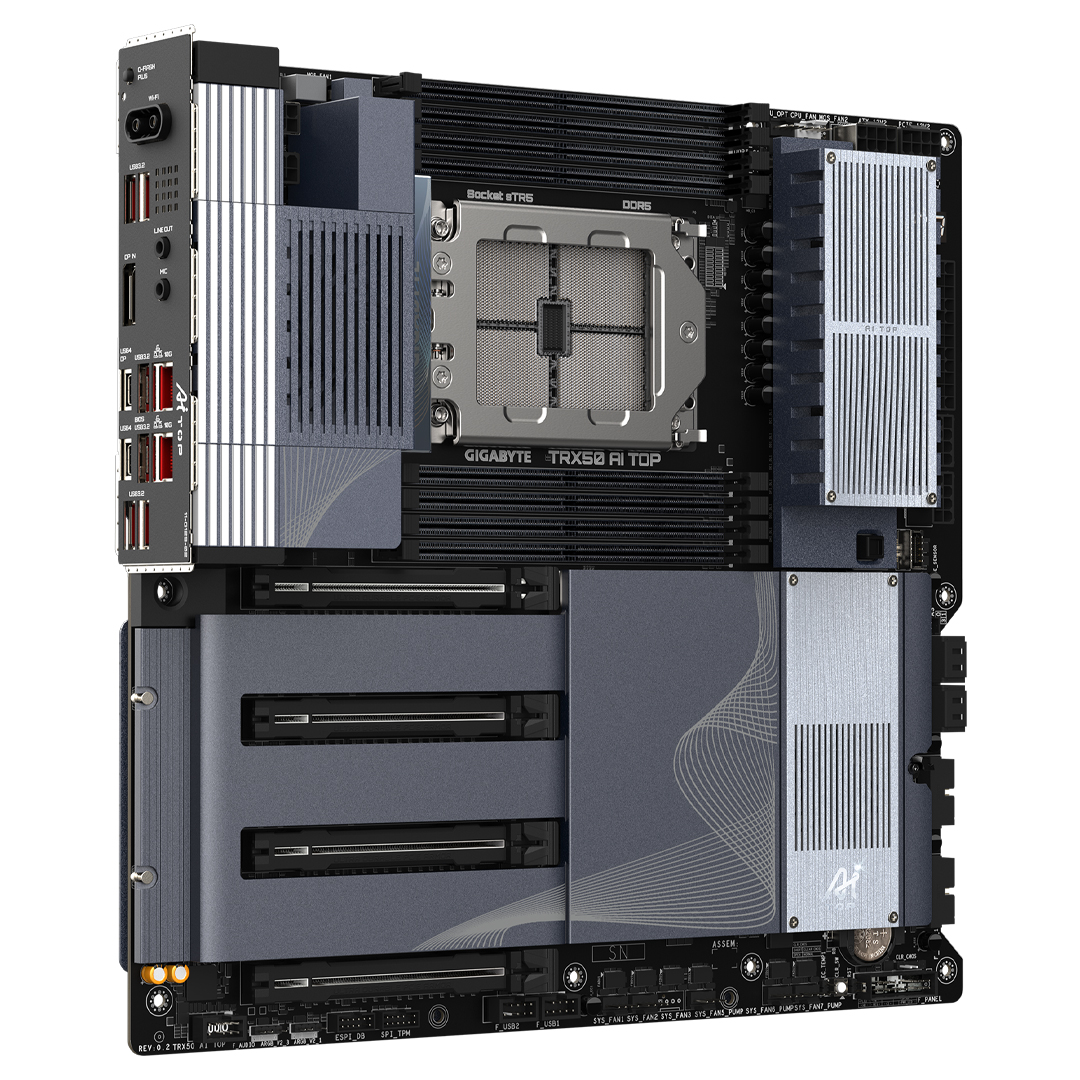

TRX50 AI TOP
- Training your own AI on your desk
- Socket sTR5: Supports AMD Ryzen™ Threadripper™ PRO series/ Ryzen™ Threadripper™ series Processors
- Breakthrough Performance: 16+8+4 Phases Digital VRM Solution
- 8 Channel DDR5: 8xSMD ECC R-DIMMs with Maximum 2TB capacity
- Reinforced Overall Thermal: VRM Thermal Armour Advanced & M.2 Thermal Guard
- Ultimate Scalability: 4xPCIe 5.0 x16 slots for Multi-GPU and 4xPCIe 5.0 x4 M.2 slots
- Next-gen Connectivity: Dual USB4® Type-C ports
- Blazing Fast Networks: Dual 10GbE LAN, Wi-Fi 7 with Ultra-high gain directional antenna & WIFI EZ-Plug
- PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
- EZ-Latch Click: M.2 heatsinks with screwless design
- EZ-Latch Plus: M.2 slots with quick release design
- Hi-Fi Audio with DTS: X® Ultra: ALC4080+ALC897 CODEC
- UC BIOS: User-Centred intuitive UX with Quick Access function
- Multi-GPU 4x PCIe 5.0 x16 - Graphics Cards for exceptional computing power
- 2TB Capacity - 8x R-DIMM DDR5: Maximum capacity for AI training
- Quadruple Speed - 4x M.2 SSD RAID 0 to accelerate computing
- Dual 10GbE LAN - 25KV Surge Protection blisteringly fast and stable network
Performance
- 16+8+4 Phases Digital VRM
110A Smart Power Stage
14 Layer PCB
Server level Very Low Loss PCB
- Full-length PCIe slots
4x PCIe 5.0 x16 with PCIe UD Slot X
- UD Power Connector
24 pin ATX with UD Solid Pin
2 x 8 pin CPU with UD Solid Pin
4 x 8 pin PCIe power with UD Solid Pin
- 8 x DDR5 ECC R-DIMMs, 8-Channel with Memory UD Slot
- Supports AMD Ryzen™ Threadripper™ PRO 7000 series/ Ryzen™ Threadripper™ 7000 series Processors
- 4 x PCIe 5.0 M.2 UD Slots with Thermal Guard
Thermal
- VRM Thermal Armour Advanced
7 W/mk Thermal Pad
Integrated IO Shield
- UD Backplate
- M.2 Thermal Guard Ext.
- SYS Wind Blade

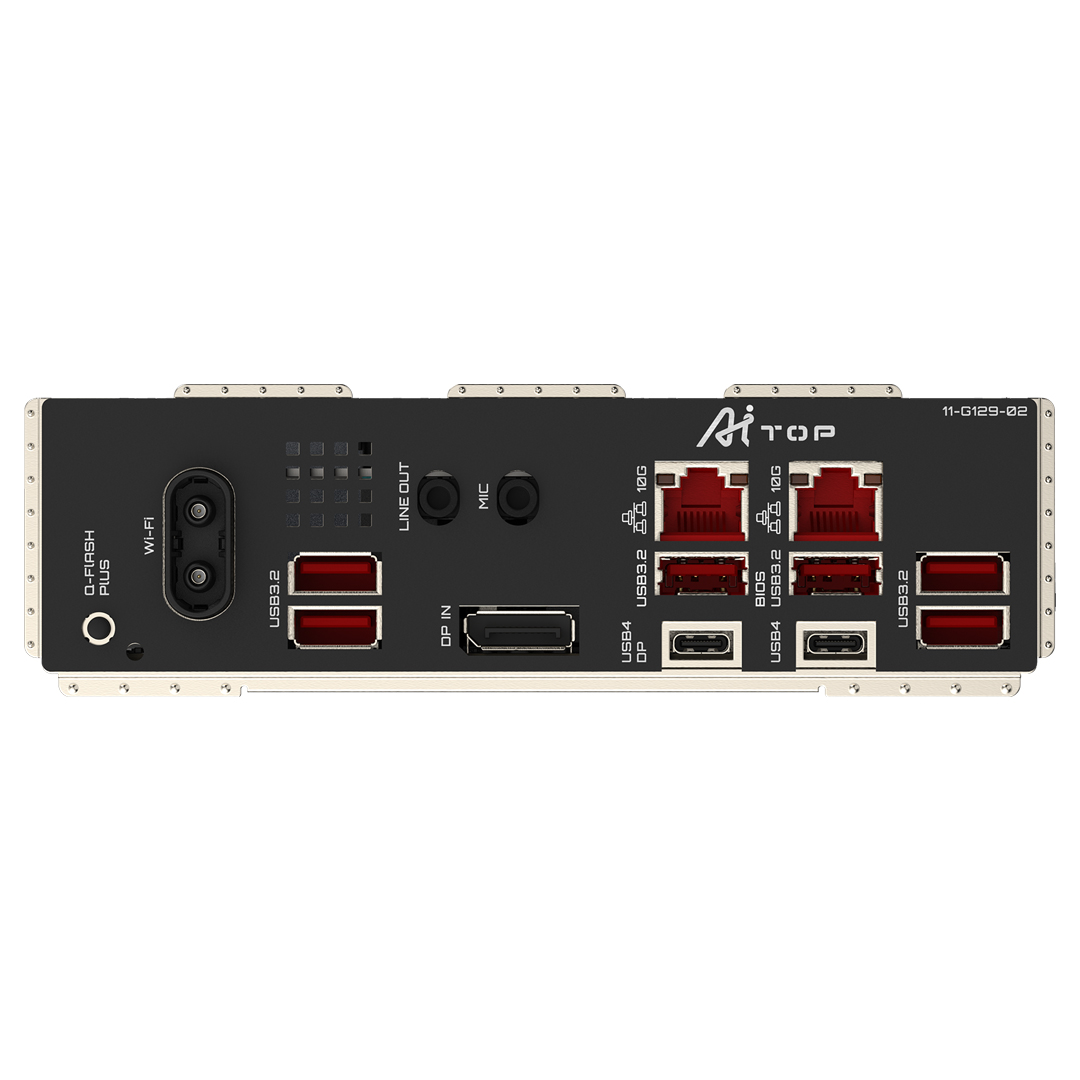

Connectivity
- Q-FLASH Plus button
- Wi-Fi 7 with Ultra-high gain Antenna
- WIFI EZ-Plug
- 6 x USB 3.2 Gen 2
- DisplayPort Input
- Dual USB4 40Gbps Type-C
- Dual 10 GbE LAN
- Experience enchanting audio thrill
Realtek ALC4080 + ALC897
Audiophile Grade Capacitors
DTS: X® Ultra
- RGB Fusion
3 x Addressable LED Header
1 x RGB LED Header
- Front USB-C® 20Gb/s
- 4 x SATA 6Gb/s
- Front USB header:
2 x USB 3.2 Gen1 header
2 x USB 2.0 header
DIY Friendly
- M.2 EZ-Latch Click & M.2 EZ-Latch Plus
- PCIe EZ-Latch Plus
Ultimate Scalability
Brings you the future-proofing capability.
Quad PCIe 5.0 x 16 Slots for Multi-GPU
TRX50 AI TOP features quad PCIe 5.0 x16 slots to provide exceptional computing power through ample bandwidth, allowing each GPU to operate at full speed for AI training, AI fine-tuning, and superior rendering capabilities.
Double Slot Width Design
The double slot width design of PCIex16 slot enables users to install multiple huge high-end graphics cards at the same time on motherboards without any hassles.
4x PCIe 5.0 M.2 Slots
Featuring four PCIe 5.0 x4 M.2 slots directly connected to the CPU, the TRX50 AI TOP allows data stored in high-speed SSDs to reach the computing centre via the shortest path and with the largest bandwidth, enabling local computations to be completed in the shortest possible time.
Future Connectivity
Enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
Dual 10G LAN
The Dual 10G LAN design deliver blisteringly fast transfer speeds to ensure the most stable transmission environment when the system is performing cloud computing or providing external computing services.
Wi-Fi 7 Brings You the Ultimate VR Experience
Wi-Fi 7 provides significant benefits to the realm of virtual reality (VR). With its high bandwidth and low latency capabilities, Wi-Fi 7 ensures a smooth and immersive VR experience.
320/160 MHz Channels
Wi-Fi 7 supports up to 320 MHz channels, providing a significant increase in bandwidth for faster data rates.
4K-QAM
With 4K-QAM technology, Wi-Fi 7 improves data throughput, resulting in faster file transfers and seamless streaming.
Multi-Link Operation
With MLO(Multi-Link Operation) technology, you can allocate the 2.4GHz band for streaming and the 5/6GHz band for gaming, resulting in a higher quality network experience with fewer interruptions.
Deterministic Low Latency
Deterministic low latency ensures minimal delays, making it ideal for real-time applications like video conferencing and online gaming.
GIGABYTE Ultra-High Gain Antenna
Experience enhanced signal strength with the GIGABYTE Ultra-high gain Antenna, which incorporates a smart antenna function to optimise Wi-Fi signal transmission.
Dual USB4 Type-C
The latest USB4 Type-C dual ports provide significantly faster data transfer speeds up to 40 Gbps of each, which is particularly beneficial to video editing, large file transfers, and data-intensive tasks.
- Direction signal Up to 5dBi
- Omnidirectional signal Up to 4dBi
- Magnetic Base
Version
|
Bits/sec
|
HD Movie 25GB
|
| USB 1.1 |
1.50 - 12 Mbps |
~ 9.3 hr |
| USB 2.0 |
480Mbps |
~ 14 mins |
| USB 3.0 |
5 Gbps |
~ 70 sec |
| USB 3.1 |
10 Gbps |
~ 35 sec |
| USB 4.0 |
40 Gbps |
~ 10 sec |
True Hi-Fi Music
Paired with Realtek's latest ALC4080 Codec, playback for surround sound audio and DSD enabled music are easier than ever.
DTS : X® Ultra
Recreates an authentic, spatially accurate 3D audio experience for gaming over any headphones or speakers. Supports channel-based, scene based and object-based audio. Provides out-of-the-box calibration for a range of headphones and speakers. Provides post-processing enhancements and device level tuning for DTS® codecs. DTS Sound Unbound (DTS Sound Unbound needs the latest Windows fixes in the Windows 10, please upgrade your Windows 10 OS to Win10 Build 18898 or later versions.) leverage Microsoft Spatial, enabling the most believable, 3D audio experience for games. Immersion through DTS Headphone: X means in the sonic landscape, stationary and moving sounds can be heard from above, below or around the listener. Sounds pass around the listener with amazing externalisation and accurate localisation.
Memory
Leading DDR5 Performance - Maximum Capacity
TRX50 AI TOP supports 8-channel ECC R-DIMMs to provide the highest bandwidth and a maximum capacity of up to 2TB for computation throughput, offering ample temporary storage space for model training or machine learning.
- DDR5 Overclocking Up to 8000 MT/s
DDR5
BIOS Engineering
Feature-rich BIOS functions that enable easy access to the best-in-class DDR5 performance.
DDR5 Auto Booster
One click to boost native DDR5 speed.
High Bandwidth
One click to increase DDR5 bandwidth.
Low Latency
One click to shorten DDR5 latency.
AMD EXPO™/ Intel® XMP 3.0 User Profile
Optimises memory settings and achieve the best performance for the system.
BIOS Optimisations
SPD Re-Defined or Retrieve from Database
Users can define two empty SPD profiles and transfer them to another computer.
Performance Simulation
Simulate memory performance quickly by inputting clock and timing parameters.
Save/Load Profile
Save and load memory profiles for online sharing.
Boost Non-Overclockable DDR5 Memory Frequency
Increase the frequency of non-overclockable DDR5 memory.
AI TOP Utility
GIGABYTE's exclusive utility provides powerful AI computing assistance features. Its visually appealing interface allows you to easily track LLM finetune progress and hardware status, and quickly adjust related fine-tuning settings, significantly improving work efficiency.
PCB Crafting
Enhanced Layers for Powerful Computing
As the very foundation of the motherboard, the PCB plays a subtle yet critical role in the capabilities.
14-Layer Server Grade PCB
Enables optimised signal integrity and EMI shielding with enhanced reliability for high-performance computing.
Very-Low-Loss PCB
Elevate signal integrity and stability in high-frequency circuits with our pioneering technology, setting a new standard for high-speed electronic design.
Robust VRM Design
Power in Number
All AORUS series gaming motherboards are equipped with an all-digital power design, which delivers the best stability under heavy workloads.
Digital VRM Design
Ensures stable high-power delivery for advanced overclocking.
16 VCORE Phases - 110A SPS
To unleash the full potential of multi-core CPU performance.
8 SOC Phase - SPS + DrMOS
For CPU integrated GPU performance and memory control.
4 MISC Phases - 110 SPS
Provide stable power for CPU-connected PCIe lanes.
*8+8 phases parallel power design
Advanced Thermal
With enlarged full metal thermal design, TRX50 AI TOP motherboard brings you exceptional performance while keep the system cool and solid.
VRM Thermal Armour Advanced
These solid heatsinks are forged to keep your system cool.
High coverage MOSFETs and integrated moulded heatsinks improve thermal efficiency by enhancing airflow and heat exchange.
SYS Wind Blade
TRX50 AI TOP motherboard adopts four high quality fan with high durability for the premium heat dissipation.
7 W/mK Thermal Pad
Optimise hardware performance with our advanced 7 W/mK thermal pad for efficient heat dissipation.
M.2 Thermal Guard Ext. with M.2 Thermal Guard Backplate
Small Vents, Big Cooling Power
- Up To 7°C lower temperature
* Test results are for reference only and may vary in different circumstances.
Smart Fan 6
Cool. Quiet. Customised.
Ensures optimal cooling and quiet operation for your gaming PC, with support for PWM/DC fans and pumps, customisable settings, and intuitive temperature monitoring.
High Current Support
Each fan header supports PWM and DC fans and Water Cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection.
Precision Control
Multiple temperature/fan speed control points for precise fan curve.
Dual Curve Mode
Slope/Stair dual mode for different user scenarios.
Fan Stop
Fan can stop completely below users' specified temperature point.
Smart Fan 6 BIOS UI
Enhance Fan Curve UI
Enhance fan curve control with an expanded number of control points, from 5 to 7, and a larger fan speed graph, enabling users to have more precise and effortless control over fan curve settings.
Slope/Stair Dual Graph Mode
Switch between Slope and Stair modes to adapt to various user scenarios. Slope mode provides a linear fan speed curve, while Stair mode maintains a constant fan speed within specified temperature intervals.
Manual Input
For advanced users, manual input of fan speeds is available for fine-tuning and precise control over the cooling system.
EZ Tuning
Simplify the process with EZ Tuning by setting 4 points on a rough temperature/fan speed scale. Smart Fan 6 will quickly generate a fan curve based on these points.
Fan Curve Profile
Save your customised fan curve profile in the BIOS ROM, ensuring it remains intact even after BIOS updates.
DIY-Friendly - Build Effortless
Building your own PC is meant to be joyful and effortless. AORUS serious motherboard the most DIY-friendly ever.
WIFI EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adaptor, relieving users from the troublesome screwing required during installation.
EZ-Latch Designs
Effortless mechanisms that enable easy installations of components.
M.2 EZ-Latch Click
Screwless installation for M.2 heatsink.
M.2 EZ-Latch Plus
Screwless installation for M.2 SSDs.
PCIe EZ-Latch Plus
Easy detachment for graphics cards.
Sensor Panel Link
Onboard video port simplifies Sensor Panel installation, no worries about cable routing.
Quick Control Elements
Reset. Update. Convenient.
Multi-Key
A multi-function reset button that can be reconfigured to other function in BIOS for different user scenarios.
RGB Switch
Turn off all lighting effect on motherboard.
Direct-to-BIOS
Boot into BIOS menu directly without pressing any keyboard button.
Safe Mode
Boot into BIOS safe mode to change specific option without losing other BIOS settings.
Q-FLASH PLUS
Update the BIOS easily without installing the CPU, memory and graphics card.
- Step 1: Plug 24pin & 8pin power supply cable on motherboard.
- Step 2: Download motherboard BIOS file and rename to "gigabyte.bin", save to USB flashdrive, and plug USB flashdrive into Q-FLASH PLUS USB port.
- Step 3: Press Q-FLASH PLUS button, and motherboard will start updating BIOS automatically.
Ultra Durable™
Get EverythingUD
GIGABYTE Ultra Durable™ Technology represents our highest standards to provide a platform for gamers that is not only powerful but also durable and reliable. TRX50 AERO D motherboard is built to last longer and stand stronger.
PCIe UD Slot X
The latest PCIe UD Slot X offers unprecedented strength, providing enhanced protection for your graphics card.
10X Load-Bearing Capacity
Featuring a seamless, one-piece design that is screwed onto a dedicated backplate, the PCIe UD Slot X provides 10 times the load-bearing strength.
Inner Lining Rubber Strip
This rubber strip safeguards your graphics card's PCB from potential scratches.
Zinc Alloy
The use of zinc alloy ensures effective electromagnetic shielding for high-speed signals.
M.2 UD Slot PG5
The one-piece, stainless-steel shielding design reinforces the M.2 Slots, and maximises signal integrity.
- 1.3X stronger in X-Axis Strength Test
- 1.5X stronger in Y-Axis Strength Test
- Reduced Signal Degradation with SMD Technology
UD Power Connector
The unique design provides better conductivity for power and better dissipation for the heat generated from it.
Solid Pins
Provides superior conductivity & signal transmission, reducing metal loss from repeated plugging.

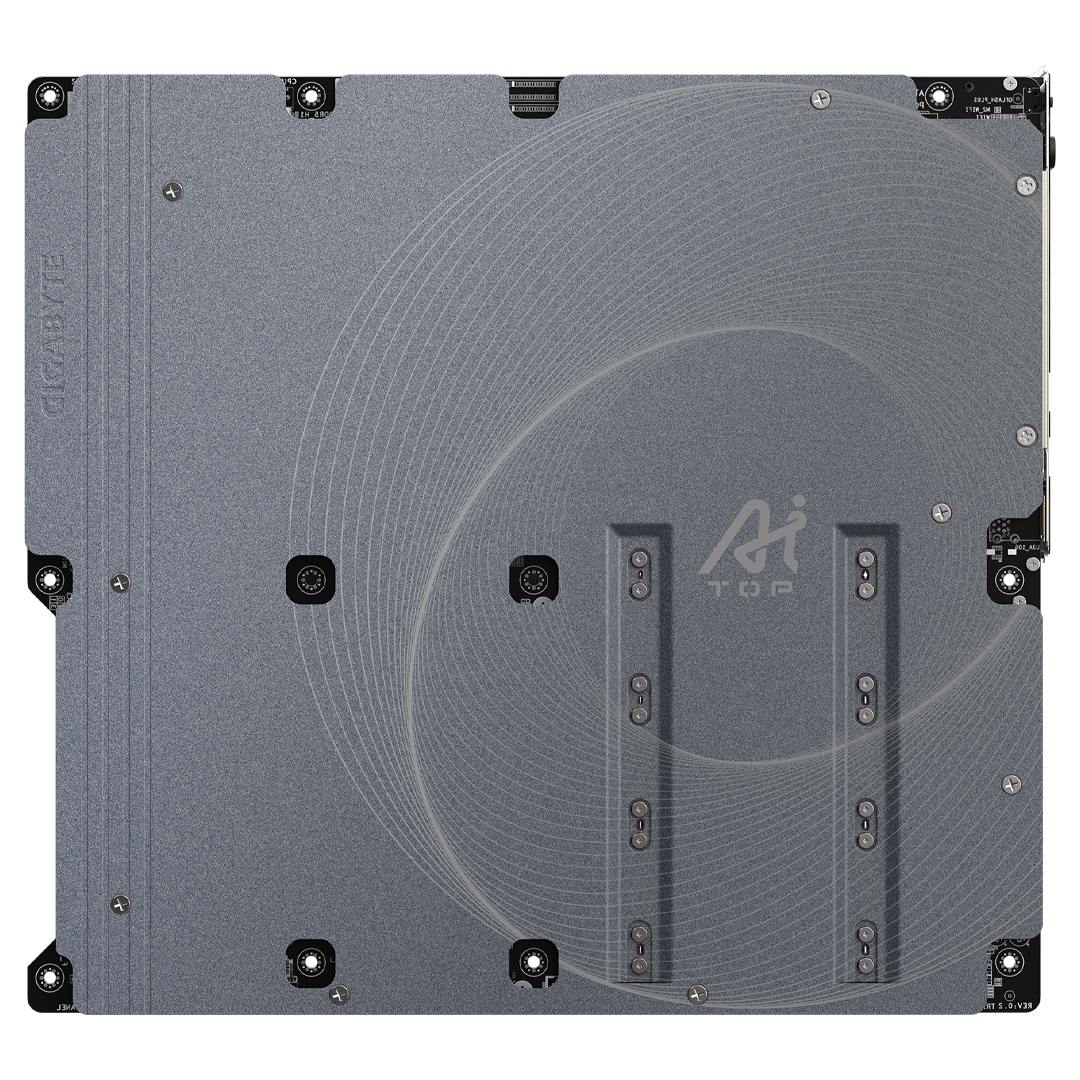

UD Backplate
Experience the ultimate in support, protection, and heat dissipation with the UD Backplate.
Customisation
Elevating Performance Together
TRX50 AI TOP signifies our dedication to BIOS optimisation. Through our community partnership, we're making next-gen performance more user-friendly.
UC BIOS
Redesigned as user-centred and provides intuitive performance tweakers.
Redesigned UI and UX
An intuitive operation interface with an aesthetically pleasing design.
Quick Access
Customisable option slots for effortless access in Easy Mode.
Enhanced Intuitive UX
GIGABYTE User-Centred(UC) BIOS has enhanced the BIOS UX to provide users with an optimised experience featuring an intuitive operation interface and an aesthetically pleasing design.
Quick Access Function
GIGABYTE UC BIOS' Quick Access function selects several practical preset options from ADVANCE MODE and places them in EASY MODE for effortless access without switching or searching.
HWiNFO - Exclusive Partnership
Introduces innovative features for computer enthusiasts and professionals.
Default AORUS Skin
When running HWiNFO on a GIGABYTE motherboard, a unique, AORUS-themed skin will be automatically applied as default that is available in bright or dark mode. This AORUS skin can also be manually applied on non-GIGABYTE motherboards.
*AORUS skin auto-applies when detecting a GIGABYTE motherboard.
Memory Timings Monitor
As a result of the great efforts of expert developers from GIGABYTE and HWiNFO, this advanced readout application shows the most detailed memory timing settings ever, and help users monitor their memory performance and gain valuable insights.
Detailed BIOS Information
GIGABYTE motherboard users can now check out the detailed BIOS information in real time via HWiNFO, such as status of toggles or tweakers, and the BIOS versions. No more reboot for BIOS check!
GIGABYTE Control Center
A unified software platform across a variety of GIGABYTE products.
RGB Fusion
Customise the RGB lighting on the motherboard or devices that connect to it.
Showcase Your Style
Unleash your creativity with GCC's customisable lighting effects for your motherboard. Personalise your system with stunning visuals that reflect your individuality and style.
Note: The depicted lighting effects are for demonstration purposes only, and the actual lighting effects may vary depending on the model.
Supercharge Your Lighting Options
Addressable RGB LED headers allow you to customise each LED individually (for ARGB GEN2 devices), and you can easily accomplish this using GCC.
*The information provided is for reference; please prioritise your specific setup and specifications.
- 1x RGB LED header
- 3x ARGB LED headers
Backed by a 3 year Gigabyte warranty.
