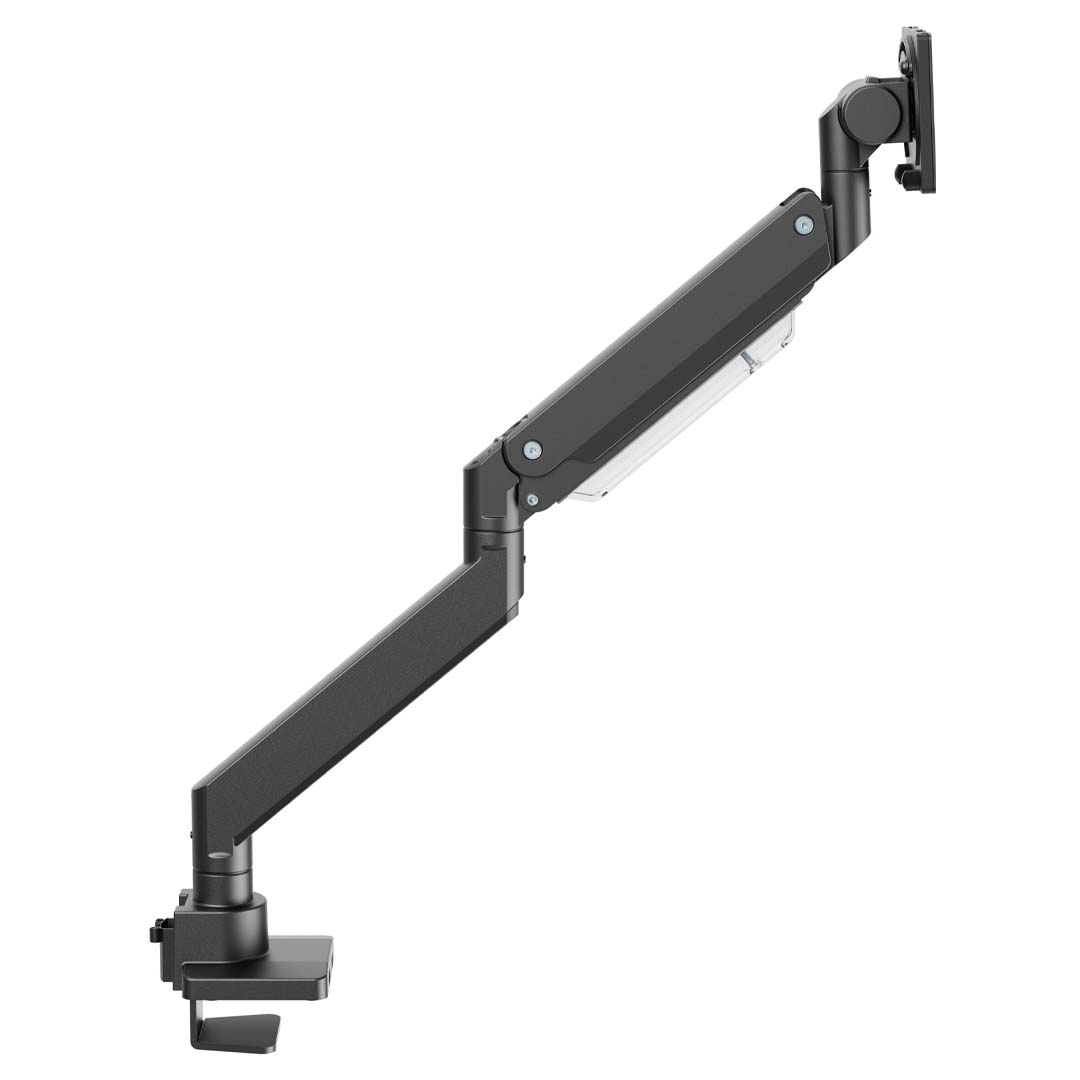

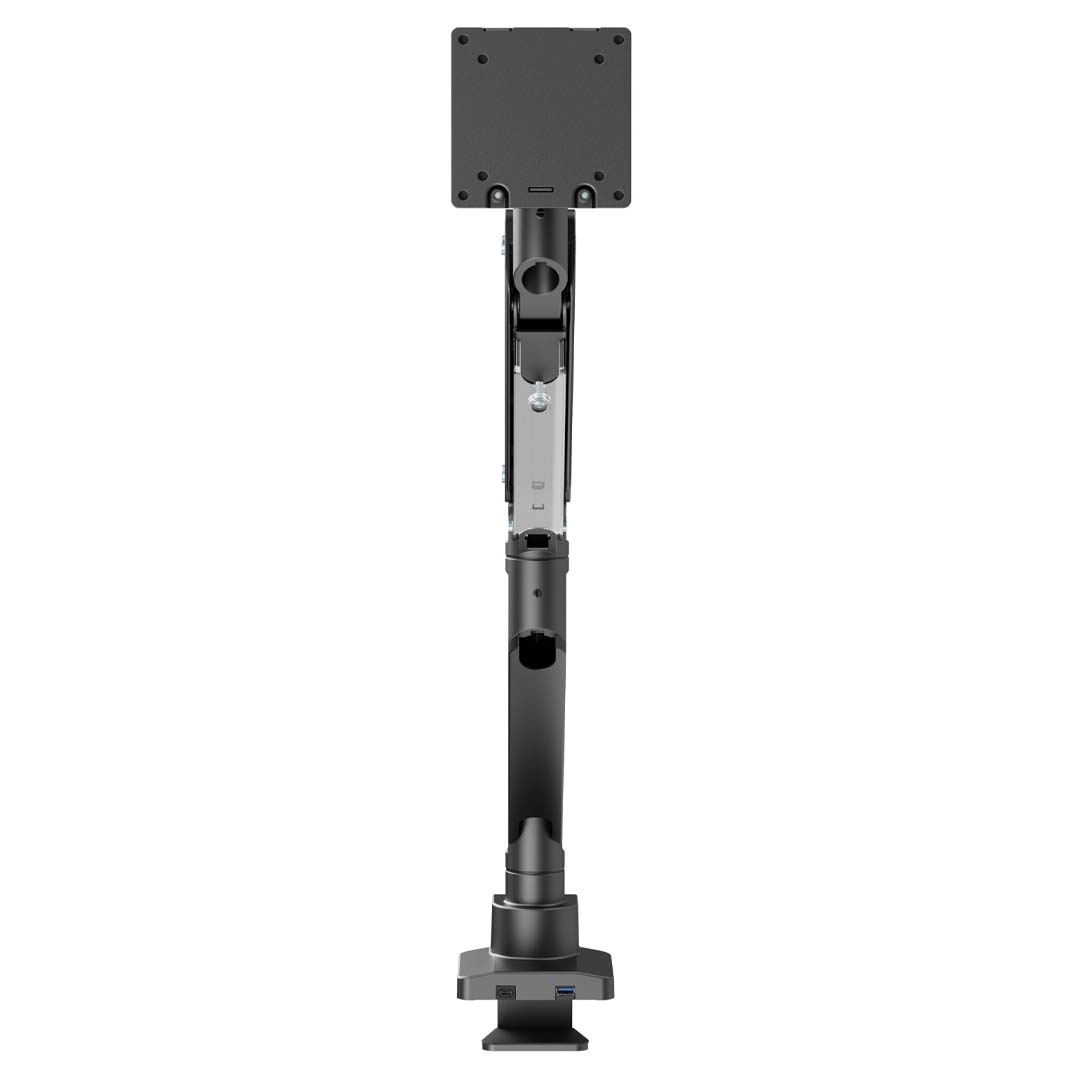

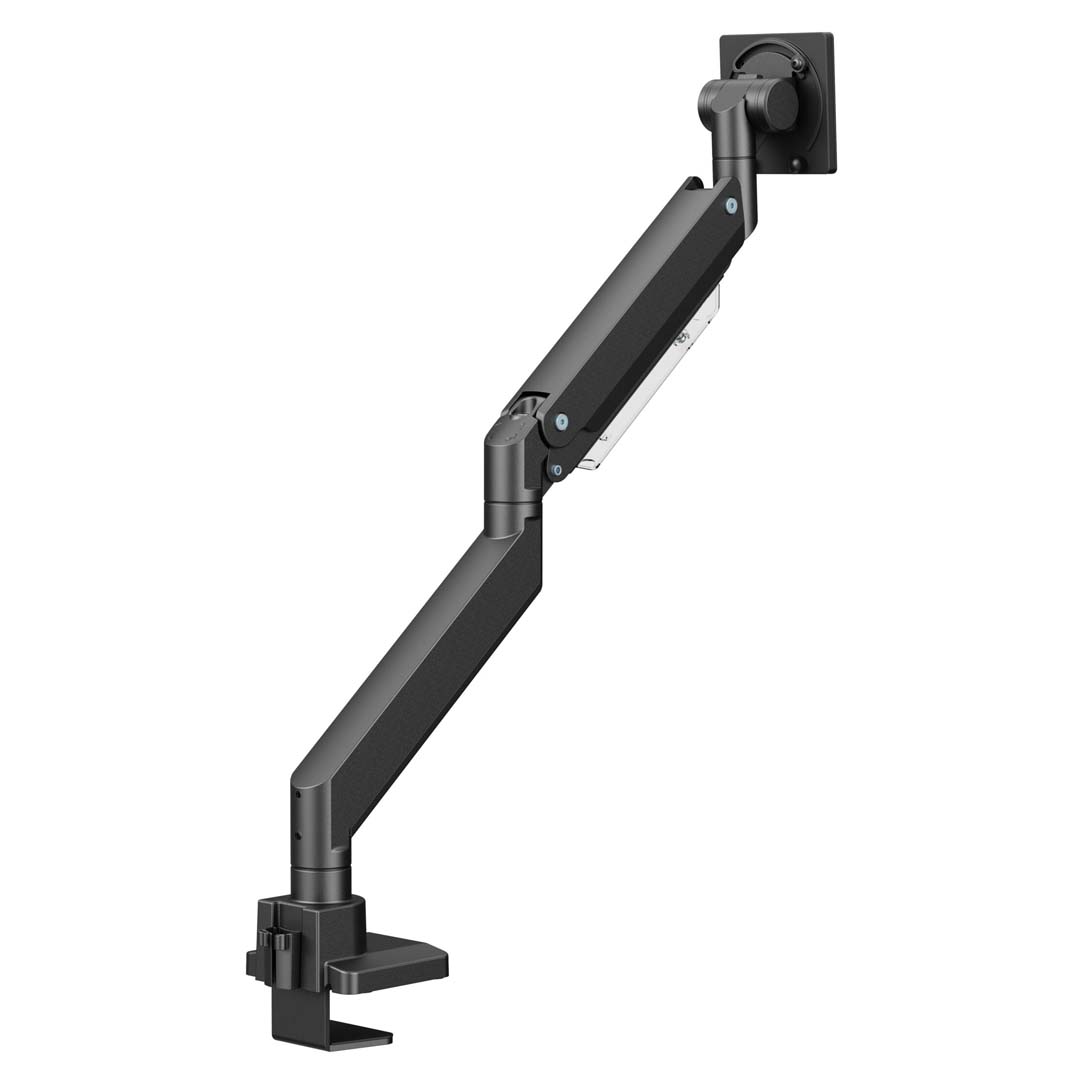

The Brateck LDT80 C012UC features a gas spring arm for smooth height, tilt and swivel adjustments, supporting monitors from 17 to 57 inches and up to 27 kg. It fits desks 10 to 45mm thick using a clamp or grommet mount and supports VESA patterns from 75x75 to 200x200. The arm also includes built-in cable management and USB-A and USB-C ports for easy connectivity.
Features
Brateck LDT80-C012UC Super Heavy-Duty Gas Spring Monitor Arm with USB-A and USB-C Ports for Most 17″~57″ Monitors, Matte Black
- Detachable VESA Plate Design: enables easy installation
- Built-in Spring Tension Mechanism: for perfect weight adjustments
- Include VESA Adaptors: fit monitors with different VESA patterns
- Optimised Tilting Structure: provides excellent weight-bearing capacity and smoother adjustment for large screens
- Installs from Top Side: installs entirely from above the desk surface
- Smart Base with USB-A & USB-C Ports: snap-off plates on the base provide data throughput or to charge devices
Specifications
| Model Number |
LDT80-C012UC |
| Product Category |
Gas Spring Monitor Arm |
| Rank |
Premium |
| Material |
Steel, Aluminium, Plastic |
| Surface Finish |
Powder Coating |
| Colour |
Matte Black |
| Dimensions (W x L x H) |
120x580x730mm (4.7″x22.8″x28.7″) (12x58x73cm) |
| Fit Screen Size |
17″-57″ |
| Fit Curved Monitor |
Yes |
| Screen Quantity |
1 |
| Weight Capacity (Per Screen) |
2~27kg (4.4lbs~59.4lbs) |
| Weight Capacity for Curved Screen (Per Screen) |
2~22kg (4.4lbs~48.4lbs) |
| VESA Compatible |
75x75,100x100,200x100,200x200,100x200 |
| Tilt Range |
+60°~-20° |
| Swivel Range |
+90°~-90° |
| Screen Rotation |
+90°~-90° |
| Arm Full Extension |
526mm (20.7″) |
| Installation |
Clamp, Grommet |
| Suggested Desktop Thickness |
Clamp:10~45mm Grommet:10~40mm (Clamp:0.39″~1.8″ Grommet:0.39″~1.6″) |
| Quick Release VESA Plate |
Yes |
| USB Port |
1xUSB 3.0 Port,1xType-C |
| Multi-Media Port |
No |
| Cable Management |
Yes |
| What's Included |
Normal/Ziplock Polybag, Compartment Polybag |
| Weight |
3.68 Kg |
Backed by a 1 year Brateck warranty.
