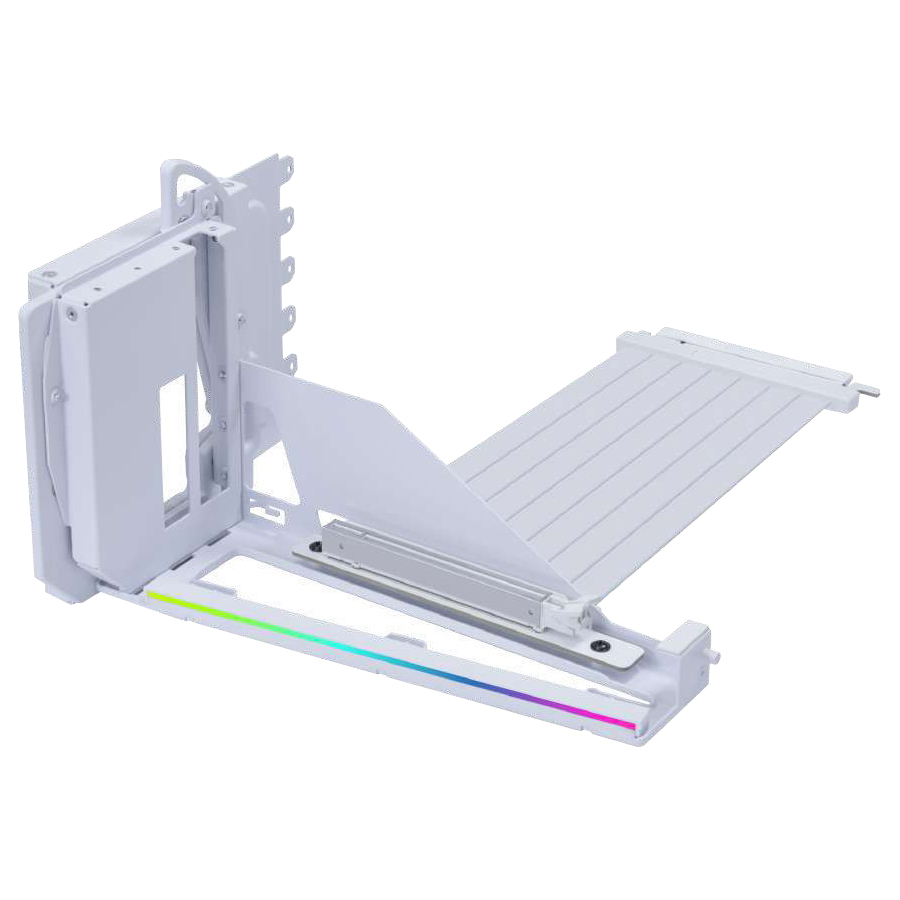

The Lian Li Multi-Direction PCIe 5.0 Vertical GPU Bracket White features triple height adjustment, dual-angle tilt options, and a reinforced anti-sag support arm to create an optimised, showcase ready GPU layout. A 200mm PCIe 5.0 riser cable ensures high-bandwidth performance, while integrated ARGB lighting and broad ATX-case compatibility make it an eye-catching and versatile upgrade for premium builds.
Features
Multi-Direction Vertical GPU Bracket (VG4-5-V4) with 200mm PCIe 5.0 Riser Cable
Redefine Your Angle. Elevate Your Build.
The LIAN LI Multi-Directional GPU Kit (VG4V4) offers a versatile solution for showcasing your graphics card with both form and function. It features triple height adjustment to accommodate bottom-mounted fans or large air coolers, and each level supports a dual-angle tilt, allowing you to tilt the GPU forward for additional cooling clearance or backward for a standout display angle. A 200mm PCIe 5.0 riser cable ensures top-tier performance and signal integrity, while integrated RGB lighting adds customisable visual flair. The included anti-sag support arm secures to a motherboard standoff, maintaining GPU stability over time. Available in black or white, the kit is compatible with ATX-supported cases, requiring at least six PCIe slots for standard use and seven for vertical or tilt configurations.
Available in Two Options
Note: The VG4V4 is designed to be installed with the screws already included with your case. Simply use the PCI-E bracket screws from your chassis, and up to four screws (commonly the same type as PSU screws) to secure your GPU firmly in place.
Fine-Tuned Heights, Perfected Builds
Three-Level Height Adjustment for Optimal Clearance
Easily adapt your vertical GPU positioning with three height adjustment levels. Raise the bracket to create more room for bottom-mounted fans or lower it to ensure compatibility with larger air coolers. V4 of the bracket includes a larder cutout for the GPU I/O, reducing interference with HDMI/Display cables.

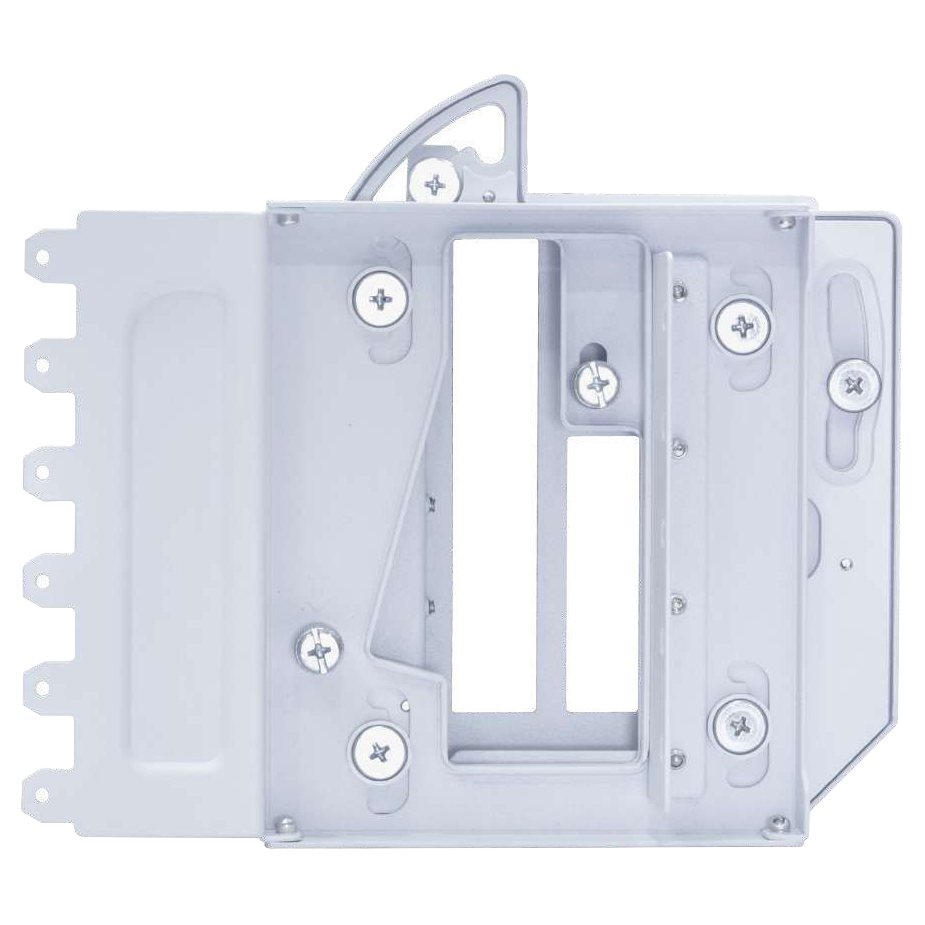

The bracket provides three mounting heights, each adjustable in 10.16mm increments with a simple one-screw adjustment, enabling precise GPU positioning and allowing clearance for bottom fans or larger CPU coolers with ease.
Adjusting the bracket to Level 2 or Level 3 improves compatibility with bottom-mounted fans or radiators.
Lowering the bracket to Level 1 enhances the visibility of AIO liquid coolers with built-in displays.
Note: Once the adjustment is complete, please ensure the screw is properly secured.
Three Display Angles
Dual-Angle Tilt for Cooling or Showcase
Each height level supports forward and backward tilt, allowing you to control both function and aesthetics. Tilt forward to create more space for bulky AIO CPU blocks and large CPU air coolers, and to improve GPU air intake. Alternatively, tilt backward to showcase your GPU with a unique, display-ready angle.
Each height level supports forward, neutral, and backward display angles, with dedicated mounting holes on the support arm for each position. All adjustments are quick, precise, and completely tool-free.
Forward Position
A forward tilt not only boosts airflow and thermal efficiency but also ensures better clearance for high-performance coolers.
(Demonstrated with LANCOOL 217)
Backward Position
A backward tilt showcases the graphics card with a more refined and visually appealing angle.
(Demonstrated with 011 Vision Compact)
Flexible support arm placement to suit different GPU setups.
Performance, Secured with Strength
Anti-Sag Support: Rock Solid and Reliable
The anti-sag arm supports up to 10kg with out bending and mounts directly to the motherboard standoffs. Also, it offers adjustable height settings for precise alignment, working seamlessly with 4-slot GPU configurations supported by the bracket.
Users can adjust the height of the support arm based on the height settings of the bracket.
Multiple height options ensure compatibility, including adjustments after rotation.
Note: Please check the GPU's display height and tilt position, and adjust the support bracket before installation. This anti-sag bracket is not compatible with GPU brackets installed in PCIe slots 3 through 8, so ensure compatibility based on your specific setup.
Dual Anti-Sag Support for ATX/M-ATX and E-ATX
Anti-Sag Support Arm for Long-Term Stability

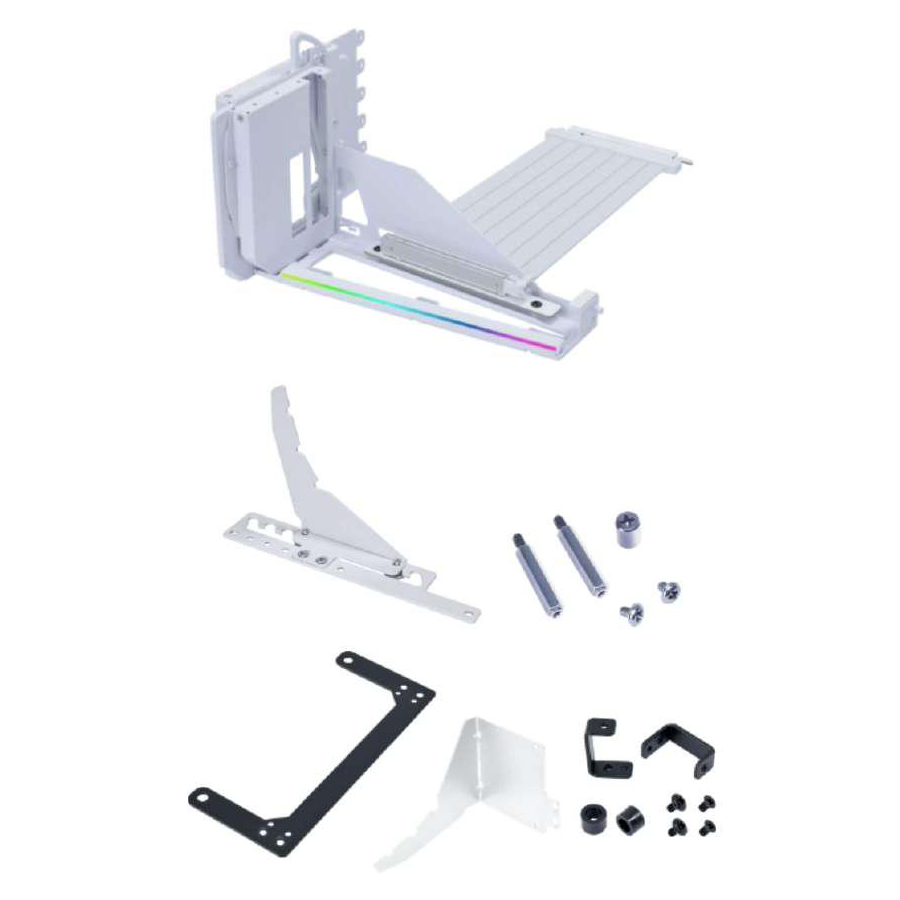

The support arm secures to the motherboard standoffs, preventing the 4-Slots Vertical GPU Kit v4 from sagging and keeping your graphics card level and firmly in place, which is especially important for heavier models. The arm also offers multiple height adjustments to ensure a perfect fit in any situation. Both #6-32 thread screws and M3 screws are included for greater compatibility across different case standoffs. The V4 version also includes the necessary accessories to adapt the anti-sag bracket to an E-ATX motherboard.
The bracket offers two anti-sag configurations for secure installation across multiple board sizes. ATX and M-ATX share a standard support arm, while E-ATX uses its own extension arm for proper alignment and clearance.
Note: Certain E-ATX motherboards have side accessories that may obstruct the VG4V4 anti-sag bracket. Please confirm compatibility before installation.
Note: The extension arm is required only for E-ATX installations. If your package does not include the E-ATX extension arm, please contact Lian Li through their official Contact Us page so they can assist you and arrange the necessary part.
ARGB Lighting: A Touch of Brilliance
Integrated RGB Lighting
Add a splash of colour to your setup with integrated RGB lighting on the bracket. Powered by a standard 5V addressable RGB cable and compatible with all motherboard lighting software, easily sync it with your system’s lighting for a cohesive look or create standout effects that highlight your GPU.
The built-in 5V ARGB lighting integrates effortlessly with major motherboard lighting software. Vivid effects bring the build to life and add visual depth to the system's core.
Enhanced GPU Stability
The rubber pad has been refined to a slimmer profile, preventing the graphics card from being pushed upward and dislodged, ensuring a smoother and more secure installation experience.

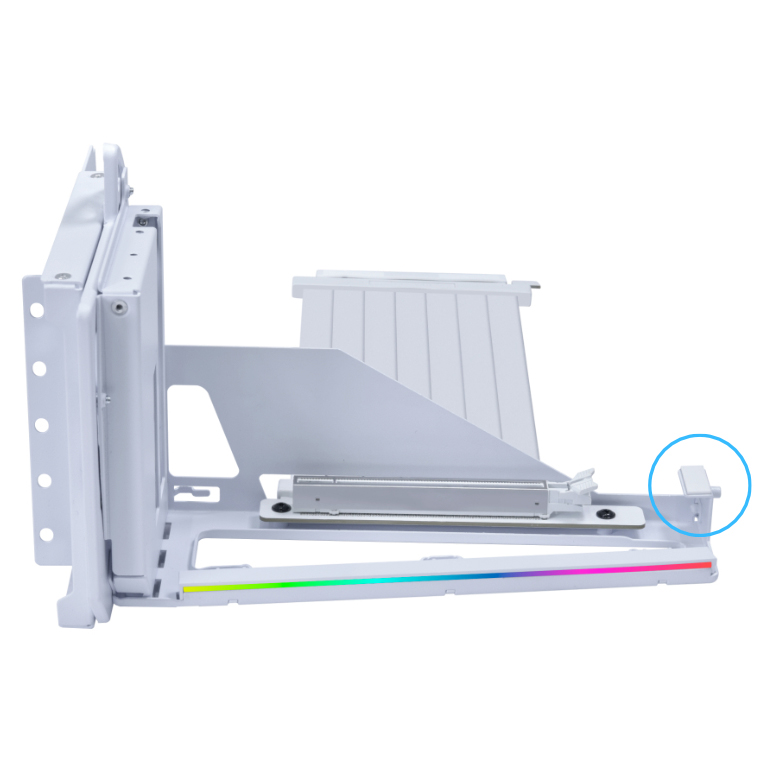

Expanded Rear Bracket for Better Case Compatibility
The extended rear bracket design increases overall mounting length, improving compatibility with a wider range of cases.
The enlarged rear opening also provides additional clearance, making it easier to plug in thicker HDMI cables and ensuring a smoother, interference-free installation.

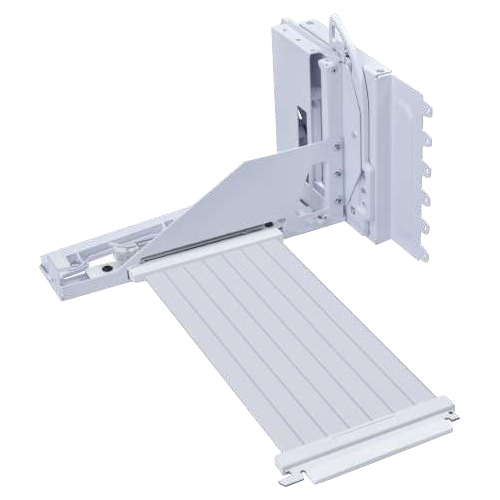

PCIe 5.0 Cable Built for High Speed and Full Compatibility
High-Speed PCIe 5.0 Riser Cable Included
Unlock the full performance of your GPU with the included 200mm PCIe 5.0 riser cable, supporting data transfer rates up to 32 Gbps, double the bandwidth of PCIe 4.0. Fully backward compatible with PCIe 2.0, 3.0, and 4.0, this cable delivers top-tier bandwidth and signal integrity for today’s most demanding GPUs. V4 of the kit increased the cable length from 155 to 200mm, allowing for greater flexibility across different builds, with additional changes to enhance transmission bandwidth and improve performance.
The 200mm PCIe 5.0 riser cable delivers up to 32Gb/s bandwidth, which is twice the speed of PCIe 4.0. It supports PCIe 2.0 to 4.0 devices and ensures stable signal transmission with consistently high performance across wide range of GPUs.
BIOS Update: Ensure that your motherboard's BIOS is updated to the latest version to maintain full compatibility with PCIE 5.0.
- PCIe 5.0 X 16 - 32Gb/s (up to 63.0 GB/s) (Bandwidth Improvement ↑2x)
- PCIe 4.0 X 16 - 16Gb/s (up to 31.5 GB/s)
Note: Always ensure both ends of the riser cable are securely connected to the GPU and motherboard while the system is powered off. Improper installation may cause electrical short circuits or hardware damage.
Made to Match, Built to Adapt
This bracket features an adjustable slot design, supporting up to six slots for vertical installation or seven slots for angled mounting.
It accommodates GPUs up to four slots thick, ensuring a perfect and secure fit for even the most high-end graphics cards.
Note: Once installed, the bracket shifts the GPU forward by 31mm. Please ensure your case has sufficient internal depth, as more compact chassis may have limited clearance.
Cases Support
Compatibility with Most ATX Cases
Designed to fit cases supporting ATX motherboards, the kit requires at least 6 PCIe slots for standard vertical mounting and 7 slots for tilted configurations, ensuring broad compatibility with modern builds. The bracket can accommodate thick GPUs up to 4 slots. For V4 of the GPU kit, the mounting frame design has been improved with narrower prongs to facilitate installation with third-party cases where the previous version didn't fit properly,
In addition to LIAN LI cases, any chassis from other brands that meets the above specifications can also be paired with the bracket. Users can purchase it separately for flexible use, making it an easy upgrade option for most standard ATX setups.
- LANCOOL: 217 INF/217/207D/207/206/216/III/205/215
- 011 Vision Compact / 011 Vision
- O11D EVO RGB / O11D EVO RGB Lamborghini / O11D EVO / O11D EVO XL
- Vector V100
- O11D MINI V2 (limited use) - This case supports the bracket with certain restrictions. For the best experience, it's recommend to use the included vertical GPU kit that comes with the chassis.
Backed by a 1 year Lian Li warranty.
