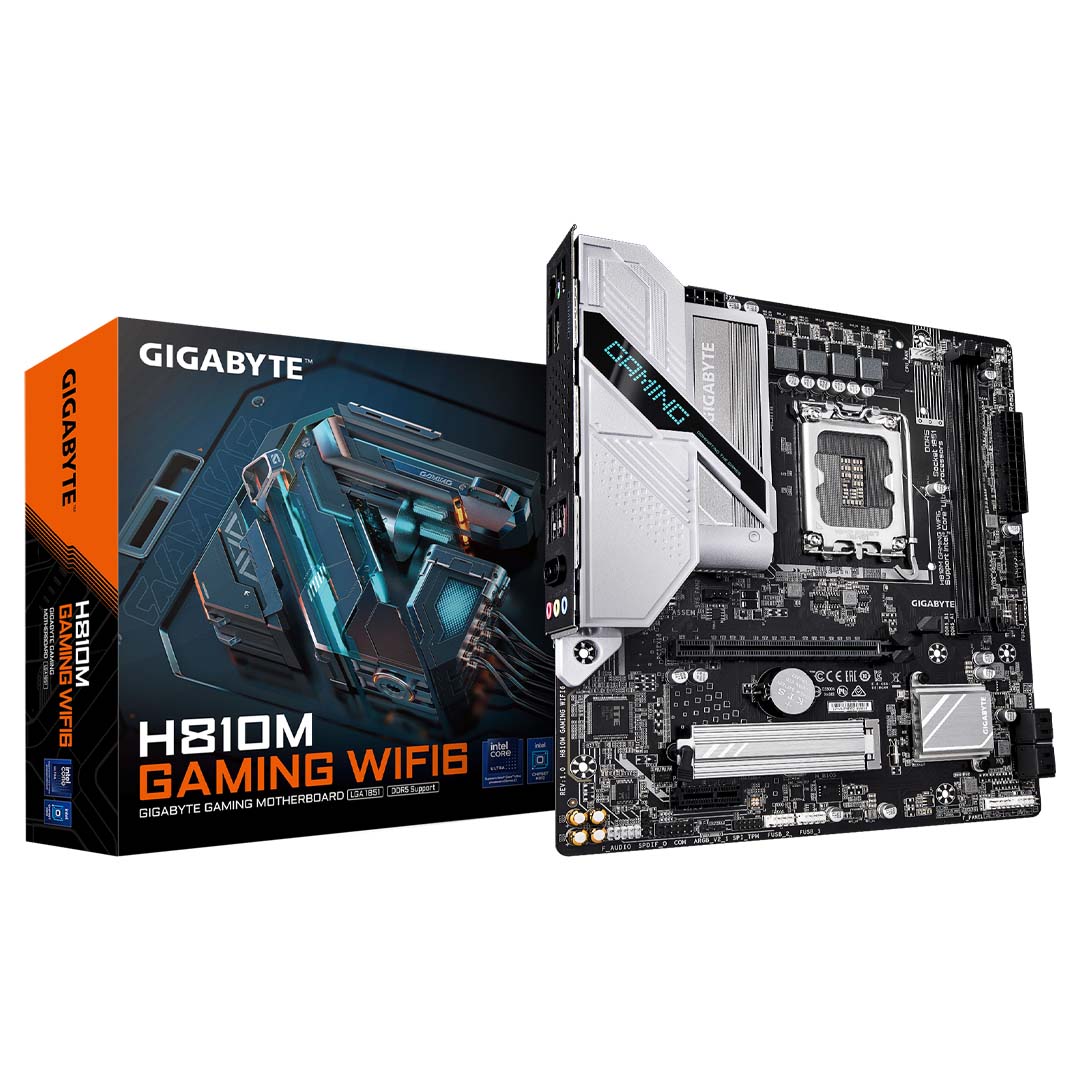

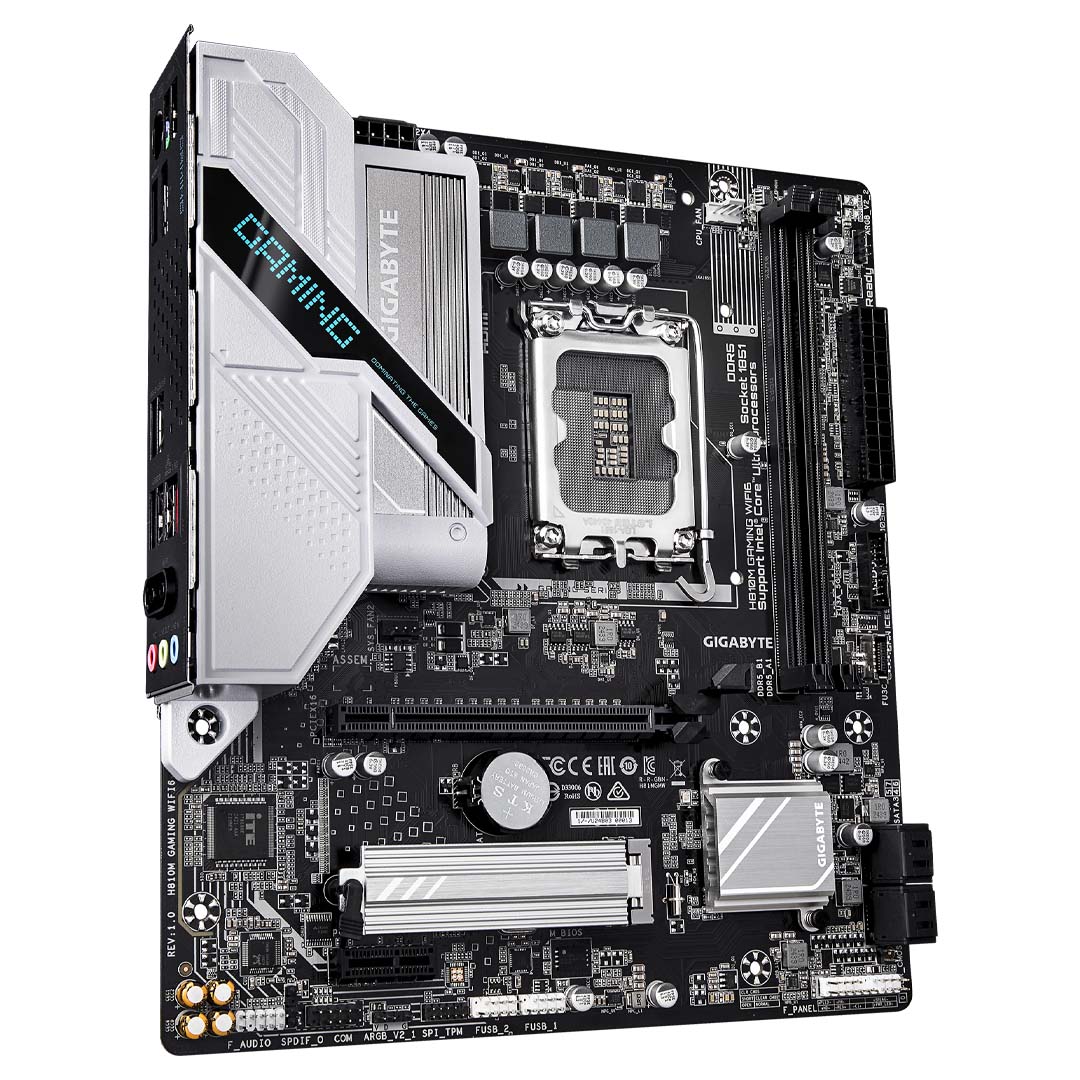

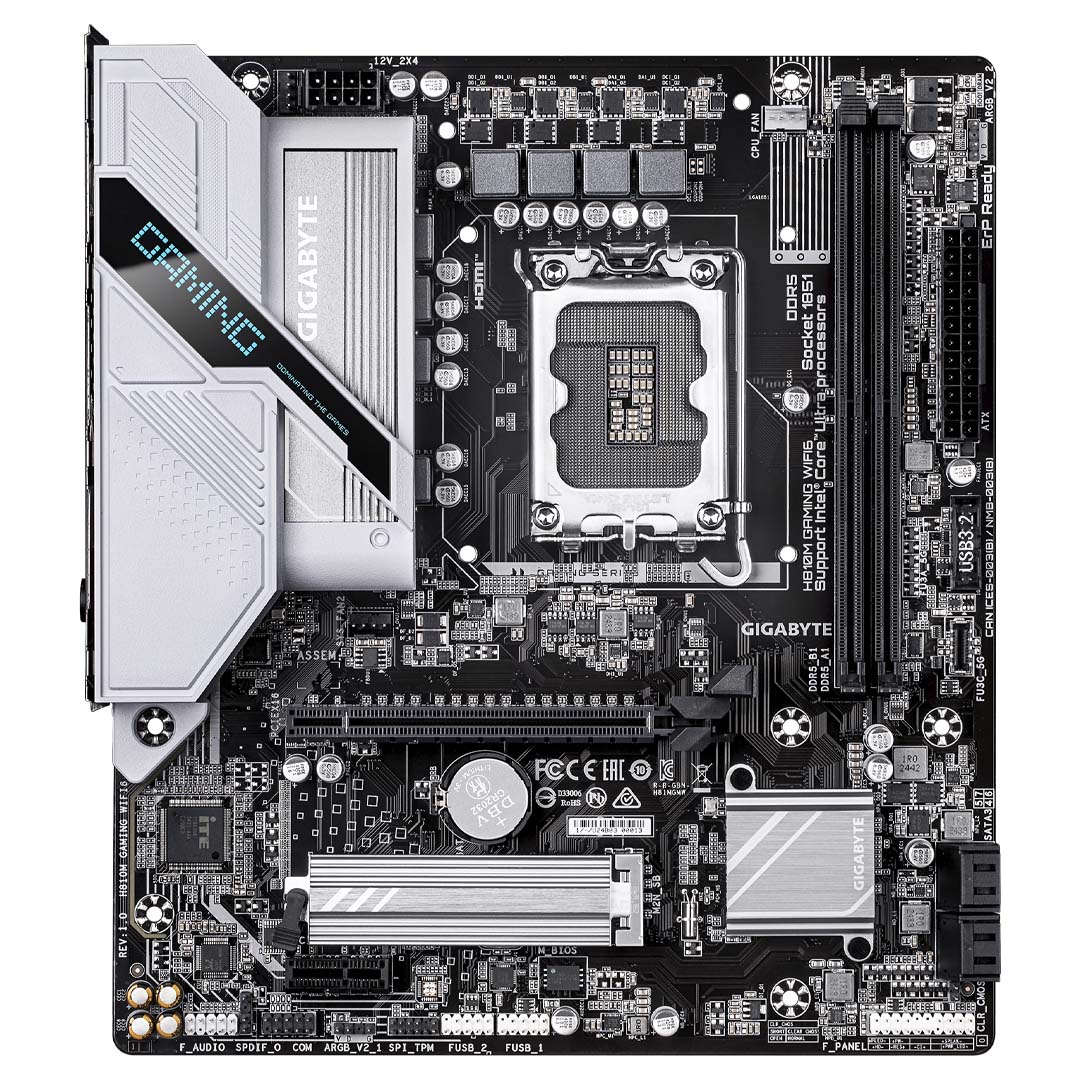

The Gigabyte H810M Gaming WiFi6 features an LGA 1851 socket that supports Intel Core Ultra Series 2 processors. It includes two DDR5 slots for up to 128 GB of fast memory, a PCIe 4.0 slot for graphics cards, and a M.2 Gen4 slot for NVMe storage. The board also offers WiFi 6, Bluetooth 5.3, 2.5 Gb Ethernet, HDMI and DisplayPort for integrated graphics.
Warning: This product contains a button battery
- If swallowed, a lithium battery can cause severe or fatal injuries with 2 hours.
- Keep batteries out of reach of children.
- If you think batteries may have been swallowed or placed inside any of the body, seek immediate medical attention.
|
Features
H810M Gaming WiFi6
- Supports Intel® Core™ Ultra processors (Series 2)
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch: PCIe x16 Slot with Quick Release Design
- M.2 EZ-Latch Plus: Screwless installation for M.2 SSDs
- Friendly UI: Multi-Theme, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage: PCIe 4.0 x4 M.2 slots
- Efficient Thermal: VRM Thermal Armour Advanced & M.2 Thermal Guard
- Fast Networking: 2.5GbE LAN & Wi-Fi 6 802.11ax
- Extended Connectivity: HDMI, DisplayPort
Performance
- UD Power Connector
24 pin ATX Power Connector
8 pin CPU with UD Solid Pin
- Full-length PCIe slots
1 x PCIe 4.0 x16 Slot
1 x PCIe 3.0 x1 slot
- Intel® Core Ultra processors (Series 2) Support
- 2 x DIMMs, Dual Channel DDR5
- 1 x PCIe 4.0 M.2 Slot
Thermal
- VRM Thermal Armour Advanced
Integrated IO Shield
- M.2 Thermal Guard

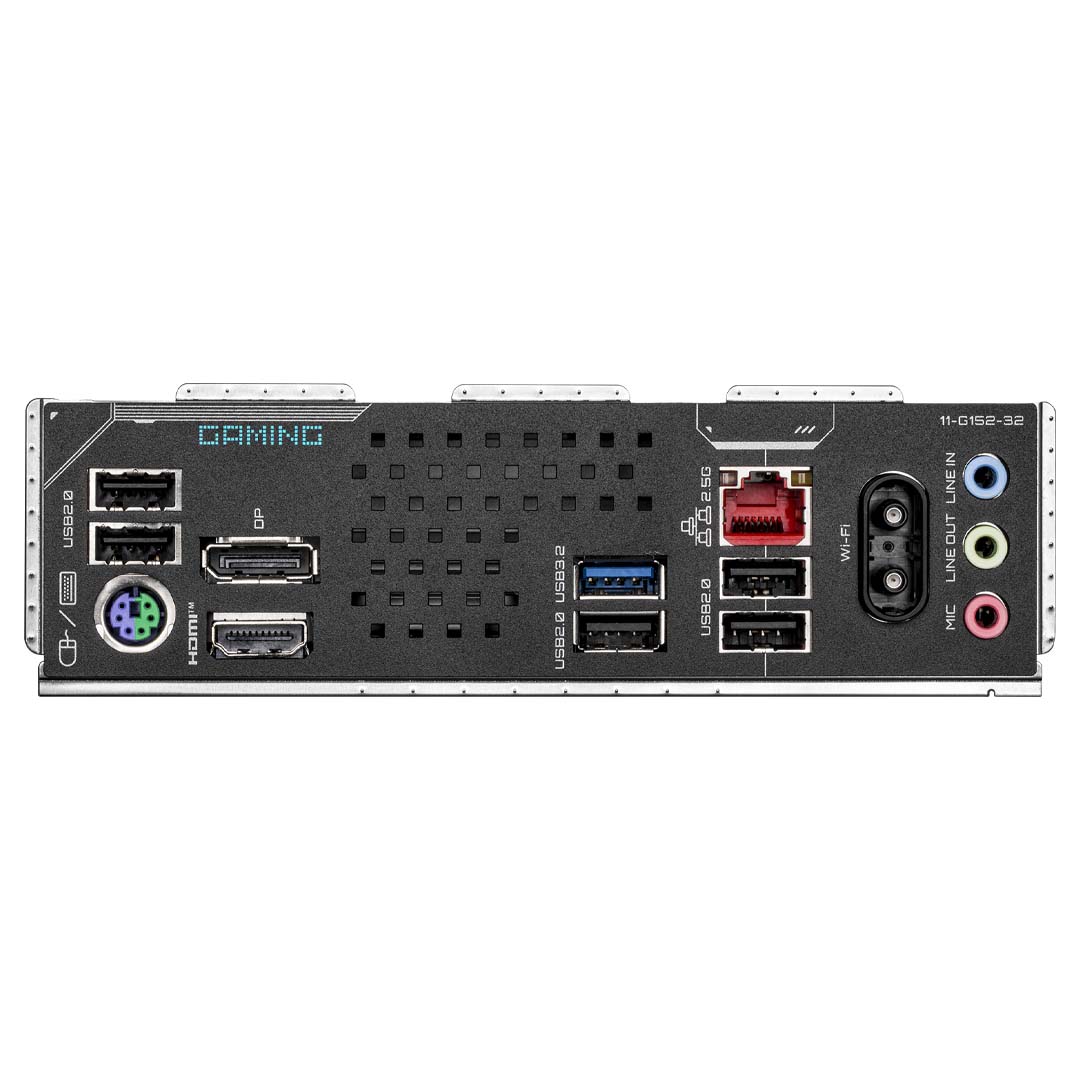

Connectivity
- 5 x USB 2.0
- 1 x HDMI
- 1 x DisplayPort
- 1 x USB 3.2 Gen 1
- 2.5 GbE LAN
- WIFI EZ-Plug
- Wi-Fi 6 802.11ax
- Hi-Fi Audio
8-CH HD Audio
High-End Audio Capacitor
- Front USB-C 5Gb/s
- 4 x SATA 6Gb/s
- RGB FUSION
2 x ARGB LED Headers
DIY Friendly
- WIFI EZ-Plug
- M.2 EZ-Latch Plus
- EZ-Debug Zone
Debug LEDs
- PCIe EZ-Latch
Sturdy VRM Design
Steady Power
Better Play GAMING Series, steady power keeps your gaming smooth.
Hybrid VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.
4 VCORE Phases
Unlock the full power of your multi-core CPU for unmatched performance.
1 VCCGT Phase
Optimised for integrated GPU performance and memory management within the CPU.
2 VCCSA Phases
Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.
Cooling
Comprehensive Thermal
GAMING motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
Level Up Epic VRM Heatsinks for Non-Stop Gaming
- 4X Massive cooling surface - Exceptional heat dissipation
Premium VRM Thermal Armour for Superior Cooling
"Stay Cool, Game On"
High-coverage MOSFETs with integrated moulded heatsinks.
4X Larger Surface Area for Enhanced Heat Dissipation
With up to 4 times the surface area of traditional coolers, this advanced design significantly boosts MOSFET cooling performance.
Multi-Cut Design with Channels for Improved Airflow
- More grooves, more airflow.
- Better airflow, cooler system.
True One-Piece Heatsink Design
- Outperforms competitors' multi-piece solutions
- Integrated design and expanded surface area deliver exceptional cooling performance
M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Smart Fan 6
Cool. Quiet. Customised.
Superior cooling performance and whisper-quiet operation for your gaming rig..
High Current Support
- Supports both PWM and DC fans, plus water cooling pumps
- Up to 24W (12V x 2A) capacity per fan header
- Built-in over-current protection
Precision Control
- Multiple temperature and fan speed points
- Customisable fan curves for optimal performance
Dual Curve Mode
- Choose between slope and stair modes
- Tailor cooling to your specific needs and preferences
Fan Stop Technology
- Fans can be completely turned off at low temperatures
- Ensures silent operation during light loads
Smart Fan 6 BIOS UI
Enhance Fan Curve UI
- 7 adjustable control points
- Expanded speed graph for precise adjustments
Slope/Stair Dual Graph Mode
- Slope mode: Smooth fan speed curve
- Stair mode: Steady speeds within temperature ranges
- Easy switching between modes
Manual Input
- Fine-tune fan speeds for optimal performance
- Precise control for enthusiasts
EZ Tuning
- Quick setup with 4 temperature and fan speed points
- Automatic optimisation of fan curve
Fan Curve Profile
- Save personalised settings to BIOS ROM
- Maintain custom settings through BIOS updates
Easy & Friendly
Hassle-Free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.
WiFi EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adaptor, EZ to install.
EZ-Latch Designs
User-friendly designs simplifying the assembly process.
M.2 EZ-Latch Plus
Screwless installation for M.2 SSDs.
PCIe EZ-Latch
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
Fast-Access Controls
Handy, Revert, Refresh
- EZ Debug Zone
- Q-Flash Auto Scan
Quick Control Elements
EZ Debug Zone
Centralised debug LEDs and control buttons provide a handy and organised troubleshooting process when building a new computer.
* Photo for reference only.
Multi-Key
A flexible control key for reset with BIOS-level reconfiguration options for diverse usage scenarios.
RGB Switch
Disable all light displays on the motherboard.
Direct-to-BIOS
Access the BIOS settings directly without keyboard inputs.
Safe Mode
Access BIOS safe mode to modify select settings while preserving other configurations.
Optimal DRAM Installation Indicator
The DRAM Indicator LED will turn on when a module is installed into a non-recommended slot.
Q-Flash Auto Scan
The new Auto Scan function features when using USB flashdrive during Q-Flash, the BIOS file will be auto scanned instead of searching manually.
Future Connectivity
All-Round Connectivity
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.
802.11ax Wi-Fi 6
The Wireless solution 802.11ax Wi-Fi 6 enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5.3 provides 4X range over BT 4.2 and with faster transmission.
- 2400 (2x2 802.11ax) - Up to 5.5x Faster Transmission Speed (Mbps)
- 1734 (2x2 802.11acR2)
- 867 (2x2 802.11ac)
- 433 (1x1 802.11ac)
*Based on WIFI theoretical bandwidth
2.5G LAN
Design deliver blisteringly fast transfer speeds to ensure the most stable transmission environment when the system is performing cloud computing or providing external computing services.
Hi-Fi Audio
- High-End Audio Capacitors
- Audio Noise Guard
High-End Audio Capacitors
These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.
Audio Noise Guard
Essentially separates the board's sensitive analogue audio components from potential noise pollution at the PCB level.
Ultra Durable™
Born from Ultra Durable™
Technology embodies GIGABYTE's commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. GAMING series motherboards are engineered to endure and excel.
UD Power Connector
Our innovative UD Power Connector design enhances power conductivity and thermal dissipation.
Solid Pins
Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections.
Tailored Computing
Collaborative Excellence in Computing
More superb, user-friendly, customised BIOS & software.
GIGABYTE motherboards showcases the devotion to BIOS improvement. Through synergy with the user community, GIGABYTE democratise next-level computing power.
UC BIOS
Restructured with user-centred and intuitive performance adjustment mechanisms.
Multi-Theme
Multiple BIOS skin with newly exclusive greyscale mode.
Now users can choose different BIOS themes with one simple click It not only delivers an immersive user experience but also offers a brand new user-friendly theme: Greyscale.
Refined BIOS Interface
GIGABYTE User-Centred (UC) BIOS elevates the interface, delivering an optimised experience through an easy-to-navigate layout and attractive design for optimal usability.
Quick Access Function
GIGABYTE UC BIOS' Quick Access function selects brings 9 key options from Advanced Mode directly into Easy Mode, enabling swift adjustments without extensive navigation.
Gigabyte Control Center
A unified software platform encompassing multiple GIGABYTE product.
RGB Fusion
Personalise the RGB illumination on your motherboard and connected peripherals.
Spotlight Your Flair
Liberate your imagination using GCC's versatile illumination options for your motherboard. Tailor your setup with eye-catching displays that mirror your unique personality and preferences.
Varnish Your Shine
Programmable RGB LED connectors enable precise control over individual LEDs (for ARGB GEN2 devices), seamlessly managed through the GCC.
*The information provided is for reference; please prioritise your specific setup and specifications.
HWiNFO Exclusive Partnership
- Memory Timings Monitor
- Detailed BIOS information
Memory Timings Monitor
Thanks to the collaborative efforts of GIGABYTE and HWiNFO experts, this sophisticated monitoring tool now provides unprecedented detail in memory timing readouts. This empowers users to closely track memory performance and gather crucial insights.
Detailed BIOS Information
GIGABYTE motherboard users can now access comprehensive BIOS details in real-time through HWiNFO. This includes toggle and tweaker statuses, as well as BIOS versions. No need for system reboots to check BIOS info. anymore.
Backed by a 3 year Gigabyte warranty.
