The FSP U580 Three‑Glass Panels Ultra Tower features three tempered‑glass panels for full‑view showcasing and a dual‑chamber design that neatly hides the power supply and cables. It supports graphics cards up to 415mm long, CPU coolers up to 160mm high, and radiator configurations up to 360mm in size, plus it includes seven pre‑installed ARGB fans for strong airflow and visual appeal. The case offers modern front I/O connectivity with USB‑C and USB‑A ports, and is built with 0.7mm SPCC steel for a sturdy large‑format build.
Features
U580 Three Glass Panels Ultra Tower Black
- Three-Glass panels redefines aesthetics
- Supporting back-connect motherboard
- Pre-installed with 120mm ARGB FANS x7
- Supports up to 360mm radiator
- Supports up to dual high-end Graphics cards
- Supports up to 415mm Graphics cards
- Supports up to 160mm CPU cooler
- 240mm PSU
- USB Port Type-C/USB3.0 x 2
Innovative Design Meets Crystal Clarity
The U580 Three-Glass PC Case redefines showcase aesthetics with tempered glass panels on the front, and side. Its sleek, modern design offers a panoramic view of your build while supporting high-performance components and optimised airflow.
ARGB Fans 120 mm x 7

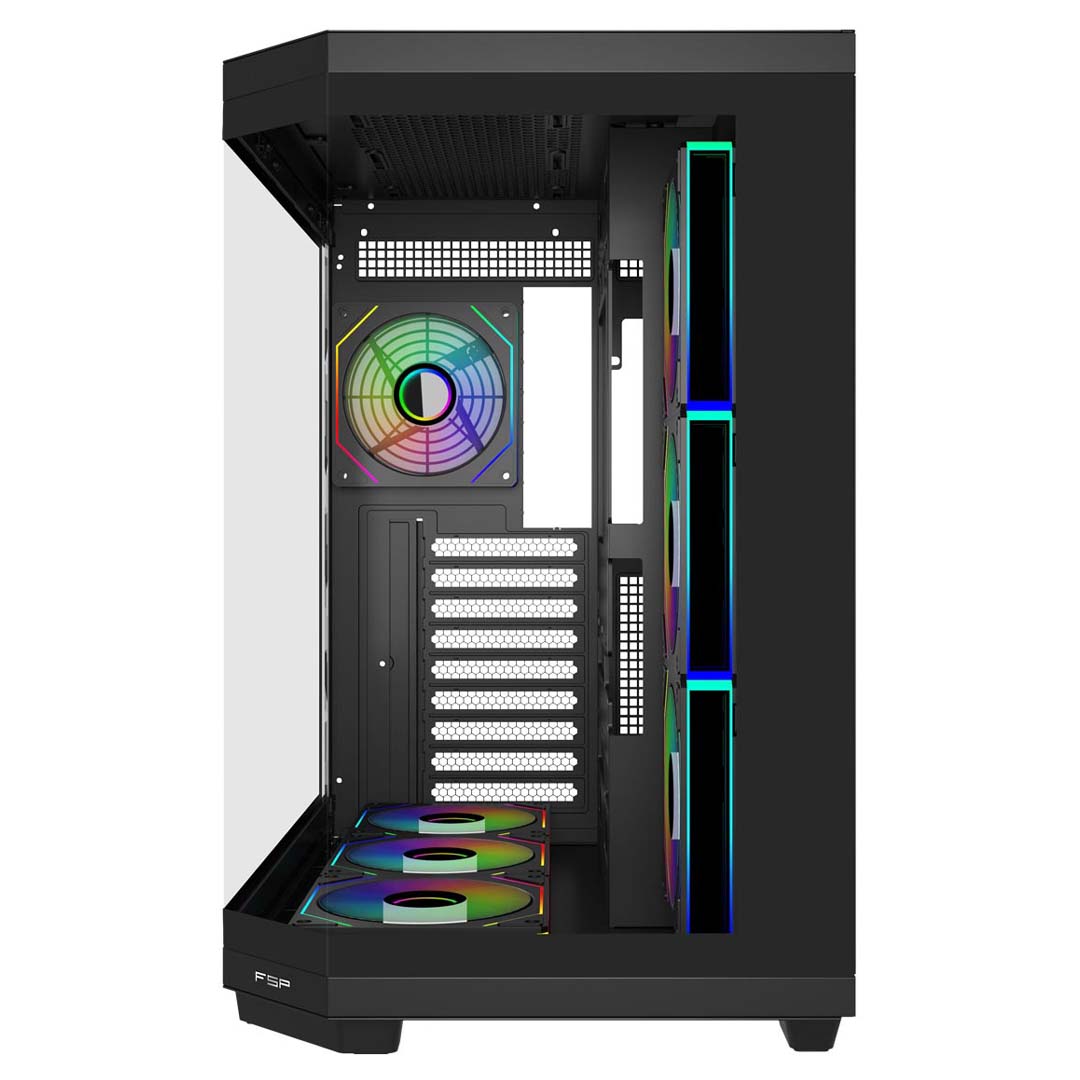

The side and bottom come pre-installed with six 120mm PWM ARGB fans, while the rear features a 120mm ARGB fan.
160mm Tall
CPU Cooler
Supports up to 160mm CPU cooler.
415mm-Long
Graphics Cards x 2
It supports dual high-end Graphics cards.
360mm-Long
Radiator
Supports up to 360mm radiators on side, top and bottom panels.
Clean Builds, Cool Performance
Compatible with ATX (BTF), M-ATX, and Mini-ITX motherboards, the U580 features built-in cable routing for clean back-connect setups. With seven pre-installed 120mm ARGB fans, it delivers both striking visuals and high-efficiency cooling.

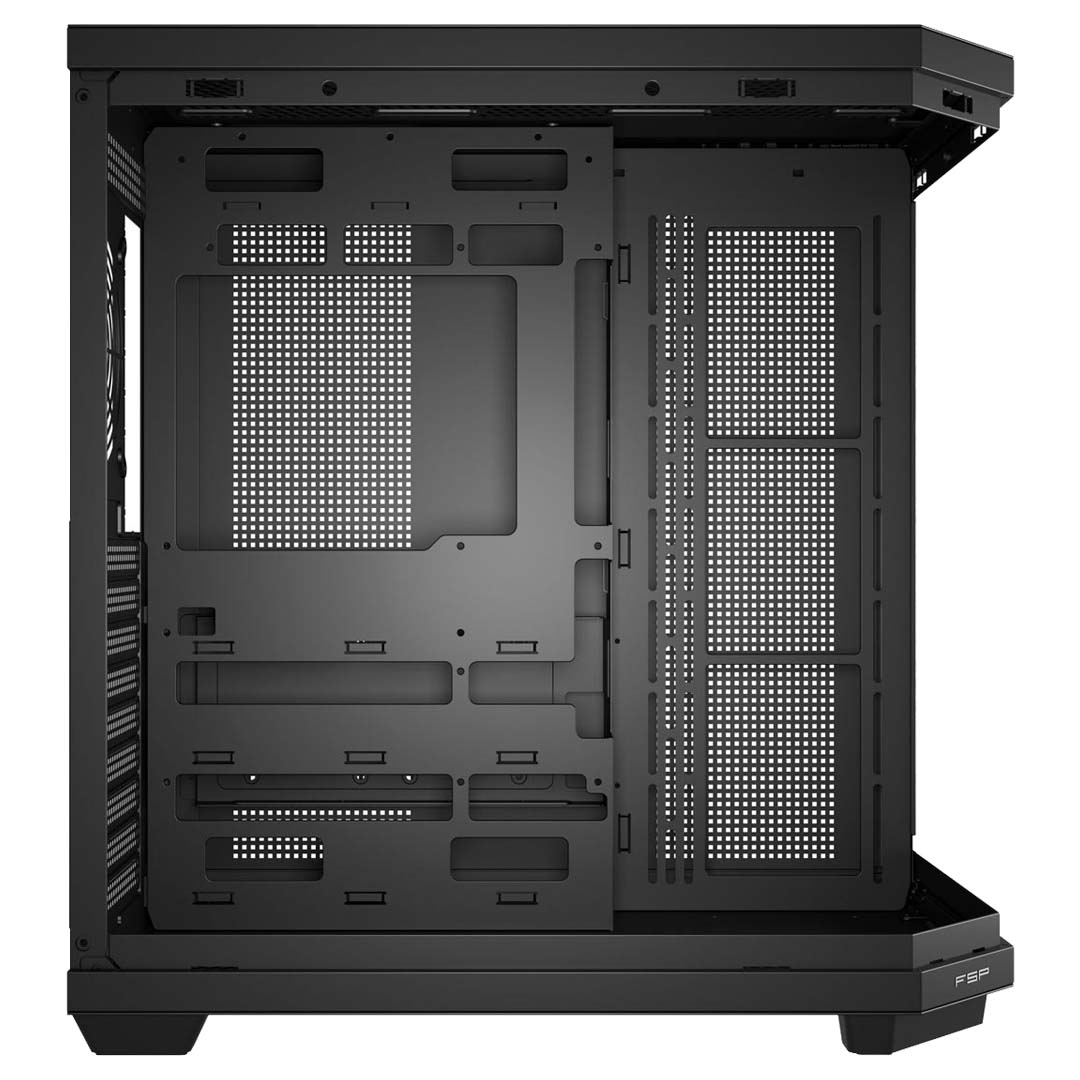

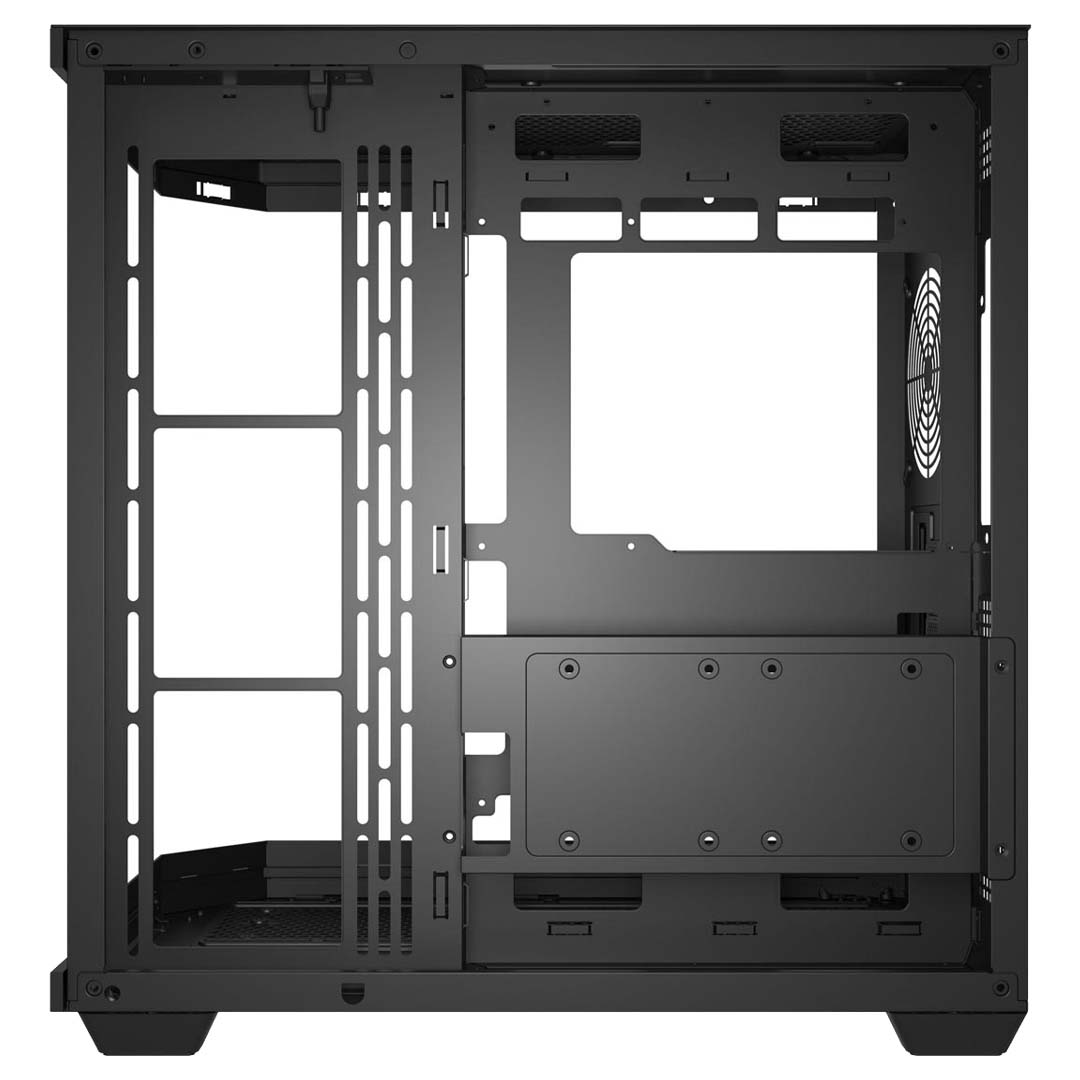

Dual-Chamber, Organised Space
Designed with a dual-chamber layout, the U580 keeps the PSU, hard drives, and cables neatly tucked away, delivering a clean and clutter-free build. Combining refined aesthetics with high-performance potential, it features tempered glass panels on three sides, showcasing your components in style.
Storage
- SSD x 2
- HDD x 1
- 240mm PSU
Specifications
| Model Number |
FSP-U580-BK |
| Type |
ATX Ultra Tower |
| Colour |
Black |
| Materials |
0.7 mm SPCC, Glass x 3 |
| Weight |
8.33 kg |
| Dimension D x W x H (mm) / (inch) |
426 x 285 x 453 mm |
| Maximum CPU Cooler Height |
160 mm |
| Graphics Card Length |
415 mm |
| Expansion Slots |
9 |
| Motherboard Support |
ATX(BTF), M-ATX, Mini-ITX |
| External I/O Port |
USB3.0 x 2, Type-C |
| Power Supply Type |
240 mm ATX |
| 3.5“ HDD |
1 |
| 2.5" SSD |
2 |
| Fan Including(Pre-Installed) |
Front: Side:120 mm reverse PWM ARGB x 3 with PWM controller
Bottom: 120 mm reverse PWM ARGB x 3
Rear: 120 mm ARGB x 1 |
| Fan & Water Cooler Support |
Side:120 mm x 3 or 140 mm x 2 or 360 mm Radiator
Top: 120 mm x 3 or 360 mm Radiator
Bottom: 120 mm x 3 or 240 mm Radiator
Rear: 120 mm x 1 |
| Max Radiator Support |
360 mm |
Backed by a 2 year FSP warranty.
