The Cruxtec Universal 14-in-1 USB-C Docking Station with SSD Enclosure features dual HDMI outputs at up to 4K at 60Hz, a built-in M.2 NVMe/NGFF slot supporting up to 10Gbps and 4TB, and a 100W power delivery USB-C port for laptop charging. It also provides a host USB-C port, gigabit ethernet, a range of USB-A and USB-C ports (5 Gbps and 10 Gbps), micro/SD card readers, and a 3.5mm audio jack, ideal for expanding a laptop's connectivity from a single cable.
Note: Requires an external USB-C power adapter for operation.
Features
Cruxtec Universal 14-in-1 USB-C Multifunctional Docking Station with SSD Enclosure
Expand the connectivity of MacBook, Windows laptop, or Chromebook with a single USB-C connection. Supports MST/SST dual HDMI output on Windows, with a maximum resolution of 4K@60Hz when the computer supports HBR3 bandwidth. It features a built-in M.2 NVMe & NGFF dual protocol slot, supporting up to 10Gbps and 4TB capacity, and is designed with a magnetic top cover for easy installation.
14-in-1 Solution
Cruxtec Universal 14-in-1 USB-C Multifunctional Docking Station gives you all-in-one solution to connect to monitors, ethernet, SD cards, and more devices.

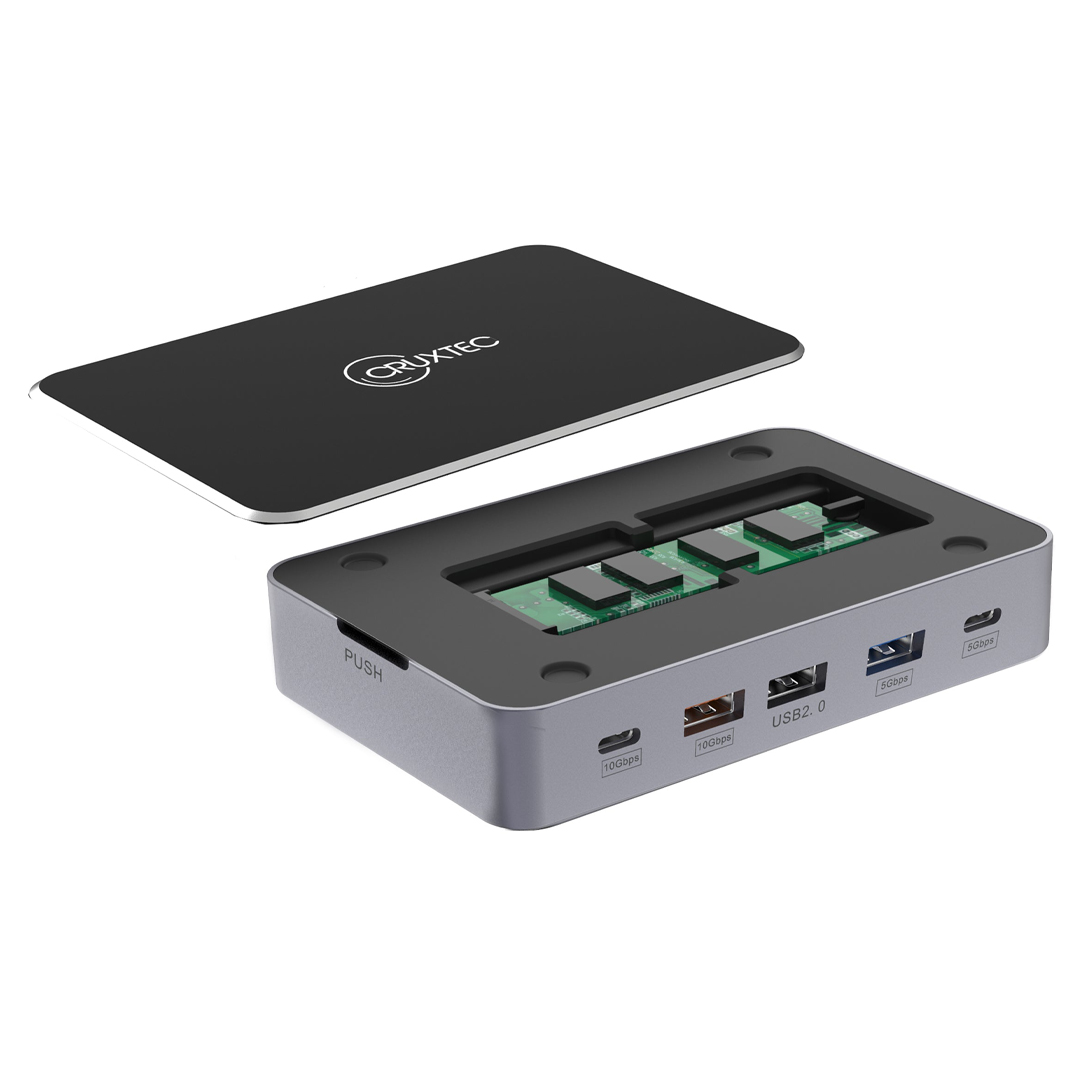

Built-In NVMe & NGFF Dual Protocol SSD Enclosure
Supports Dual HDMI output up to 4K@60Hz
SuperSpeed USB 3.2 Interface Transfer Rates Up to 10Gbps
Micro SD3.0 / 1 x SD3.0 Card Reader. 3.5mm Audio Jack.
Multi-Screen Extension
Support Windows Systems
Supports MST/SST on Windows, Supports resolution up to 4K@60Hz in multi-screen output; The device needs to support HBR3 bandwidth or above.
01. Extended Mode
Laptop screen + two monitors Triple Screen Different Display.
02. Mirror Mode
The laptop screen and two external monitors mirror the same content.
03. Extended Mode
The laptop screen and two external monitors.
Support Mac OS Systems
- On Mac OS with M1 CPU only supports 1 external monitor display in USB-C Display Alt mode, Supports resolution up to 4K@60Hz.
- On Mac OS with M2/M3 CPU supports multi-screen mirroring or extending; Supports resolution up to 4K@60Hz in multi-screen output.
01. Mirror Mode
The laptop screen and two external monitors mirror the same content.
02. Extended Mode
The laptop screen and two external monitors show different content.
Specifications
| Model Number |
CRUXTEC-CDK14-SG |
| Interface |
2 x HDMI Output Ports support up to 4K@60Hz.
1 x 10Gbps M.2 NVMe & NGFF Dual Protocol Port.
1 x 100W Power Delivery 3.0 Port.
1 x USB-C Port for Host Connection.
1 x Gigabit Ethernet Port.
1 x USB2.0 480Mbps Type-A Port.
1 x USB3.0 5Gbps Type-A Port.
1 x USB3.0 5Gbps Type-C Port.
1 x USB3.1 10Gbps Type-A Port.
1 x USB3.1 10Gbps Type-C Port.
1 x Micro SD3.0 / 1 x SD3.0 Card Reader.
1 x 3.5mm Audio Jack.
1 x USB4 Type-C to Type-C Cable 1m. |
| Chipset Solution |
Synaptics, Realtek, Genesys |
| Cable Length |
1m |
| Warranty |
1 Year |
Backed by a 1 year Cruxtec warranty.
