The Cruxtec Universal 17‑in‑1 DisplayLink USB‑C Docking Station supports a single USB‑C host connection and includes DisplayLink technology to drive multiple external monitors simultaneously.
It features 2x HDMI and 1x DisplayPort outputs (all up to 4K at 60Hz), a 100W USB‑C power delivery port, gigabit ethernet, multiple USB‑A and USB‑C ports (5Gbps and 10Gbps rated), SD/MicroSD card readers, a 3.5mm audio jack and includes a USB4 Type‑C to Type‑C 1m cable.
Features

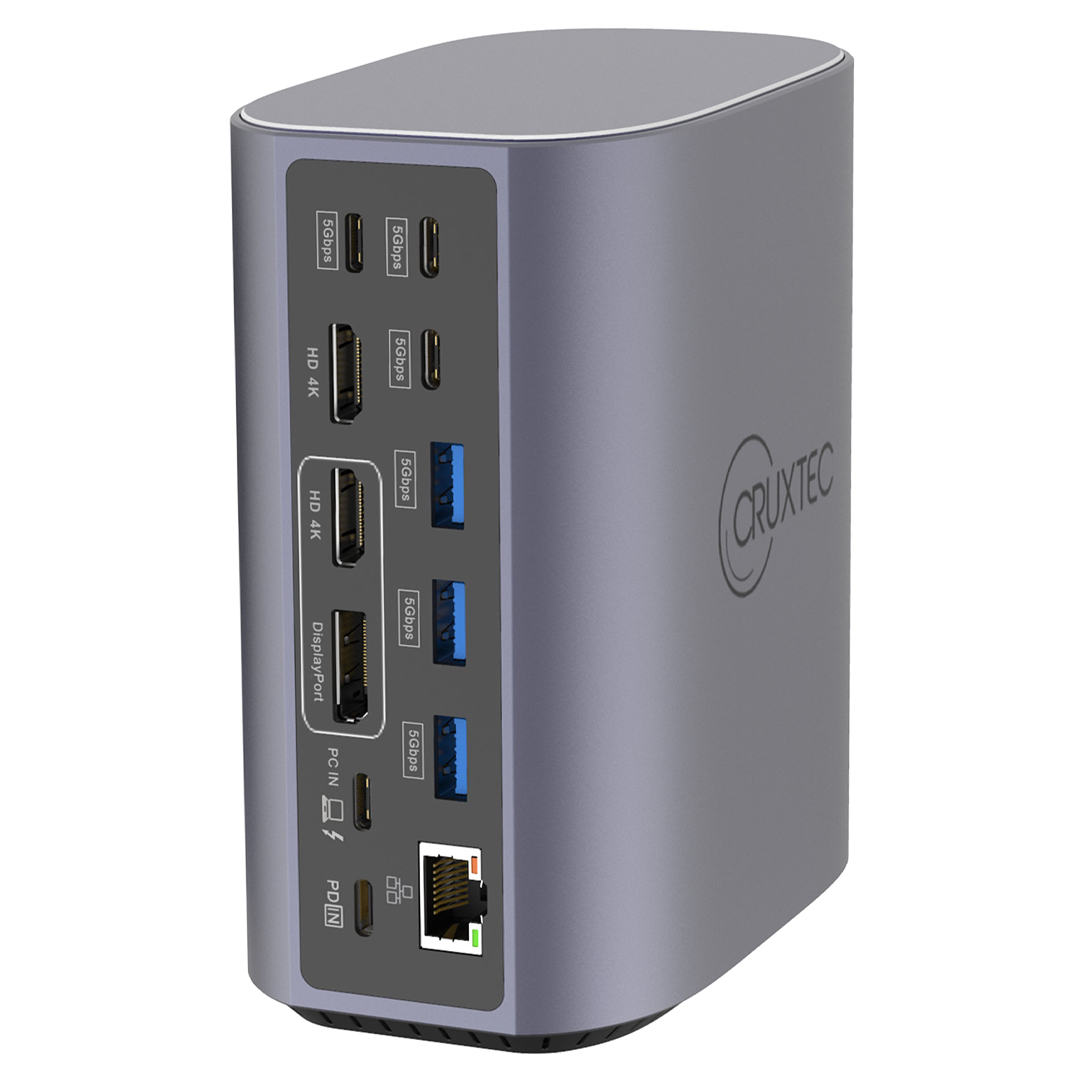

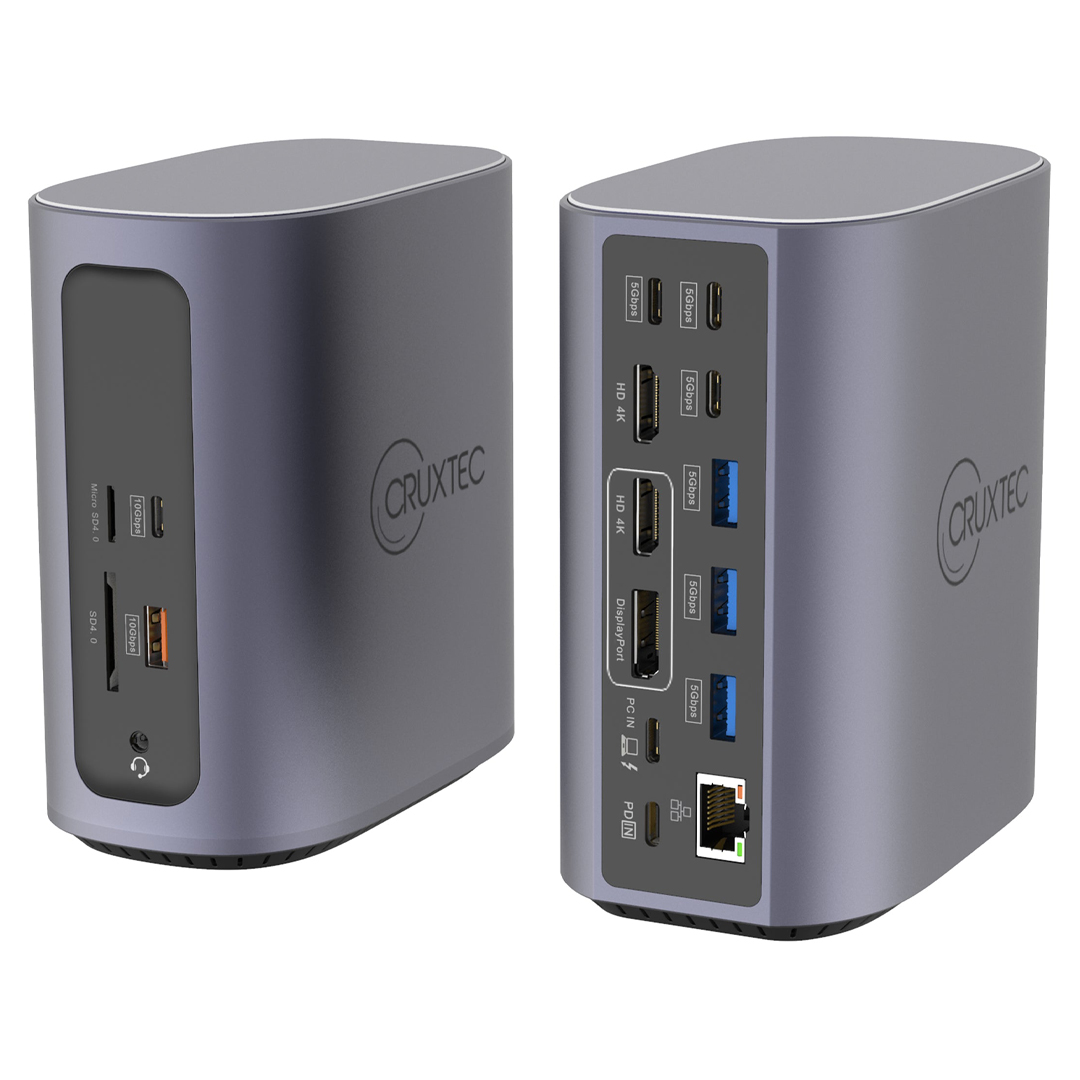

Cruxtec Universal 17-in-1 DisplayLink USB-C Multifunctional Docking Station
Expand the connectivity of MacBook, Windows laptop, or Chromebook with a single USB-C connection. With DisplayLink technology, this product supports simultaneous connection of two external monitors across various operating systems, enabling the display of different content on each screen. The unit features a vertical layout and a design with ventilation holes, offering a more aesthetically pleasing desktop placement and effective heat dissipation. Compatible with M1 MacBooks and Mac Minis.
DisplayLink Graphics Transport Technology
Cruxtec Universal 17-in-1 DisplayLink USB-C Multifunctional Docking Station offers an all-in-one solution to easily and affordably expand your visual workspace like never before.

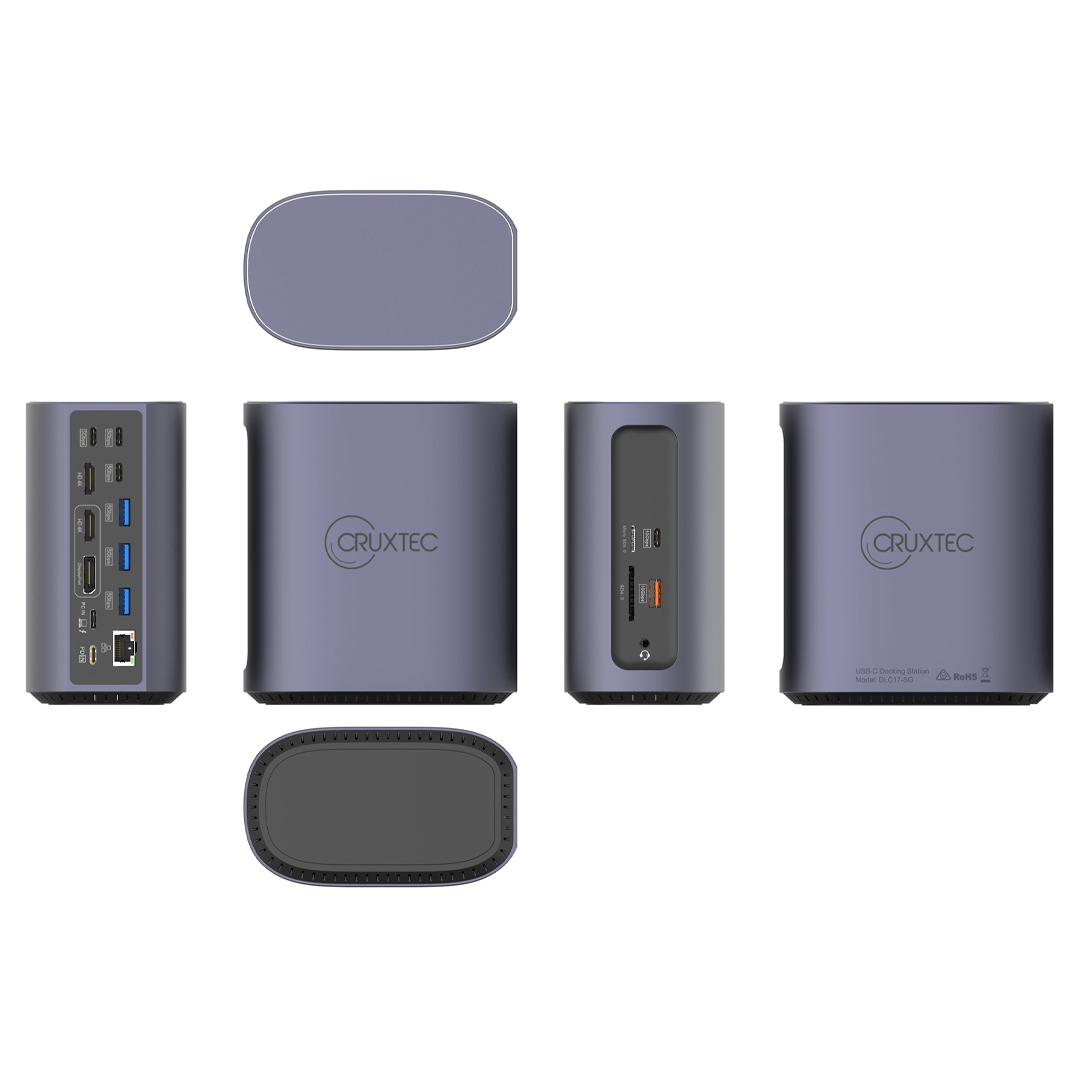

The unit features a vertical layout and a design with ventilation holes, offering a more aesthetically pleasing desktop placement and effective heat dissipation.
Supports a Single HDMI or DisplayPort Output Up to 4K@60Hz
SuperSpeed USB 3.2 Interface Transfer Rates Up to 10Gbps

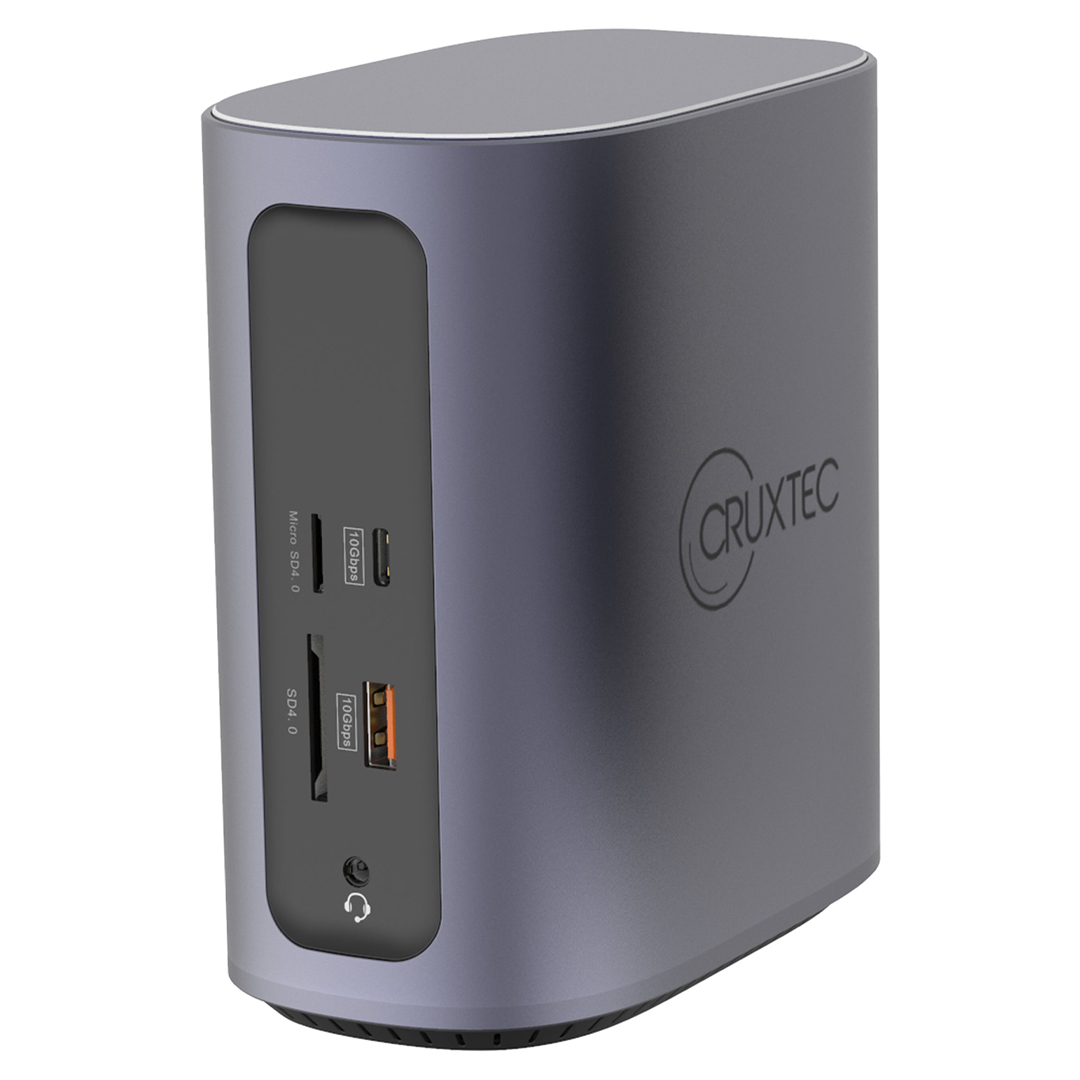

Micro SD4.0 / 1 x SD4.0 Card Reader
- SD/TF4.0 - 312MB/s
- SD/TF3.0 - 104MB/s
This product supports dual external monitor expansion via HDMI+HDMI or HDMI+DP interfaces on various operating systems, enabling the display of different content on each screen.
Multi-Screen Extension
Access Interface: DisplayPort and HDMI, or HDMI and HDMI.
Supports Windows and macOS Systems
01. Extended Mode
Laptop screen + two monitors Triple Screen Different Display.
02. Extended Mode
The laptop screen and two external monitors show different content.
03. Mirror Mode
The laptop screen and two external monitors mirror the same content.
DisplayLink Driver Download
Search for the displaylink (chip solution: DL6950) driver, download and install it.
Specifications
| Model Number |
CRUXTEC-DLC17-SG |
| Interface |
2 x HDMI Output Ports Support up to 4K@60Hz.
1 x DisplayPort Output Port Supports up to 4K@60Hz.
1 x 100W Power Delivery 3.0 Port.
1 x USB-C Port for Host Connection.
1 x Gigabit Ethernet Port.
3 x USB3.0 5Gbps Type-A Ports.
3 x USB3.0 5Gbps Type-C Ports.
1 x USB3.1 10Gbps Type-A Port.
1 x USB3.1 10Gbps Type-C Port.
1 x Micro SD4.0 / 1 x SD4.0 Card Reader.
1 x 3.5mm Audio Jack.
1 x USB4 Type-C to Type-C Cable 1m. |
| Chipset Solution |
DisplayLink DL6950, Realtek, Genesys
Install the DisplayLink driver before use |
| Cable Length |
1m |
| Warranty |
1 Year |
Backed by a 1 year Cruxtec warranty.
