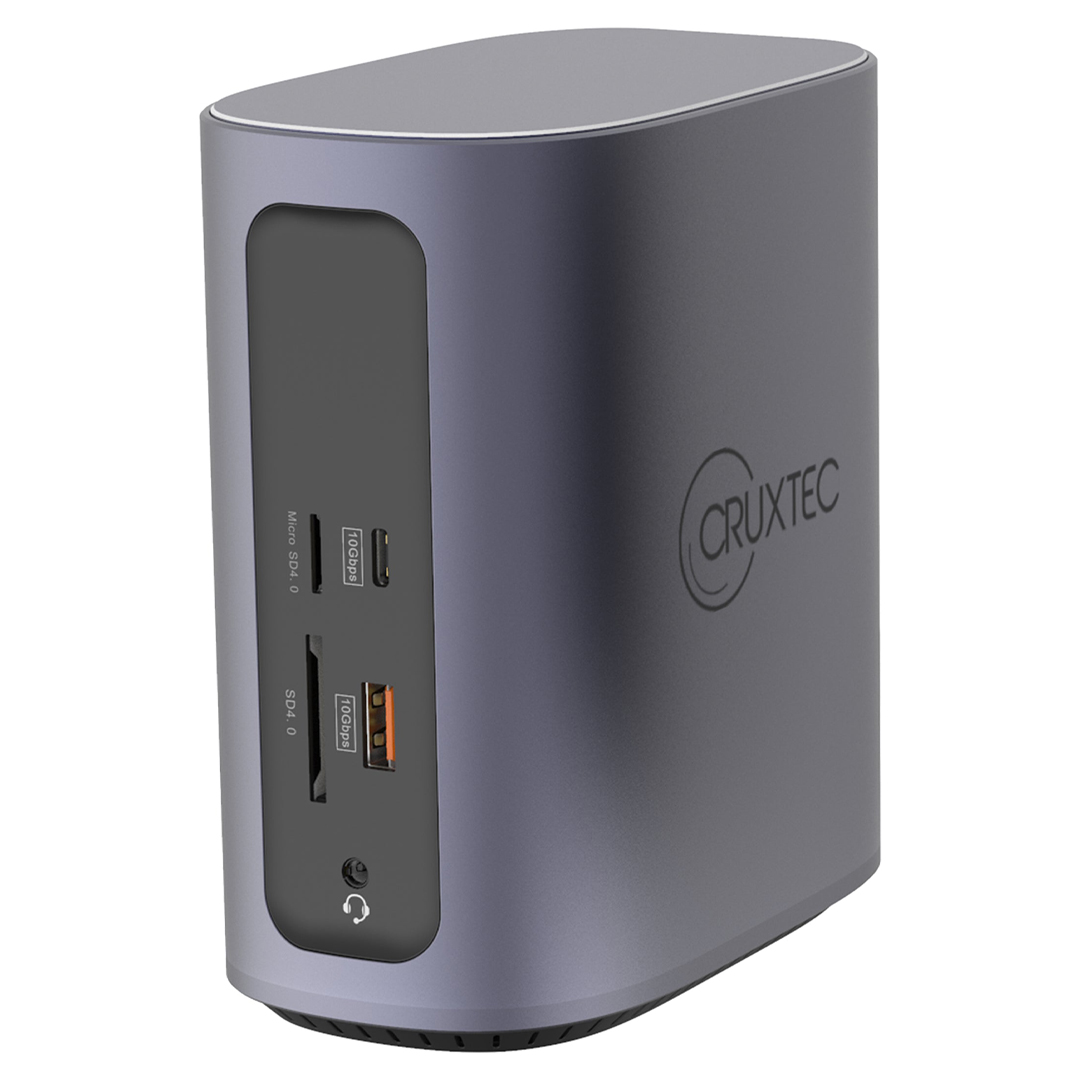

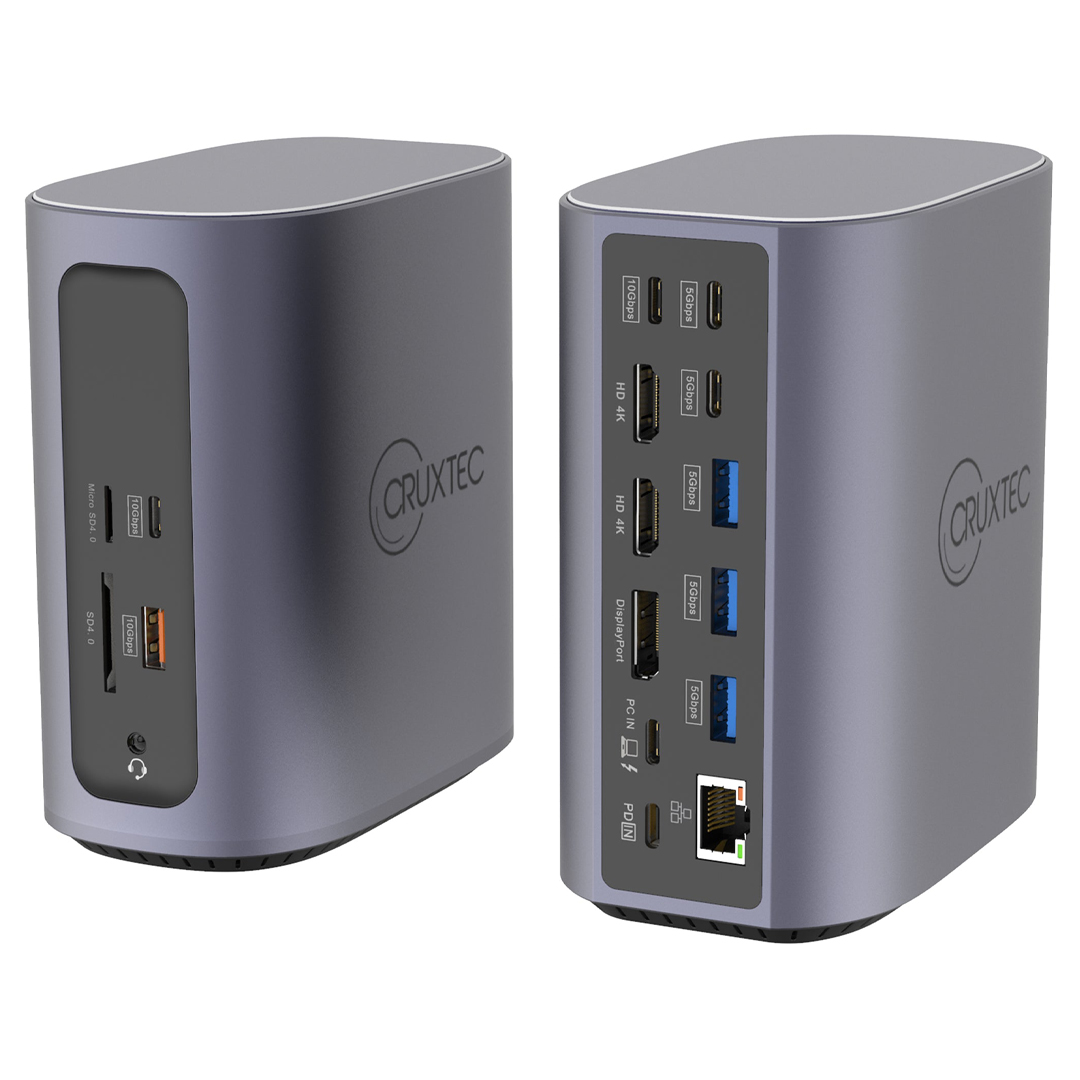

The Cruxtec Universal 17‑in‑1 USB‑C Docking Station gives you a one‑cable solution to boost your laptop’s connectivity, featuring dual HDMI ports and a DisplayPort that support 4K@60Hz video output. It also includes a 100W USB‑C power delivery port, gigabit ethernet, card readers, multiple USB‑A and USB‑C ports (10Gbps capable), and comes with a vertical stand design for smart desk placement. This hub is compatible with MacBooks, Windows laptops and Chromebooks, perfect for expanding your setup at work or home.
Features
Cruxtec Universal 17-in-1 USB-C Multifunctional Docking Station
Expands the connectivity of MacBook, Windows laptop, or Chromebook through a single USB-C connection. Supports a single HDMI or DisplayPort output up to 4K@60Hz. Supports HDMI1 + HDMI2 + DisplayPort output up to 4K@60Hz when the computer supports the HBR3 bandwidth. The unit features a vertical layout and a design with ventilation holes, offering a more aesthetically pleasing desktop placement and effective heat dissipation.
17-in-1 Solution
Cruxtec Universal 17-in-1 USB-C Multifunctional Docking Station gives you all-in-one solution to connect to monitors, ethernet, SD cards, and more devices.

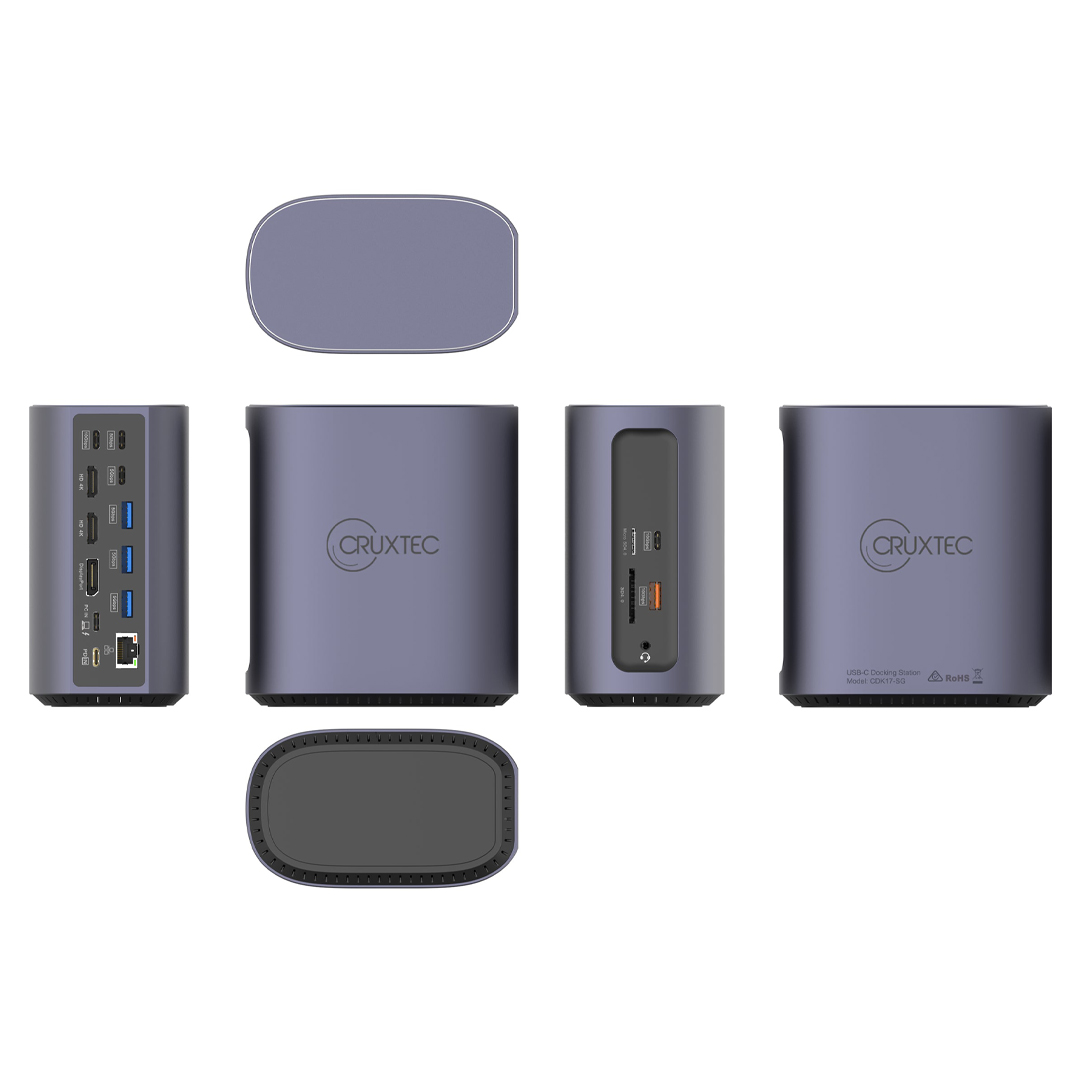

The unit features a vertical layout and a design with ventilation holes, offering a more aesthetically pleasing desktop placement and effective heat dissipation.
Supports a Single HDMI or DisplayPort Output Up to 4K@60Hz
SuperSpeed USB 3.2 Interface Transfer Rates Up to 10Gbps
Micro SD4.0 / 1 x SD4.0 Card Reader
- SD/TF4.0 - 312MB/s
- SD/TF3.0 - 104MB/s
*Test data reference
Expands the connectivity of your MacBook, Windows laptop or Chromebook through a single USB-C connection.
Multi-Screen Extension

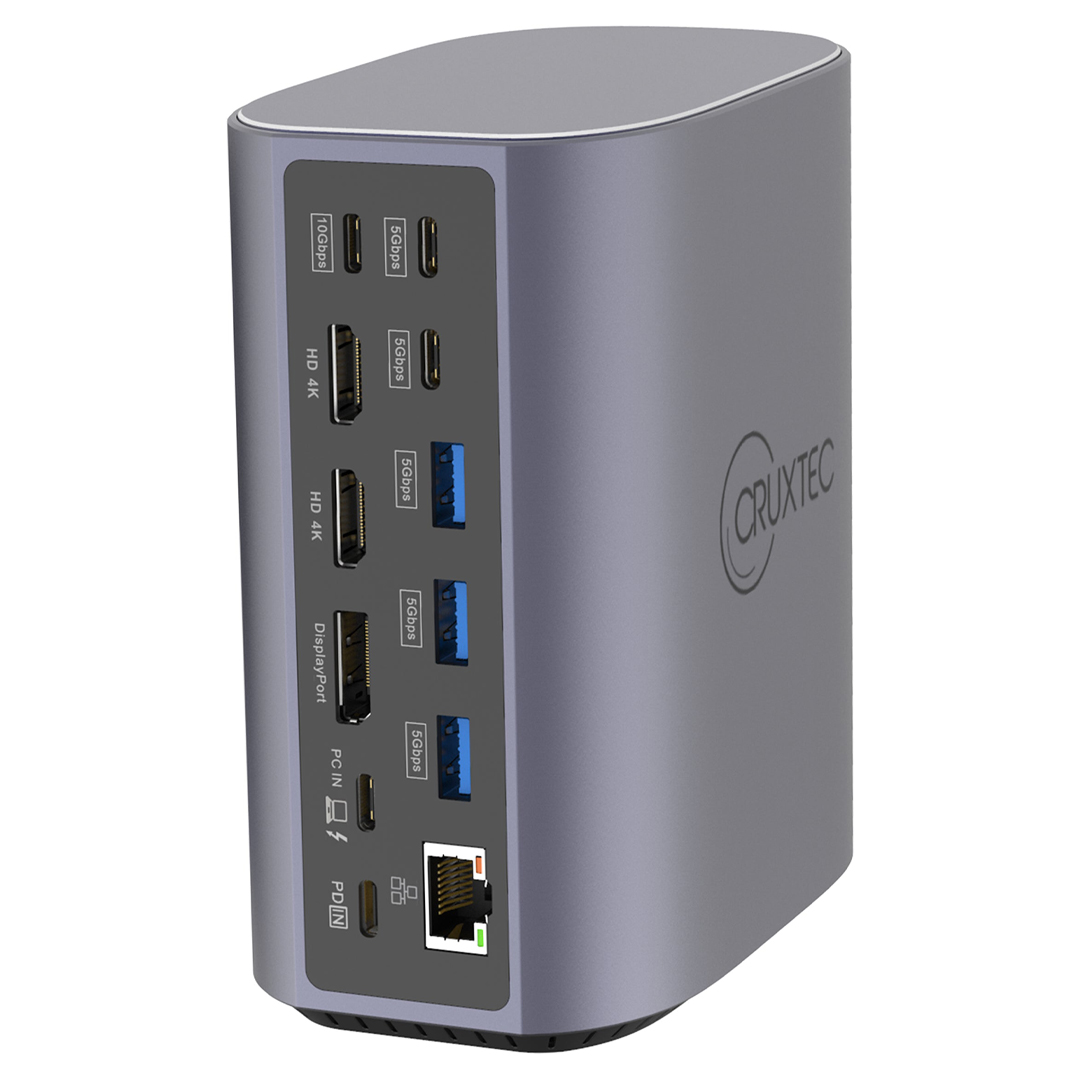

Access Interface: DisplayPort and HDMI1 and HDMI2.
Support Windows Systems
01. Extended Mode
Laptop screen + three monitors Triple Screen Different Display.
02. Mirror Mode
The laptop screen and three external monitors mirror the same content.
03. Extended Mode
The laptop screen and three external monitors show different content.
Support Mac OS Systems
- On Mac OS with M1 CPU only supports 1 external monitor display in USB-C Display Alt mode; Supports resolution up to 4K@60Hz.
- On Mac OS with M2/M3 CPU supports multi-screen mirroring or extending; Supports resolution up to 4K@60Hz in multi-screen output.
01. Mirror Mode
The laptop screen and three external monitors mirror the same content.
02. Extended Mode
The laptop screen and three external monitors show different content.
Specifications
| Model Number |
CRUXTEC-CDK17-SG |
| Interface |
2 x HDMI Output Ports Support up to 4K@60Hz.
1 x DisplayPort Output Port Supports up to 4K@60Hz.
1 x 100W Power Delivery 3.0 Port.
1 x USB-C Port for Host Connection.
1 x Gigabit Ethernet Port.
3 x USB3.0 5Gbps Type-A Ports.
2 x USB3.0 5Gbps Type-C Ports.
1 x USB3.1 10Gbps Type-A Port.
2 x USB3.1 10Gbps Type-C Ports.
1 x Micro SD4.0 / 1 x SD4.0 Card Reader.
1 x 3.5mm Audio Jack.
1 x USB4 Type-C to Type-C Cable 1m. |
| Chipset Solution |
Synaptics, Realtek, Genesys |
| Cable Length |
1m |
| Warranty |
1 Year |
Backed by a 1 year Cruxtec warranty.
