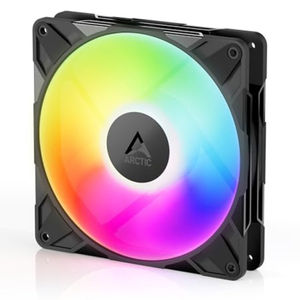

The Arctic P14 Pro ARGB Reverse PWM 140mm Fan features a reversed airflow 140mm design with PWM speed control from 400 to 2650 RPM. It has a durable fluid dynamic bearing and strong airflow for case or radiator cooling. Addressable RGB lighting with 12 LEDs can be controlled via motherboard ARGB headers. It fits standard 140mm mounts and modern PWM fan headers.
Features
Reverse Airflow Design
Specifically designed with a reverse blade layout to pull air from the back side, ideal for intake configurations where front panel aesthetics or airflow direction are important in compact or mesh cases.
High Static Pressure Performance
Operates from 400 – 2650 RPM under PWM control with up to 5.1 mm H₂O static pressure and 98 CFM airflow to efficiently push air through radiators, filters and tight airflow paths.
Fluid Dynamic Bearing
Fluid dynamic bearing design lowers operating noise while delivering reliable long‑term performance over extended use.
ARGB Lighting
Integrated 12 addressable ARGB Gen2 LEDs with 3‑pin ARGB connector for custom lighting effects and synchronisation with compatible motherboard software.
PWM Control & Daisy‑Chain Cable
Includes a 4‑pin PWM fan connector plus an extra PWM socket for easy daisy‑chaining and simplified cable management on modern motherboards.
Built‑In Microcontroller
Microcontroller reduces motor noise, compensates for load fluctuations and protects against inrush currents and reverse polarity for smoother performance.
Quiet Operation & Balanced Design
Optimised blade geometry, automatic balancing and minimal gap tolerances reduce turbulence and vibration for quieter operation under load.
Durable Build with Long Warranty
Solid construction backed by a 6‑year warranty for peace of mind and long‑term PC cooling performance.
Standard 140 mm Compatibility
140 x 140 x 30 mm form factor fits standard case fan mounts and supports most modern PC builds with 12 V DC power draw and PWM control.
Specifications
| Product Name |
Arctic P14 Pro Reverse A‑RGB 140mm PWM Fan |
| Manufacturer Code |
ACFAN00323A |
| Fan Size |
140 x 140 x 30 mm |
| Net Weight |
253 g |
| Operating Ambient Temperature |
0–40 °C |
| Fan Speed |
400–2650 rpm (PWM controlled), 0 rpm below 5% PWM |
| Airflow |
98 CFM | 166.5 m³/h |
| Static Pressure |
5.1 mmH2O |
| Fan Bearing |
Fluid Dynamic Bearing |
| Typical Voltage |
12 V DC |
| Start‑Up Voltage |
4 V DC |
| Current |
0.4 A |
| Cable Length |
400 mm + 80 mm daisy‑chain cable |
| Fan Connector |
4‑Pin Fan Plug + 4‑Pin Socket |
| LED Type |
12x A‑RGB Gen2 LEDs |
| RGB Connector |
3‑Pin A‑RGB Plug + 3‑Pin Socket |
| Colour |
Black |
| Warranty |
6 Years |
Backed by a 6 year Arctic warranty.
