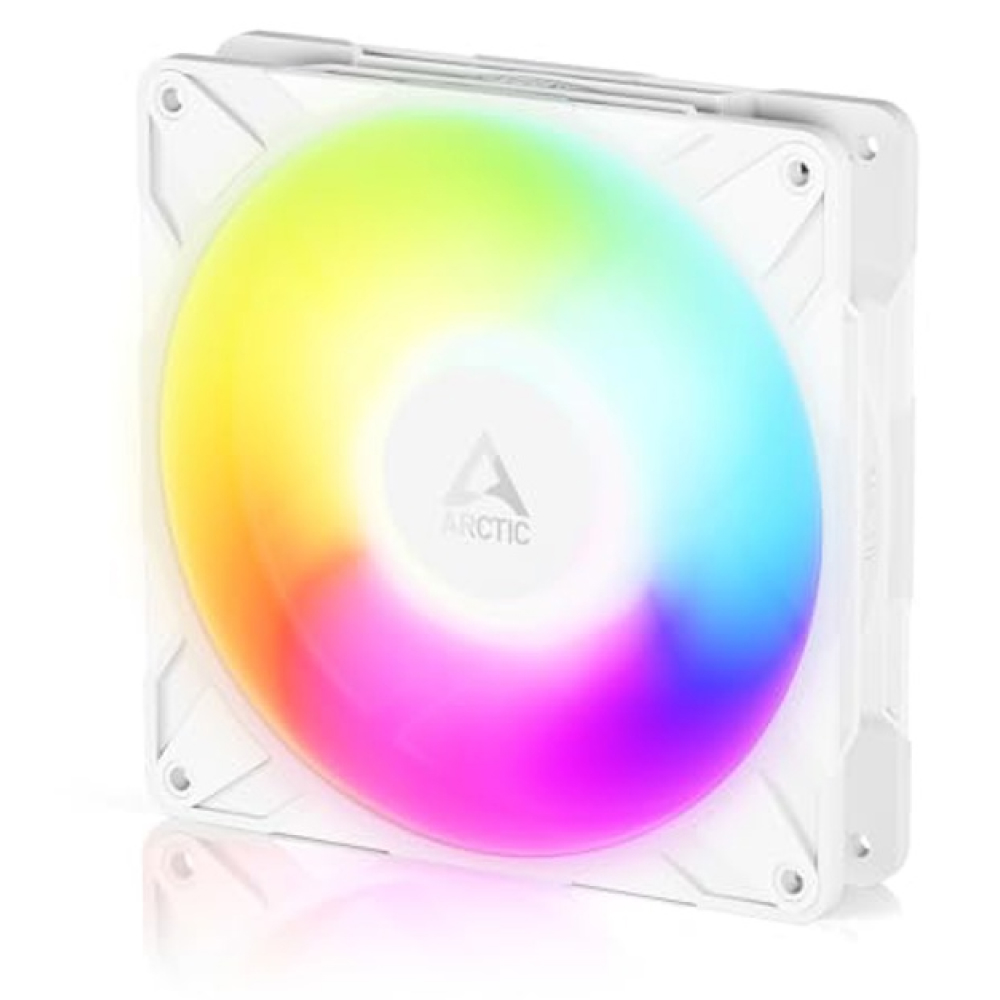

The Arctic P14 Pro ARGB Reverse PWM 140mm Fan features a reversed airflow 140mm design with PWM speed control from 400 to 2650 RPM. It has a durable fluid dynamic bearing and strong airflow for case or radiator cooling. Addressable RGB lighting with 12 LEDs can be controlled via motherboard ARGB headers. It fits standard 140mm mounts and modern PWM fan headers.
Features
Reverse Airflow Design
Designed with reversed airflow to draw air from the back side, ideal for intake positions where conventional fans might not suit the layout.
Wide PWM Speed Range
PWM controlled fan speed from approximately 400 - 2650 RPM for quiet operation at low loads and strong performance when needed.
High Static Pressure and Airflow
Delivers high static pressure around 5.1 mm H₂O and up to 98 CFM airflow for effective cooling through radiators, filters and mesh panels.
Optimised Blade & Aerodynamic Design
Trumpet-shaped intake and teardrop-shaped spokes direct airflow with reduced resistance and turbulence for improved efficiency and quieter performance.
ARGB Lighting with Daisy-Chain Capability
Equipped with addressable RGB LEDs and a daisy-chain capable 3‑pin ARGB connector so lighting can be synchronised with other components.
Fluid Dynamic Bearing for Durability
Fluid dynamic bearing improves longevity and reduces noise during operation compared with standard bearing types.
PWM Daisy-Chain Control
Additional PWM connector allows multiple fans to be synchronised and controlled via a single motherboard header, reducing cable clutter.
6-Year Warranty Support
Backed by a 6-year manufacturer warranty for confidence in durability under extended use.
Specifications
| Product Name |
Arctic P14 Pro Reverse A‑RGB 140mm PWM Fan |
| Manufacturer Code |
ACFAN00324A |
| Fan Size |
140 x 140 x 30 mm |
| Net Weight |
253 g |
| Operating Ambient Temperature |
0–40 °C |
| Fan Speed |
400–2650 rpm (PWM controlled), 0 rpm below 5% PWM |
| Airflow |
98 CFM | 166.5 m³/h |
| Static Pressure |
5.1 mmH2O |
| Fan Bearing |
Fluid Dynamic Bearing |
| Typical Voltage |
12 V DC |
| Start‑Up Voltage |
4 V DC |
| Current |
0.4 A |
| Cable Length |
400 mm + 80 mm daisy‑chain cable |
| Fan Connector |
4‑Pin Fan Plug + 4‑Pin Socket |
| LED Type |
12x A‑RGB Gen2 LEDs |
| RGB Connector |
3‑Pin A‑RGB Plug + 3‑Pin Socket |
| Colour |
White |
| Warranty |
6 Years |
Backed by a 6 year Arctic warranty.
