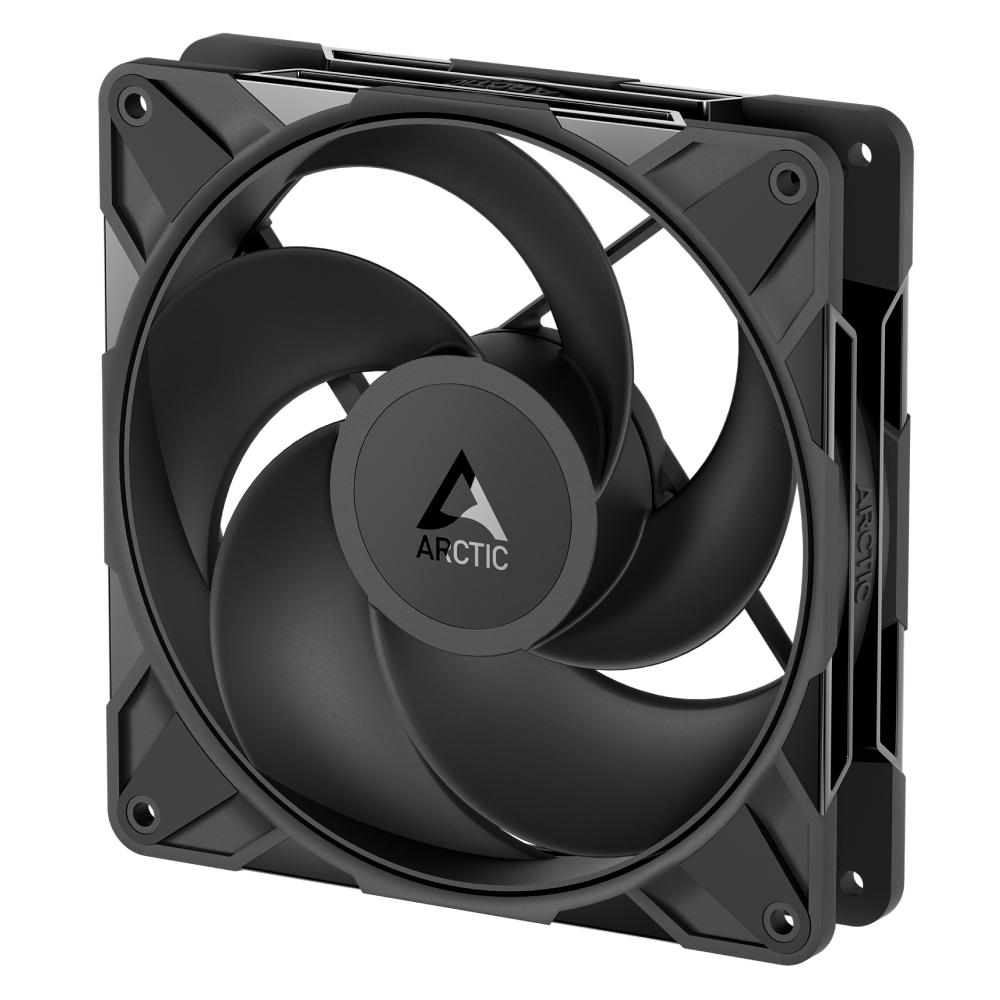

The Arctic P14 Pro Reverse PWM 140mm Fan features a reversed airflow design that pulls air from the back side for intake use in PC cases. It has PWM speed control from about 400 to 2650 RPM with a fluid dynamic bearing for longevity and smooth operation. The fan delivers up to 98 CFM airflow and 5.1mm H2O static pressure, and includes a PWM splitter cable for daisy‑chaining multiple fans. It fits standard 140mm mounting and works with 4‑pin PWM fan headers.
Features
Reverse Airflow Design
Reversed airflow architecture draws air from the back side, perfect for front intake mounts where conventional fans could compromise airflow direction or aesthetics.
Wide PWM Speed Range
PWM controlled fan speed from around 400 – 2650 RPM offers quiet operation at low demand and robust airflow when cooling needs rise.
High Static Pressure and Airflow
High static pressure of approximately 5.1 mm H₂O and up to 98 CFM of airflow ensures effective cooling through radiators and restrictive mesh or filter panels.
Optimised Aerodynamic Blade Design
Trumpet‑shaped intake and teardrop‑shaped spokes reduce air resistance and turbulence for smoother airflow and quieter performance.
Fluid Dynamic Bearing for Durability
Fluid dynamic bearing improves longevity and decreases operational noise compared with conventional bearing types.
PWM Daisy‑Chain Control
Includes a 4‑pin fan plug and additional 4‑pin socket so multiple fans can be daisy‑chained and synchronised from a single motherboard header for easier cable management.
SOTA Motor Technology
Advanced microcontroller and motor balancing deliver reduced noise and smoother performance across the speed range.
6‑Year Warranty
Backed by a 6‑year manufacturer warranty for confidence in long‑term reliability and durability.
Specifications
| Product Name |
Arctic P14 Pro Reverse 140mm PWM Fan |
| Manufacturer Code |
ACFAN00329A |
| Fan Size |
140 x 140 x 30 mm |
| Net Weight |
248 g |
| Operating Ambient Temperature |
0–40 °C |
| Fan Speed |
400–2650 rpm (PWM controlled), 0 rpm below 5% PWM |
| Airflow |
98 CFM | 166.5 m³/h |
| Static Pressure |
5.1 mmH2O |
| Fan Bearing |
Fluid Dynamic Bearing |
| Typical Voltage |
12 V DC |
| Start‑Up Voltage |
4 V DC |
| Current |
0.4 A |
| Cable Length |
400 mm + 80 mm daisy‑chain cable |
| Fan Connector |
4‑Pin Fan Plug + 4‑Pin Socket |
| RGB/Lighting |
No lighting |
| Colour |
Black |
| Warranty |
6 Years |
Backed by a 6 year Arctic warranty.
