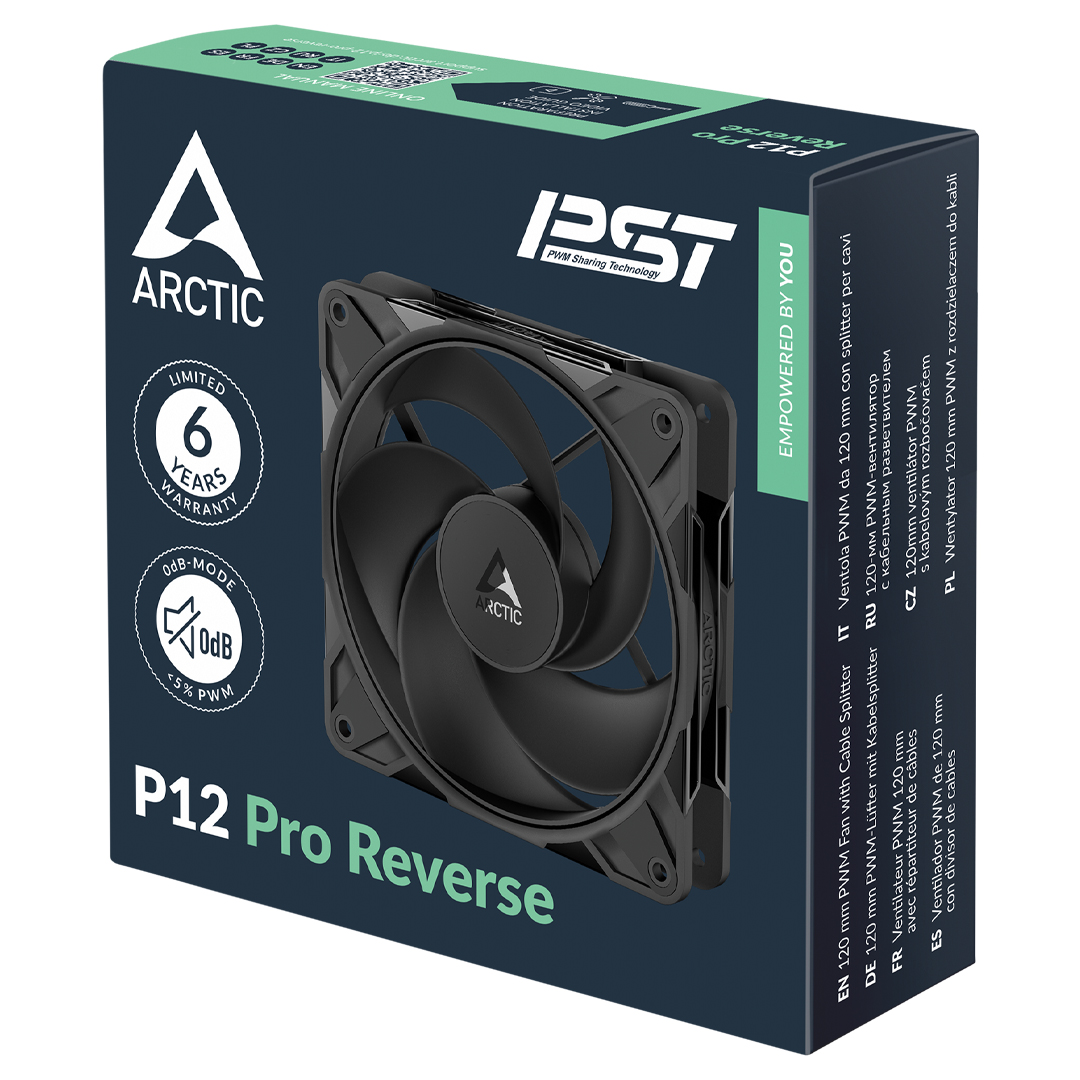

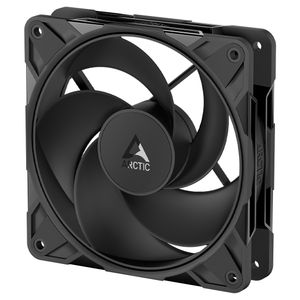

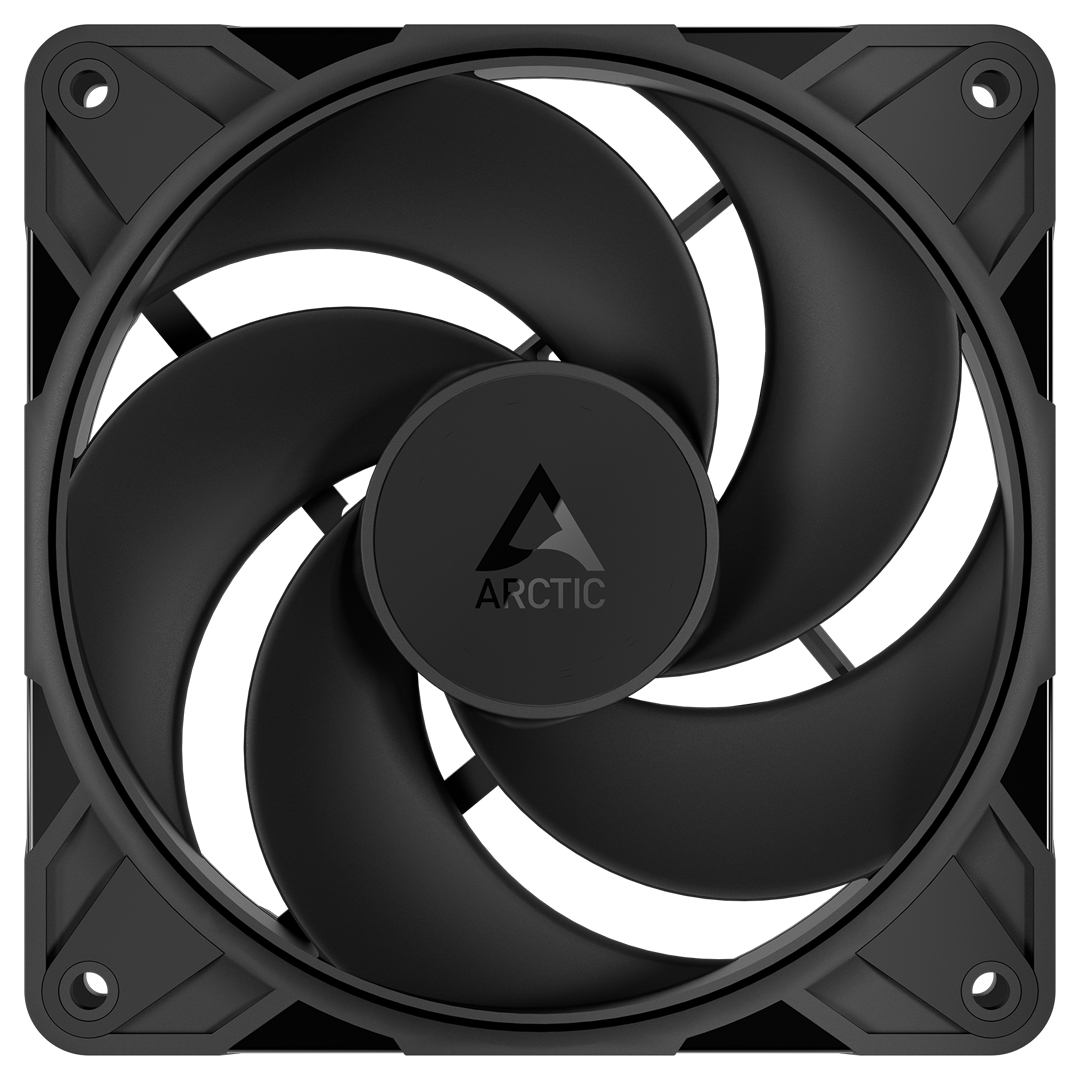

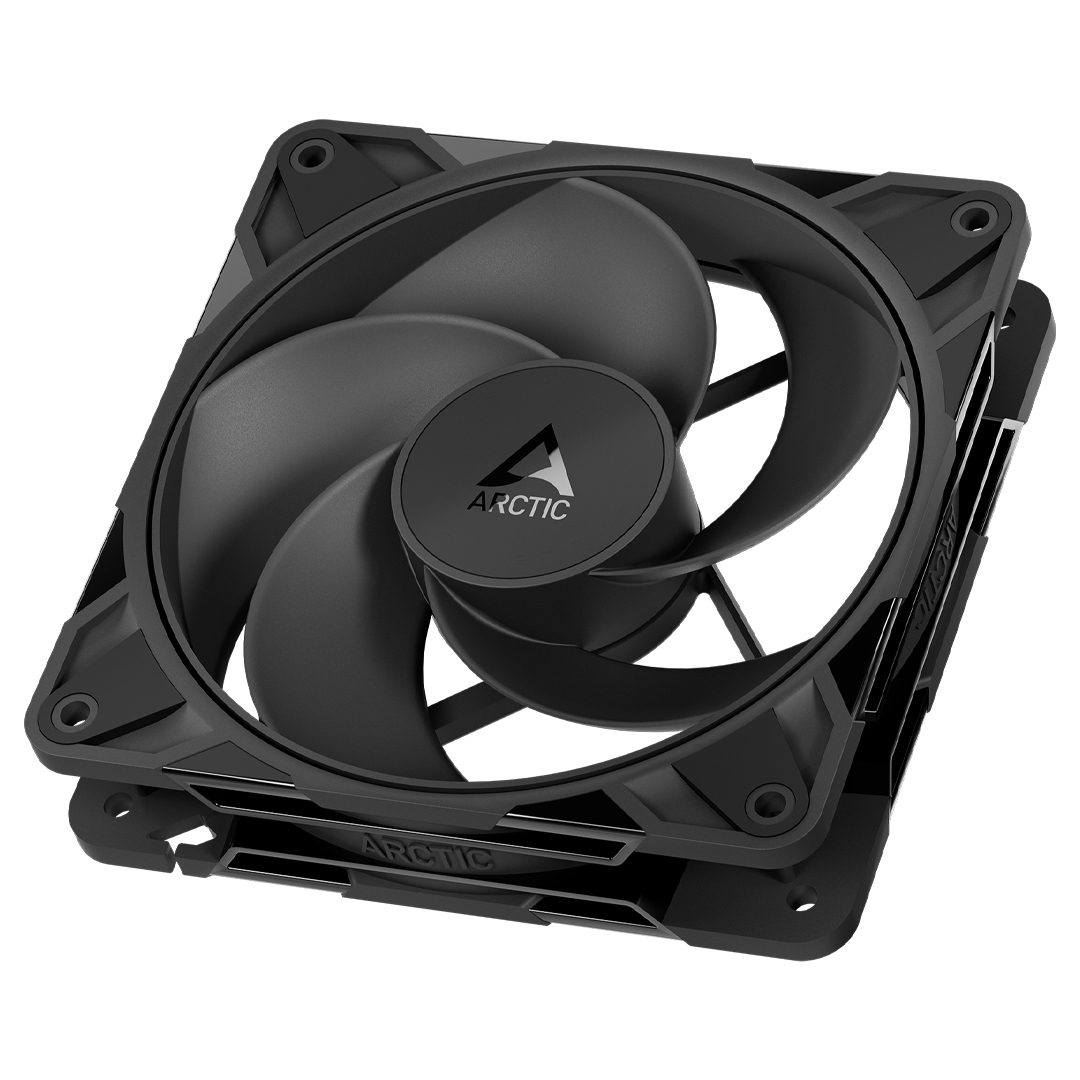

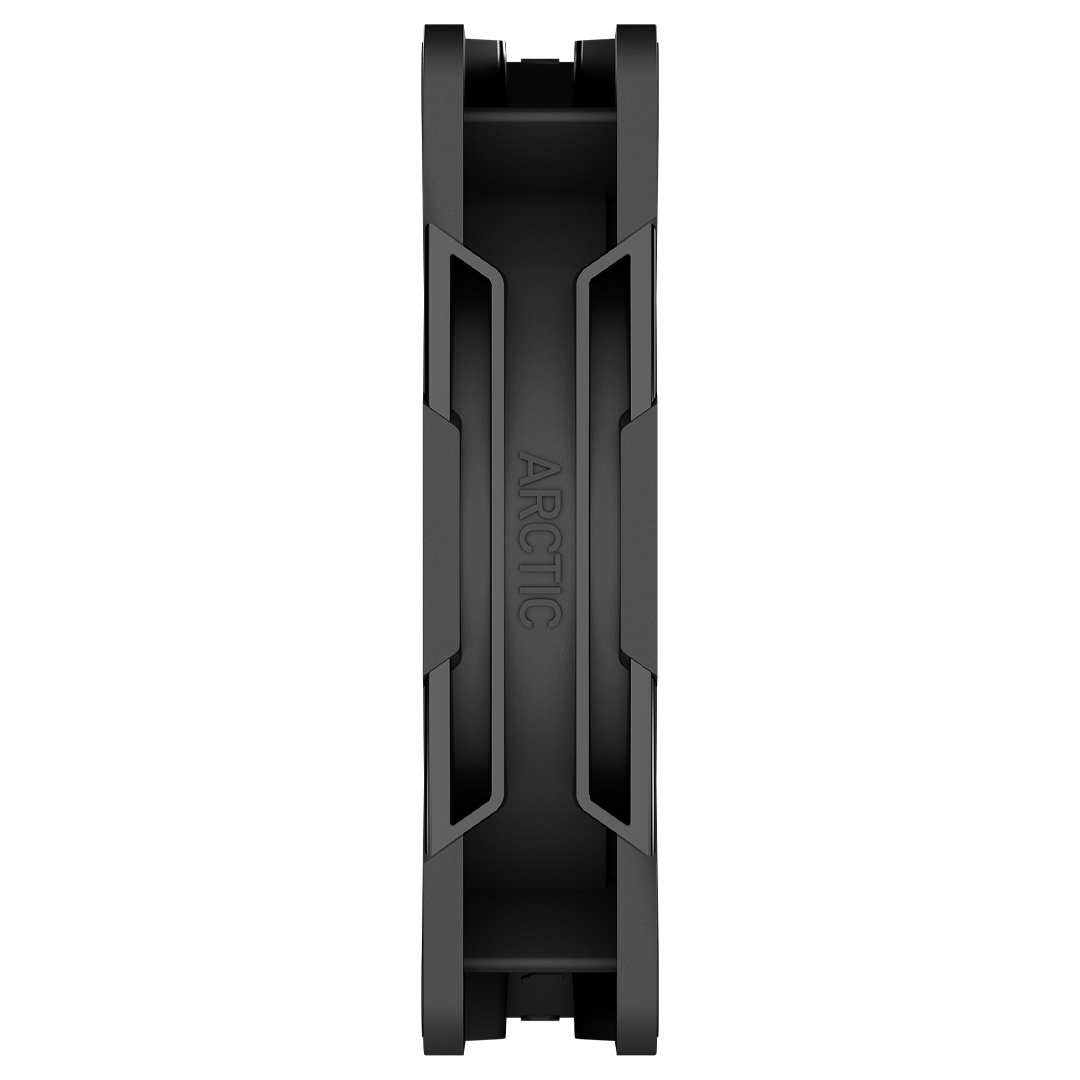

Arctic P12 Pro Reverse PWM 120mm Fan

The Arctic P12 Pro Reverse PWM 120mm Fan delivers high-performance airflow with 73 CFM, 4.5 mm H₂O static pressure, and a fluid dynamic bearing for quiet, reliable operation. Its reversed airflow design, trumpet-shaped intake, and PST daisy-chain support allow easy installation, optimised cooling efficiency, and synchronised PWM control across multiple fans.

Features

---

P12 Pro Reverse

120 mm A-RGB PWM Fan with Cable Splitter.

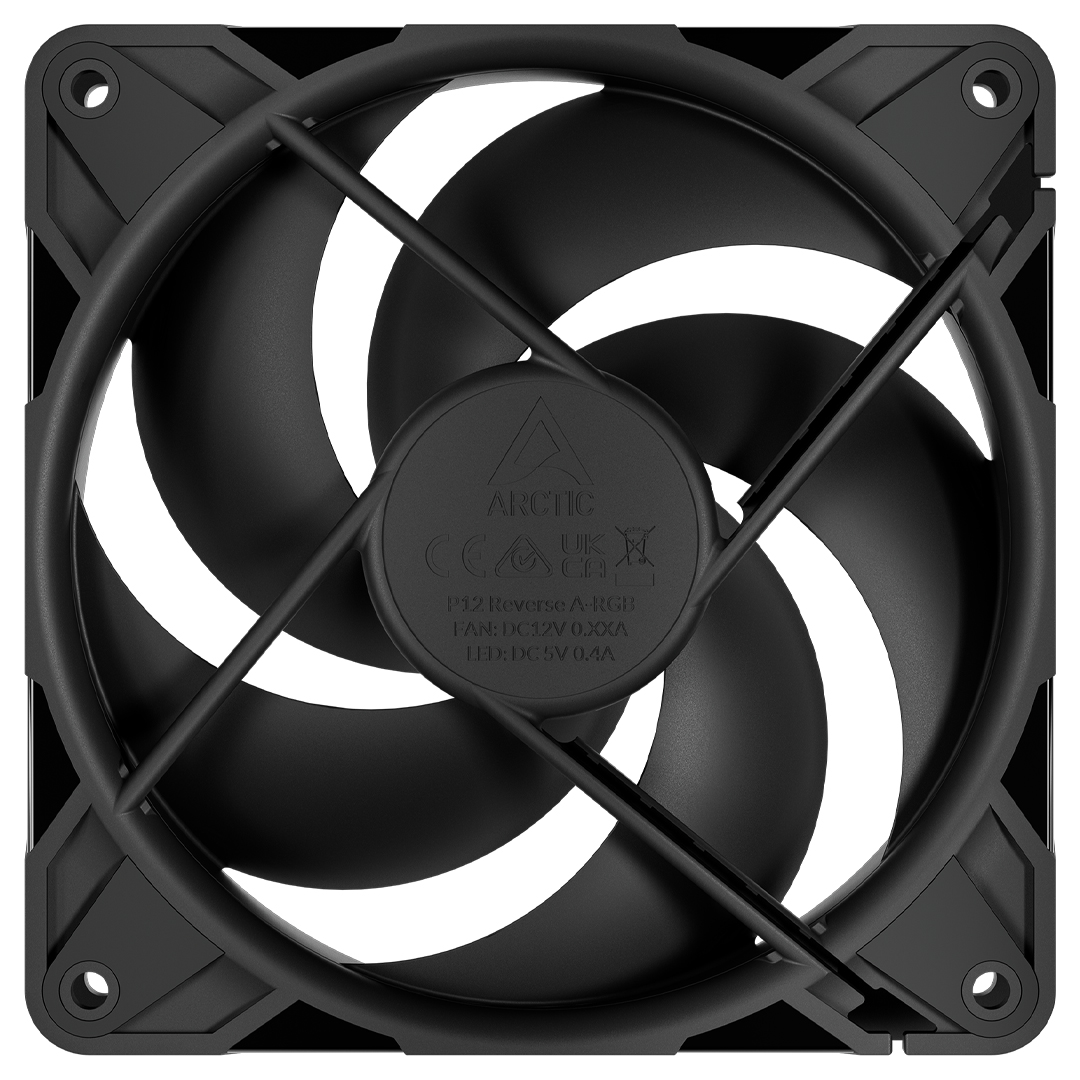

Reversed Airflow

The P12 Pro Reverse is specifically designed for air intake from the back side. It's particularly suitable when conventional fans would compromise the aesthetics.

• 500–3000 rpm Fan Speed
• Fluid Dynamic Bearing
• 4.50 mm H₂O Static Pressure
• 73 cfm | 124.03 m³/h

Optimised Airflow Design

The trumpet-shaped intake and teardrop-shaped spokes direct the airflow with reduced flow losses.

This reduces air resistance, minimising turbulence and aerodynamic noise.

SOTA Microcontroller

Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.

More Power – Less Noise

An automated measuring and balancing process ensures smooth performance by applying the balancing compound with pinpoint accuracy.

Minimum Gap Dimensions for Maximum Efficiency

Enables higher static pressure and maximum airflow efficiency.

PST – Easy Cable Management and Synchronised PWM Control

Thanks to the additional PWM connector, multiple fans can be daisy-chained and controlled simultaneously through a single header.

Optimised FDB Bearing-Shaft Design

A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimising vibrations.
