The Fractal Design Ion 3 Gold 1000 W power supply features ATX 3.1 compatibility and native PCIe Gen-5 support with a 12V-2x6 connector. It’s 80 PLUS Gold certified for high efficiency, uses a Momentum 140mm fluid-dynamic bearing fan with a zero-RPM mode, and has fully modular UltraFlex cables for tidy builds.
Features
Power Supply Ion 3 Gold 1000W
The Power of Silence
Ion 3 Gold delivers efficient, stable power for next-generation gaming systems. With ATX12V 3.1 compatibility, native PCIe Gen 5 support, and 80 PLUS Gold efficiency, it’s built for reliable, long-term performance.
Future-Ready
Connect next-generation components with ATX12V 3.1 compatibility and enjoy stable performance with graphics card power excursion support.
Native Gen 5 Support
Power modern graphics cards with 16-pin PCIe Gen 5 12V-2x6 support featuring shortened sense pins for a reliable, secure connection.

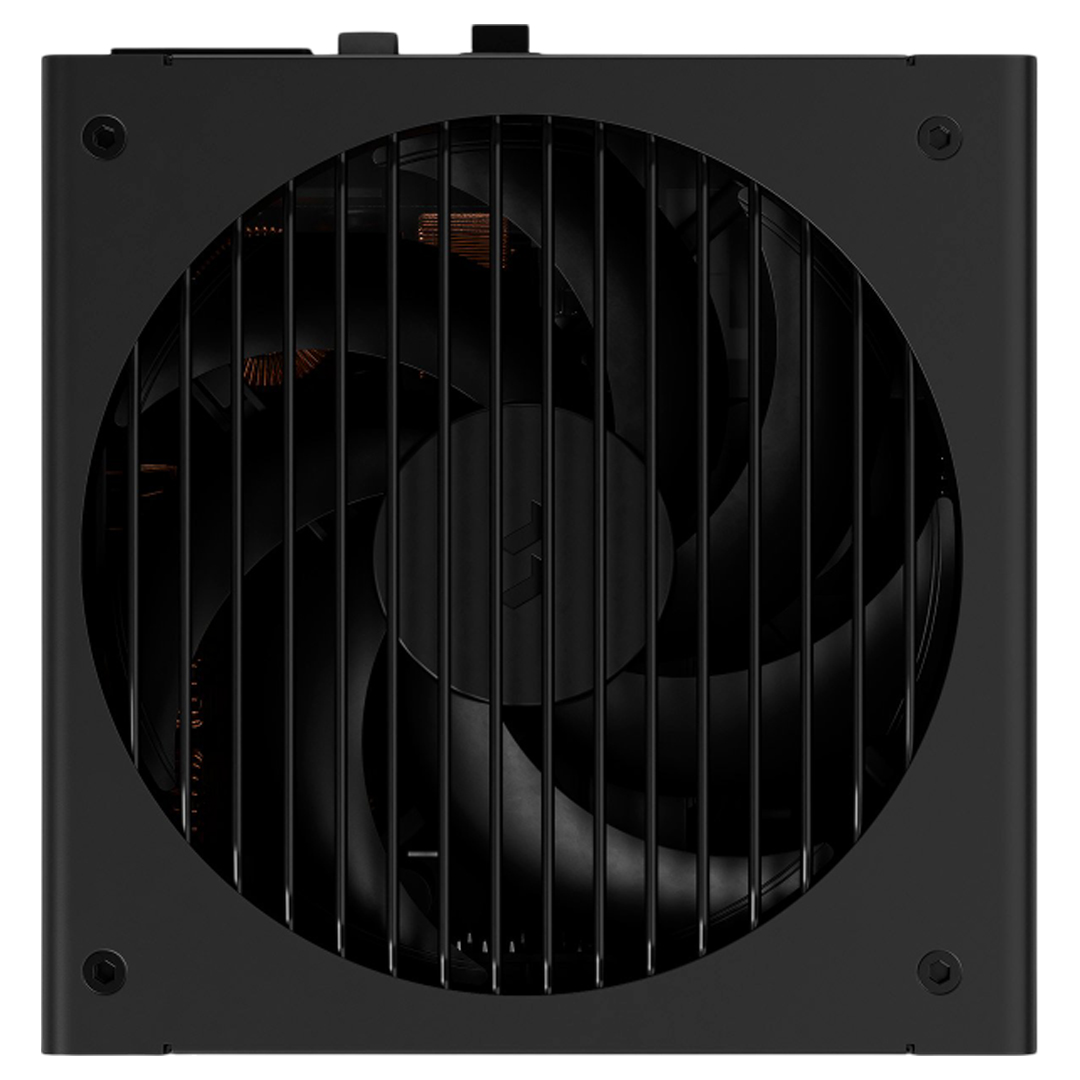

Momentum Cooling
Featuring a powerful Momentum 14 fan with a fluid dynamic bearing and LCP blades to ensure lower noise, cooler operation, and a longer lifespan.
Certified Efficiency
80 PLUS Gold–certified for efficient performance with reduced energy use and heat output through optimised power delivery.
Quiet Operation
Featuring variable fan speeds for adaptive cooling and the option to activate Zero RPM Mode for near-silent operation under lighter loads.
Fully Modular
Achieve a clean, uncluttered build with a fully modular design and UltraFlex cables for smoother cable routing.
Designed to Last
Built with high-quality, reliable components including Japanese 105°C capacitors and an extensive 10-year warranty.
Specifications
| Model Number |
FD-P-IA3G-100-AU |
| Colour |
Black |
| Wattage |
1000 W |
| PSU Specification Compliance |
PSU specification compliance ATX12V 3.1 |
| Efficiency Certification |
80PLUS® Gold |
| Modular Cables |
Fully modular |
| Fan Type |
Momentum 14 series fan, with Fluid Dynamic Bearing |
| Semi-Passive Operation |
Yes, user selectable (Zero RPM mode) |
| DC Cable Type |
UltraFlex, flat cables |
| Cable Colour |
Black |
| Electrolytic Capacitors |
105°C Japanese capacitors |
| Number of 12V Rails |
Single 12V rail |
| Protection Features |
Over Power Protection (OPP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Current Protection (OCP), Over Temperature Protection (OTP) |
| Life Expectancy (MTBF) |
100 000 h (25°C ambient temperature) |
| Modern Sleep State Compatibility |
C6 and C7 compatible |
| Power Factor Correction (PFC) |
Yes, active |
| Input Voltage |
100-240 V |
| Standby Efficiency |
≥ 45% ErP Lot 6 compliant |
| Maximum Operating Temperature |
40°C (full load), 50°C (80% load) |
| Approvals & Certifications |
CE, UKCA, BSMI, CCC, FCC, TUV, cULus, RCM, ICES, CB, KC |
| Warranty |
10 years |
| What's Included |
Ion 3 Gold power supply unit
Modular cables
Accessory kit
User manual
Power cord (regional) |

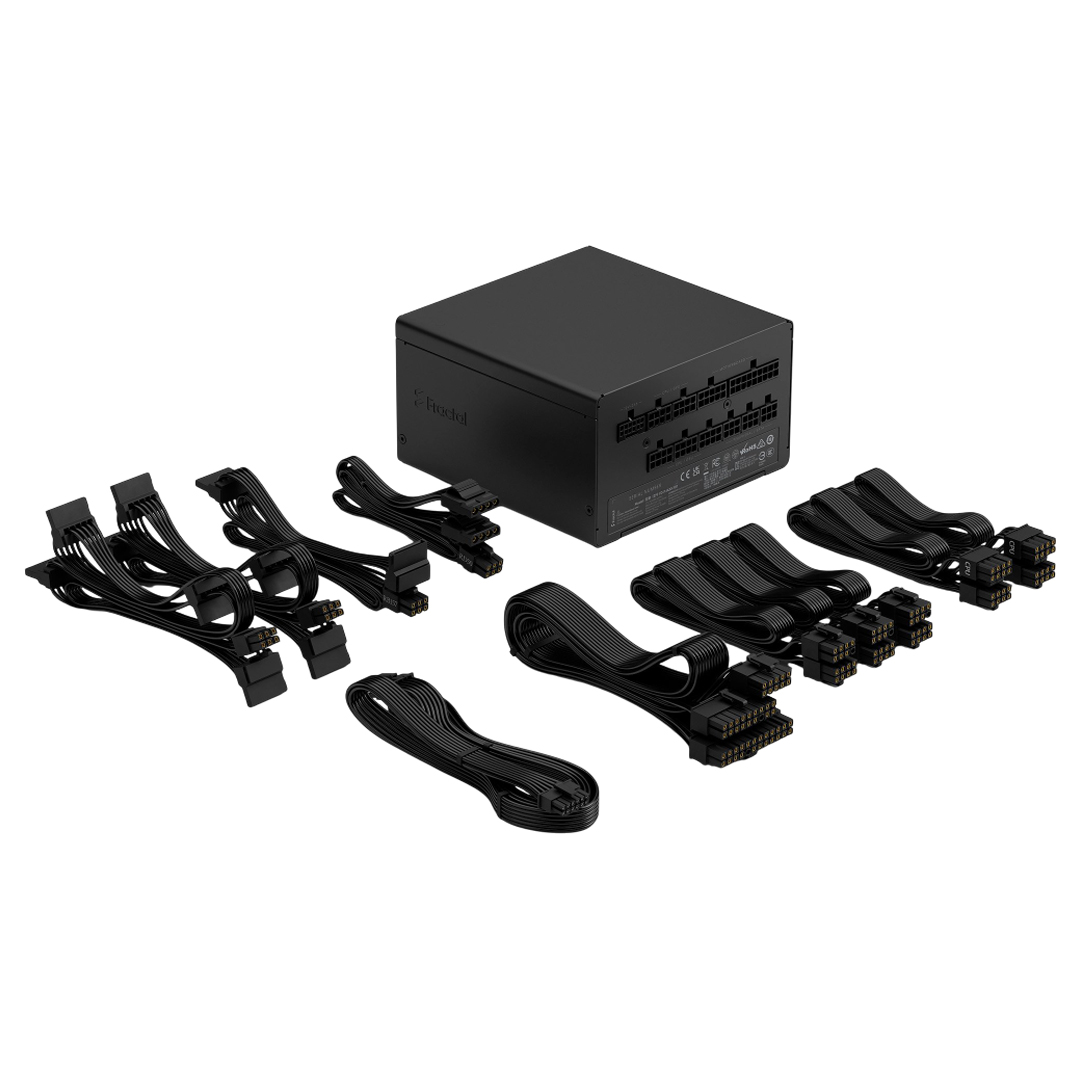

| Included Modular Cables |
ATX 24 pin, 600 mm x 1
ATX 12V 4+4P, 700 mm x 2
PCI-E 6+2 pin, 650 mm x 3
PCI-E Gen5 12V-2x6, 700 mm x 1
4x SATA, 400+150+150+150 mm x 2
2x SATA 650+150 mm x 1
Total Number of SATA connectors x 6
2x Peripheral (Molex) 650+150 mm x 1
Total Number of Molex connectors x 2 |
| Net Weight (Unit Only) |
1.8 kg |
| Unit Dimensions (L x W x H) |
150 x 150 x 86 mm |
Backed by a 10 year Fractal Design warranty.
