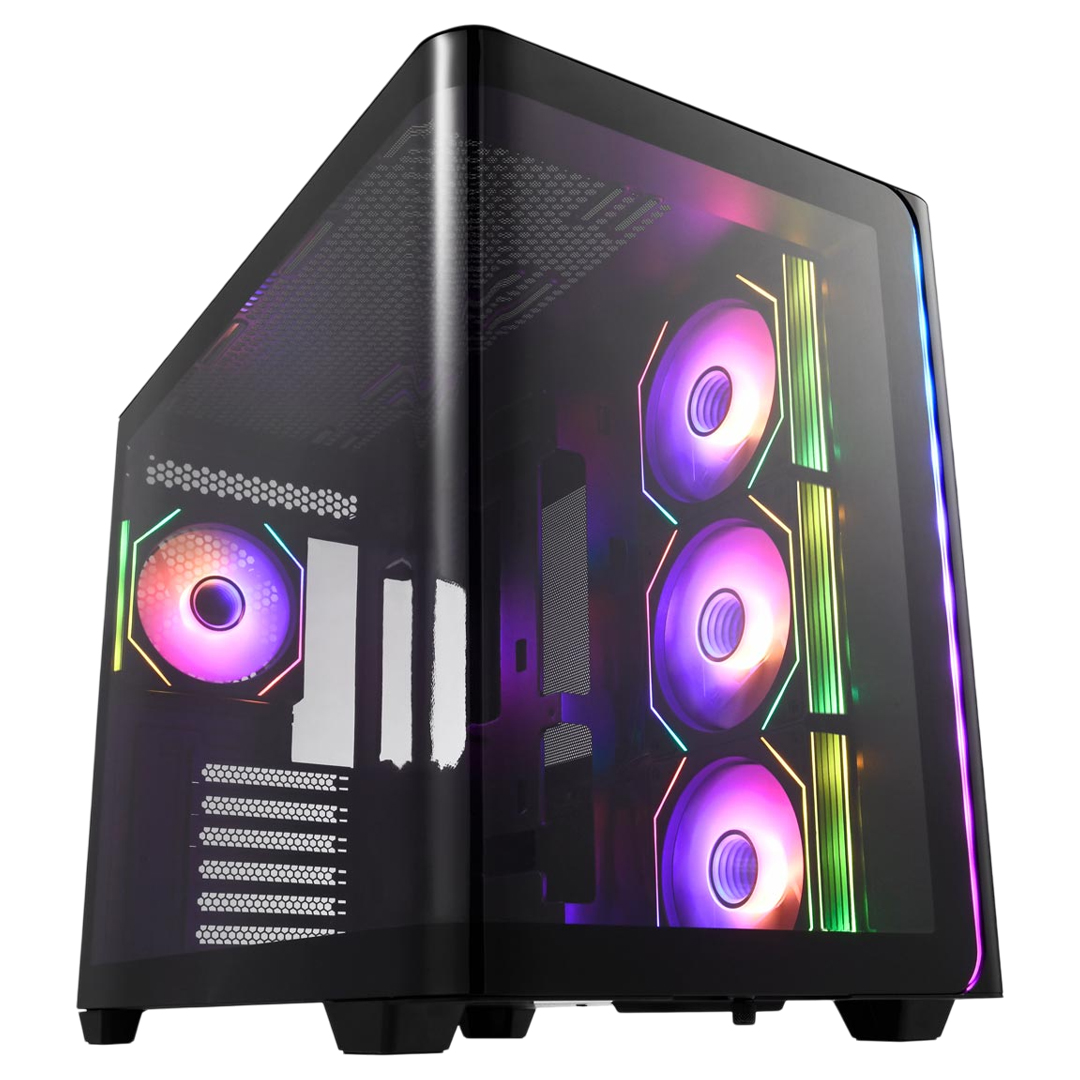

The FSP M580 Curved Tempered Glass Mid Tower Case features a striking 270 degree panoramic curved tempered-glass front and side panel design, allowing full visibility of your build from the front and side. It supports full-sized ATX (back-connect), M-ATX and Mini-ITX motherboards, accommodates graphics cards up to 445mm in length and CPU coolers up to 160 mm tall. The case includes three side mounted reverse blade 120mm ARGB fans and a 120mm rear ARGB fan pre-installed, features USB-C plus USB 3.0 front-panel ports, and supports up to 360mm radiators for liquid cooling setups.
Features
M580
- 270° panoramic views curved glass exterior design
- Supporting back-connect motherboard
- Exquisite rounded chamber design
- Equipped with reverse ARGB fans
- Supporting up to 360mm radiator
- Supporting up to 445mm graphics cards
- Lighting fast USB Port Type-C / USB3.0 x 2
- 240mm PSU
Sleek and Exquisite
The FSP M580 showcases a panoramic tempered glass design and adopting a rounded chamfer design, offering an exclusive exterior to highlight your system’s potential while consistently enhancing the gaming atmosphere.
Exceptional Cooling Power and Performance
Featuring four sets of powerful ARGB fans, all controllable via the motherboard, this setup delivers stunning lighting effects while optimised cooling ensures peak system performance and stability.
Unleash Boundless Gaming Power
Supporting ATX (back-connect motherboard), M-ATX, and Mini-ITX motherboards, the M580 case accommodates graphics cards up to 445mm and radiator up to 360mm, providing the flexibility for an immersive, unrestricted gaming experience.
120mm x3 Reverse ARGB Fans
The side features triple reverse ARGB fans with PWM controller, while the rear is equipped with a PWM ARGB fan.
360mm High Radiator
Supporting up to 360mm radiator.

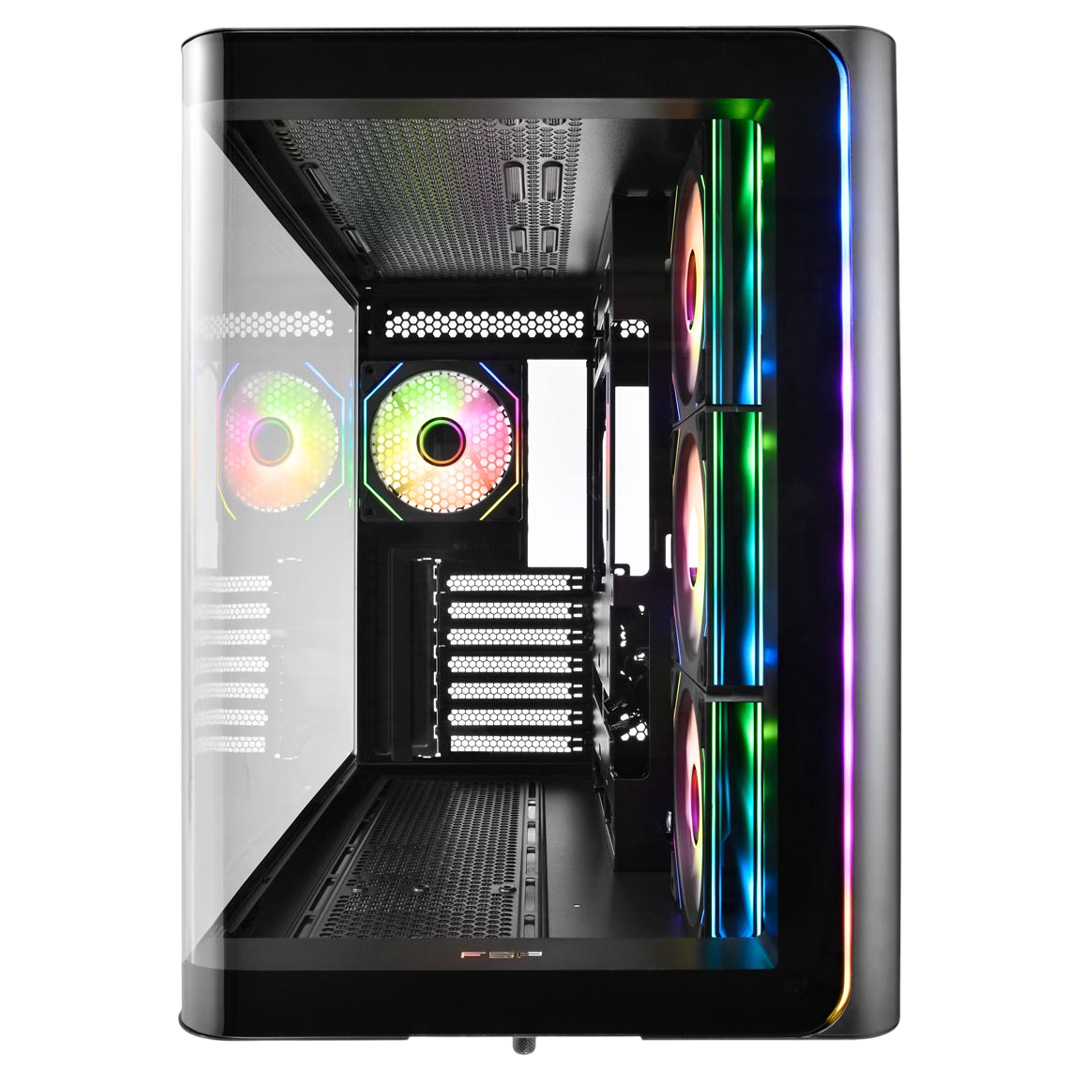

270° Panoramic Views
The seamless curved glass ensures stunning aesthetics from both the front and side views.
Ample Space for Future Expansion
The M580 offers a spacious design, accommodating all your current gear while leaving room for future upgrades.
Storage
Specifications
| Model Number |
FSP-M580-BA |
| Type |
ATX Mid Tower |
| Colour |
Black |
| Materials |
0.7mm SPCC, Curved Glass x 1 |
| Weight |
7.5kg |
| Dimension DxWxH (mm) / (inch) |
460x285x398mm |
| Maximum CPU Cooler Height |
160mm |
| Graphics Card Length |
445mm |
| Expansion Slots |
7 |
| Motherboard Support |
ATX(back-connect motherboard), M-ATX, Mini-ITX |
| External I/O port |
USB3.0 x 2, Type-C |
| Power Supply Type |
240mm ATX |
| 3.5“ HDD |
1+1 |
| 2.5" SSD |
2+1 |
| Fan Including(Pre-Installed) |
Side:120mm reverse PWM ARGB x 3 with PWM controller
Rear:120mm PWM ARGB x 1
***Press and hold the RGB button to switch to sync mode. |
| Fan&Water Cooler Support |
Side: 120mm x 3 or 140mm x 2
Top: 120mm x 3 or 140mm x 2 or 360mm Radiator
Bottom: 120mm x 3 or 360mm Radiator
Rear: 120mm x 1 |
| Max Radiator Support |
360mm |
Backed by a 1 year FSP warranty.
