The Cooler Master Elite Gold ATX 3.1 1000W Power Supply is certified for 80 Plus Gold efficiency and features full support for ATX 3.1 and PCIe Gen 5 power standards, making it ready for modern high performance GPUs. It offers fully modular cables for easy cable management and uses a quiet fluid dynamic bearing fan for reliable cooling. This unit is designed for stable power delivery and includes a five year warranty for peace of mind.
Features
Elite Gold 1000
Essential Gold Power for Everyday Gaming Builds
Cooler Master Elite Gold 1000 is designed for everyday gaming and first-time builds. With full ATX 3.1 compliance support, it's ready for RTX 50 GPUs and future upgrades. Enjoy 80 Plus Gold efficiency, reliable up to 40°C operation, and quiet FDB fan cooling. Fully modular embossed cables simplify installation, dual EPS connectors provide wide compatibility, and a 5-year warranty ensures long-term confidence and reliability.
- Supports ATX 3.1 and PCIe Gen 5.1 standards
- Ideal for RTX 50 GPUs
- Stable performance under high loads at up to 40°C
- Quiet, long-life FDB fan cooling
- 1000W output with 80 Plus Gold-certified efficiency
- Fully modular embossed cable design
- Reliable 5-year warranty
High Temperature Resilience
Operates reliably at up to 40°C, perfect for extended gaming, rendering, and overclocking.
Compatible with ATX 3.1 and PCIE Gen 5.1
ATX 3.1 delivers tighter voltage and current regulation with peak power support up to 200% of rated output. Elite Gold 1000 meets the full spec and supports PCIe Gen 5.1 for stable, next-gen performance with RTX 50 GPUs and future high-power cards.
All performance stats confirmed in 25°C ambient temperature testing.

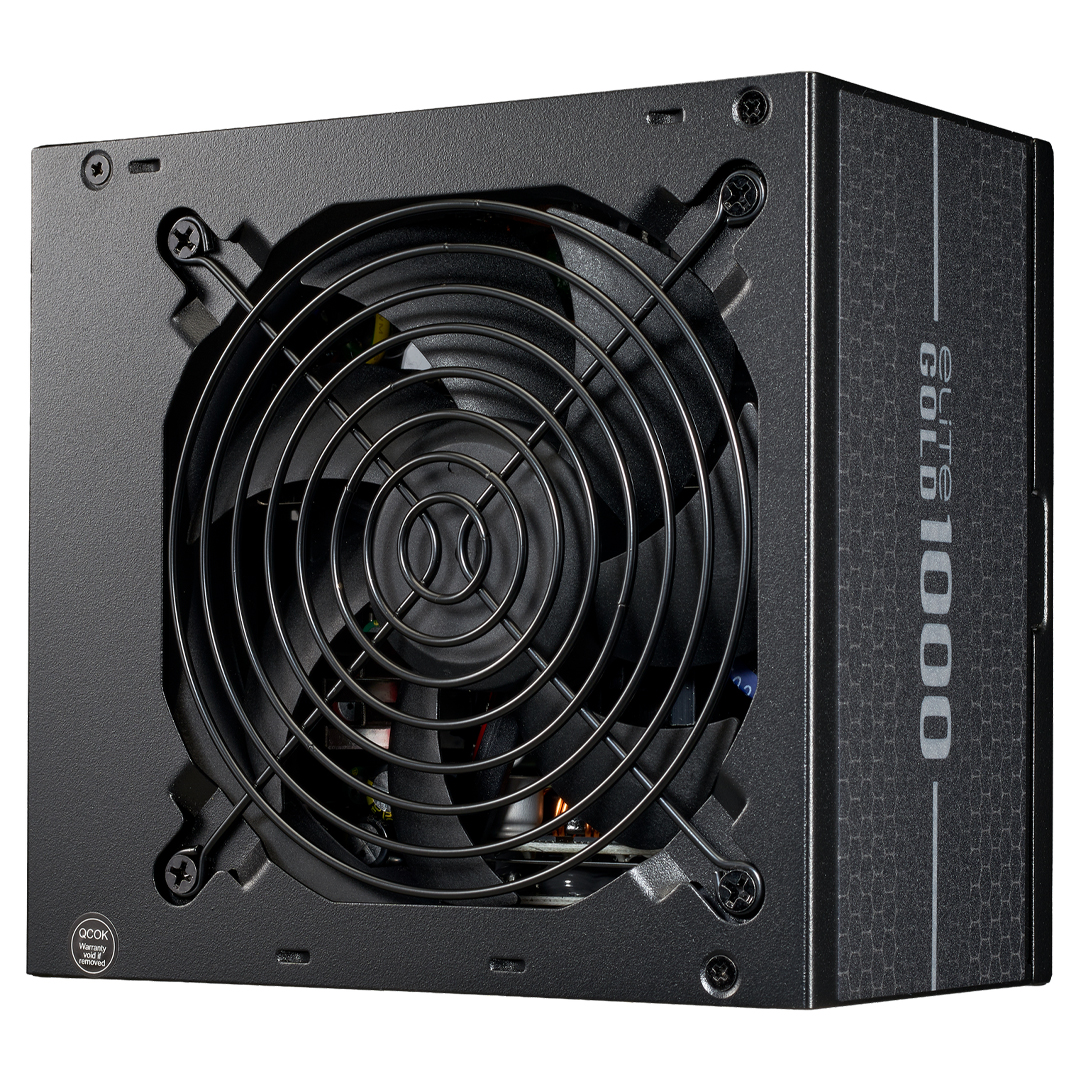

Quiet FDB Fan
The Fluid Dynamic Bearing (FDB) fan delivers stable, long-lasting, and whisper-quiet cooling performance.
All performance stats confirmed in 25°C ambient temperature testing.
80 Plus Gold Certified Efficiency
Cooler Master Elite Gold 1000 achieves over 90% efficiency at typical loads, helping reduce energy waste and minimise heat generation.
All performance stats confirmed in 25°C ambient temperature testing.

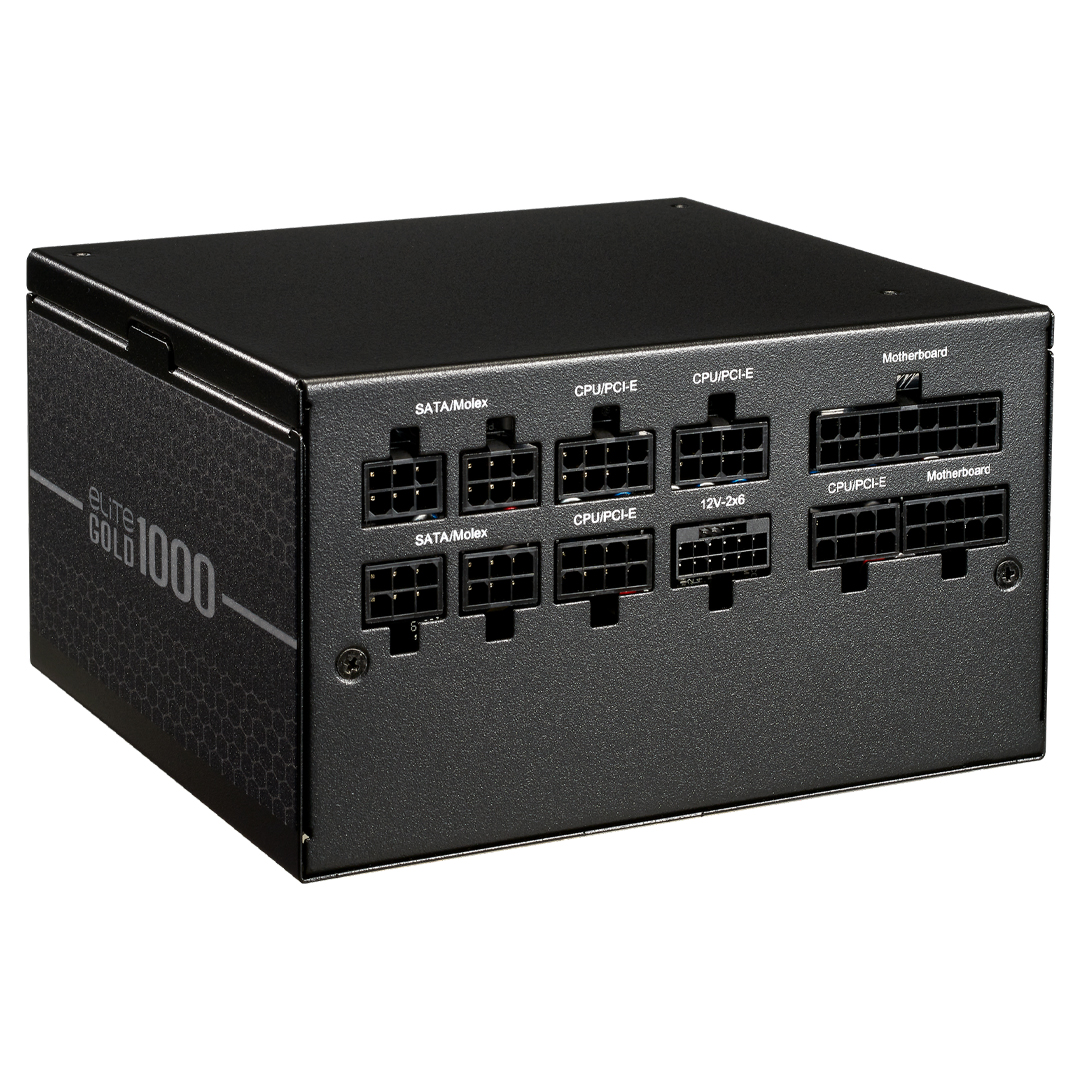

Fully Modular Embossed Cable Design
The fully modular design comes with flat black cables that can be tailored to each build, offering enhanced grip and a premium look for easier management and a cleaner overall setup.
All performance stats confirmed in 25°C ambient temperature testing.
Specifications
| Model Number |
MPW-A001-AFAG-BAU |
| Product Name |
ELITE GOLD 1000 |
| ATX Version |
ATX 12V Ver. 3.1 |
| PFC |
Active PFC |
| Input Voltage |
100 - 240 V |
| Input Current |
6 ~ 12 A |
| Input Frequency |
50 - 60 Hz |
| Dimensions (L x W x H) |
140 x 150 x 86 mm |
| Fan Size |
120 mm |
| Fan Bearing |
FDB |
| Efficiency |
≥90% @ Typical Load |
| 80 PLUS Rating |
80 PLUS Gold |
| ErP 2014 Lot 3 |
Yes |
| Operating Temperature |
0 - 40°C |
| Power Good Signal |
100 - 150 ms |
| Hold Up Time |
≥16 ms at 80% Load |
| MTBF |
>100,000 hours @ 25 ambient |
| Protections |
UVP / OVP / OPP / OTP / SCP |
| Regulatory |
cTUV us, CB, CE, FCC, BSMI, EAC, RCM, UKCA, RoHS2.0 , REACH |
| ATX 24 Pin Connectors |
x1 = 1 (600 mm) |
| EPS 4 + 4 Pin Connectors |
x2 = 2 (700 mm) |
| SATA Connectors |
x9 = 3 (500 + 100 + 100 mm) |
| Peripheral 4 Pin Connectors |
x3 = 1 (500 + 100 + 100 mm) |
| PCI-e 6 + 2 Pin Connectors |
x6 = 3 (550 + 120 mm) |
| 12 + 4 Pin Connectors |
x1 = 1 (600 mm) |
| Series |
Elite Series |
| Form Factor |
ATX |
| Watts |
1000 W |
| Modular |
Fully Modular |
| 80 Plus Efficiency |
Gold |
Backed by a 5 year Cooler Master warranty.
