Ubiquiti Unifi Aggregation Switch

USW-AGGREGATION | Ubiquiti
$519
Stock at Supplier We do not have this item in our warehouse, but stock is either already on its way or is generally available from the supplier.
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
The Ubiquiti Unifi Aggregation Switch is a high-speed network switch featuring 8 x 10G SFP+ ports and delivering a 160 Gbps total switching capacity, perfect for connecting multiple switches or high-bandwidth devices in enterprise networks. Built in a compact 1U rackmount design with a 1.3-inch touchscreen for easy control, this aggregation switch provides advanced Layer 2 network management features including, security controls, and traffic management to handle demanding network environments.

Features

Ubiquiti UniFi Aggregation Switch Feature 1

Deployment

Build Features

Ubiquiti UniFi Aggregation Switch Feature 2

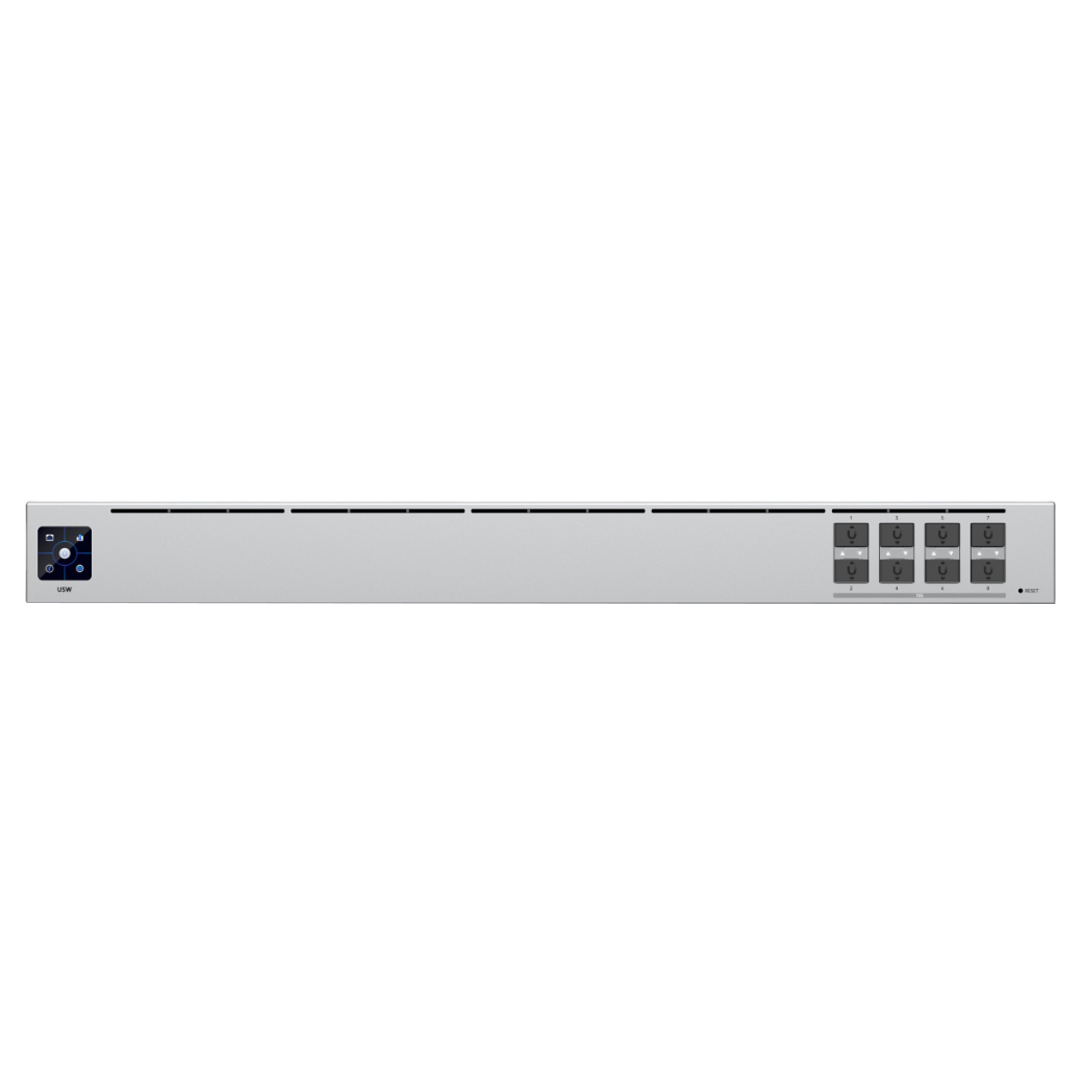

Front View

Ubiquiti UniFi Aggregation Switch Feature 3

Back View

Ubiquiti UniFi Aggregation Switch Feature 4

Dimensions

Specifications

General Data

Model Number USW-AGGREGATION
Dimensions 442 x 120 x 43.7 mm (17.4 x 4.7 x 1.7")
Port Layout 10G SFP+: 8 (10G/1G)
Form Factor Rack mount (1U)

Performance

Switching Capacity 160 Gbps
Total Non-Blocking Throughput 80 Gbps
Forwarding Rate 119 Mpps
Supported VLANs 1,000
MAC Address Table Size 16,000
Packet Buffer Size 1.5 MB
Access Lists IPv4: 128
MAC: 128

Layer 2 Features

LACP Port Aggregation Yes
STP & RSTP Yes
Advanced IGMP Configuration (Querier, Fast Leave, Router Port) Yes
IGMP Snooping Yes
802.1X Control Yes
MAC-Based ACLs & Device Isolation Yes
DHCP Snooping & Guarding Yes
Egress Rate Limit Yes
Flow Control Yes
Storm Control Yes
Multicast & Broadcast Rate Limiting Yes
MAC Address Blocking Yes
IP-Based ACLs & Network Isolation Yes
MAC-Based Port Restriction Yes
Port Isolation Yes
Port Mirroring Yes
Jumbo Frames Yes
LLDP-MED Yes
Voice VLAN Yes
Loop Protection Yes

Hardware

Max. Power Consumption 36W (Including SFP modules)
Power Method Universal input, 100—240V AC, 50/60 Hz
Power Input Method AC input
Power Supply AC/DC, internal, 36W
Supported Voltage Range 100—240 V AC
Management Ethernet
AR
Heat Dissipation (Excluding PoE Output) 102.36 BTU/hr
Weight Without mounting brackets: 2.6 kg (5.8 lb)
With mounting brackets: 2.7 kg (6 lb)
Enclosure Material SGCC steel
Mount Material SGCC steel
Supported Rack Depth 400~1200 mm (15.7-47.2")
LCM Display 1.3" touchscreen
ESD Protection Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature -5 to 40° C (23 to 104° F)
Ambient Operating Humidity 10 to 90% noncondensing
NDAA Compliant Yes
Certifications CE, FCC, IC, Anatel

Software

Application Requirements UniFi Network: Version 5.14.12 and later
Backed by a 1 year Ubiquiti warranty.
