The Ubiquiti UniFi Switch Pro XG 24 PoE features a 24-port Layer 3 managed switch with 16x 10 GbE and 8x 2.5 GbE PoE+++ ports, delivering up to 90W per port. It also includes 2x 25G SFP28 uplink ports, providing a total PoE budget of 720W. The switch is designed for high-performance networking, supporting advanced features like Etherlighting and redundancy via DC power backup.
Features
Deployment
Build Features

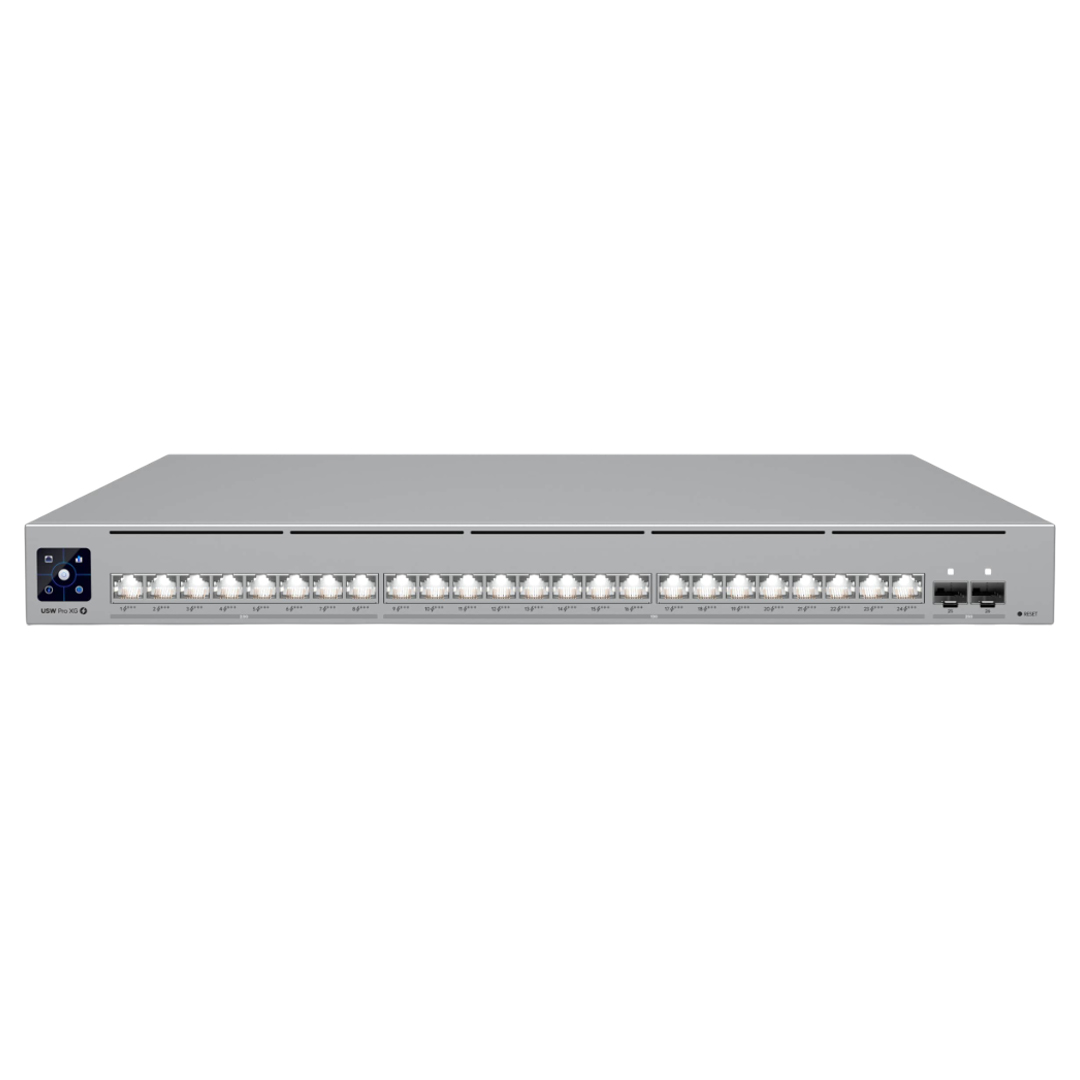

Front View
Back View
*Require UniFi Power Backup.
Side View
**Pair with UniFi Etherlighting Patch Cables for optimal brightness.
Specifications
General Data
| Model Number |
USW-PRO-XG-24-POE |
| Dimensions |
442 x 480 x 44 mm (17.4 x 18.9 x 1.7") |
| Port Layout |
2.5 GbE RJ45
8 (All PoE+++)
(2.5G/1G/100M/10M)
10 GbE RJ45
16 (All PoE+++)
(10G/5G/2.5G/1G/100M/10M)
25G SFP28: 2 (25G/10G/1G) |
| Max. PoE Output |
Up to PoE+++ |
| Total PoE Availability |
720 W |
| Redundancy |
DC Power Backup |
| Layer 3 |
Yes |
| Form Factor |
Rack mount (1U) |
| Etherlighting™ |
Yes |
| Warranty |
1 Year |
Performance
| Switching Capacity |
460 Gbps |
| Total Non-Blocking Throughput |
230 Gbps |
| Forwarding Rate |
342 Mpps |
| Supported VLANs |
1,000 |
| MAC Address Table Size |
128,000 |
| L3 Table Size |
ARP Entries: 128,000
IPv4 Routes: 256,000 |
| Packet Buffer Size |
8 MB |
| Access Lists |
IPv4: 256
MAC: 256 |
Layer 3 Features
| DHCP Server (Local Networks) |
Yes |
| DHCP Relay |
Yes |
| Inter-VLAN Routing (Local Networks) |
Yes |
| Static Routing (Local Networks) |
Yes |
Layer 2 Features
| LACP Port Aggregation |
Yes |
| STP & RSTP |
Yes |
| QoS (DSCP) |
Yes |
| Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) |
Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) |
Yes |
| IGMP Snooping |
Yes |
| 802.1X Control |
Yes |
| MAC-Based ACLs & Device Isolation |
Yes |
| DHCP Snooping & Guarding |
Yes |
| Egress Rate Limit |
Yes |
| Flow Control |
Yes |
| Storm Control |
Yes |
| Multicast & Broadcast Rate Limiting |
Yes |
| MAC Address Blocking |
Yes |
| IP-Based ACLs & Network Isolation |
Yes |
| MAC-Based Port Restriction |
Yes |
| Port Isolation |
Yes |
| Port Mirroring |
Yes |
| Jumbo Frames |
Yes |
| LLDP-MED |
Yes |
| Voice VLAN |
Yes |
| Loop Protection |
Yes |
Hardware
| PoE Ports |
PoE+++: 24 |
| Max. PoE Wattage per Port by PSE |
PoE: 15.4 W
PoE+: 30 W
PoE++: 60 W
PoE+++: 90 W |
| Max. Power Consumption |
150 W (Excluding PoE Output)
870 W (Including PoE Output) |
| Power Method |
(1) Universal input, 100—240 V AC, 50/60 Hz
(1) USP RPS DC input |
| Power Input Method |
AC input |
| Power Supply |
AC/DC, internal, 870 W |
| Supported Voltage Range |
100—240 V AC |
| Management |
Ethernet
AR |
| Weight |
Without mounting brackets: 7.9 kg (17.4 lb)
With mounting brackets: 8 kg (17.6 lb) |
| Enclosure Material |
SGCC steel |
| Mount Material |
SGCC steel |
| Supported Rack Depth |
482.6 mm (19") four-post racks
Posts depths ranging from 600 to 1,066 mm (23.6-42”) |
| LCM Display |
1.3" touchscreen |
| ESD Protection |
Air: ± 30kV, contact: ± 20kV |
| Ambient Operating Temperature |
-5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity |
10 to 90% noncondensing |
| Etherlighting™ |
Ethernet: Yes
SFP28: Yes |
| LEDs |
RPS: Yes |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, Anatel |
Software
| Application Requirements |
UniFi Network: Version 9.1.120 and later |
Backed by a 1 year Ubiquiti warranty.
