The Ubiquiti UP-AI-Port features an AI appliance that enhances any UniFi or third-party camera with AI detection, classification, and recognition capabilities. It supports advanced AI for people detection, license plate recognition, and more. The device includes one PoE++/PoE+ power input and one PoE+/PoE power output, allowing for direct connection or pairing with a camera on the network. It is compatible with ONVIF third-party cameras.
Features
Deployment
Build Features

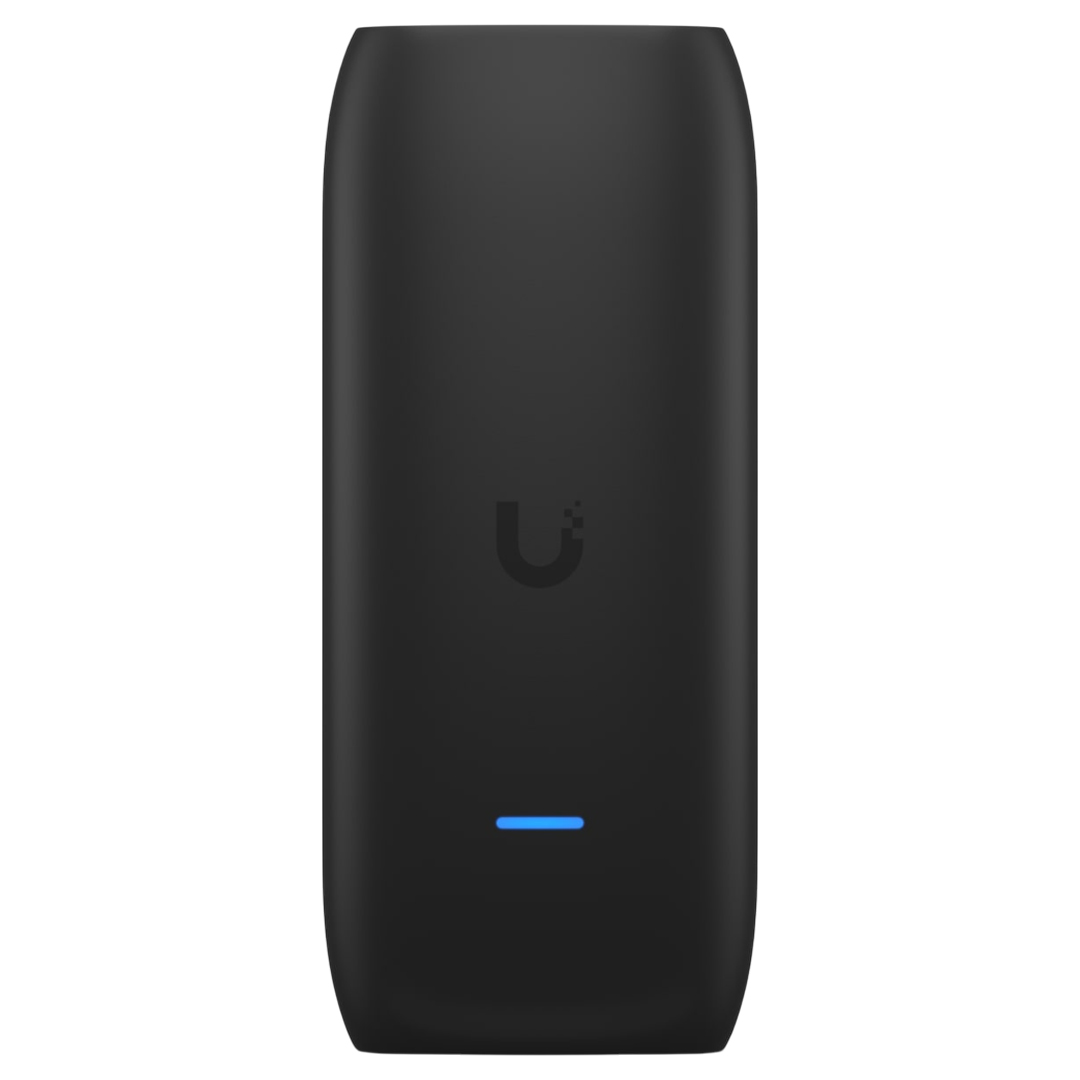

Front View
**Rack mount sold separately.
Top View
*PoE+ input required for PoE output (12.95W), PoE++ input required for PoE+ output (25.5W).

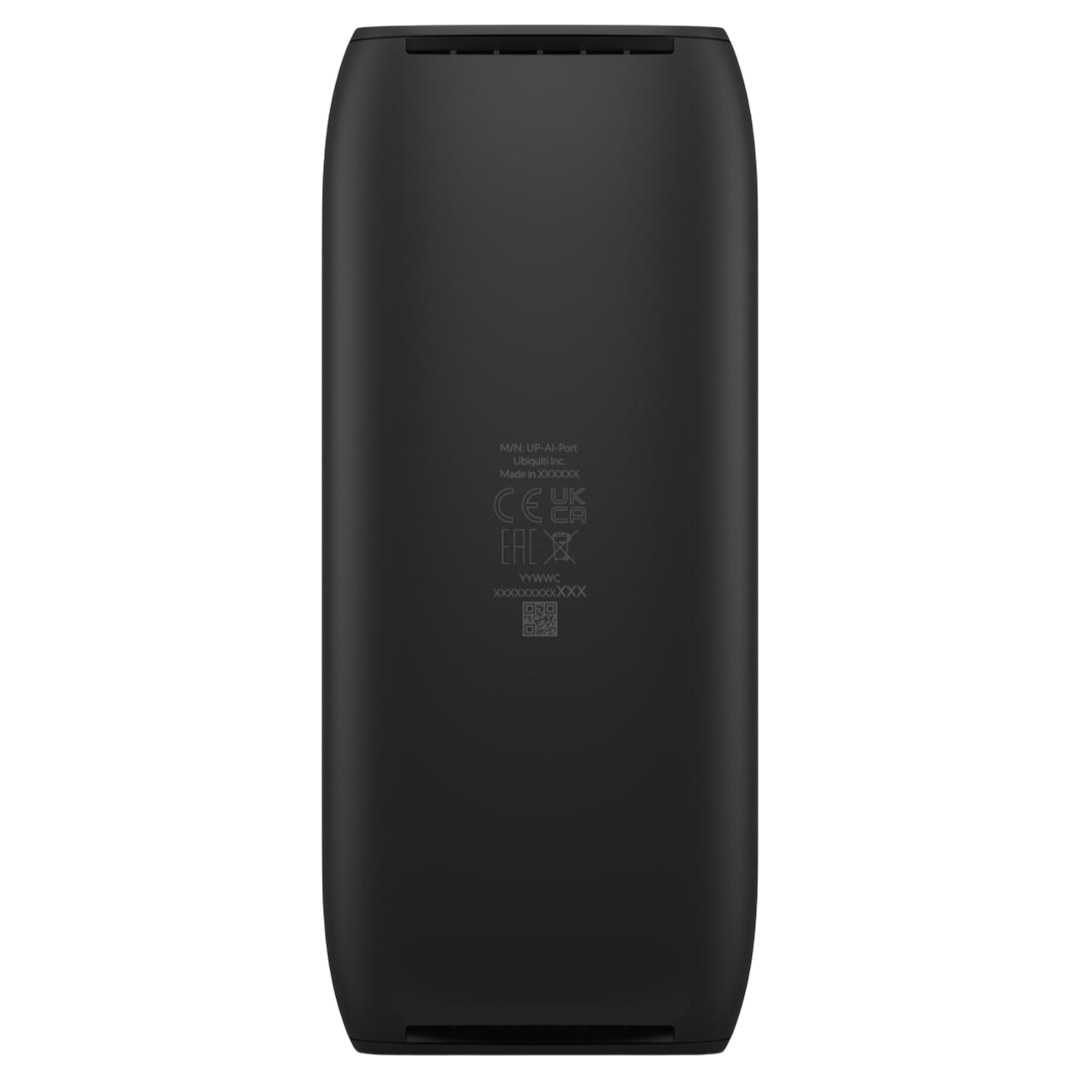

Bottom View
*** SD card support coming soon.
Specifications
General Data
| Model Number |
UP-AI-PORT |
| Dimensions |
Without mount: 150 x 64 x 38.4 mm (5.9 x 2.5 x 1.5")
With mount: 152.7 x 69 x 47.8 mm (6 x 2.7 x 1.9") |
| Resolution |
Max. camera resolution:
Width: 3840 pixels
Height: 2160 pixels |
| Networking Interface |
(1) GbE RJ45 port |
| Warranty |
1 Year |
Hardware
| Power Method |
PoE
PoE+ input required for PoE output (12.95W)
PoE++ input required for PoE+ output (25.5W) |
| Pole Mount Diameter |
>45 mm (1.8") on pipe outer diameter |
| Weight |
Without mount: 258.3 g (9.1 oz)
With mount: 294 g (10.4 oz) |
| Enclosure Material |
Polycarbonate |
| Button |
Factory-reset |
| Ambient Operating Temperature |
-20 to 40° C (-4 to 104° F) |
| Ambient Operating Humidity |
20 to 90% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
FCC, IC, CE |
Software
| Application Requirements |
Web Application - UniFi Protect: Version 5.1 and later
Mobile App: UniFi Protect iOS™ and Android™ |
Backed by a 1 year Ubiquiti warranty.
