Ubiquiti Cloud Gateway Fiber

UCG-FIBER | Ubiquiti
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
$559
In stock
Order within 6h 50m 34s for same day dispatch!
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns

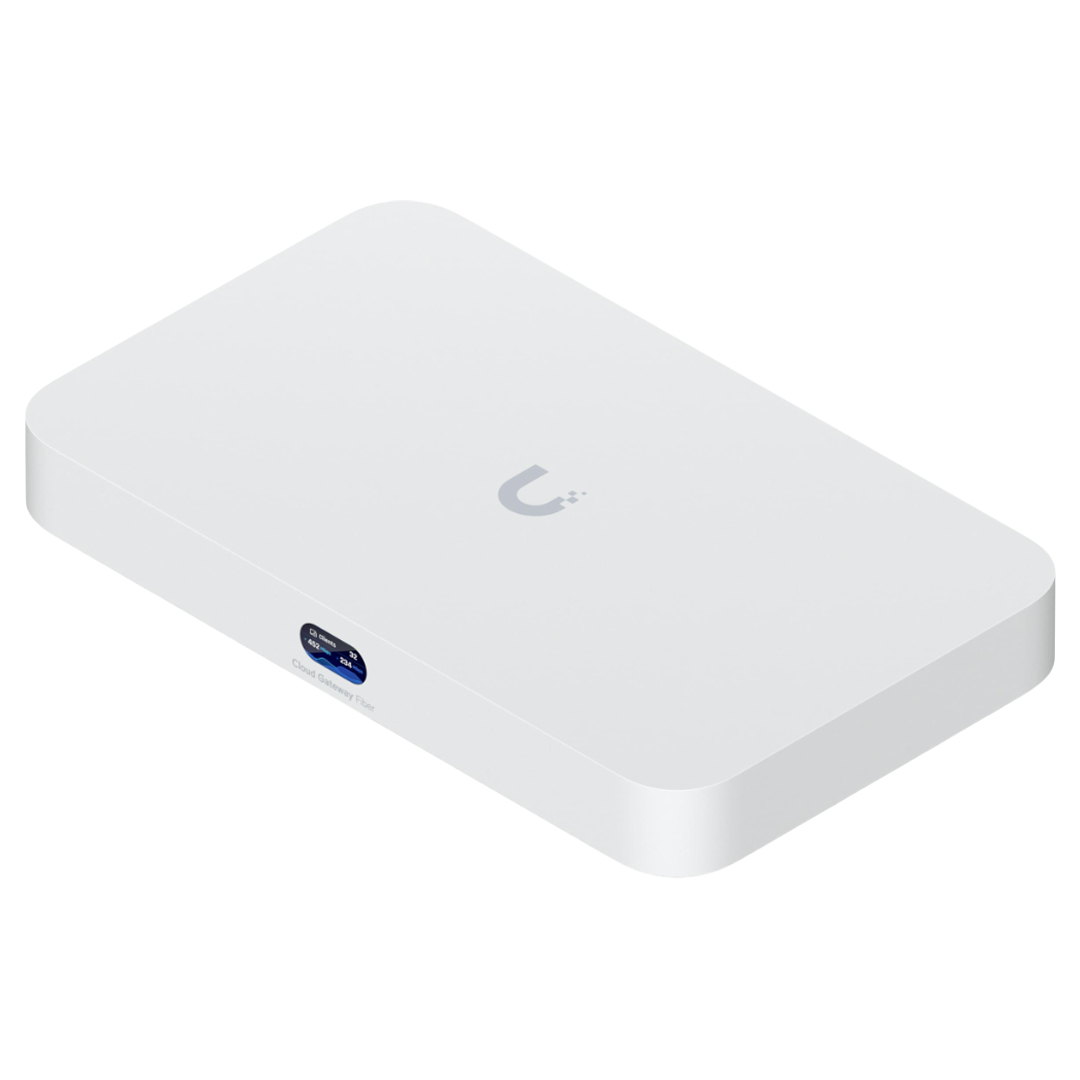

The Ubiquiti Cloud Gateway Fiber (UCG-Fiber) features a compact design with a quad-core processor and 3 GB RAM for fast performance. It includes dual 10G SFP+ ports, a 10G RJ45 WAN port, and four 2.5 GbE LAN ports, one with PoE output. The gateway supports up to 50 UniFi devices, 500 users, and 15 cameras, and has an optional NVMe SSD slot for up to 2 TB of NVR storage.

Features

Ubiquiti Cloud Gateway Fibre Feature 1

Deployment

Build Features

Ubiquiti Cloud Gateway Fibre Feature 2

Front View

Ubiquiti Cloud Gateway Fibre Feature 3

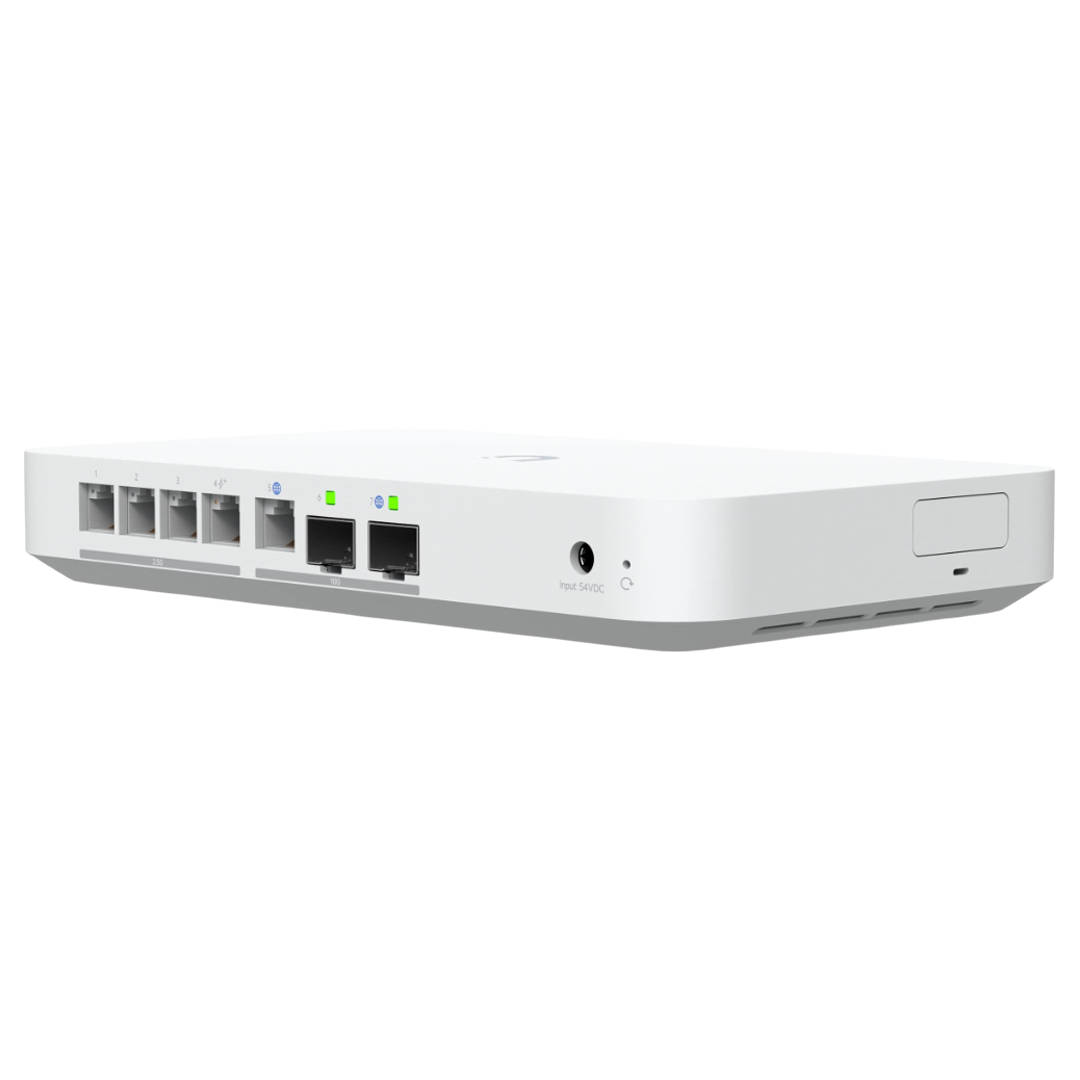

Back View

*54V DC, 1.1A AC power adaptor included.

Ubiquiti Cloud Gateway Fibre Feature 4

Side View

Specifications

General Data

Model Number UCG-FIBER
Dimensions 212.8 x 127.6 x 30 mm (8.3 x 5 x 0.5 ")
UniFi Application Suite Network: Yes
Protect: Yes
Access: Yes
Talk: Yes
Connect: Yes
Managed UniFi Devices 50+
Managed Cameras (15) HD
(8) 2K
(5) 4K
Managed Access Hubs 50
Simultaneous Users Connected 500+
Max. WAN Port Count 6
Default WAN Ports (1) 10G SFP+
(1) 10 GbE RJ45
Port Layout 2.5 GbE RJ45: 4 (2.5G/1G/100M/10M)
10 GbE RJ45: 1 (10G/2.5G/1G)
10G SFP+: 2 (10G/1G)
IDS/IPS Throughput 5 Gbps
Form Factor Compact desktop
Warranty 1 Year

Security

Stateful Firewall Yes
Application-Aware Layer 7 Firewall Yes
DPI & Traffic Identification Yes
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) Yes
Content Filtering Yes
Intrusion Prevention (IPS/IDS) Yes
Ad Blocking Yes
IDS/IPS Signatures 55,000+ with CyberSecure
VLAN/Subnet-Based Traffic Segmentation Yes

VPN & SD-WAN

Licence-Free SD-WAN Yes
Site-To-Site VPN Site Magic: Yes
IPsec: Yes
OpenVPN: Yes
VPN Server Identity Endpoint One-Click VPN: Yes
Teleport Zero-Configuration VPN: Yes
WireGuard: Yes
OpenVPN: Yes
L2TP: Yes
VPN Client OpenVPN: Yes
WireGuard: Yes

Networking

Multi-WAN Load Balancing Yes
Dynamic Routing OSPF: Yes
Advanced QoS Yes
Multicast DNS (mDNS) Yes
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) Yes
Integrated RADIUS Server Yes
RADIUS Over TLS (RadSec) Yes
Additional Internet Failover with UniFi LTE Backup Yes
Internet Quality and Outage Reporting Yes
MAC Address Table Size 4,000

Hardware

NVR Storage Selectable NVMe SSD up to 2 TB
PoE Budget 30 W
Voltage Range PoE Mode 50 - 57 V
Max. Power Consumption 29.4 W (Excluding PoE output)
Power Method DC jack (54V DC/1.1A)
Power Supply 54 V DC/1.1A (adaptor included)
Supported Voltage Range 100—240 V AC
Processor Quad-core ARM® Cortex®-A73 at 2.2 GHz
System Memory 3 GB
Weight Without SSD: 675 g (1.5 lb)
With SSD: 734 g (1.6 lb)
Enclosure Material Polycarbonate
LCM Display 0.96" status display
Management Ethernet
Bluetooth
LEDs Ethernet: Yes
SFP+: Yes
Button (1) Factory-reset
ESD/EMP Protection Air: ± 8 kV, contact: ± 4 kV
Ambient Operating Temperature 0 to 40° C (32 to 104° F)
Ambient Operating Humidity 5 to 95% noncondensing
NDAA Compliant Yes
Certifications CE, FCC, IC, SRRC
Backed by a 1 year Ubiquiti warranty.
