The Ubiquiti Wave AP Gen2 features a dual-radio design with 60 GHz and 5 GHz bands, delivering up to 5.4 Gbps total throughput. It supports up to 31 client connections with a 90-degree coverage area and is ideal for high-speed outdoor networks. The enclosure is IPX6 weather rated and includes both a 2.5 GbE port and a 10G SFP+ port for flexible connectivity.
Features
Build Features

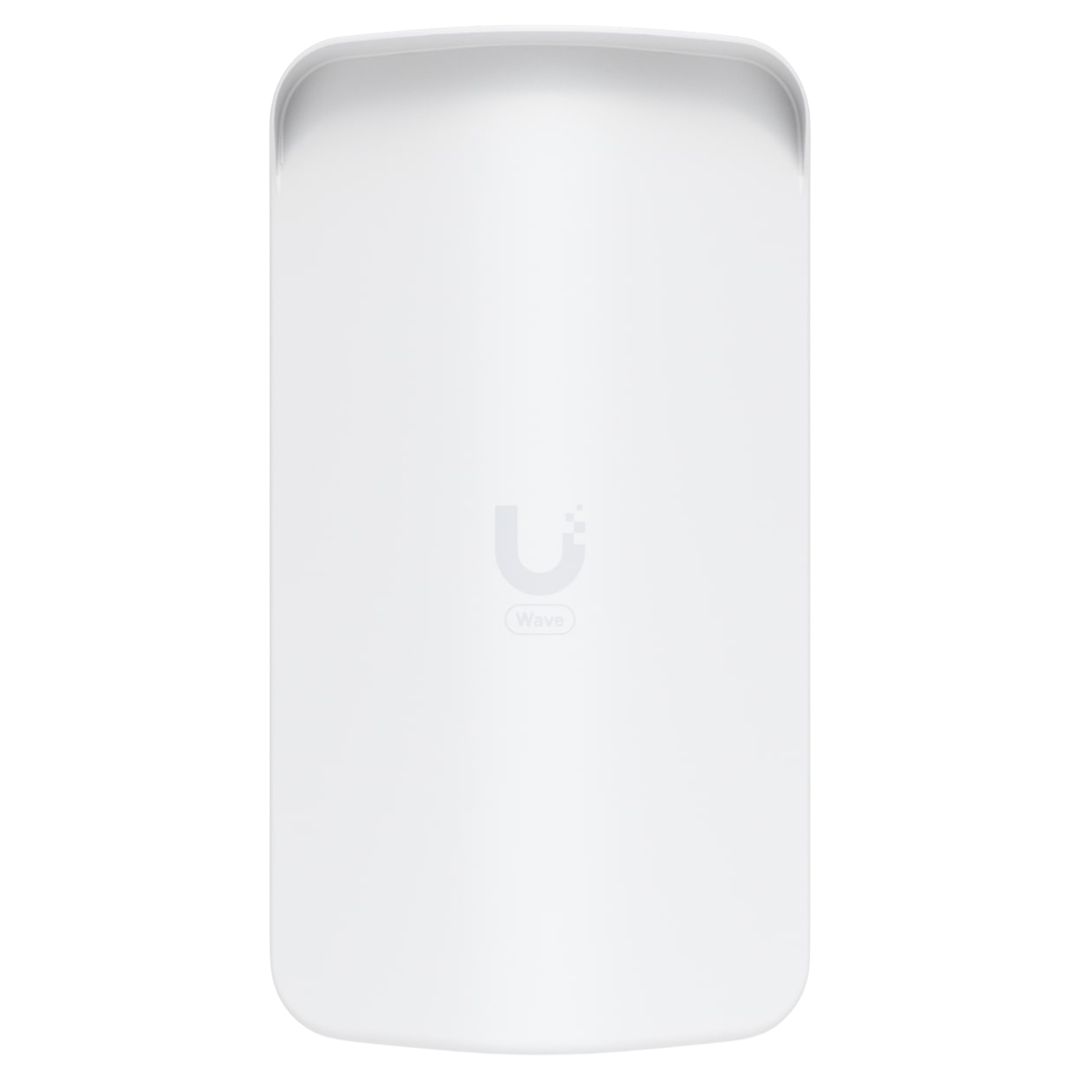

Front View

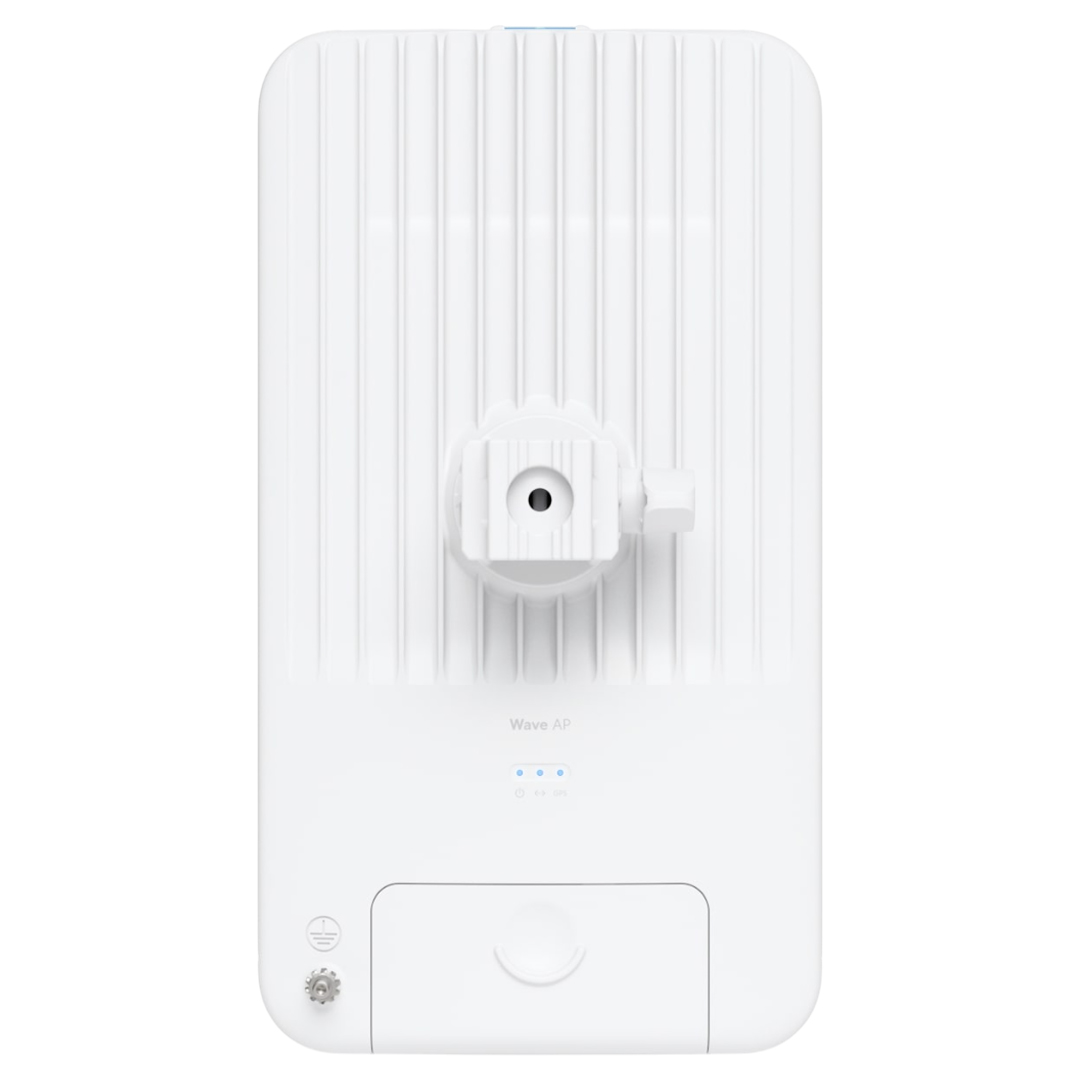

Back View
Bottom View
*48V DC, 0.65A 2.5 GbE PoE adaptor included.
**For external 5 GHz antenna (optional).
Specifications
General Data
| Model Number |
WAVE-AP-GEN2 |
| Dimensions |
158.3 x 286.8 x 100.2 mm (6.2 x 11.3 x 3.9") |
| Weight |
1.5 kg (3.3 lb) |
| Enclosure Material |
UV stabilised polycarbonate, Aluminium alloy |
| Pole Mount Diameter |
25.4 to 60 mm (1 to 2.4") on pipe outer diameter |
| Wind Loading |
109.8 N at 200 km/h (25 lbf at 125 mph) |
| Weatherproofing |
IPX6 |
| Warranty |
1 Year |
Hardware
| Processor |
Quad-core ARM® Cortex®-A53 at 1.4 GHz |
| Memory |
DDR3L 512 MB |
| Networking Interface |
(1) 2.5 GbE RJ45 port
(1) 10G SFP+ port |
| Max. Power Consumption |
24 W |
| Power Method |
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Power Supply |
48 V DC, 0.65A 2.5 GbE PoE adaptor (Included) |
| Supported Voltage Range |
44 – 54 V DC
22 – 27 V DC |
| GPS |
Yes |
| Button |
Factory reset |
| LEDs |
Power, Ethernet, GPS |
| Ambient Operating Temperature |
-40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
| Certifications |
FCC, IC, CE |
Software
| Operating Mode |
PtMP access point |
| Ubiquiti Specific Features |
Wave AI, discovery protocol |
| Services |
UISP, ping watchdog, NTP client, SNMP |
| Tools |
Antenna alignment, discovery utility, ping, trace route, speed test, cable test, site survey |
| Network |
Bridge mode |
| Application Requirements |
UISP: Version 2.4.205 and later |
System
| Total Throughput |
5.4 Gbps |
| Supported Clients Count |
31 |
| Max. Range |
Connecting to a Wave Pro: up to 6 km
Connecting to a Wave Long-Range: up to 6 km
Connecting to a Wave Nano: up to 4 km
Connecting to a Wave Pico: up to 0.9 km |
| Encryption |
WPA2-PSK (AES) |
RF
| Operating Frequency |
57–71 GHz
(Depends on regulatory region.) |
| Channel Bandwidth |
2160, 1080, 540 MHz |
| Operating Channels |
58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHz
(Depends on regulatory region.) |
| Modulation |
16QAM, QPSK |
| Antenna Gain |
20 dBi |
| Polarisation |
Vertically linear |
| Beamwidth |
Azimuth: 3 dB 90°
Elevation: 3 dB 7° |
| Electrical Downtilt |
0° |
Back-Up RF
| WiFi Standard |
802.11ax (WiFi 6) |
| Operating Frequency |
US/CA
U-NII-1 5150 - 5250 MHz
U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz
Worldwide
5150 - 5875 MHz
(Depends on regulatory region.) |
| Channel Bandwidth |
20, 40, 80 MHz |
| Modulation |
BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) |
| Antenna Gain |
13 dBi |
| Cross-Pol Isolation |
18 dB |
| Polarisation |
Dual-linear |
| Beamwidth |
Azimuth: 6 dB 95°
Elevation: 6 dB 25° |
| Electric Downtilt |
0° |
LEDs
| Power |
Flashing white: bootup in progress
White: not connected to UISP application
Blue: connected to UISP application
Flashing blue: locate in progress
Blue/white: firmware upgrade in progress |
| Ethernet |
Flashing white: Ethernet traffic detected
Flashing blue: SFP+ traffic detected |
| GPS |
Blue: receiving at least (4) GPS satellite signal |
Backed by a 1 year Ubiquiti warranty.
