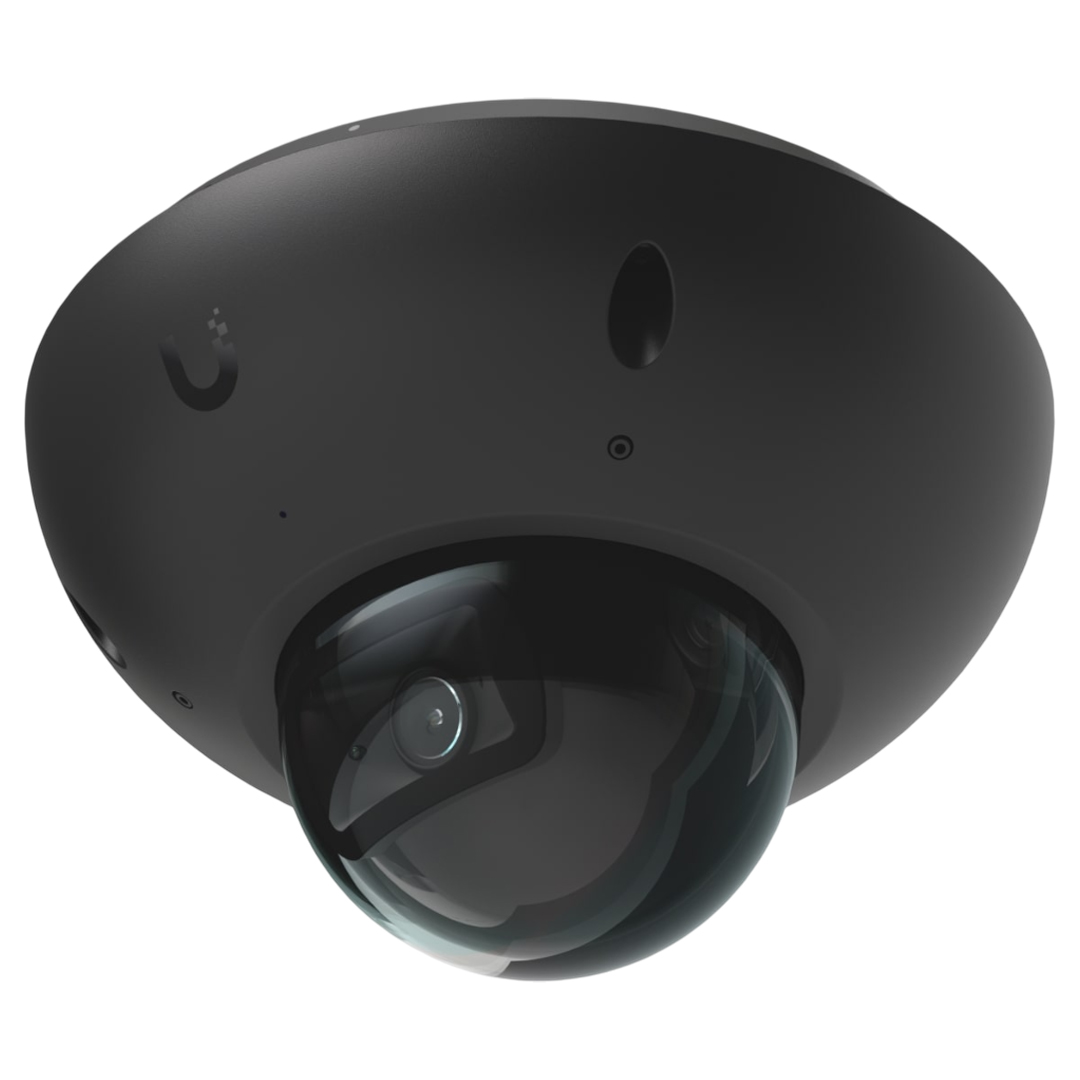

The Ubiquiti UniFi G6 Dome 4K Camera Black features an 8MP 1/1.8-inch image sensor delivering 4K resolution at 30 frames per second. It integrates a Multi-TOPS AI Engine for advanced smart detections, including face and license plate recognition, and offers long-range infrared night vision up to 30 metres.
Features
Deployment
Build Features

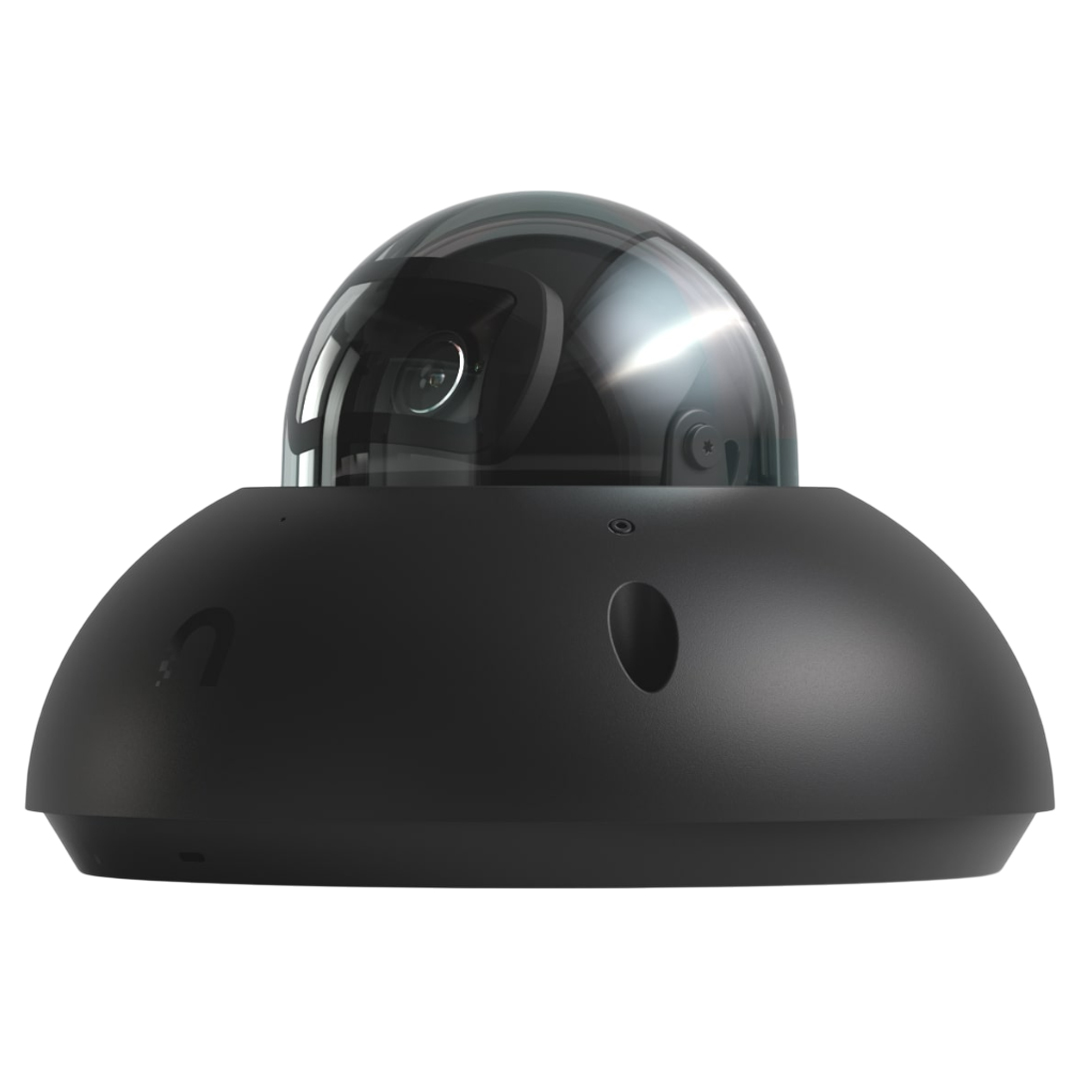

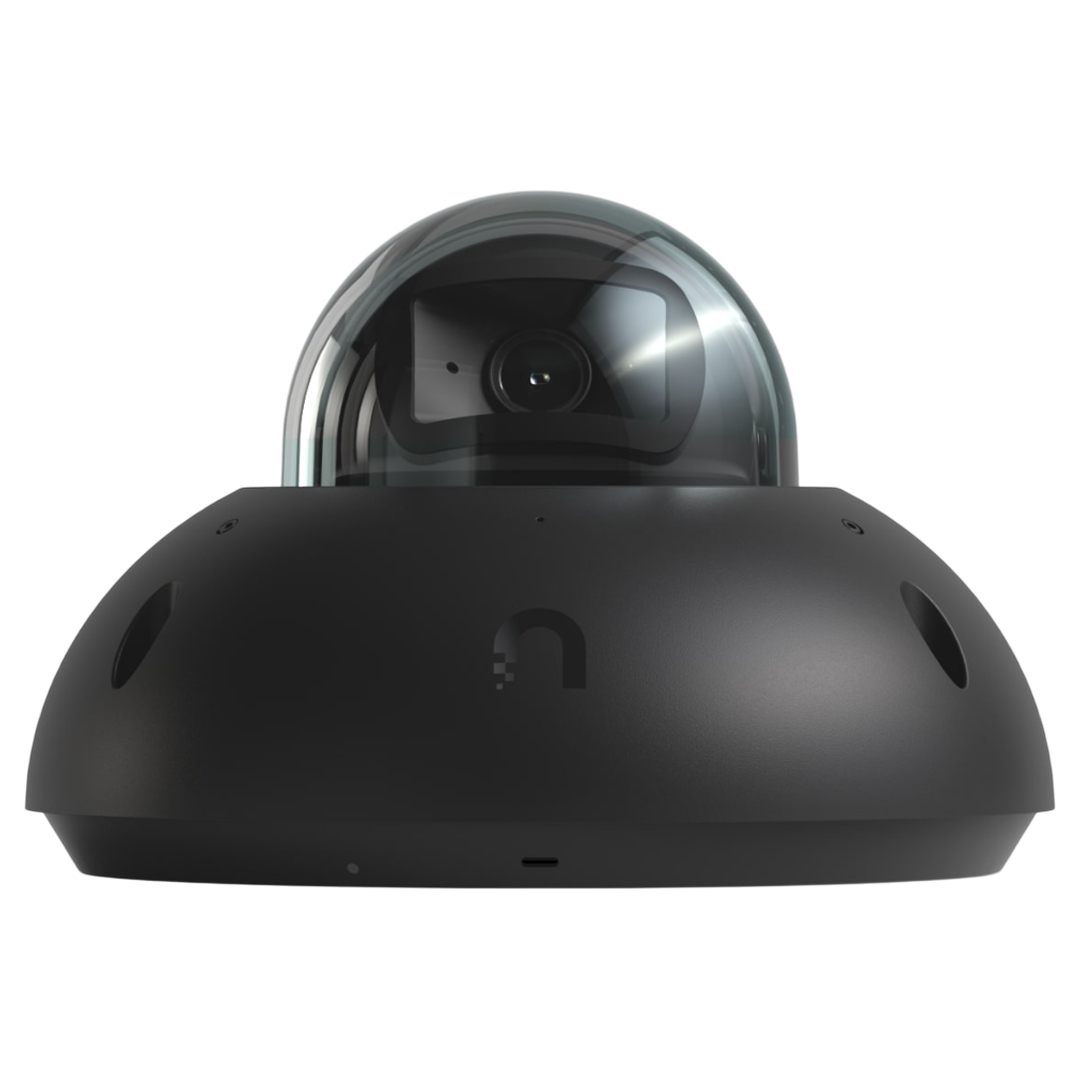

Front View

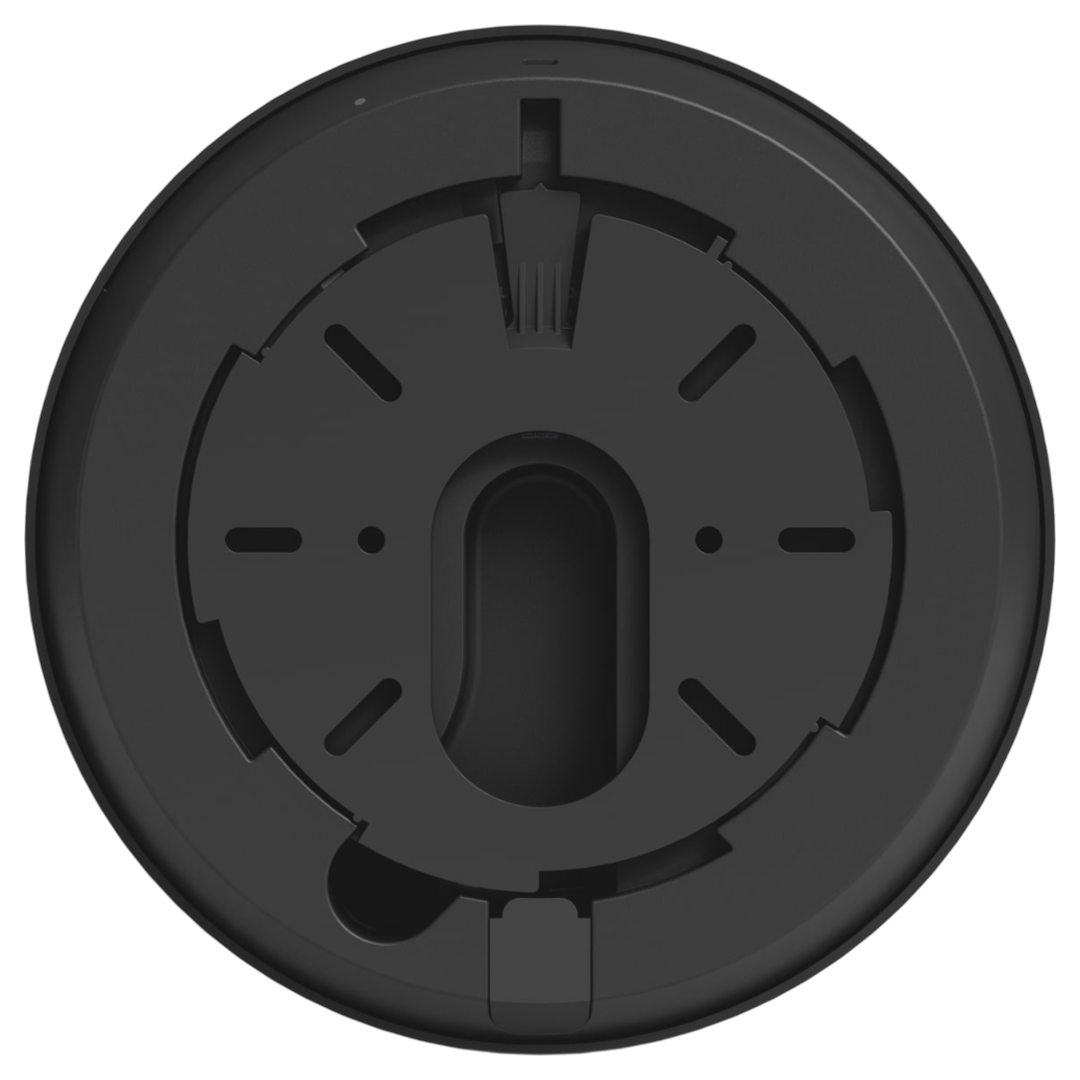

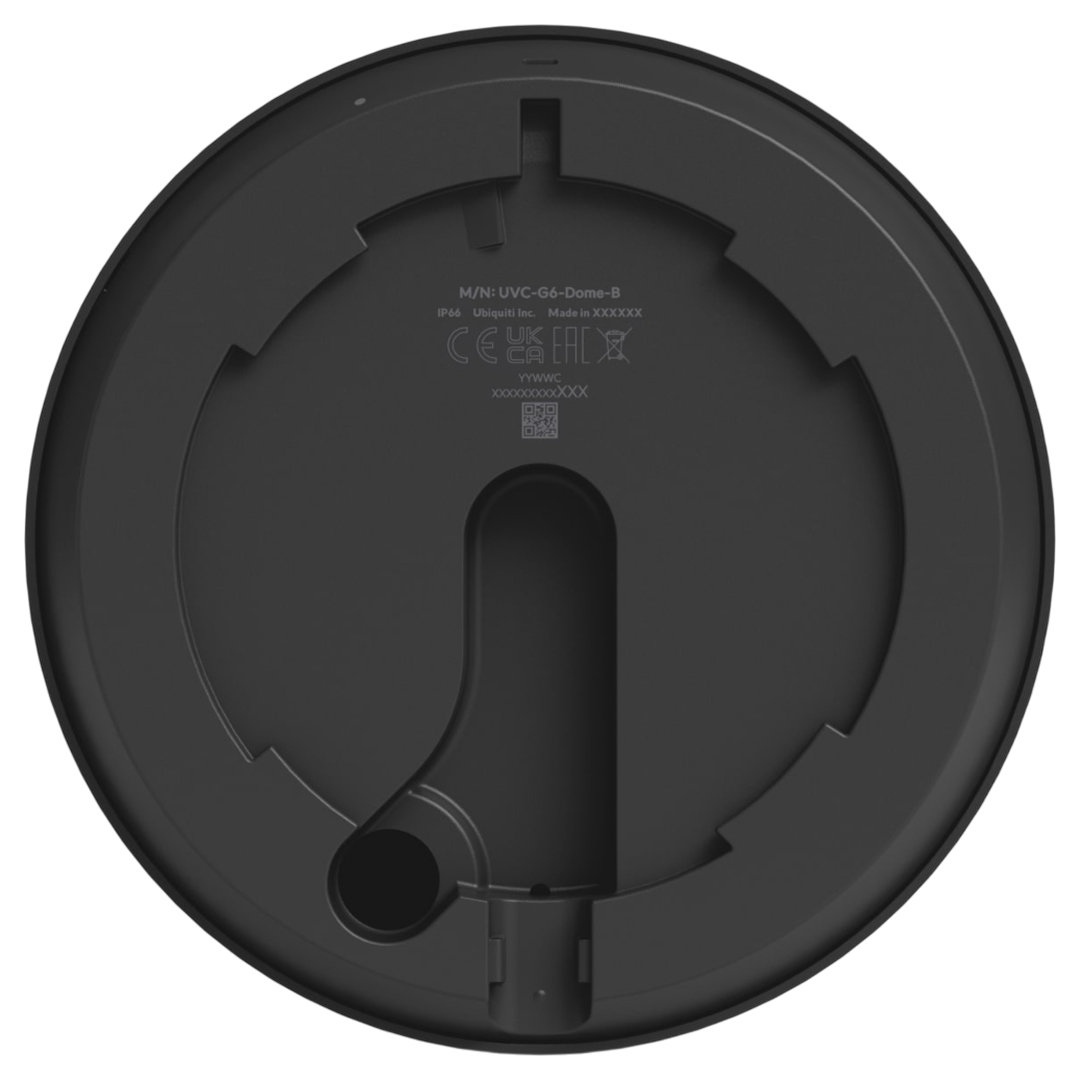

Back View
Top View
Specifications
General Data
| Model Number |
UVC-G6-DOME-B |
| Colour |
Black |
| Dimensions |
Ø144.7x 96.3 mm (Ø5.7 x 3.8") |
| IR Night Vision |
30 m (98 ft) |
| Face Recognition |
Yes |
| License Plate Recognition |
Yes |
| Smart Detections (People, Vehicles, Animals) |
Yes |
| Resolution |
4K |
| Networking Interface |
10/100 MbE RJ45 port |
| Field of View |
H: 109.9°, V: 56.7°, D: 134.1° |
| Audio |
Microphone |
| Weatherproofing |
IP66 |
| Tamper Resistance |
IK10 |
| Mounting |
Ceiling, Wall mount (Included)
Gang Box Mounting Plate, Camera Dual Mount, Flush Mount, Weather Shield (Optional) |
Performance
| Networking Interface |
10/100 MbE RJ45 port |
| Video |
Image Settings: Colour, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
Max. Frame Rate: 30 FPS
Resolution: 8 MP 3840 x 2160 (16:9) |
| Optics |
Sensor: 1/1.8" 8MP
Lens: Fixed focal length
Night Mode: Built-in IR LED illumination and IR cut filter |
Hardware
| Max. Power Consumption |
9.25 W |
| Supported Voltage Range |
37—57 V DC |
| Power Method |
PoE |
| Processor |
Quad-core Arm® Cortex®-A53 based chip |
| Weight |
820 g (1.8 lb) |
| Enclosure Material |
Aluminium alloy |
| Mount Material |
Polycarbonate |
| Button |
(1) Factory-reset |
| Ambient Operating Temperature |
-20 to 50º C (-4 to 122º F) |
| Ambient Operating Humidity |
0 to 90% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC |
Backed by a 1 year Ubiquiti warranty.
