TP-Link EAP770 BE9300 Ceiling Mount Tri-Band WiFi 7 Access Point

On sale! (normally $379) The TP-Link EAP770 BE9300 Ceiling Mount Tri-Band WiFi 7 Access Point features a tri-band design delivering up to 9213 Mbps total throughput-5765 Mbps on 6 GHz, 2882 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz. It includes a 2.5G Ethernet port for high-speed wired connectivity and supports Multi-Link Operation, 320 MHz channels, and 4K QAM for enhanced performance and reduced latency.

Features

---

BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

• BE9300 Tri-Band Wi-Fi 7: 5765 Mbps (6 GHz) + 2882 Mbps (5 GHz) + 688 Mbps (2.4 GHz). Buffering will no longer be a problem. (Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.)
• 1x 2.5G Port: Unlock the full potential of Wi-Fi 7.
• Clear 6 GHz Band: Brings cleaner and wider band resources to your Wi-Fi.
• 320 MHz Bandwidth: Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds. (Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 6 GHz, 4K-QAM, Multi-RUs, OFDMA, and MU-MIMO requires clients to also support the corresponding features.)
• Low Latency and Interference: Multi-Link Operation, and Multi-RUs ensure high performance of your network. (Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 6 GHz, 4K-QAM, Multi-RUs, OFDMA, and MU-MIMO requires clients to also support the corresponding features.)
• Advanced Functions：Supports centralised management, Mesh, and Seamless Roaming. (Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada controller.)
• Speeds up to 9.3 Gbps (Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.)
• 802.3at PoE
• Easy, Quick Setup

Wi-Fi 7: Swifter, Smoother, Stronger

• Wi-Fi 7 Supersized Throughput
  6 GHz - 5765 Mbps
  5 GHz - 2882 Mbps
  2.4 GHz - 688 Mbps
• 4096-QAM for Higher Capacity
  Wi-Fi 7 12 bits/symbol
  20% more data transmission
• Wi-Fi 6 10 bits/symbol
• MLO for Lower Latency

Optimised Wired Performance with 2.5G PoE+ Port

With a 2.5 Gigabit Ethernet Port, EAP770 delivers remarkable multi-gigabit performance for higher bandwidth and faster Wi-Fi. Compatibility with 802.3at PoE is ideal for flexible deployment.

Boosted Network Security

• Secure Guest Network with up to 24 SSIDs
• Boost Your Business with SMS Login
• WPA3 for Worry-Free Open Public Networks
• Rogue AP Detection

Empowering Businesses with Reliable Omada SDN Solutions

Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralised cloud management for a highly scalable network.

Build Features

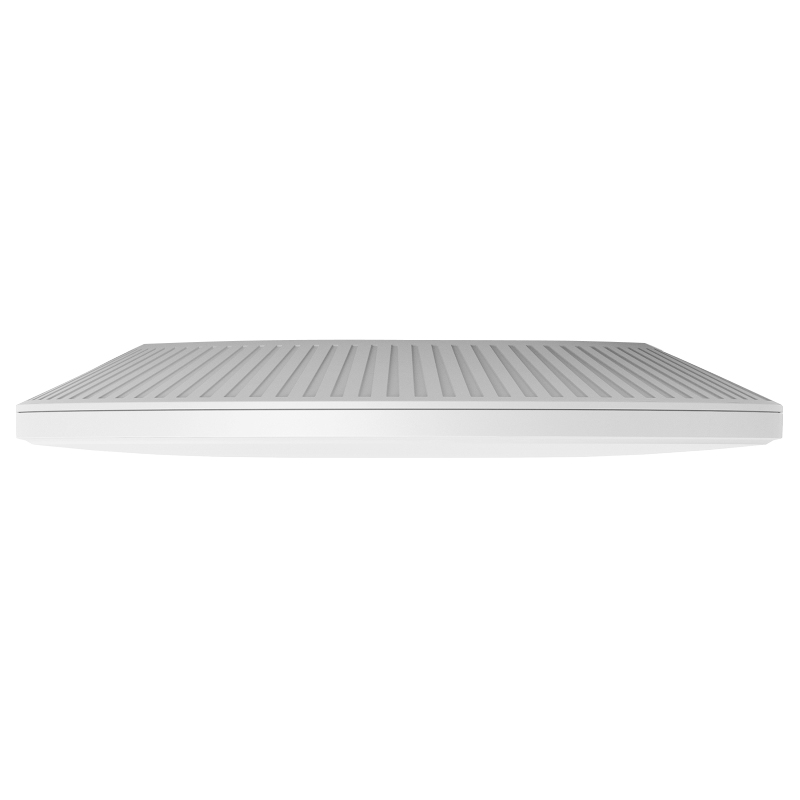

Front View

**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.

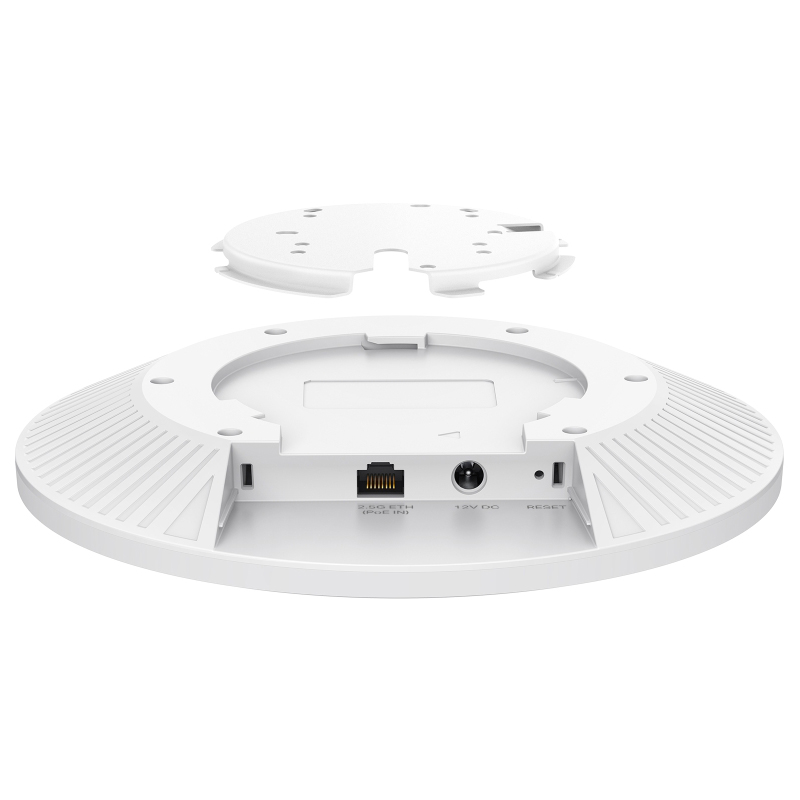

Back View

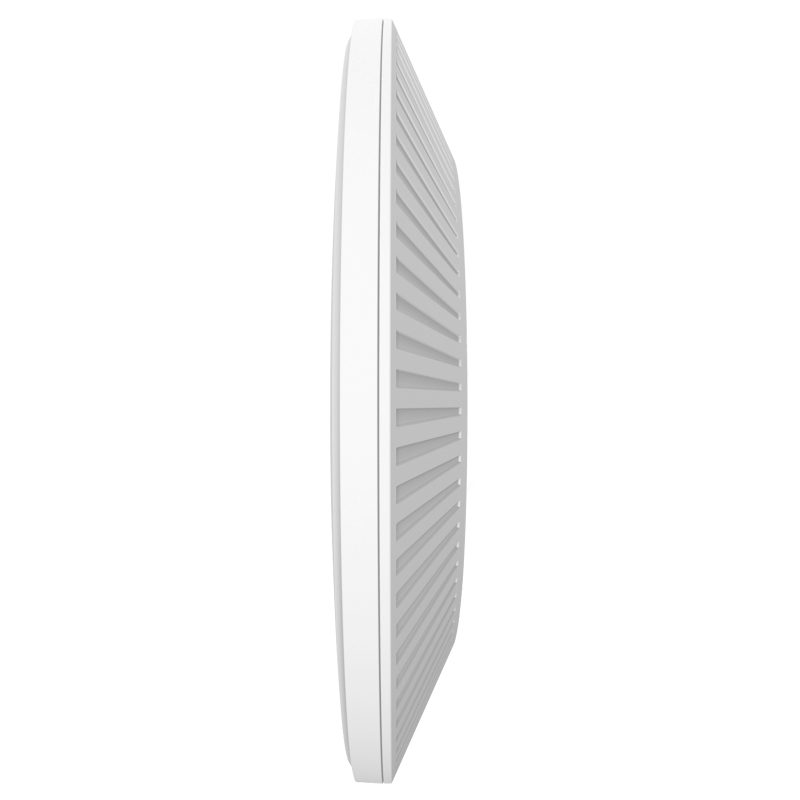

Side View

§Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
