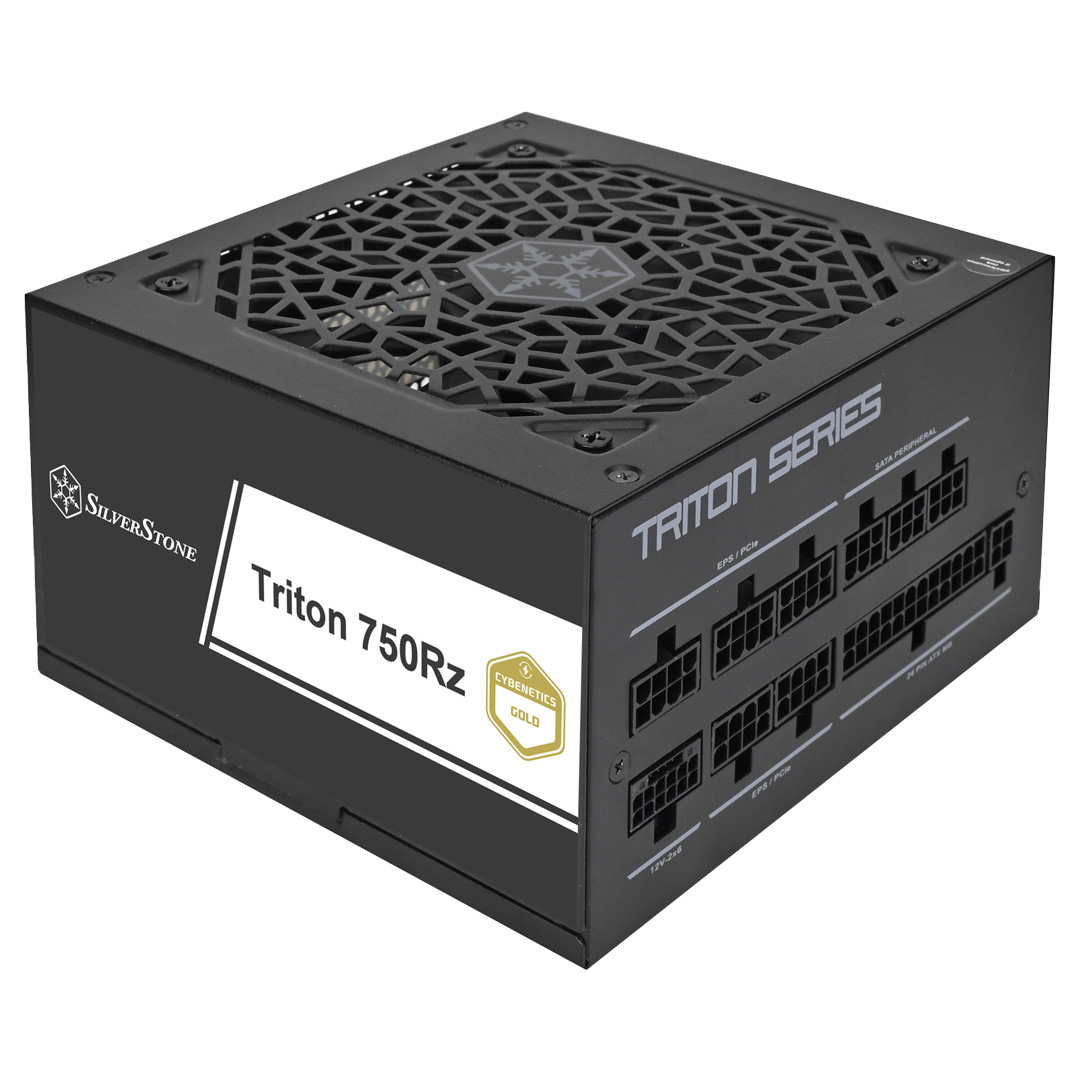

On sale! (normally $155) The SilverStone Triton 750Rz 750W power supply features ATX 3.1 and PCIe5 support for modern GPUs. It is Cybenetics Gold certified for efficiency and has fully modular flat cables. A single +12V rail delivers 62.5A, and a 120mm fan provides active cooling with full protection features.
Features
Triton 750Rz
Cybenetics Gold 750W ATX 3.1 & PCIe 5 Fully Modular ATX Power Supply
- Supports 12V-2x6 PCIe connector with ATX 3.1 standard
- Latest PCIe Gen 5 standard to support up to 2X power excursion
- Silent running 120mm HMB cooling fan
- Black embossed cable design
- Full Japanese electrolytic capacitors
- High efficiency with Cybenetics Gold certification
- 24/7 continuous power output with 40℃ operating temperature
- Compact design with a 140mm depth for easy integration
Latest Generation Power Performance
Compliant with ATX 3.1 standards and supports up to 2X power excursion.
Cybenetics Gold Certified
Designed for Cybenetics Gold level of efficiency to reduce wasted heat and save on electricity.
Superior Cabling Design
Triton 750Rz is equipped with black embossed cables that offers remarkable flexibly, ensures effortless and efficient cable folding and management.
Japanese Electrolytic Capacitors

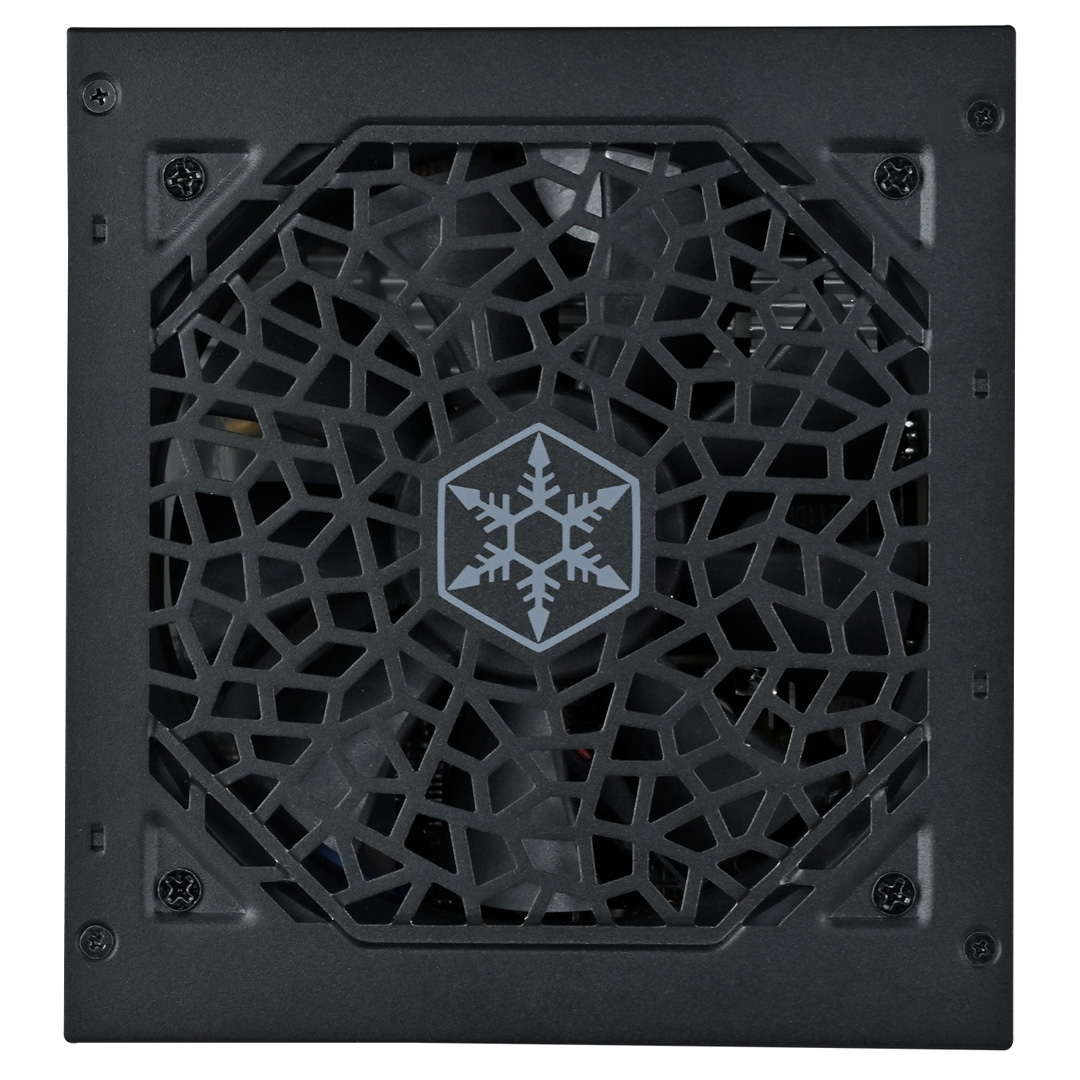

120mm Hydraulic Magnetic Bearing (HMB) Fan
Effectively reduces friction and noise for stable operation and long-lasting durability.
Advanced Protections for Safety and Security
- OVP-Over Current Protection
- OPP-Over Power Protection
- OVP-Over Voltage Protection
- SCP-Short Circuit Protection
- UVP-Under Voltage Protection
- OTP-Over Temperature Protection
Specifications
General Data
| Model Number |
SST-TR750R-GM |
| Model (Safety Certification) |
SST-AX0750FCGD-7QH |
| Colour |
Black (lead-free paint) |
| Max. DC Output |
750W |
| Power Density |
415.3W/L |
| Combined +3.3V & +5V |
100W |
| Combined +12V |
750W |
| Input Voltage |
90 ~ 264 Vrms |
| Input Frequency Range |
47Hz ~ 63Hz |
| PFC |
Active PFC(PF>0.9 at full load) |
| Efficiency |
87% ~ 89% overall efficiency |
| MTBF |
100,000 hours |
| Operating Temperature |
0°C ~ 40°C |
| Protection |
Over power protection
Over current protection
Over voltage protection
Short circuit protection
Under voltage protection
Over Temperature protection |

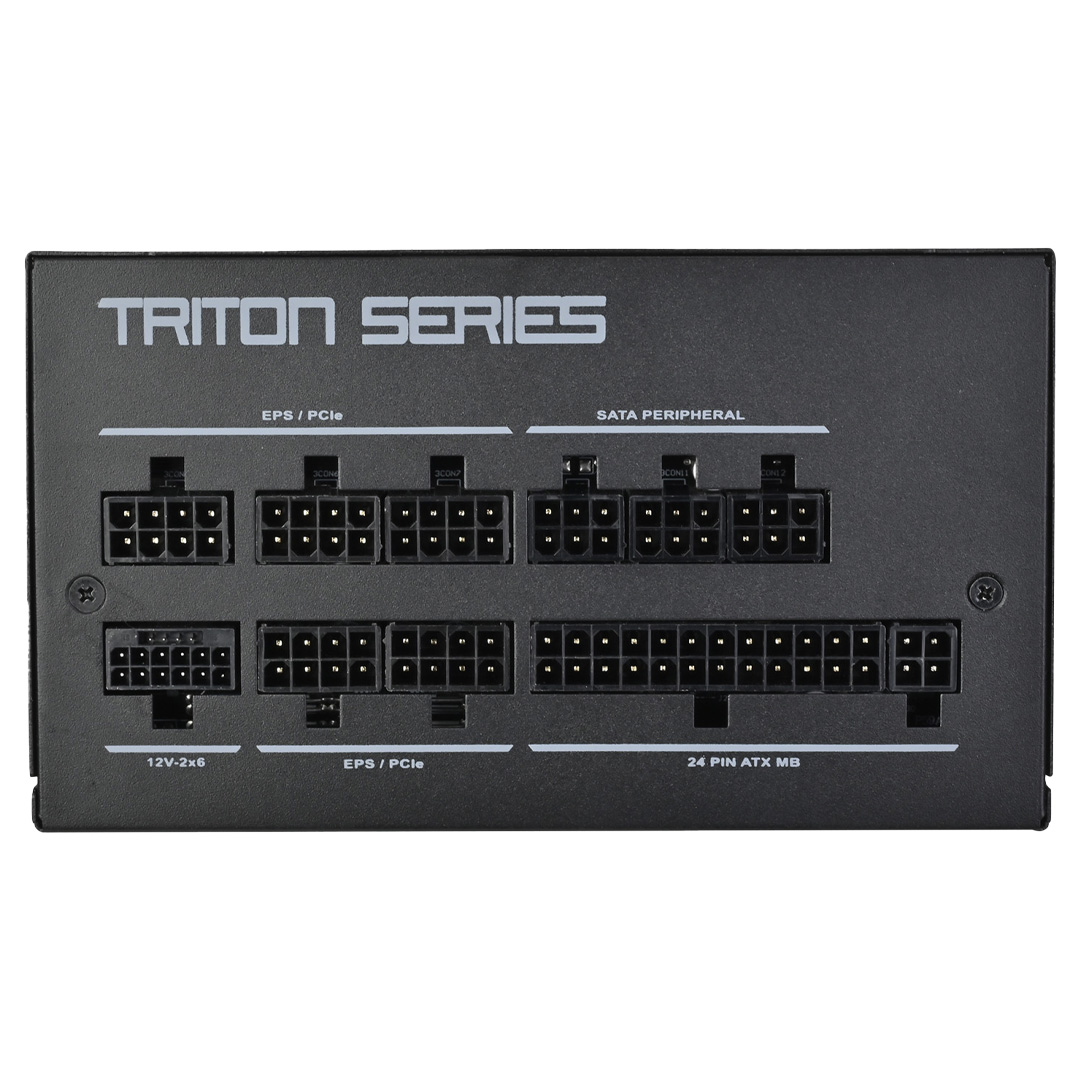

| Connectors |
1 x 24-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connector
1 x 12+4-Pin 12V-2x6 connector
3 x 8 / 6-Pin PCIe connectors
6 x SATA connector
2 x 4-Pin Peripheral connector |
| Cooling System |
Single 120mm HMB bearing fan |
| Noise Level |
18 dBA min. |
| Certification |
Cybenetics Gold |
| Form Factor |
ATX (PS2) |
| Dimension |
150mm (W) x 86mm (H) x 140mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D) |
| Weight |
2.0kg |
| Warranty |
3 Years |

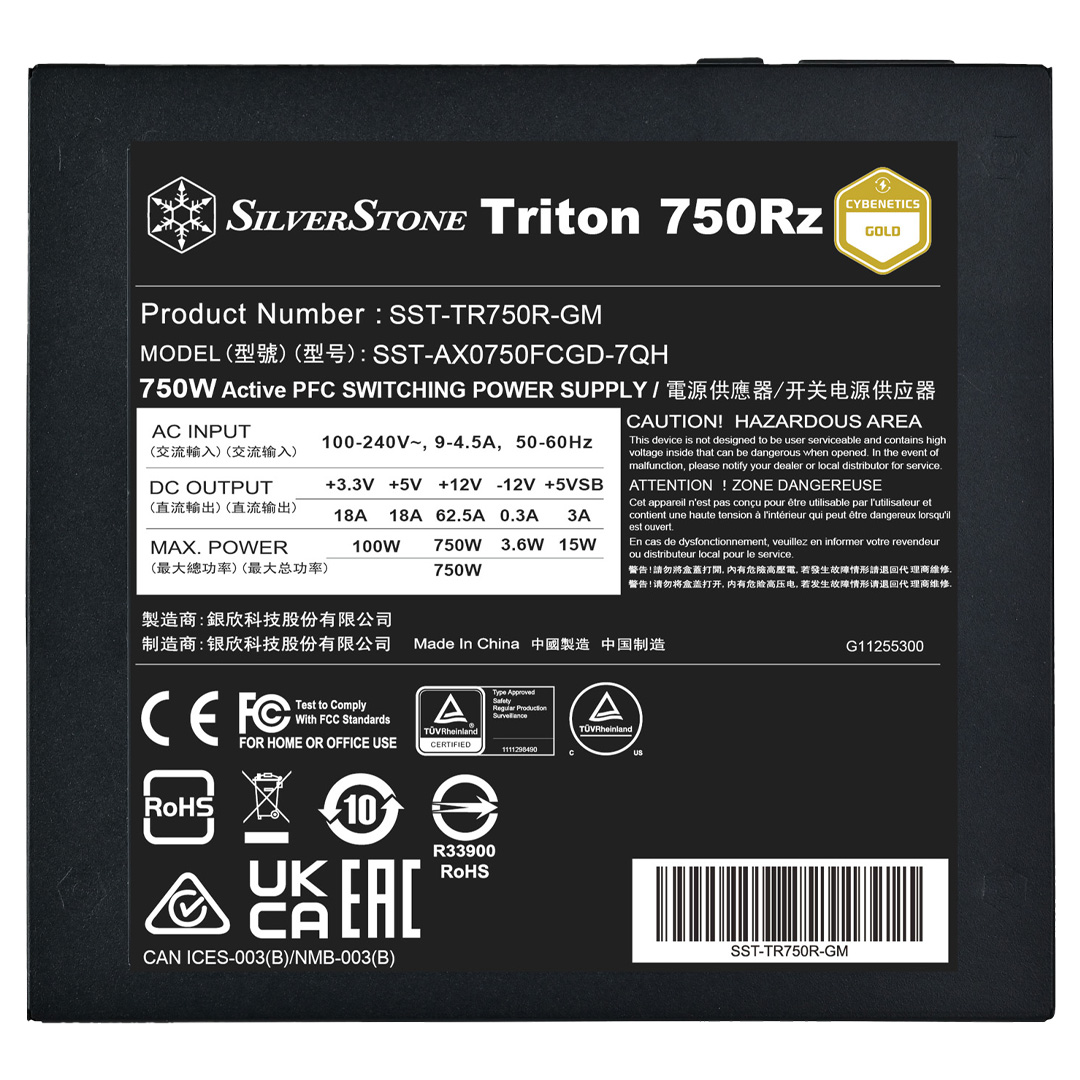

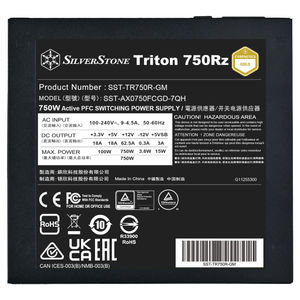

Load Range
| Output |
+3.3V |
+5V |
+12V |
+5VSB |
-12V |
| Max.(Amps) |
18A |
18A |
62.5A |
3.0A |
0.3A |
| Min.(Amps) |
0A |
0A |
0A |
0A |
0A |
| Range (%) |
±5% |
±5% |
±5% |
±5% |
±10% |
| Line Reg.(%) |
±1% |
±1% |
±1% |
±1% |
±1% |
| Ripple(mVp-p) |
50mV |
50mV |
120mV |
50mV |
120mV |
Backed by a 3 year Silverstone warranty.
