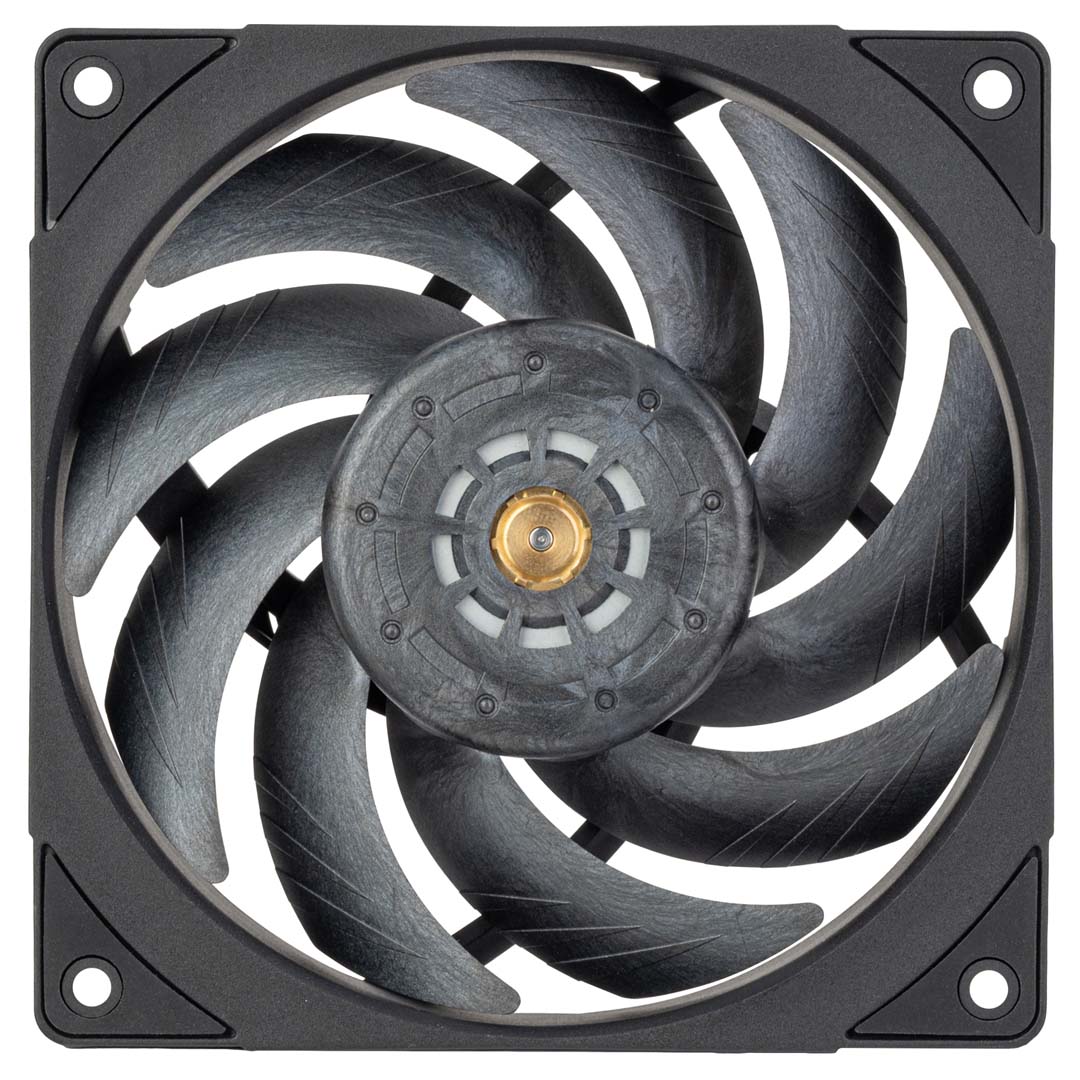

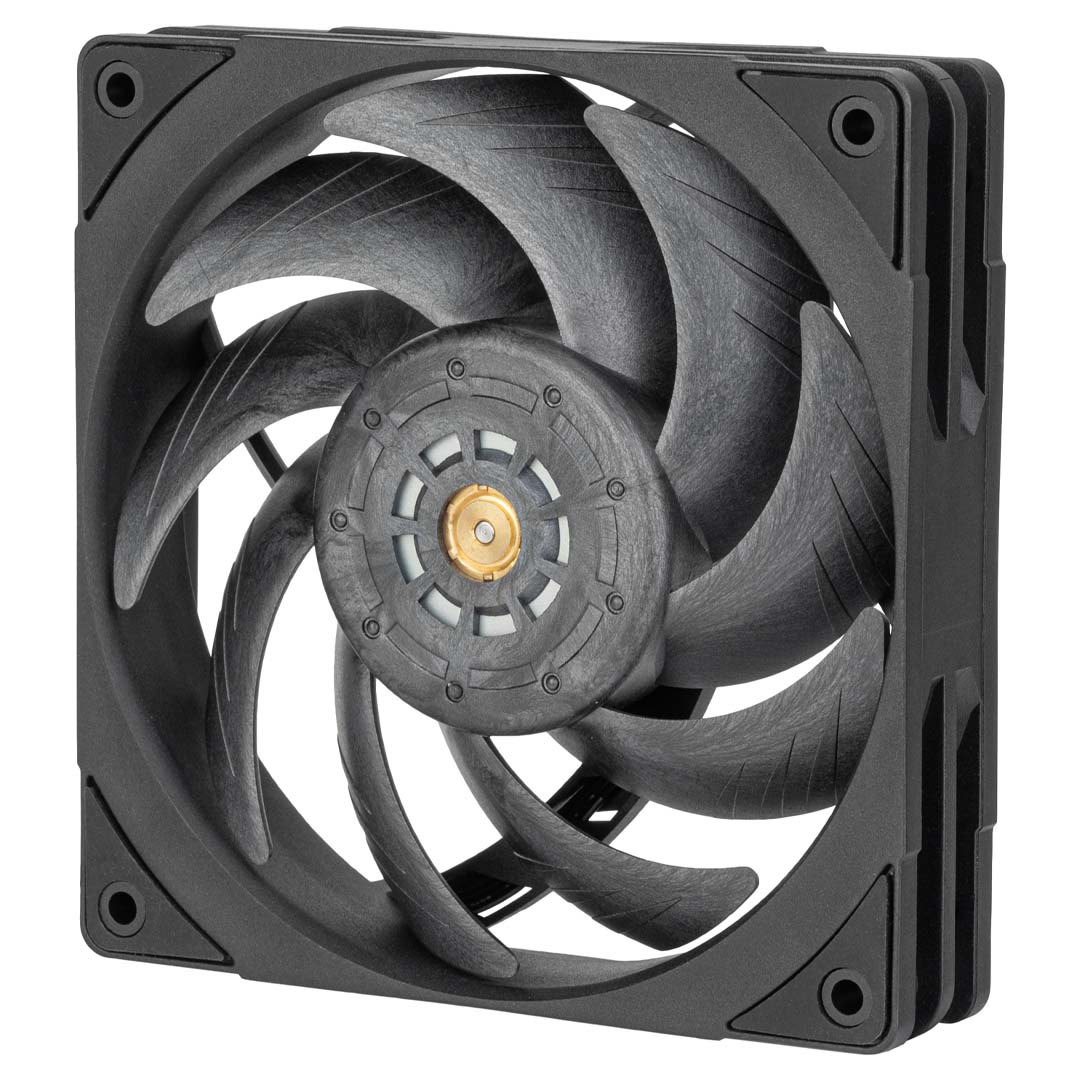

SilverStone FHS120 24V 120mm High Performance PWM Industrial Fan

The SilverStone FHS120 24V 120mm High Performance PWM Industrial Fan features liquid crystal polymer blades and a durable PBT frame for strong airflow and long-lasting performance. It runs at 24V with PWM control, reaching speeds up to 3500 RPM for precise cooling. The fan delivers up to 110 CFM airflow and 7.03mm H2O static pressure while keeping noise around 45.6 dBA. Designed with dual ball bearings and a metal reinforced motor hub, ensuring excellent durability, stability, and longevity even when under high-speed operation.

Features

---

FHS120 24V

24V 120mm High-Performance PWM Industrial Fan with Powerful 110 CFM Airflow

• 24V support for industrial, medical, and high-performance equipment
• LCP fan blades for stable high-speed performance and vibration reduction
• Dual ball bearing for extended service duration
• Three phase, six pole motor for quieter and more efficient performance
• 755 ~ 3500 RPM speed range via PWM control

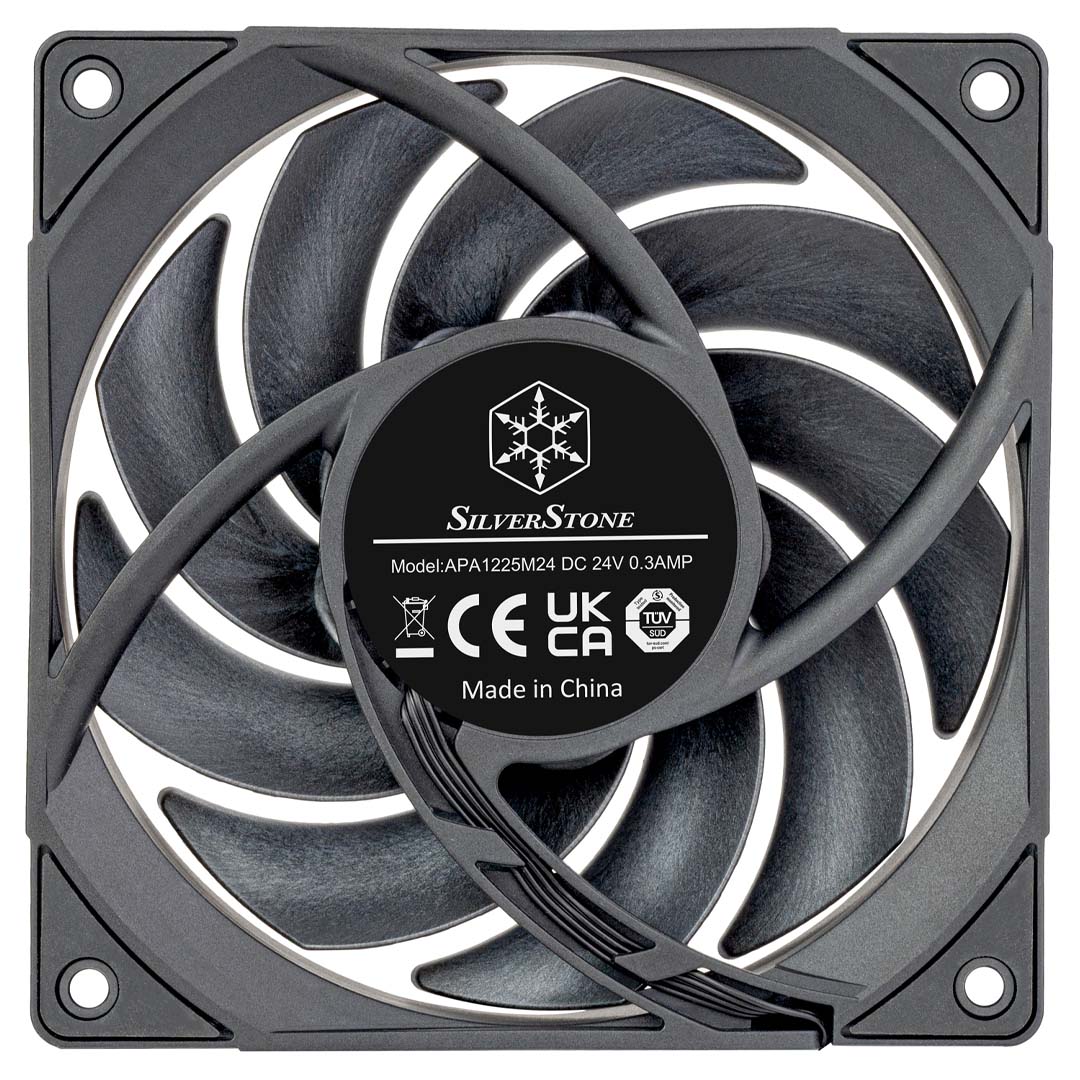

Metal-Reinforced Motor Hub

The metal-reinforced motor hub and metal bearing shell design, ensures ultimate precision and increased stability, durability in high speed operation.

Performance and Durability

The high-performance three-phase, six-pole motor with the dual ball bearing reduces rotational friction, ensuring excellent durability, stability, and longevity under high-speed operation.

Tailored Performance on Demand

Wide 755 ~ 3500 speed range via PWM control function.

24V Fan Applications

Widely applicable to industrial automation, servers, medical equipment, energy systems, and in-vehicle electronics.

Dimensions
