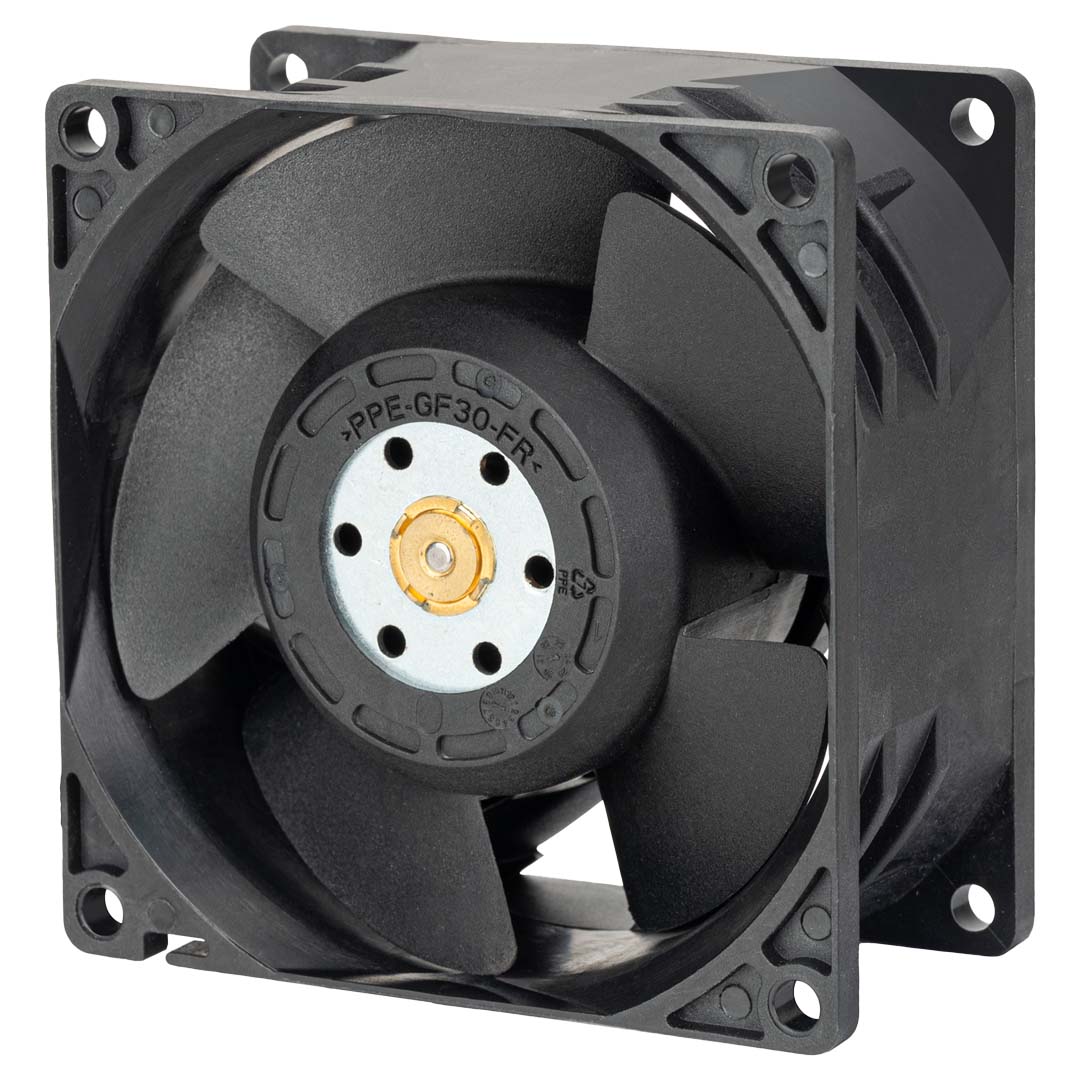

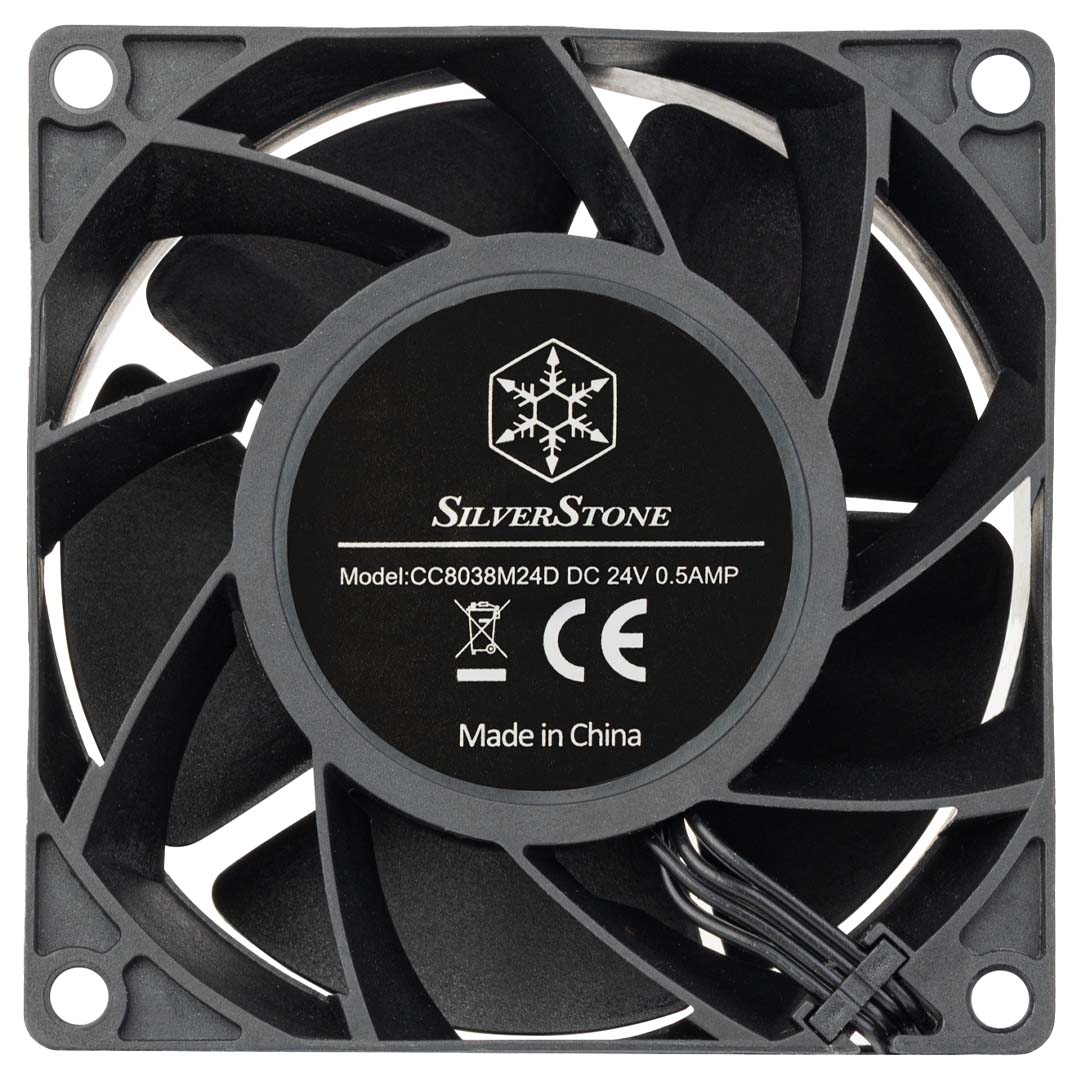

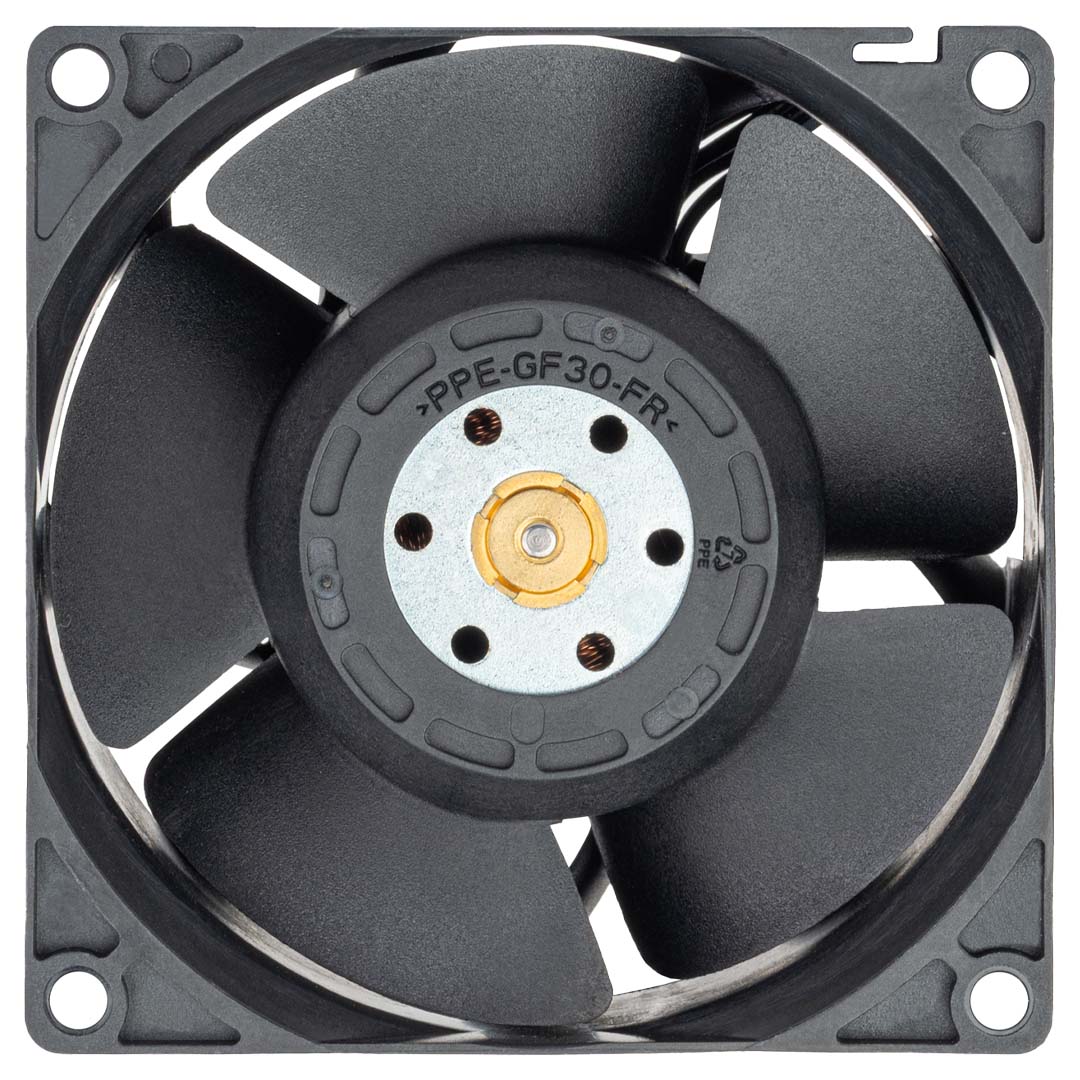

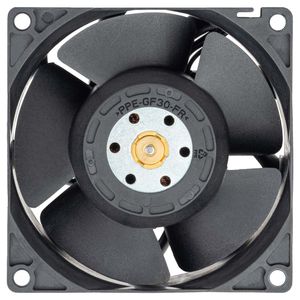

The SilverStone FHS80X High Performance PWM Industrial Fan features an oversized 38mm thick design in an 80x80mm form factor with giant PPE fan blades and a PBT frame to maximise airflow and static pressure. It uses a dual ball bearing setup and a 4 pin PWM connector, allowing speeds of up to 8700 RPM for precise thermal management. It delivers up to 70.3 CFM airflow and 39.5mm H2O static pressure while producing noise around 55 dBA at full speed.
Features
FHS80X 24V
24V 80x38mm High-Performance PWM Industrial Fan
- 24V support for industrial, medical, and high-performance equipment
- Dual ball bearing for extended service duration
- 0 ~ 8,700 RPM speed range via PWM control

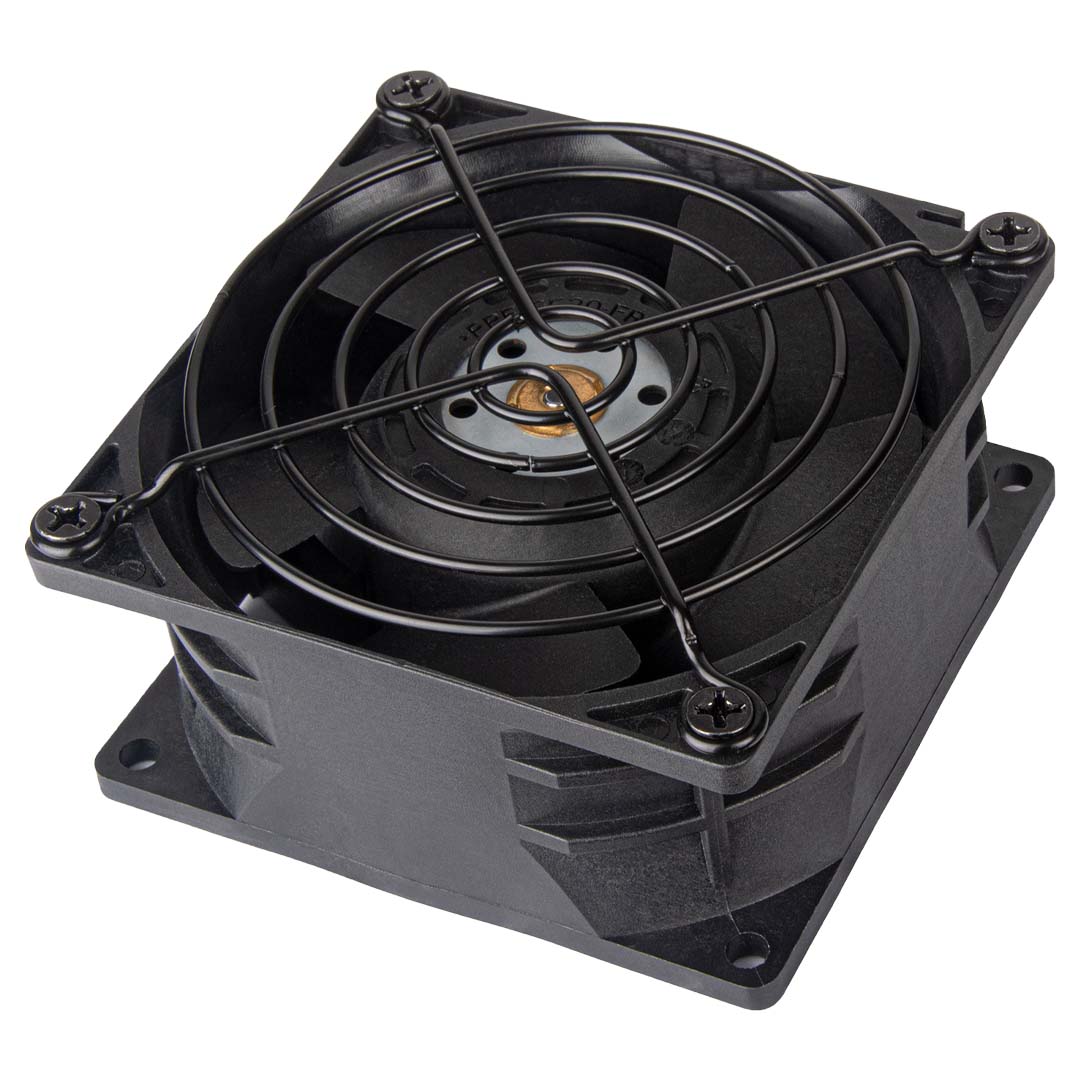

- Fan grille included for safety and blade protection
Metal-Reinforced Motor Hub
The metal-reinforced motor hub and metal bearing shell design, ensures ultimate precision and increased stability , durability in high speed operation.
Extreme Performance

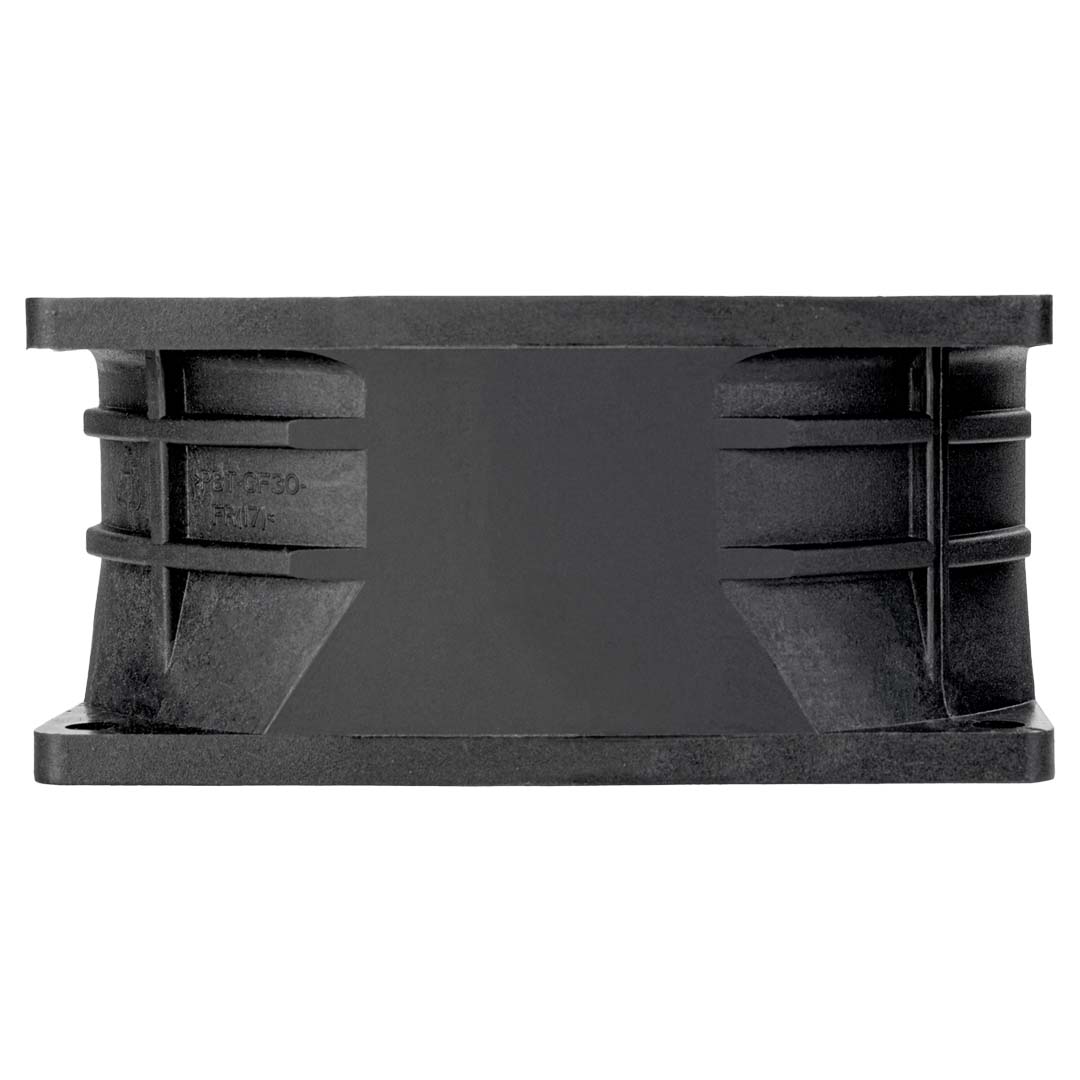

The equipped giant-bladed design with 38mm total thickness increases the overall performance compared to a standard fan.
Tailored Performance on Demand
Wide 0 ~ 8700 speed range via PWM control function.
24V Fan Applications
Widely applicable to industrial automation, servers, medical equipment, energy systems, and in-vehicle electronics.
Dimensions
Specifications
| Model Number |
SST-FHS80X-24V |
| Material |
PPE fan blades, PBT frame |
| Colour |
Black |
| Bearing |
Dual ball bearing |
| Connectors |
4 pin PWM connector |
| Rated Voltage |
24V |
| Starting Voltage |
12V |
| Rated Current |
0.28A (safety-rated current: 0.5A) |
| Rated Power |
6.72W |
| Speed |
0 ~ 8700 RPM |
| Airflow |
70.3 CFM |
| Static Pressure |
39.5 mmH₂O |
| Noise Level |
55 dBA |
| Dimension |
80mm (W) x 38mm (H) x 80mm (D)
3.15" (W) x 1.5" (H) x 3.15" (D) |

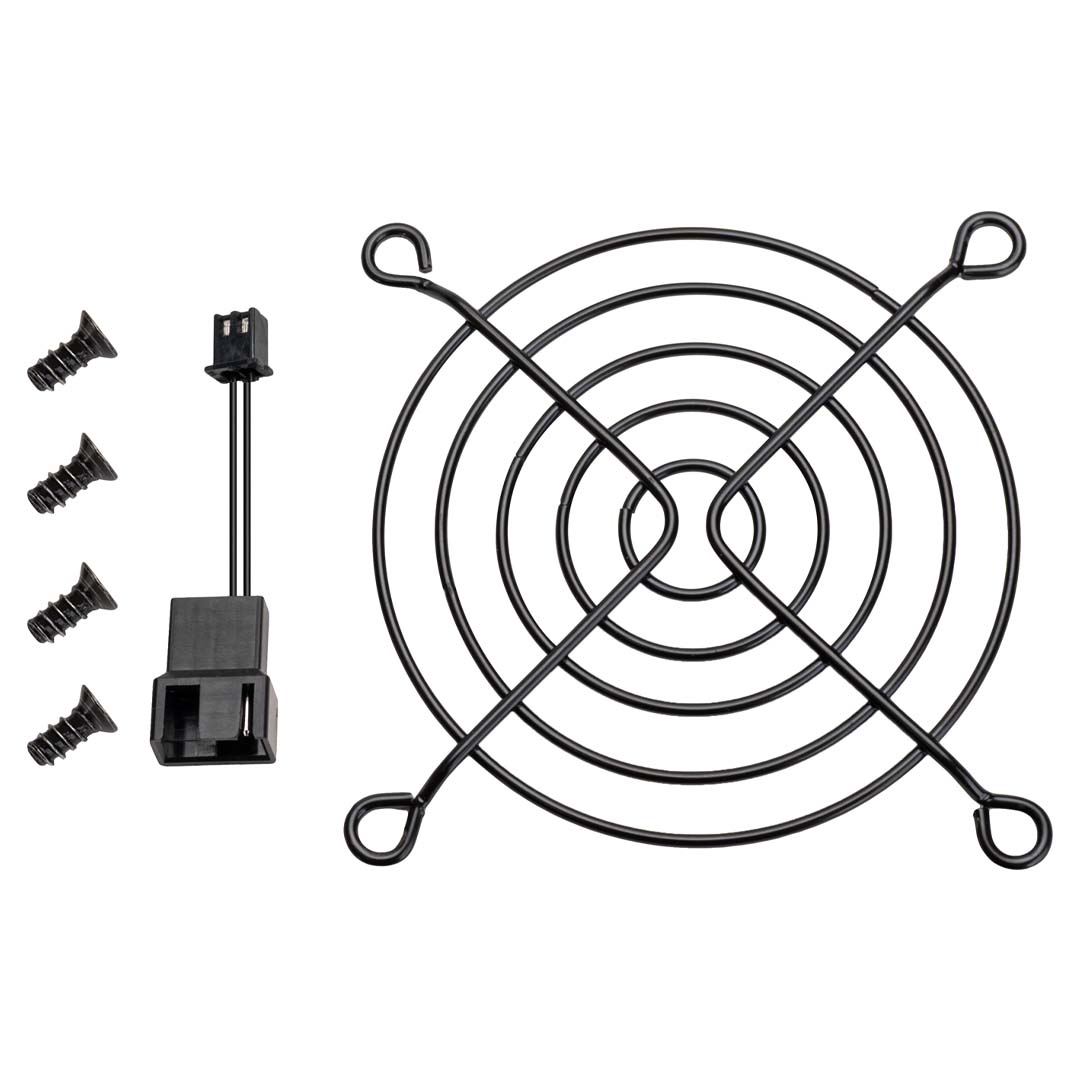

| What's Included |
80mm fan grill included
PWM to 2-pin adaptor cable included |
| Warranty |
1 Year |
Backed by a 1 year SilverStone warranty.
