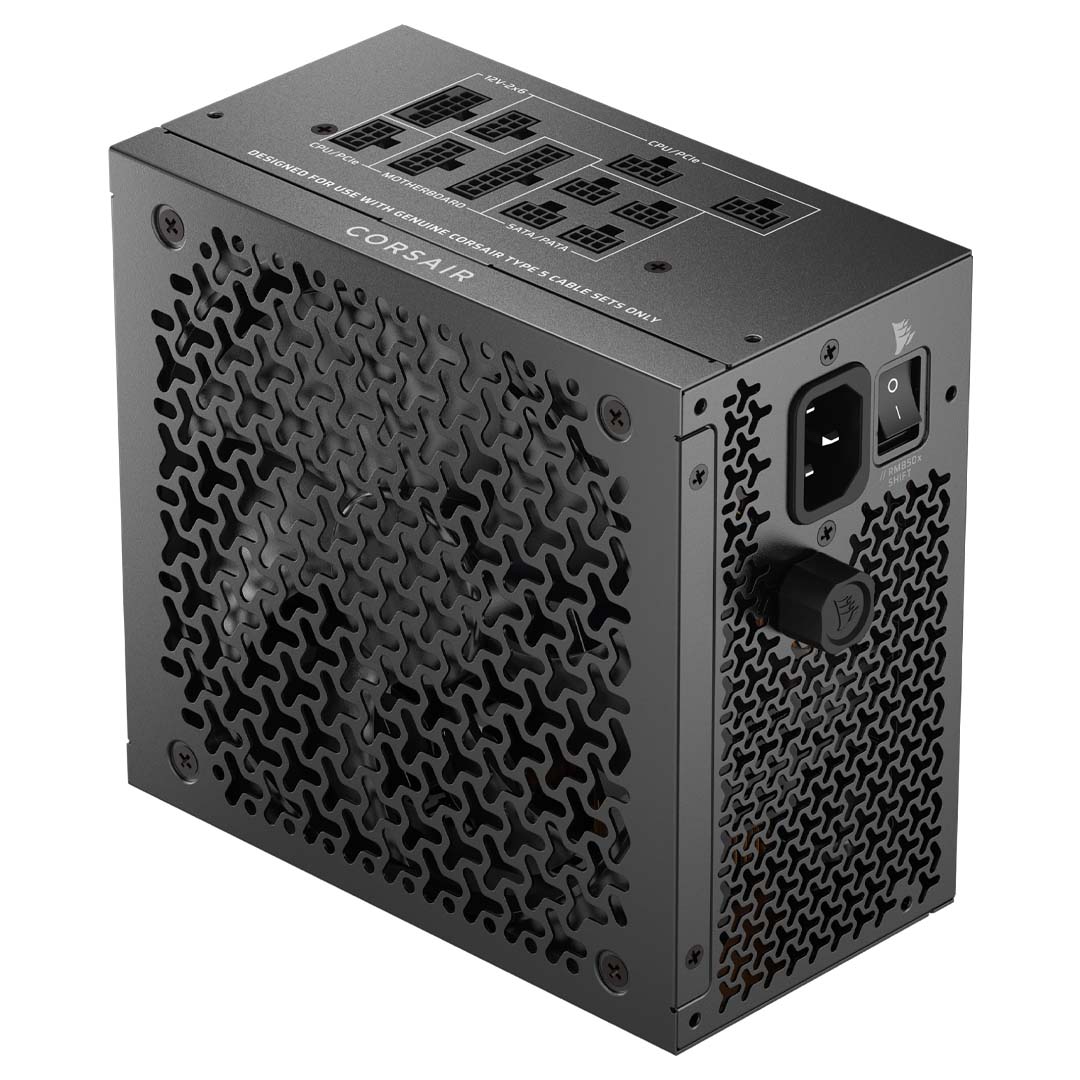

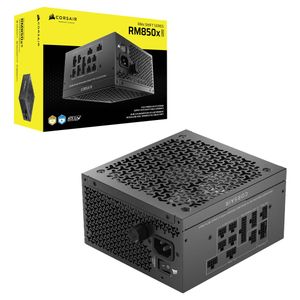

Corsair RM850x Shift ATX 3.1 PCIe 5.1 Cybenetics Gold 850W Power Supply

CP-9020299-AU | Corsair
$187
In stock
Buy now, pay later!
On sale! (normally $219) The Corsair RM850x Shift 850W Power Supply features ATX 3.1 and PCIe 5.1 support for the latest hardware. It delivers 850W of reliable power and is certified for Cybenetics Gold efficiency with a fully modular cable design. Built with Japanese electrolytic capacitors, a quiet 140mm FDB fan with zero RPM mode and a manual fan speed control knob, it ensures stable and silent performance for high-end systems.

Features


RM850x SHIFT Fully Modular ATX Power Supply (AU) with Cable Interface

  • Fully modular, Type-5 connectors
  • Native 12V-2x6 GPU cable
  • ATX 3.1-certified and PCIe 5.1 compliant
  • Fan speed control knob
  • 105°C-rated 100% Japanese electrolytic capacitors
  • Zero RPM Mode for near-silent operation at lower loads
  • 10-year warranty

Corsair RM850x Shift ATX 3.1 PCIe 5.1 Cybenetics Gold 850W Power Supply Feature 1

Easy Access

Side-Mounted Connections

A patented PSU panel features modular, compact Type-5 connectors located on the side of the power supply, making it easier to plug in and manage your cables.

*30mm of clearance between the PSU and side panel is required.

Corsair RM850x Shift ATX 3.1 PCIe 5.1 Cybenetics Gold 850W Power Supply Feature 2

Plug and Play

Native 12V-2x6 GPU Power Cable

Power modern graphics cards, such as the NVIDIA® GeForce RTX™ 50 Series, using the included 12V-2x6 cable with a dual-colour connector for visual confirmation of a secure GPU-side connection for easy, worry-free power delivery.

Cybenetics Gold Certified

Steady power output at up to 89% overall efficiency and Cybenetics™ Gold certified for lower power consumption, less noise, and cooler temperatures.

Corsair RM850x Shift ATX 3.1 PCIe 5.1 Cybenetics Gold 850W Power Supply Feature 3

Future Proof

ATX 3.1 Compliant and PCIe 5.1 Ready

The RMx SHIFT Series features the latest standards for power delivery and connectivity to provide efficient, reliable power. RMx SHIFT Series are built with a robust resonant LLC topology with DC-DC conversion and 105°C-rated Japanese industrial-grade capacitors.

*Illustration for reference only, models may differ.

Corsair RM850x Shift ATX 3.1 PCIe 5.1 Cybenetics Gold 850W Power Supply Feature 4

Custom Fit

Fully Modular Type-5 Connectors

CORSAIR Type-5 PSU cables take up less space, which combines with the modular design to allow for easier cable management.

Corsair RM850x Shift ATX 3.1 PCIe 5.1 Cybenetics Gold 850W Power Supply Feature 5

Tidy Wiring

Debossed-PVC Cable Kit Included

The ultra-flexible cable kits make cable management easy and the included low-profile cable combs keep cables tidy for a sophisticated look and an easier build.

Corsair RM850x Shift ATX 3.1 PCIe 5.1 Cybenetics Gold 850W Power Supply Feature 6

Full Speed Ahead

Manual Fan Speed Control Knob

Want to get more air through the PSU or to exhaust heat from your case? Override the Zero RPM Mode and low-noise profile with the manual fan override knob, increasing fan speed and airflow.

Silent Running

140mm Fluid Dynamic Bearing Fan

A Fluid Dynamic Bearing fan with a magnetic dome structure minimises noise, while Zero RPM Mode eliminates fan noise entirely at low to medium loads.

Famously Reliable - Designed to Take the Heat

105°C-Rated Japanese Capacitors

Built with 100% industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.

Corsair RM850x Shift ATX 3.1 PCIe 5.1 Cybenetics Gold 850W Power Supply Feature 7

50°C Continuous Operating Temperature

Ensures reliable power even under high-stress conditions.

Specifications


General Data

Model Number CP-9020299-AU
PSU Wattage 850 Watts
PSU Plug Type AU - 10A/250V
Cybenetics Efficiency Gold
Cybenetics Noise A+
PATA Connector 4
EPS Connector 2
SATA Connector 9
Fan Bearing Technology FDB
Modern Standby Yes
Dimensions 160mm x 150mm x 86mm
Cable Type Type 5
PCIe Connector 4
Fan Size mm 140mm
Continuous Power W 850 Watts
ATX Connector 1
ATX12V Version 3.1
MTBF Hours 100,000 hours
Warranty 10 Year
Weight 2.89kg

AC Input Rating

AC Input 100V–240V
Input Current 10A–5A
Frequency 47Hz–63Hz

Power Table

- Max Load Max Output
+3.3V 20A 120W
+5V 20A 120W
+12V 70.8A 850W
+5VSB 3A 15W
Total Power 850W 850W

Cable Listing

Qty Cable Connectors Per Cable Total Connectors Connector Spacing Total Length Cable Type
1 ATX Motherboard (24-pin) - Modular 1 1 610mm 610mm (± 10mm) Debossed
2 ATX12V / EPS12V (4+4-pin) - Modular 1 2 650mm 650mm (± 10mm) Debossed
2 8-pin PCIe (6+2-pin) - Modular 1 2 650mm 650mm (± 10mm) Debossed
1 90° 12V-2x6 to 600W 12V-2x6 (12+4-pin) - Modular 1 1 650mm 650mm (± 10mm) Debossed
1 600W 90° 12V-2x6 to 2x 8-pin PCIe (6+2-pin) 2 2 650mm 650mm (± 10mm) Debossed
3 3 SATA - Modular 3 9 500mm, 100mm, 100mm 700mm (± 10mm) Debossed
1 4 PATA - Modular 4 4 450mm, 100mm, 100mm, 100mm 750mm (± 10mm) Debossed
Backed by a 10 year Corsair warranty.
