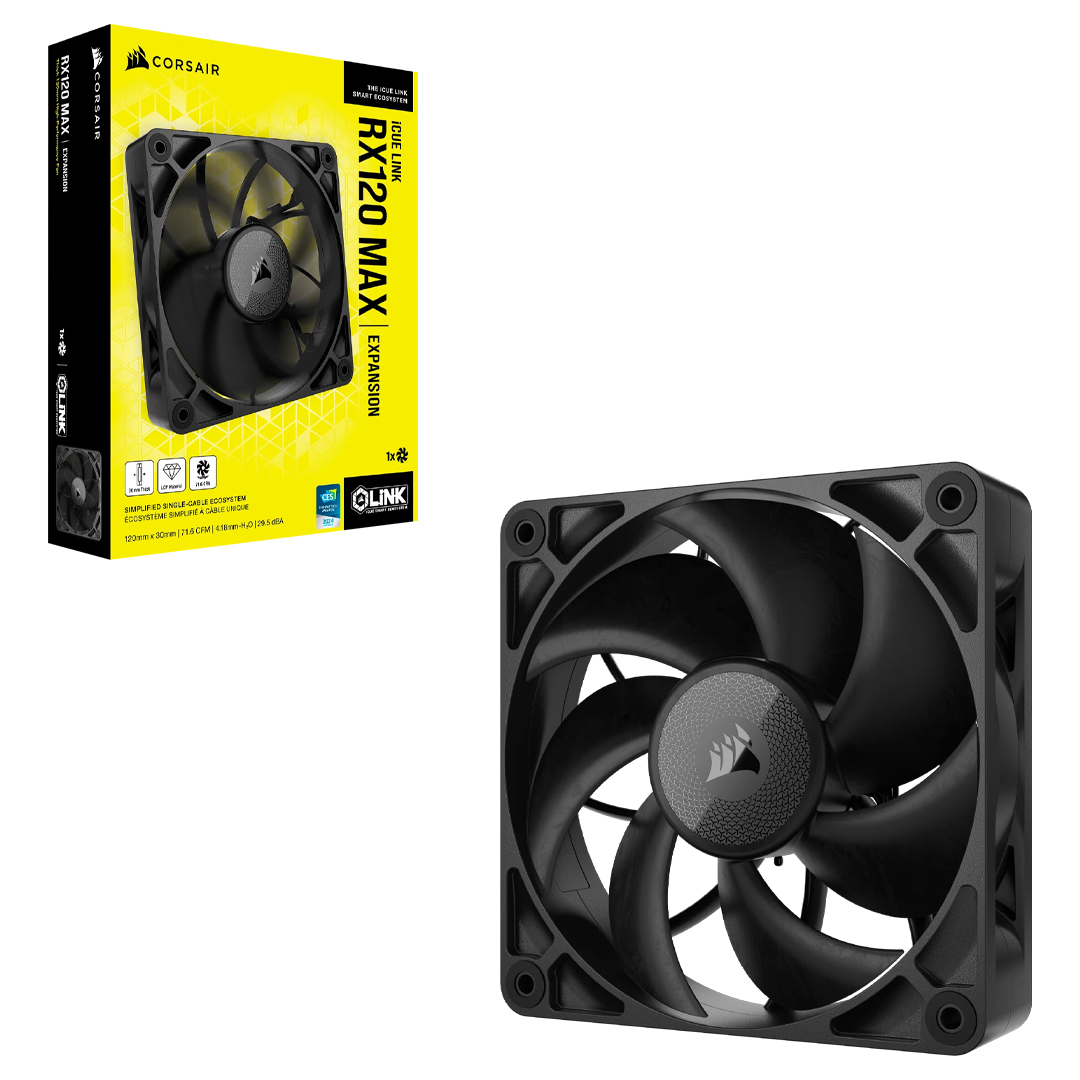

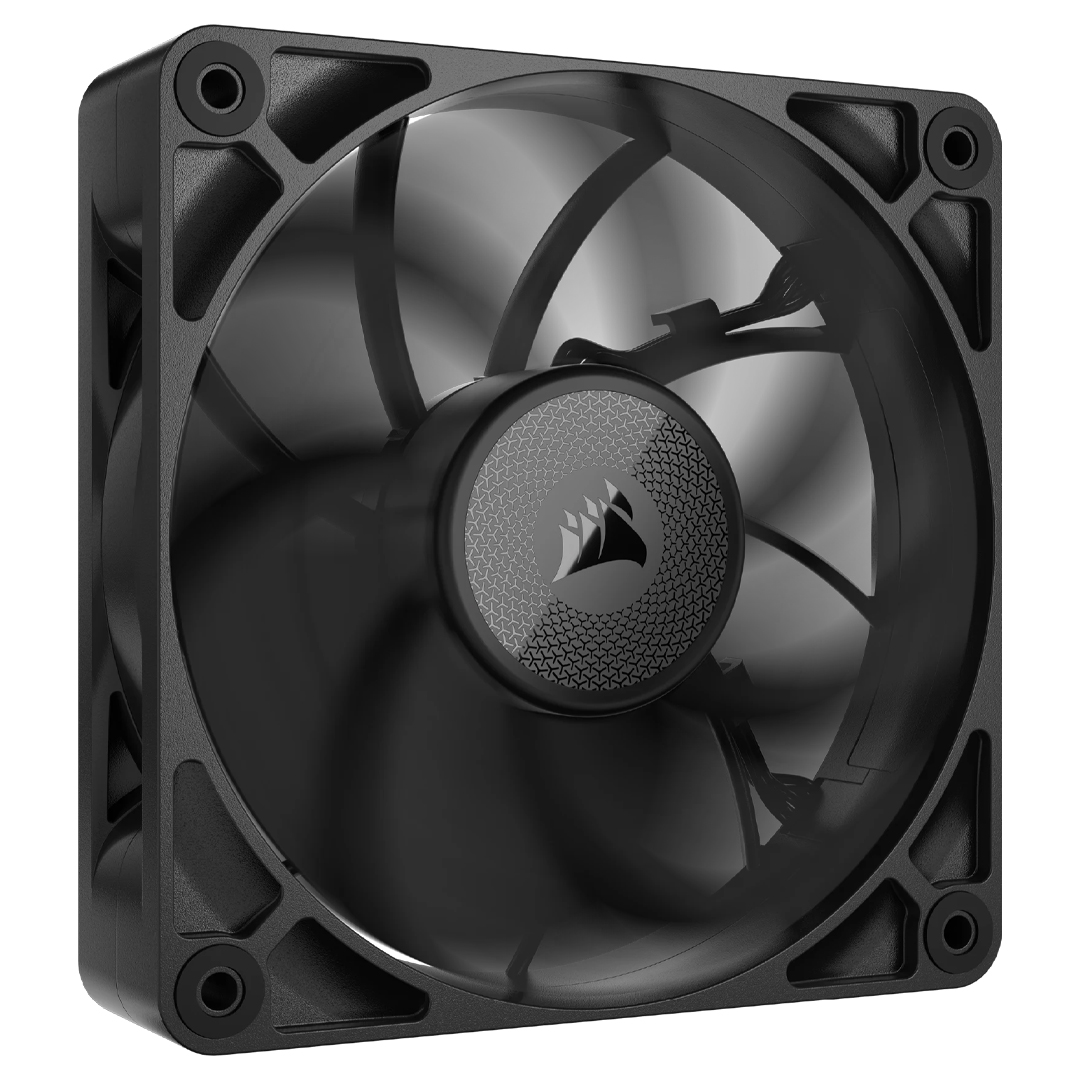

The Corsair iCUE Link RX120 Max 120mm fan in black features a 30mm thickness, delivering high static pressure and airflow of up to 71.6 CFM for enhanced cooling performance. It is constructed with premium Liquid Crystal Polymer and incorporates a magnetic dome bearing for minimal noise and connects seamlessly via the iCUE LINK ecosystem, enabling unified control through iCUE software.
VIDEO
Features
iCUE LINK RX120 MAX 120mm PWM Thick Fan Expansion - Black
Thick High-Performance Fans
CORSAIR RX120 MAX Fans are 30mm-thick for very high static pressure and great airflow, built with premium Liquid Crystal Polymer and connected with seamless iCUE LINK technology.
Requires iCUE LINK System Hub (included with RX MAX Starter Kits)
30mm thickness for a larger fan blade and greater performance
PWM-controlled fan speeds up to 2,000 RPM
High static pressure of up to 4.18mm-H₂O
Premium Liquid Crystal Polymer construction
Magnetic dome bearing for minimal noise

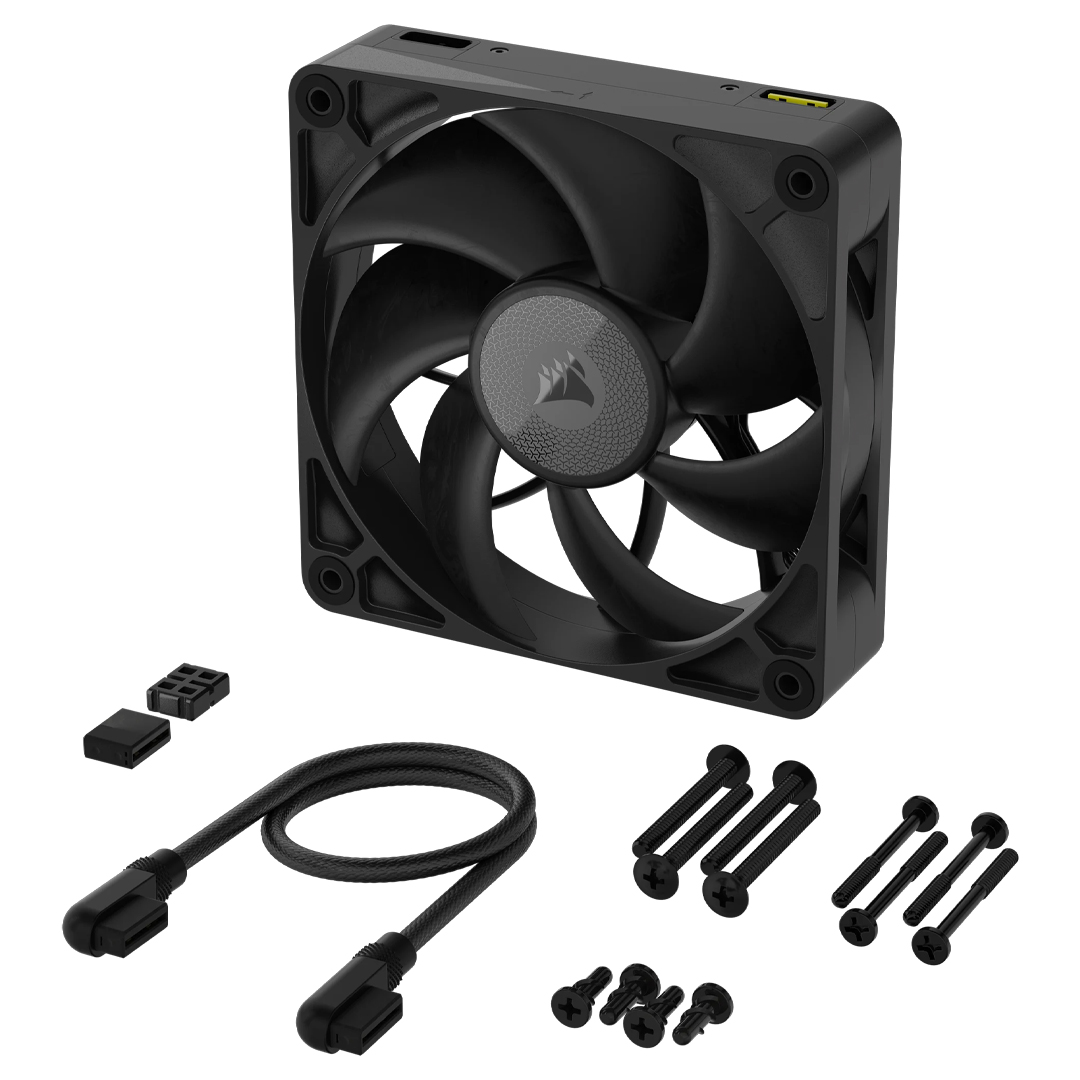

One Cable. One Connector.
Easier than Ever with iCUE LINK
Say goodbye to tangled cables and complicated connectors. Link your components to each other in any order with a universal connector. If you can plug it in, it'll work.
Enhanced Airflow
Unrivalled Performance
5mm thicker fan blades enhance cooling performance by moving more air at the same speed as thinner fans. RX MAX fans can also run quieter, as they can spin slower to produce the same airflow.
Performance Where It Matters
Thicker Fans, More Power
At 30mm, RX MAX fans are 20% thicker than the standard PC cooling fan. This translates directly into additional cooling power for your PC, with stronger airflow and static pressure generated by the larger fan blade.
Superior Airflow and Static Pressure
RX MAX fans leverage CORSAIR’s expert engineering and design to maximise every benefit of its thicker housing.
Airflow
A larger fan blade with an optimised blade shape pushes a greater volume of air through your PC case.
Static Pressure
High static pressure makes RX MAX ideal for radiator mounting, as it can push air more effectively through dense obstructions.
Lower Noise
RX MAX fans significantly reduce fan noise by operating at a lower RPM compared to traditional fans while still achieving the same airflow.
Rigid Material Means Consistent Performance
Glass Fibre Reinforced LCP
Constructed from glass fibre-reinforced liquid crystal polymer, RX MAX fan blades offer the ultimate in radiator fan blade rigidity. The premium material prevents fan blade bending or buckling under varying degrees of static pressure, ensuring that optimal radiator flow is available at any fan speed.
Every Source of Noise Addressed
Magnetic Dome Bearing
This improved bearing minimises friction and mechanical noise, achieving a balance between high airflow performance and low acoustic footprint. On top of that, the reduced friction means greater longevity for your fan.
Designed for Real Life Performance
Rigorously Tested and Perfected
Extensive testing bears out the RX MAX Series’ exceptional cooling performance, in both case fan and radiator fan applications.
Removing Age-Old Annoyances
QuikTurn Screw Revolution
Take CORSAIR's QuikTurn screws for a single spin and see how convenient fan installation can be: as robust and secure as any traditional screw, and an absolute pleasure to use. Especially when you need to use 20 or more in a build.
Backed by a 5 year Corsair warranty.
