The TRYX String PCIe 5.0 Riser Cable 200mm features a PCIe 5.0 x16 interface with a 90 degree connector, ensuring high-speed data transmission with minimal signal loss. It supports PCIe 5.0, 4.0 and earlier standards, making it compatible with next-gen GPUs. The cable is designed with a 6-layer PCB stackup and a flexible TPE sheath for durability and ease of installation.
Features
TRYX STRING 200mm White
PCIe 5.0 x16 Riser Extension Cable
Blazing-fast speeds in a sleek, flexible design.
- PCIe 5.0 x16 Support 128GB/s Transfer Bandwidth
- Unmatched Signal Fidelity
- Reinforced Electro-Magnetic Shield
- Ultra-Durable PCB 6-layer Stackup
- Length Options (200mm/300mm)
- Gold-Plated Pin Connectors
- Ultra-Flexible TPE Cable Sheath
PCIe 5.0 Native Support
- NVIDIA RTX50 Series Ready
- AMD Radeon RX9000 Series Ready
Double the Speed of PCIe 4.0 - Up to 128 GB/s
- PCIe 5.0 - 128GB/s
- PCIe 4.0 - 64GB/s
- Minimal Latency
Unmatched Signal Fidelity
STRING Performance Test
Time Spy Score
- Using STRING Extension - 31942
- Motherboard Plugged In - 32065
Graphics Card Score
- Using STRING Extension - 48886
- Motherboard Plugged In - 49120
*Based on 3DMARK Time Spy Test
STRING Bandwidth Test
- Using STRING Extension - 117.00 GB/S
- Direct plug - 117.22 GB/S
*Based on 3DMARK PCI Express Feature Test
Industrial-Grade 6-Layer PCB Substrate
Ultra-durable design ensures minimal signal loss and maximum system reliability.
Interference-Resistant Maximum Stability
STAGE features a reinforced electro-magnetic shielding layer, minimising conducted EMI and signal noise for seamless, stable, long-lasting performance in gaming rigs.

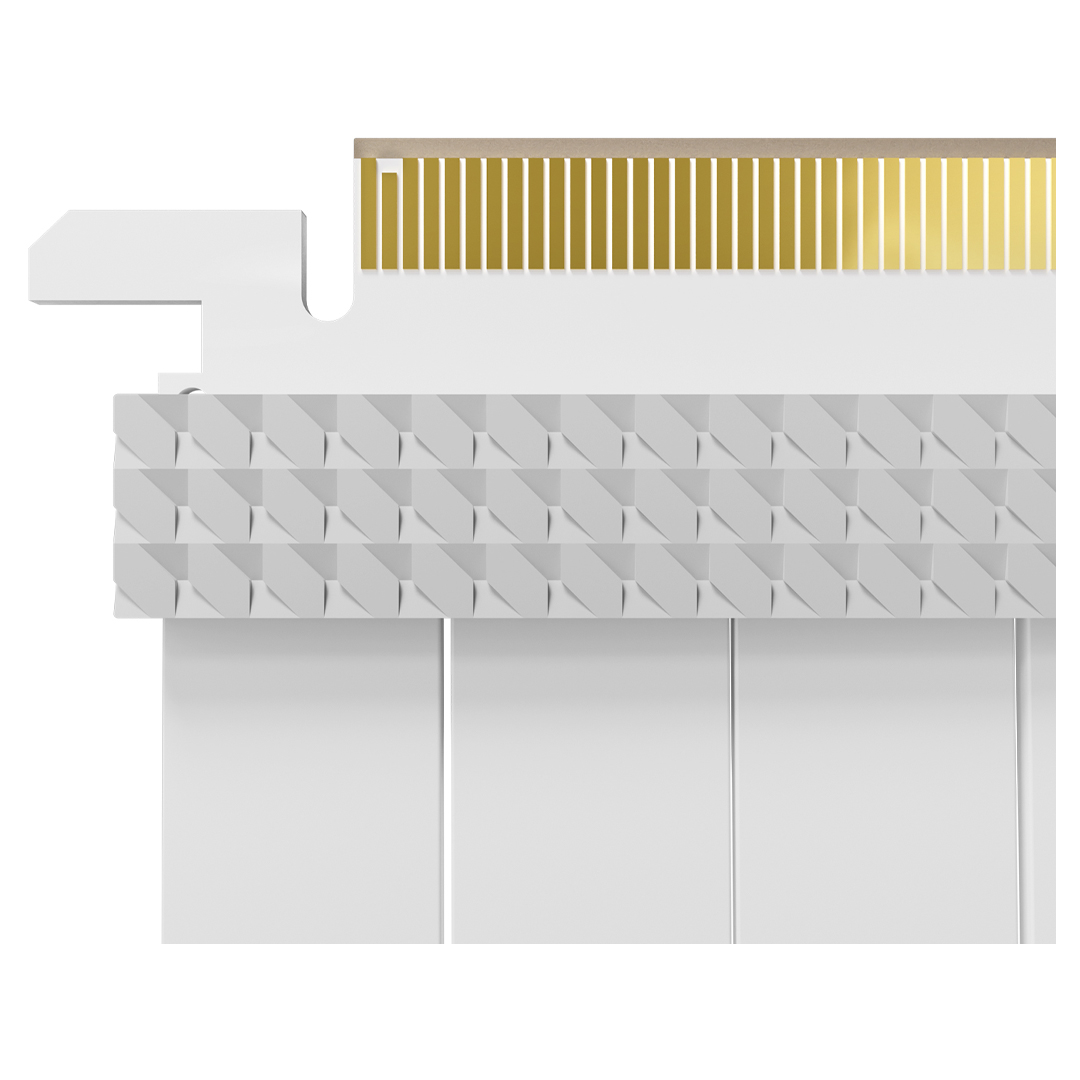

Gold-Plated Pin Connectors
Timeless Durability
Corrosion-resistant build material to ensure long lasting builds.
Perfect Signal Quality
Premium connector specification with a focus on superior signal transmission.
Ultra-Flexible TPE Cable Sheath
Ultra-soft cable allows for extreme twisting. Ideal for tight spaces in compact or custom cases.

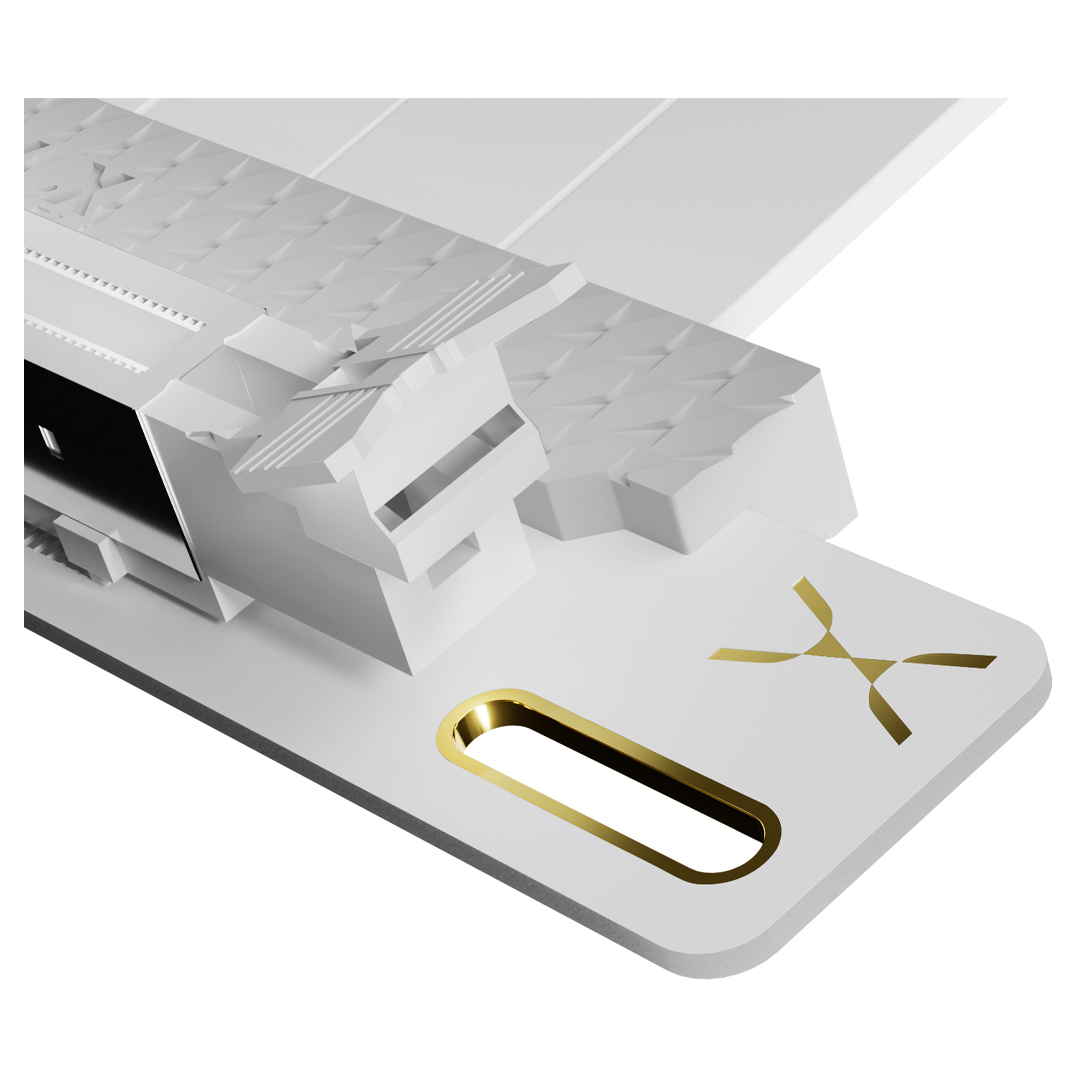

Enhanced Pad Protector
Crafted with one-piece moulding for superior stress and impact resistance.
Compatibility Options
Specifications
| Model Number |
A-S200C-PCI5-G0W |
| Colour |
White |
| Compatibility |
PCIe 5.0 and Earlier |
| Interface |
PCIe x16 Male to PCIe x16 90° |
| Female Operating Voltage |
DC 12V |
| Operating Current |
5A |
| Warranty |
12 Months |
| Net Weight |
90g |
Backed by a 1 year TRYX warranty.
