Ubiquiti Door Hub

UA-HUB-DOOR | Ubiquiti
$383
Stock at Supplier We do not have this item in our warehouse, but stock is either already on its way or is generally available from the supplier.
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
The Ubiquiti Door Hub features a compact DIN-rail mountable access control hub that supports a single door, a maximum user couont of 6,000 and PoE++ input/output to streamline network and power delivery. It offers a switchable lock terminal (12V or dry relay) plus inputs for a request-exit button and a door position sensor.

Features

Ubiquiti Door Hub Mini Feature 1

Deployment

Build Features

Ubiquiti Door Hub Mini Feature 2

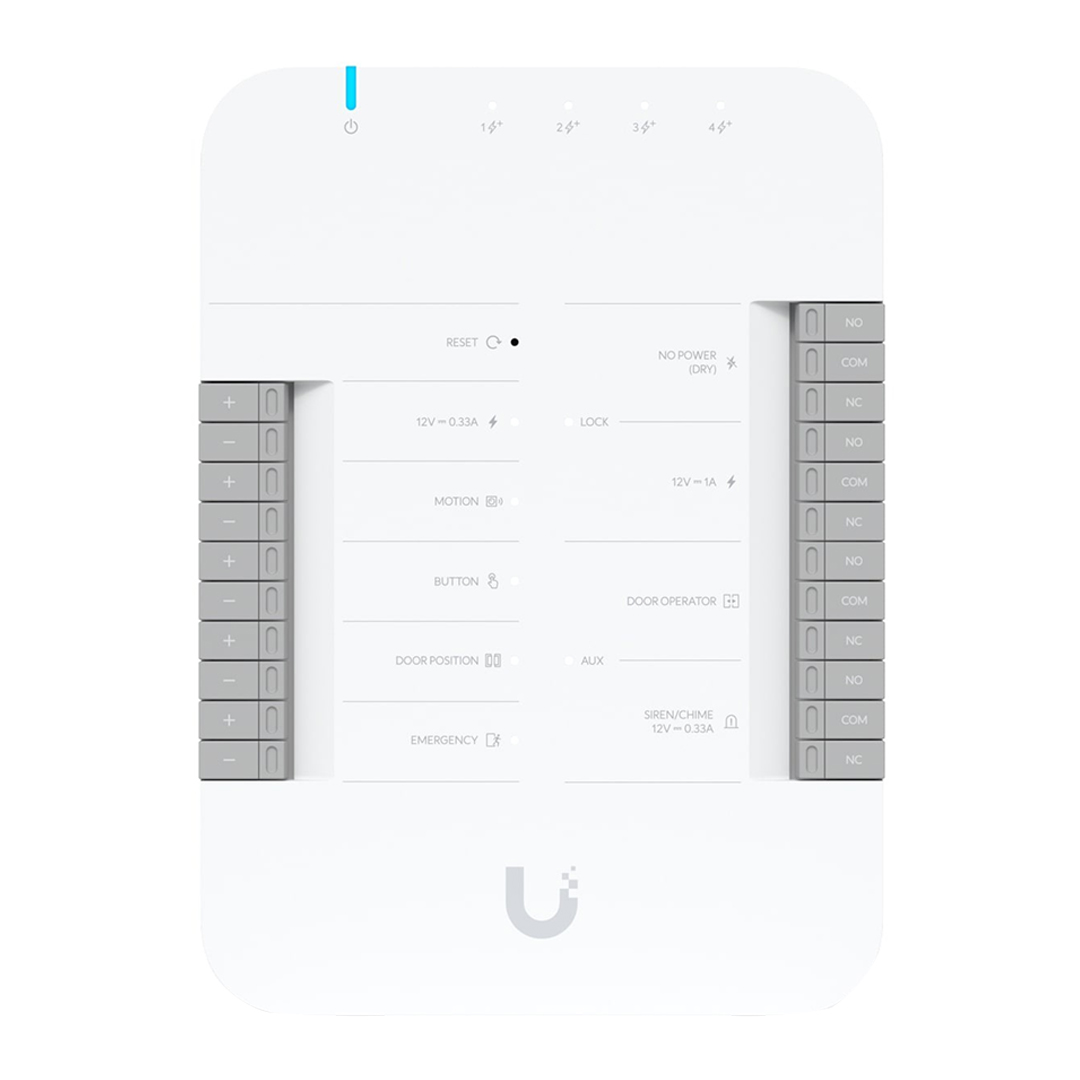

Front View

Ubiquiti Door Hub Mini Feature 3

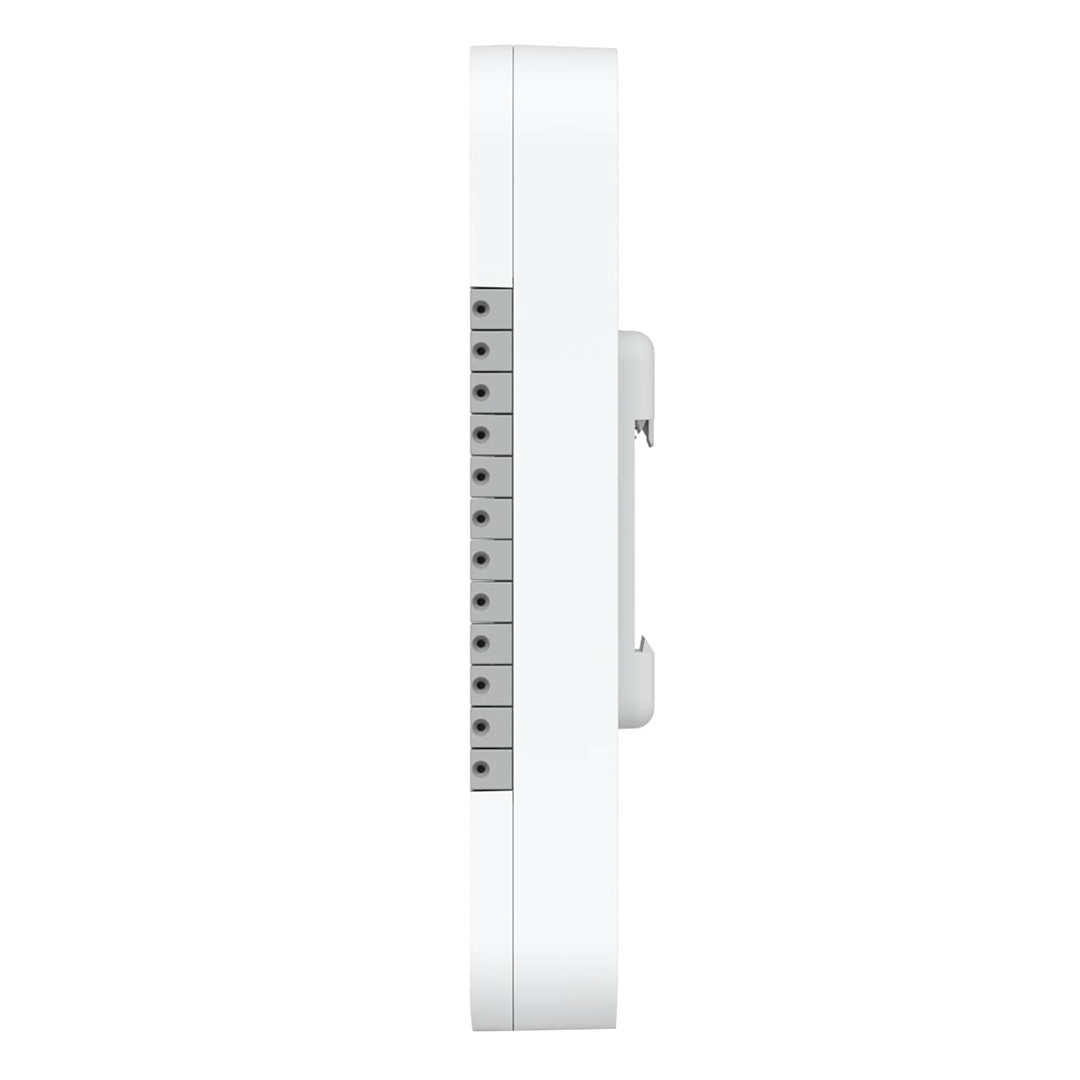

Side View

Ubiquiti Door Hub Mini Feature 4

Top View

Specifications

General Data

Model Number UA-HUB-DOOR
Dimensions 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")
Warranty 1 Year
UniFi Application Suite Access:&Yes
Supported Doors 1
Maximum User Count 6,000
Input Terminals (2) Door exit request
(1) Door position
(1) Emergency
Power Method PoE++
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
NDAA Compliant Yes
UL 294 Level Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I

Mechanical

Weight 363 g (12.8 oz)
Enclosure Material Polycarbonate
Mount Material Polycarbonate

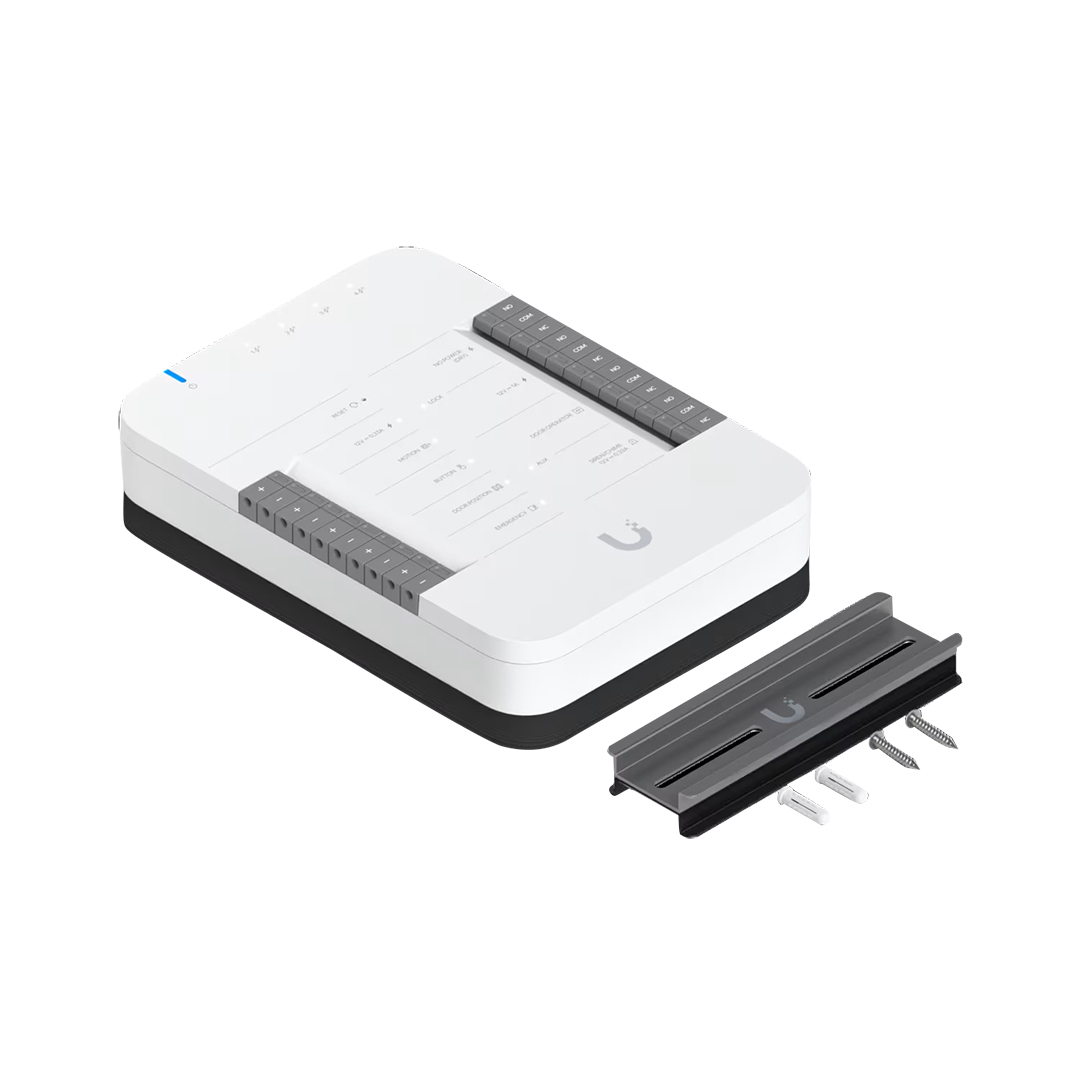

Mounting DIN-rail (Included)

Hardware

Digital Input Request to exit, request to enter, remote release, door position sensor
Dry Output Relay Lock: 30V DC, 1A
Aux: 30V DC, 1A
Powered Output Relay Lock: 12V DC, 1A
Aux: 12V DC, 0.33A
12V DC, 0.33A
Indoor and Outdoor Use Indoor only
Ambient Operating Temperature 0 to 40° C (32 to 104° F)
Ambient Operating Humidity 5 to 95% noncondensing
Networking Interface (5) 10/100/1000 Base-T
PoE Interface (1) PoE++ input, 50V DC, 1A
(4) PoE outputs, 50V DC, 30W per port
(Max 45W aggregated)
Max. Power Consumption 30 W (Without PoE output)
50 W (With PoE output)
LEDs W/B
Buttons (1) Factory-reset
Recommend Max. Cable Length UA-Lock-Electric (400mA)
24 AWG length: 25 m (82 ft)
22 AWG length: 42 m (138 ft)
20 AWG length: 66 m (217 ft)
18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
UA-Lock-Magnetic-540kg (500mA)
24 AWG length: 20 m (66 ft)
22 AWG length: 32 m (105 ft)
20 AWG length: 51 m (167 ft)
18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
UA-Lock-Magnetic-270kg (800mA)
24 AWG length: 12 m (29 ft)
22 AWG length: 20 m (98 ft)
20 AWG length: 30 m (167 ft)
18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
Other locks (1A)
24 AWG length: 9 m (30 ft)
22 AWG length: 15 m (49 ft)
20 AWG length: 24 m (79 ft)
18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
PoE Cabling Requirements Cat 5e cabling is the minimum performance category recommended. The performance category utilised should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade Grade assignment: 1
Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document Number, and Issue Date and/or Revision Level UA-Hub-Door002, V01

Software

Management Application Access
Backed by a 1 year Ubiquiti warranty.
