The Ubiquiti UniFi G3 Reader Pro (White) features an indoor/outdoor NFC access control reader with an integrated 4.7-inch capacitive touchscreen and camera for intercom and facial verification. It supports PoE (48 V), BLE 4.2, NFC (13.56 MHz) technologies, and has a waterproof IP55-rated enclosure for reliable deployment in diverse environments.
Features
G3 Reader Pro
Third-generation, indoor/outdoor NFC reader and intercom with Touch Pass support.
Deployment
Build Features

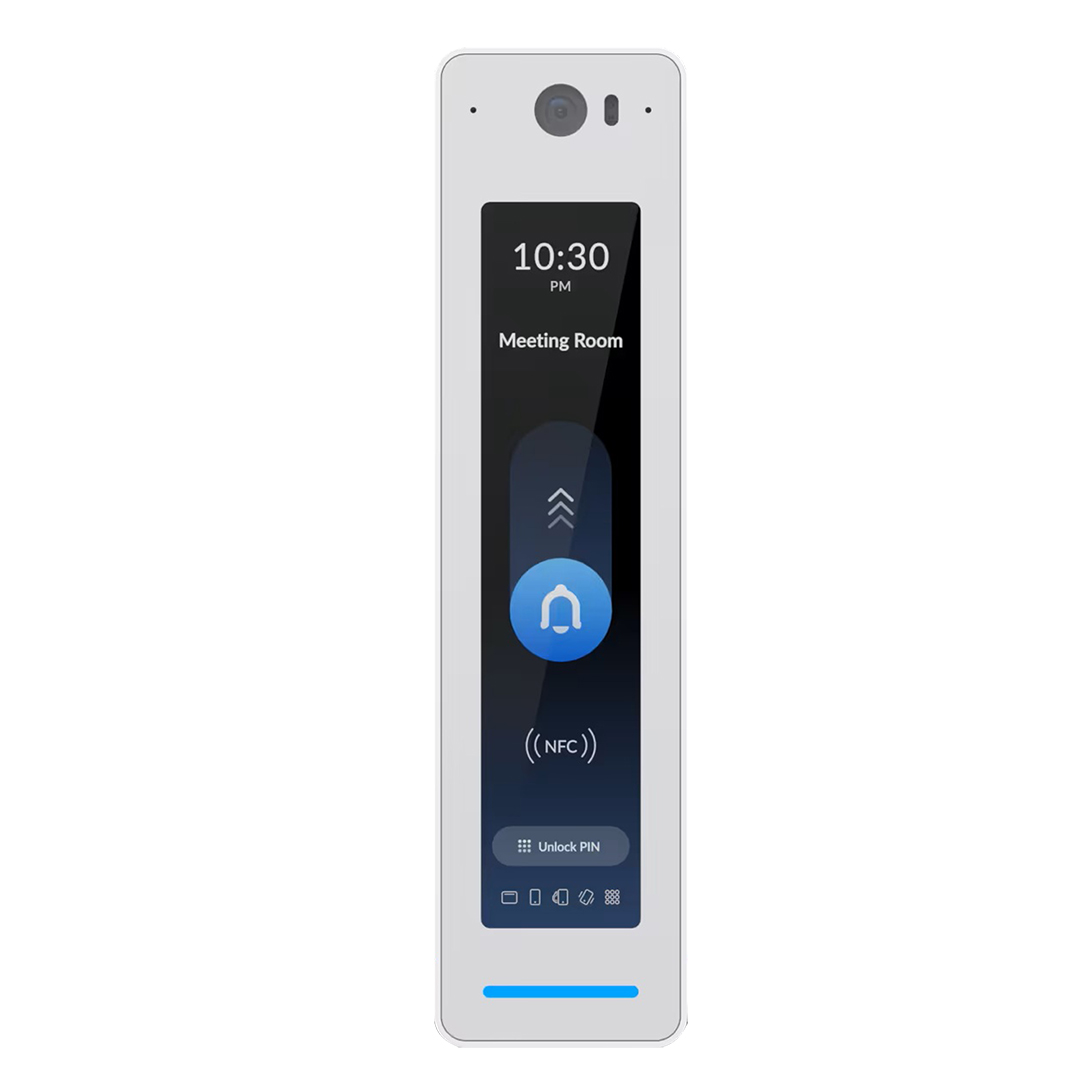

Front View

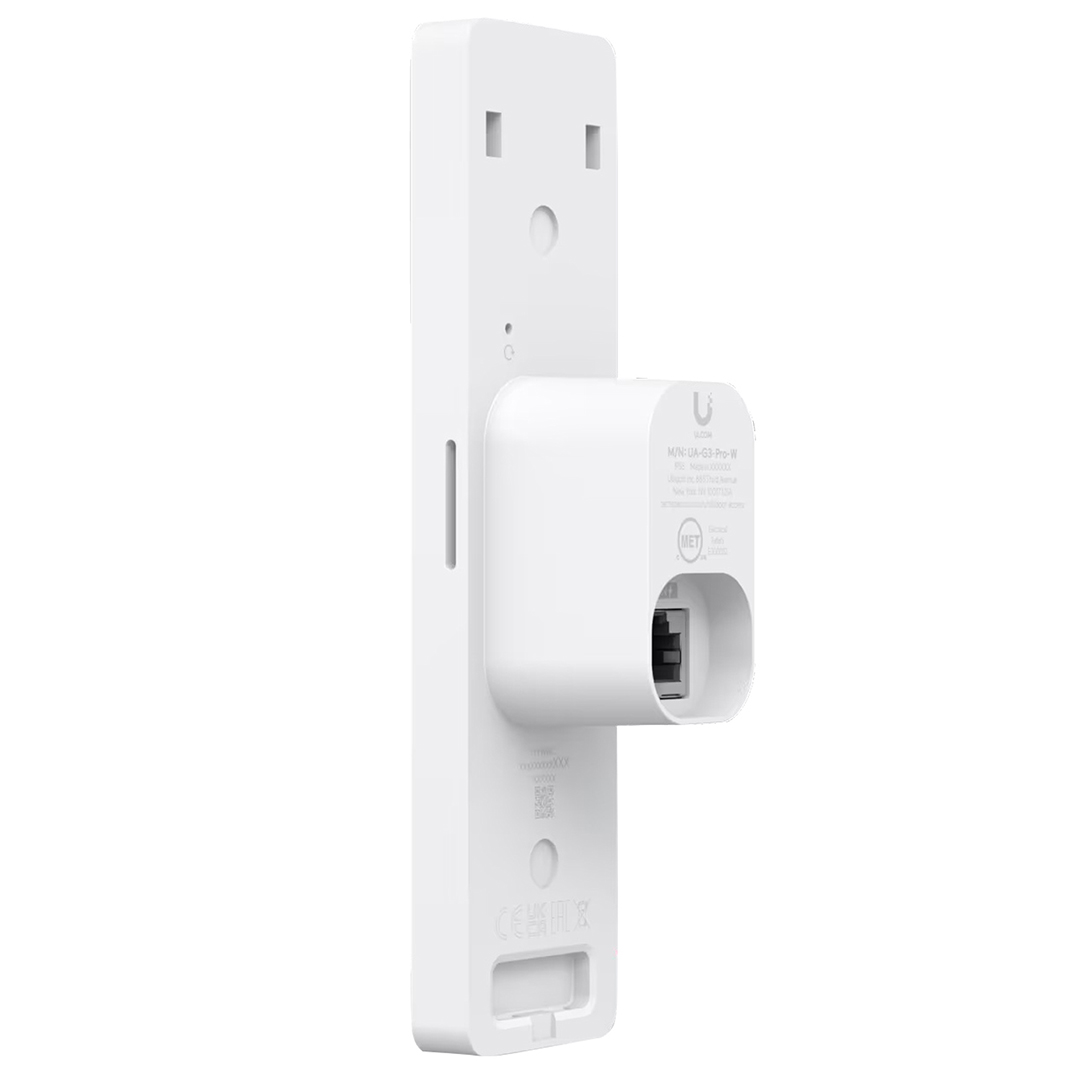

Back View

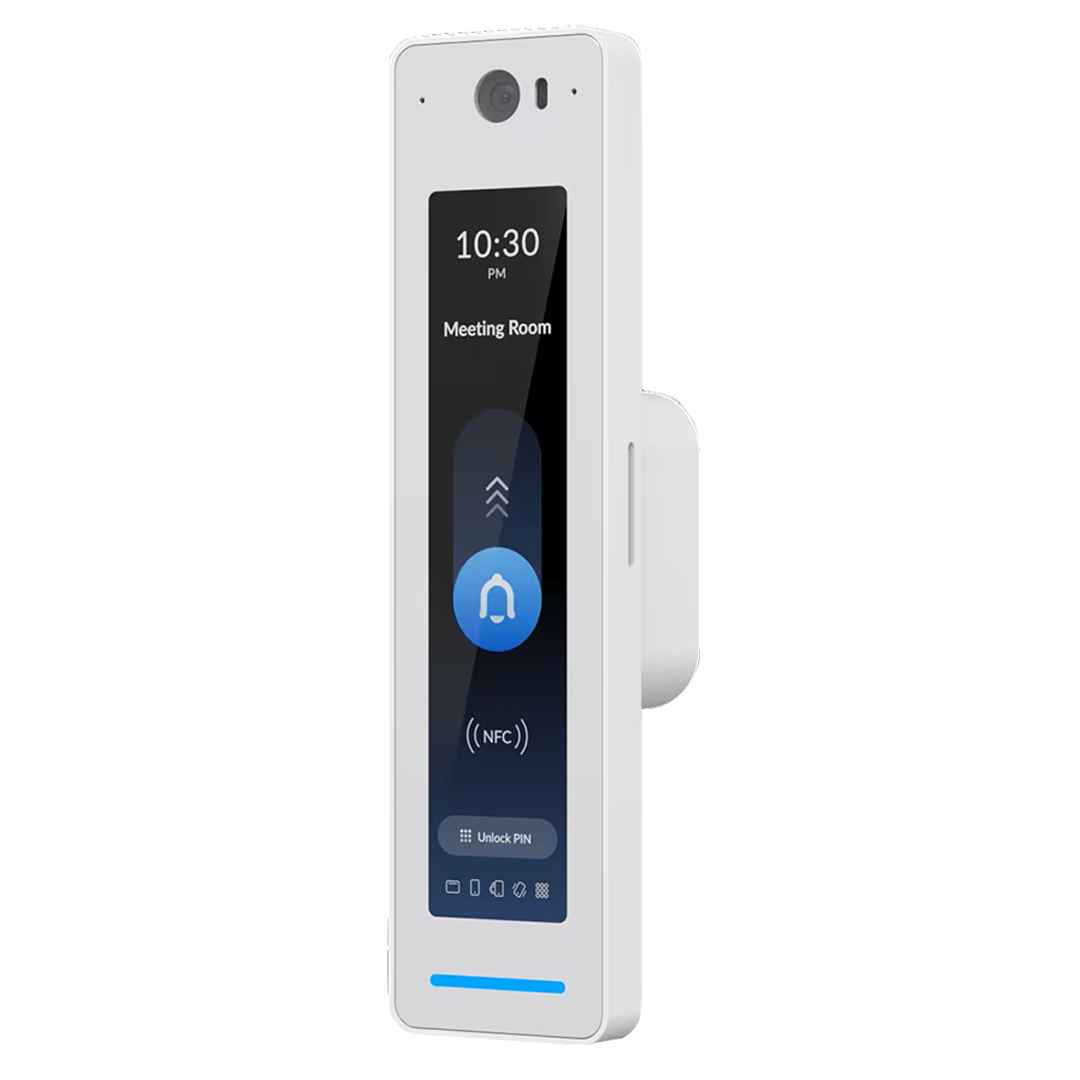

Side View
Specifications
General Data
| Model Number |
UA-G3-PRO-W |
| Colour |
White |
| Warranty |
1 Year |
| Dimensions |
160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6") |
| Integrated Camera |
Yes
(View angle: H: 96.67°, V: 123.15°, D: 153.11°) |
| NFC Card & Keyfob Access |
Yes |
| PIN Access |
Yes |
| Apple/Google Wallet |
Yes |
| Mobile Unlock |
Yes |
| Two-Way Intercom & Doorbell Access |
Yes |
| NDAA Compliant |
Yes |
| UL 294 Level |
Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I |
| Weatherproofing |
IP55 |
Mechanical
| Weight |
136 g (4.8 oz) |
| Enclosure Material |
Polycarbonate, glass |
| Mount Material |
Aluminium alloy |

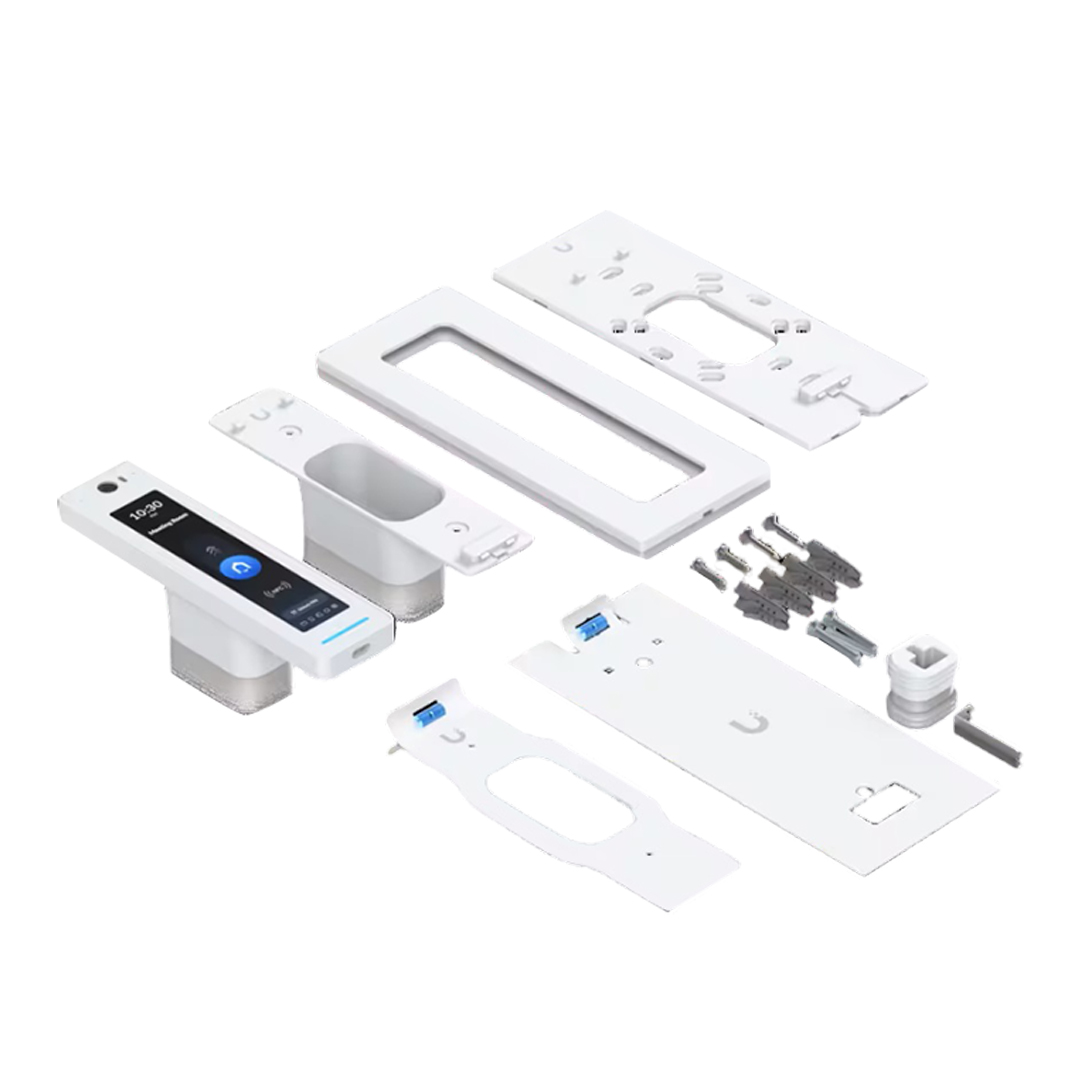

| Mounting |
Wall, gang-box mount (Included)
Angle mount, junction box (Optional) |
Hardware
| Indoor and Outdoor Use |
Yes |
| Ambient Operating Temperature |
Device: -30 to 45° C (-22 to 113° F)
Display: -10 to 45° C (14 to 113° F)
(The display will turn off when the ambient temperature is above/below the display operation temperature, but other functions will remain functional.) |
| Ambient Operating Humidity |
5 to 90% noncondensing |
| Networking Interface |
(1) GbE RJ45 port |
| Connectivity |
BLE 4.2
NFC |
| Power Method |
PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption |
6 W |
| Supported Voltage Range |
48 V DC |
| ESD/EMP Protection |
Air: ±15 kV, contact: ±8 kV |
| Sensors |
Proximity sensor |
| Display |
120 mm (4.7") diagonal |
| Touch Screen Technology |
Capacitive touch |
| Display Luminance |
480 nits (Typical) |
| Screen Orientation |
Portrait |
| Resolution |
1280 x 286 px |
| Microphone |
Yes |
| Speaker |
Yes (1.5 W) |
| LEDs |
R/G/B/W/Amber |
| Button |
(1) Factory-reset |
| NFC Frequency |
13.56 MHz |
| NFC Read Range |
< 30 mm (1.18'') |
| NFC Technology |
ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC Forum tags T1T, T2T, T3T, T4T and T5T
ECP 2.0 |
| PoE Cabling Requirements |
Cat 5e cabling is the minimum performance category recommended. The performance category utilised should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement |
Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade |
Grade assignment: I |
| Certifications |
CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1 |
| Document Number, and Issue Date and/or Revision Level |
UA-G3-Pro-W/UA-G3-Pro-B, V01 |
Software
| Management Application |
Access |
Backed by a 1 year Ubiquiti warranty.
