Ubiquiti Flex 2.5G PoE 8 port 2.5 GbE PoE++ Switch

USW-FLEX-2.5G-8-POE | Ubiquiti
$359
In stock
Order within 2h 41m 24s for next day dispatch!
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
The Ubiquiti Flex 2.5G PoE 8 port switch features eight 2.5 Gbps RJ45 PoE++ ports plus a 10 Gbps combo uplink port (RJ45/SFP+) that supports both data and PoE input, allowing flexible deployment and high-speed backbone connectivity. It supports powering via PoE+++ or AC adapter and provides a maximum PoE budget up to 196 W when using the AC power adapter, dropping to lower budgets under PoE input. It offers a switching capacity of 60 Gbps, forwarding rate around 45 million packets per second, managed via UniFi OS, with Layer-2 features such as VLANs, jumbo frames, port mirroring, storm control. It features a fanless, compact polycarbonate construction, and supports multiple mounting options including desktop, wall and DIN rail.

Features

Ubiquiti Flex 2.5G PoE 8-port 2.5 GbE PoE++ Switch Feature 1

Deployment

Build Features

Ubiquiti Flex 2.5G PoE 8-port 2.5 GbE PoE++ Switch Feature 2

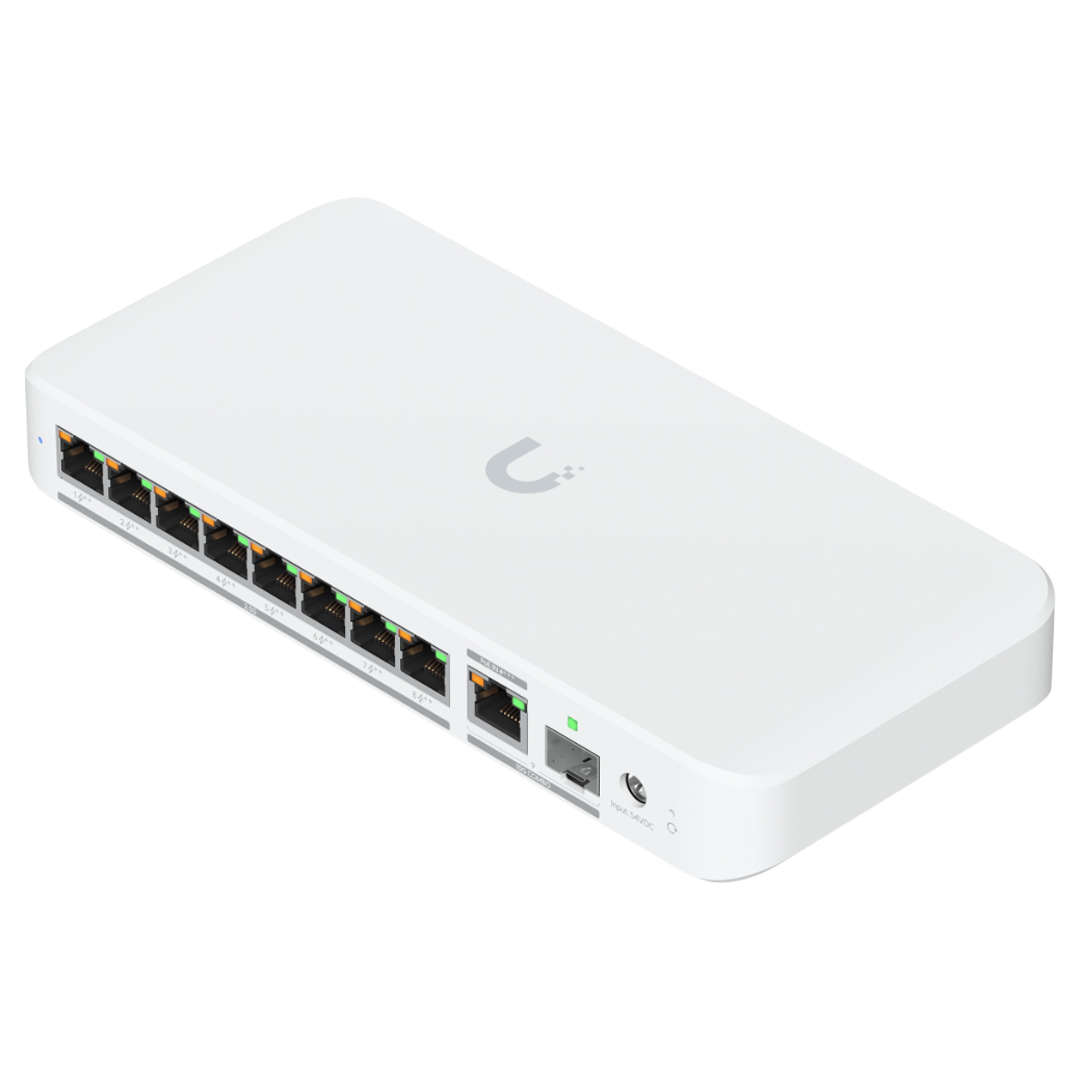

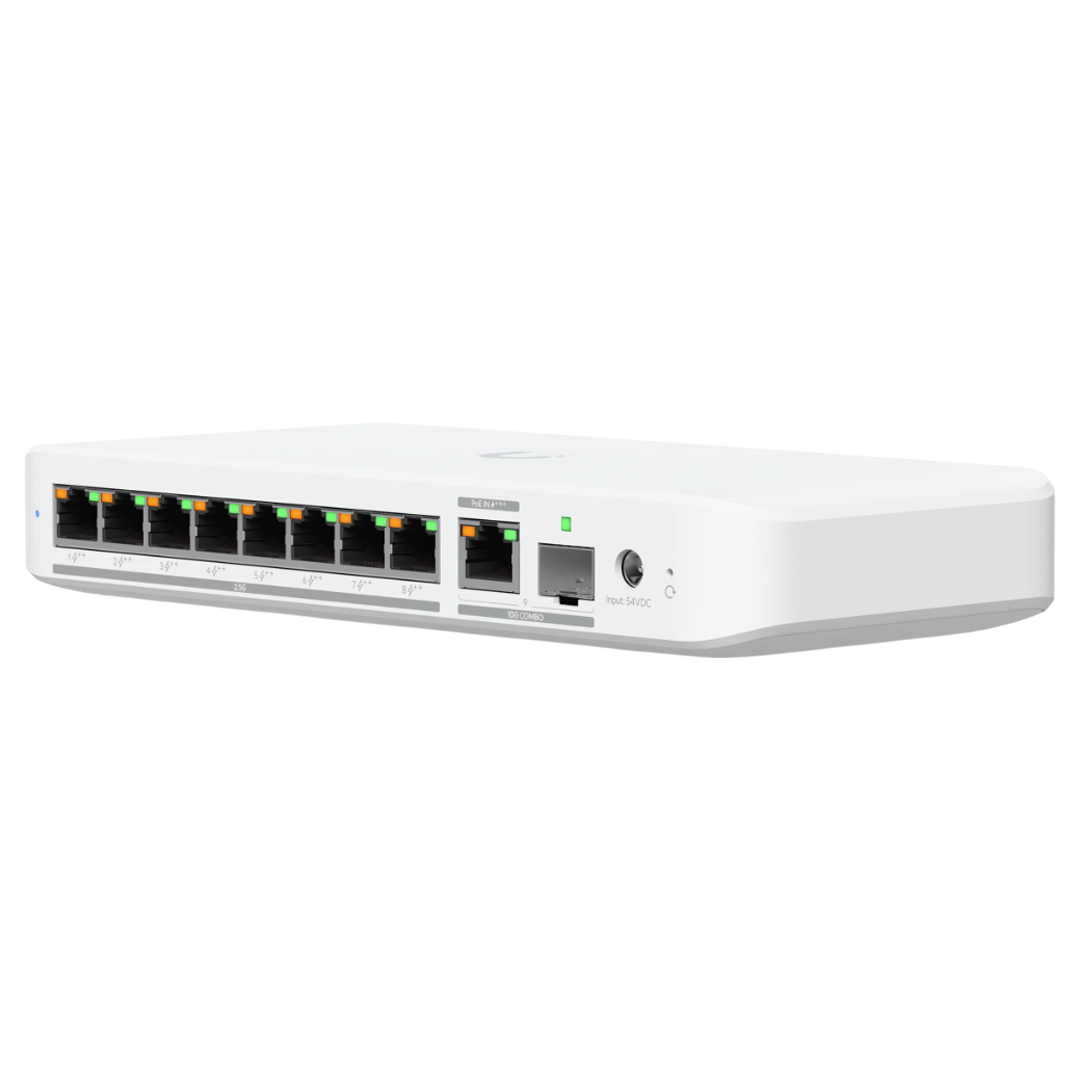

Front View

*AC power Adaptor sold separately.

Ubiquiti Flex 2.5G PoE 8-port 2.5 GbE PoE++ Switch Feature 3

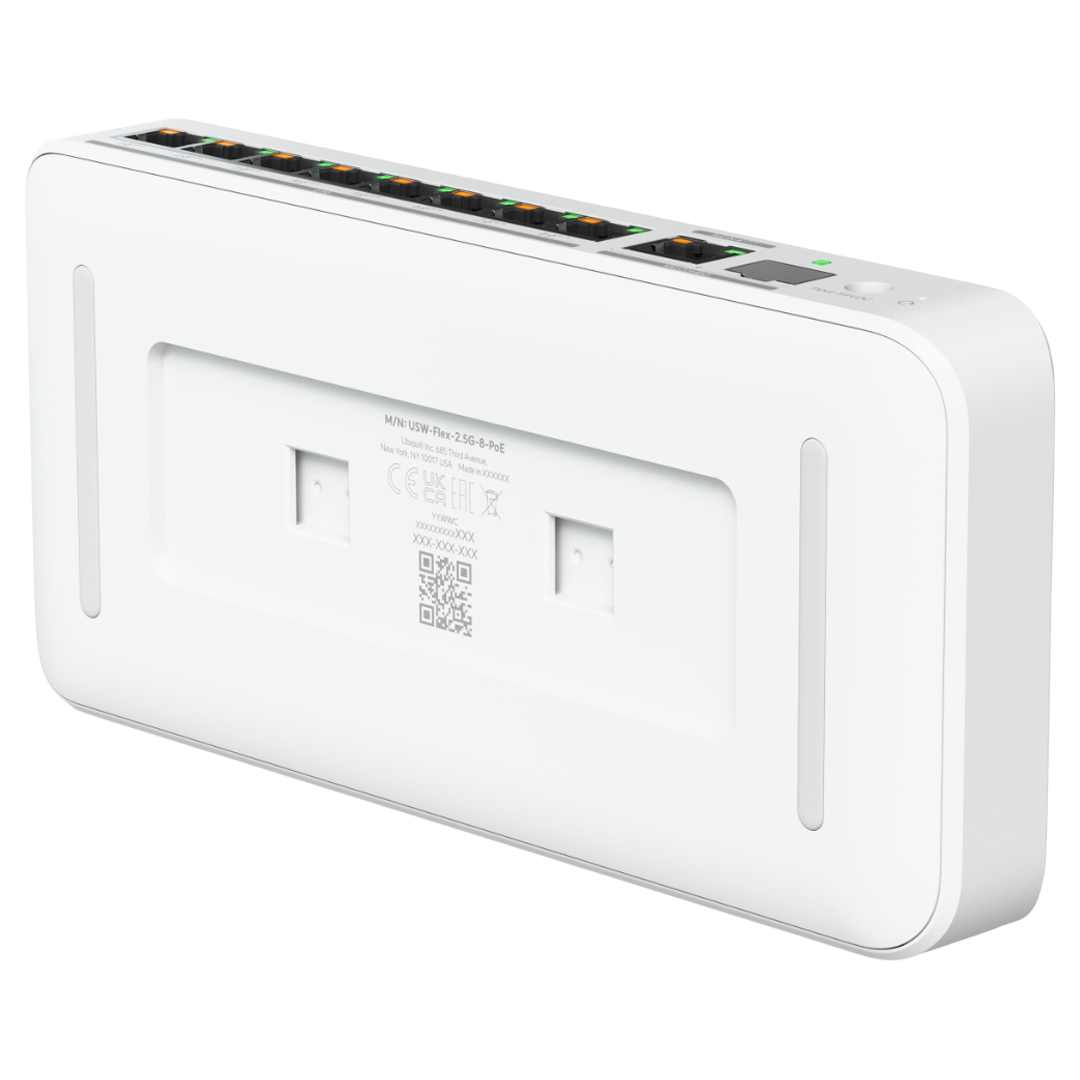

Back View

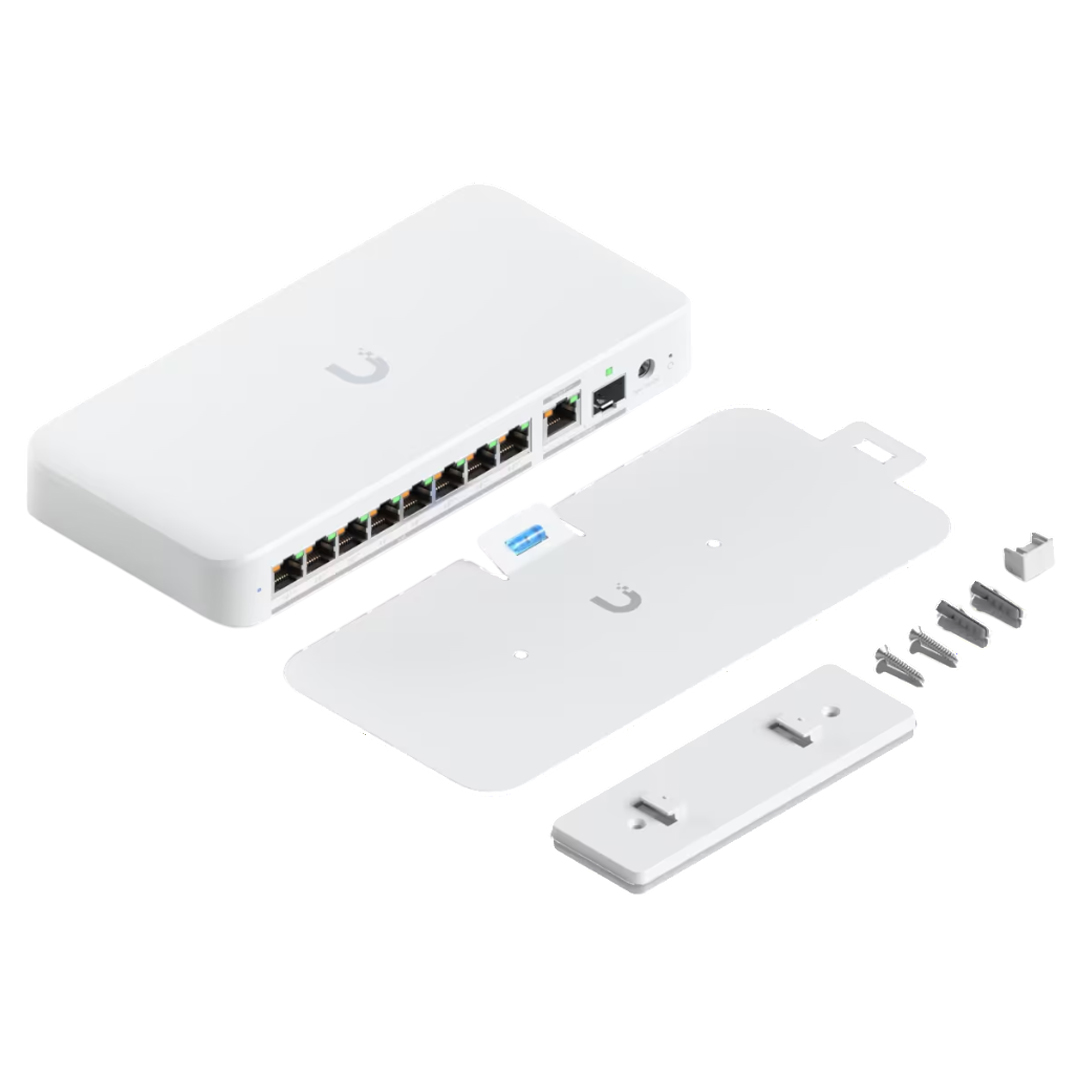

**Wall-mountable (kit included), DIN rail-mountable (sold separately).

Ubiquiti Flex 2.5G PoE 8-port 2.5 GbE PoE++ Switch Feature 4

Dimensions

Specifications

General Data

Model Number USW-FLEX-2.5G-8-POE
Dimensions 212.9 x 99.4 x 33.5 mm (8.4 x 3.9 x 1.3")
Port Layout 2.5 GbE RJ45
8 (All PoE++)
(2.5G/1G/100M/10M)
10 GbE RJ45
1 (PoE+++)
(10G/5G/2.5G/1G/100M)
10G SFP+
1
(10G/1G)
Max. PoE Output Up to PoE++
Total PoE Availability PoE+++ input: 76 W
PoE++ input: 46 W
PoE+ input: 16 W
210 W AC Adaptor input: 196 W
Form Factor Compact Desktop, wall, DIN, magnetic
Application Requirements UniFi Network: Version 9.0.114 and later
Warranty 1 year

Performance

Switching Capacity 60 Gbps
Total Non-Blocking Throughput 30 Gbps
Forwarding Rate 45 Mpps
Supported VLANs 256
MAC Address Table Size 4,000

Layer 2 Features

STP & RSTP Yes
Egress Rate Limit Yes
Flow Control Yes
Storm Control Yes
Multicast & Broadcast Rate Limiting Yes
Port Isolation Yes
Port Mirroring Yes
Jumbo Frames Yes
Loop Protection Yes

Hardware

PoE Ports PoE++: 8
Max. PoE Wattage Per Port by PSE PoE: 15.4 W
PoE+: 32 W
PoE++: 64 W
Max. Power Consumption 14 W (Excluding PoE output) with PoE input
17 W (Excluding PoE output) with AC Adaptor input
210 W (Including PoE Output)
Power Method (1) AC/DC Adaptor (Excluded)
(1) PoE+++
Power Input Method DC Input
PoE
Supported Voltage Range 50—57 V DC/PoE
Management Ethernet
Weight 567 g (20 oz)
Enclosure Material Polycarbonate
Mount Material Polycarbonate
Ambient Operating Temperature -20 to 45° C (-4 to 113° F)
Ambient Operating Humidity 10 to 90% noncondensing
NDAA Compliant Yes
Certifications CE, FCC, IC
Backed by a 1 year Ubiquiti warranty.
