TP-Link EAP787 BE12000 Ceiling Mount Tri-Band WiFi 7 Access Point

The TP-Link EAP787 BE12000 features tri-band WiFi 7 with 8 spatial streams, delivering up to 5765Mbps on both 5 GHz and 6 GHz bands, and 688 Mbps on 2.4 GHz, enabling ultra-high throughput in dense environments. It includes a 10 Gbps/2.5 Gbps Ethernet port and supports 802.3bt PoE++ (plus optional DC power) for flexible ceiling mounting with power over ethernet deployment. The unit offers dedicated RF scanning for real-time spectrum monitoring without interrupting user traffic, and supports advanced features like 320 MHz channel width, Multi-Link Operation (MLO), seamless roaming and Omada SDN centralised management. Designed for enterprise or campus use, it can handle 510+ concurrent clients and provides coverage around 190 square metres under optimal conditions.

Features

---

BE12000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

• Dedicated RF Scanning: Offers real-time spectrum monitoring and dynamic interference avoidance for robust wireless performance. (Dedicated RF Scanning requires the use of an Omada controller (V6.0 or above).)
• Tri-Band 8-Stream Wi-Fi 7: 5765 Mbps on 6 GHz, 5765 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz. (Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Actual wireless data throughput and coverage are not guaranteed and will vary.)
• 1x 10G Port: Ensures fast connectivity throughout the network
• Low Latency and Interference: 320MHz Bandwidth, Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network. (Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 240 MHz Bandwidth, 160 MHz Bandwidth, 6 GHz, 4K-QAM, Multi-RUs, OFDMA, and MU-MIMO requires clients to also support the corresponding features.)
• Flexible Deployment and Easy Setup: Supports both 802.3bt PoE and DC power supply for flexible installation with Omada SDN for one-click setup.
• Advanced Features: Supports centralised management, Mesh, and Seamless Roaming. (Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada controller.)
• More Capacity and Wider Coverage: Supports 510+ concurrent clients (The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.) and covers up to 2050 ft² (190 m²) (Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.) for reliable and extensive wireless connectivity.
• Tri-Band 8-Stream Wi-Fi 7
• Wi-Fi Speeds up to 12.2 Gbps (Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Actual wireless data throughput and coverage are not guaranteed and will vary.)
• Dedicated Spectral Analyser Radio
• 1x 10G/2.5G Port

Wi-Fi 7: Swifter, Smoother, Stronger

• Wi-Fi 7 Supersised Throughput
• 6 GHz - 5765 Mbps
• 5 GHz - 5765 Mbps
• 2.4 GHz - 688 Mbps
• 4096-QAM for Higher Capacity
  Wi-Fi 7 12 bits/symbol
  20% more data transmission
  Wi-Fi 6 10 bits/symbol
• MLO for Lower Latency

Dedicated RF Scanning for Higher Efficiency in O&M

• Real-Time Tri-Band Scanning and Spectral Analysis
• Over-the-Air Packet Capture
• Continuous Scanning without Disrupting Data Transmissions
• Interference Source Identification
• Dedicated RF Scanning (Dedicated RF Scanning requires the use of an Omada controller (V6.0 or above).)
  Real-Time Tri-Band Spectral Analysis

Optimised Wired Performance with 10G PoE++ Port

With a 10 Gigabit Ethernet Port, EAP787 delivers remarkable multi-gigabit performance for higher bandwidth and faster Wi-Fi. Compatibility with 802.3bt PoE is ideal for flexible deployment.

Boosted Network Security

• Secure Guest Network with up to 24 SSIDs
• Boost Your Business with SMS Login
• WPA3 for Worry-Free Open Public Networks
• Rogue AP Detection

Empowering Businesses with Reliable Omada SDN Solutions

Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralised cloud management for a highly scalable network.

Build Features

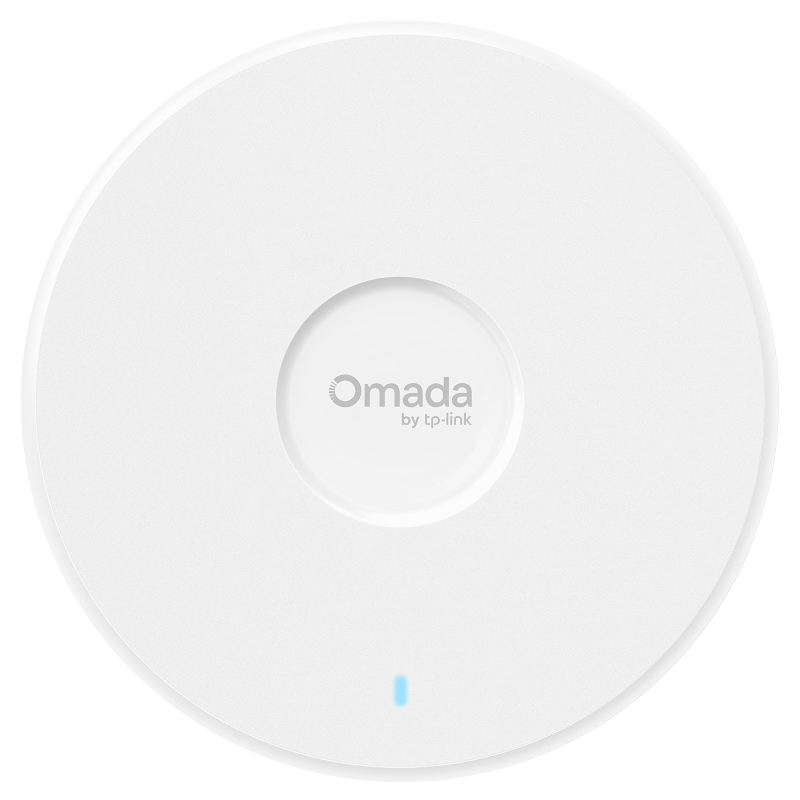

Front View

**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.

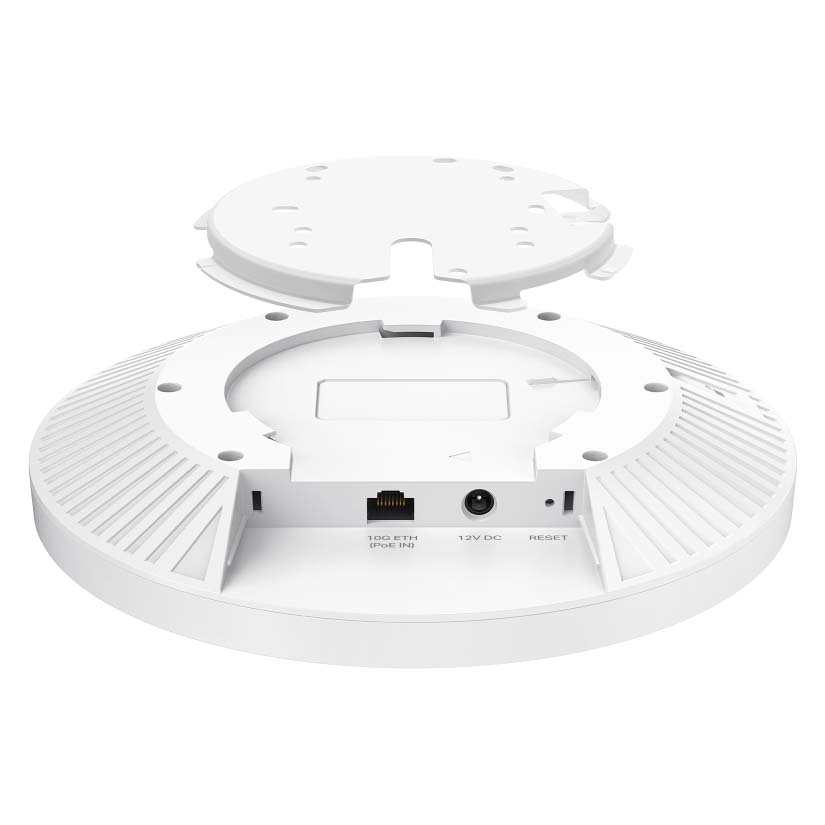

Back View

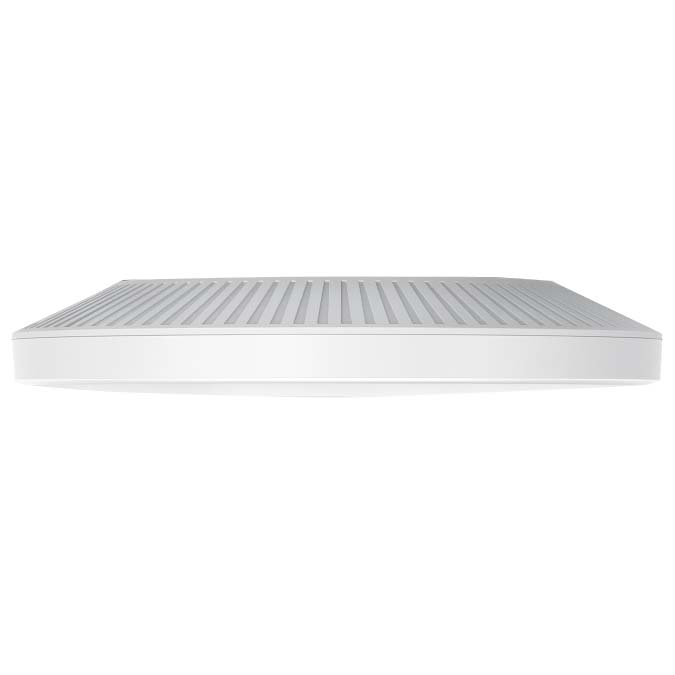

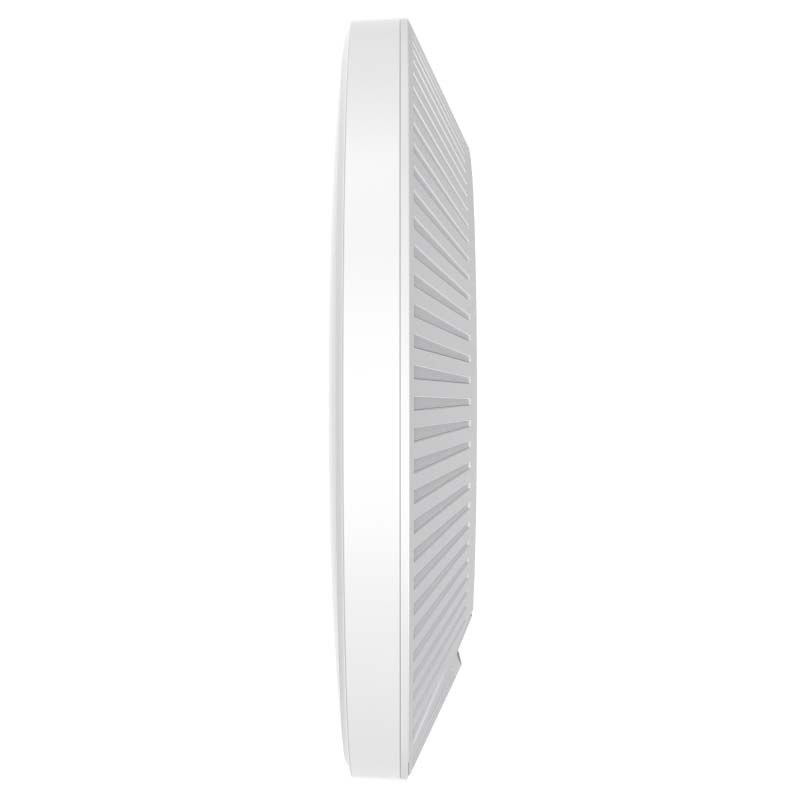

Side View

§Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
