The TP-Link TL-MR100-Outdoor features IP65 rated weatherproof housing with detachable LTE antennas and +-6kV lightning protection plus +-15kV ESD protection, enabling deployment outdoors in harsh environments. It supports 4G LTE Cat 4 for up to 150Mbps download and 50Mbps upload, combined with 2.4 GHz WiFi N speeds of up to 300 Mbps, and can serve up to 32 wireless devices simultaneously. It offers flexible power options including 12V DC or PoE and includes a 100 Mbps WAN/LAN Ethernet port.
Features
Tl-MR100-Outdoor 4G 300 Mbps Wi-Fi Outdoor Router
Fast 4G Wi-Fi for Always-On Internet Anywhere
- 4G LTE And Fast Wi-Fi Speed : supports LTE up to 150 Mbps and Wi-Fi up to 300 Mbps on 2.4 GHz .
- Durable Outdoor Enclosure: Robust outdoor connectivity and reliability with IP65 weatherproof protection and ±6kV lightning protection & ±15kV ESD protection.
- Multiple Mounting Installation: Install easily anywhere with pole, wall, or window mounting for flexible, convenient use.
- PoE/DC Power Supply: Supports 802.3af/802.3at PoE and passive PoE, enabling easy deployment.
- Plug And Play: Plug in a SIM card to get instant internet access anywhere.
- Simplified Setup: Easily set up and manage your network with the Tether app.
Take Wi-Fi Further, Beyond Your Walls
Connects up to 32 Devices
Dependable 4G Wi-Fi Internet Connectivity
The TL-MR100-Outdoor supports 4G LTE for internet download speeds up to 150 Mbps, paired with fast Wi-Fi speeds of up to 300 Mbps, enabling seamless networking experience. Simply insert your SIM card to enjoy reliable internet indoors and outdoors.(This device requires an activated SIM card without a PIN lock. If the SIM is locked, please consult the quick installation guide for unlocking instructions.)
Durable Outdoor Design for Stable Performance
Engineered for extreme environments, TL-MR100-Outdoor features IP65 waterproofing, operates from -30°C to 60°C, and 6kV lightning & 15kV ESD protection. Maintains uninterrupted connectivity in harsh weather conditions, delivering stable outdoor network performance.
- 6kV Lightning Protection and 15kV ESD Protection
- Dust Resistant
- Water Resistant
- -30°C~+60°C Operating Temperature
Versatile Installation for Diverse Environments

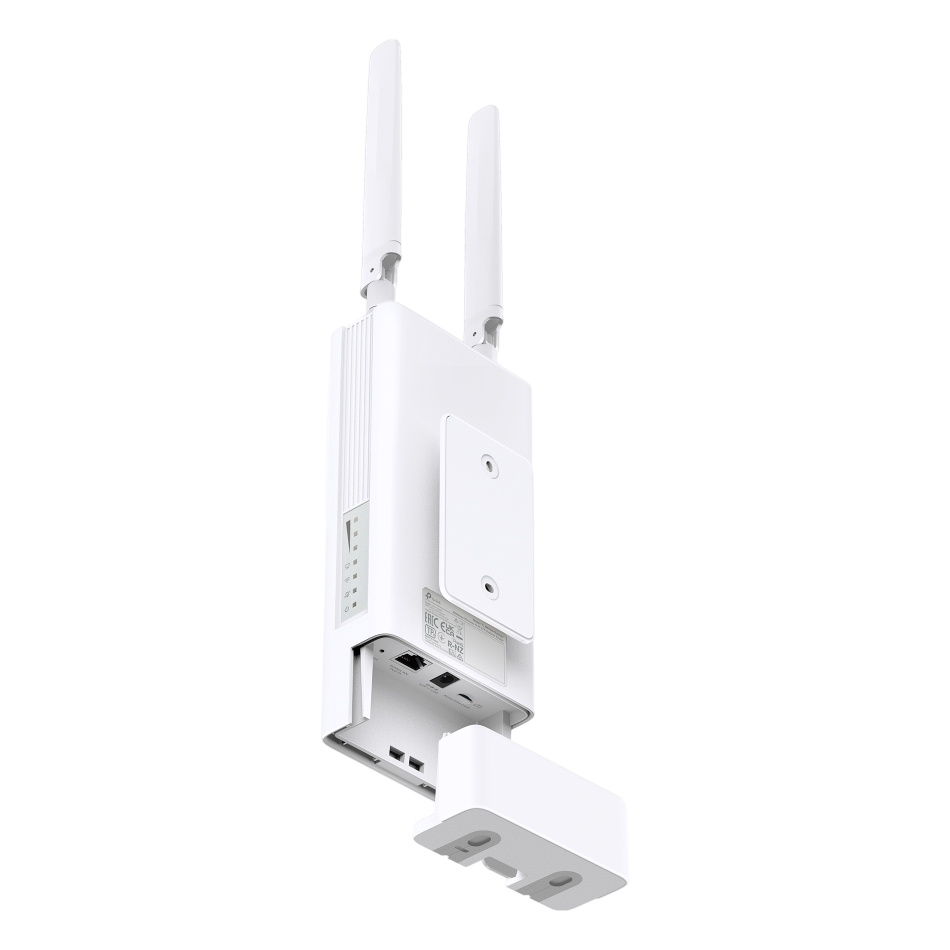

The TL-MR100-Outdoor offers versatile installation options—mount on a pole or a wall, or adhesive to a window. This flexibility allows for installation in a wide range of environments, from urban areas to rural settings. Easily find the best location for optimal signal, ensuring reliable connectivity.
PoE/DC Power Support: Simplified Outdoor Setup
The TL-MR100-Outdoor features PoE and DC power supply, simplifying outdoor setup with flexible power options and ensuring reliable connectivity in diverse outdoor environments.
The TL-MR100-Outdoor also supports IEEE 802.3af/802.3at PoE or can be powered using a 12V DC 1A Adaptor.
Easy Setup and Management
Set up TL-MR100-Outdoor in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.
Specifications
General Data
| Model Number |
TL-MR100-OUTDOOR |
| What's Included |
1x TL-MR100-Outdoor Unit
1x 10-metre RJ45 Ethernet Cable
1x PoE Adaptor
1x AC Power Cord
1x Quick Installation Guide
Window/Pole/Wall Mounting Kits |
| Requirements |
Edge, Firefox, Chrome, Safari, or other JavaScript-enabled browser
You are recommended to use the latest version |
| Certifications |
CE, RoHS |
| Environment |
Operating Temperature: -30°C~60°C (-22°F~140°F)
Storage Temperature: -40°C~70°C (-40 °F~158 °F)
Operating Humidity: 10%~90% RH
Storage Humidity: 5%~90% RH |
| Network Services Enabled by Default |
Web Server
Manage and configure device through web (HTTP/HTTPS)
Port: 80/443 Protocol: TCP
DHCP Server
IP address assignment (DHCP)
Port: 67 Protocol: UDP
DNS
Port: 53 Protocol: TCP
App management
Manage and configure device through app
Port: 22 Protocol: TCP
Port: 20002 Protocol: TCP
CWMP
CPE WAN Management Protocol
Port: 7547 Protocol: TCP |
| Warranty |
3 years |
4G
| Network Type |
4G
FDD-LTE: B1/B3/B5/B7/B8/B20/B28
(2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40/B41
(2600/2300/2500 MHz)
3G
DC-HSPA+/HSPA/UMTS:B1/B5/B8(2100/850/900 MHz) |
| Speed |
Download Speed 150 Mbps
Upload Speed 50 Mbps |
| SIM Type |
1xNano SIM Card |
Hardware
| Interface |
1x 100 Mbps WAN/LAN Port (PoE In)
1x Nano SIM Card Slot
1 x DC Port |
| Buttons |
1x Reset Button |
| Power |
12V/1A DC
24V/0.5A Passive PoE
44-57V/0.35A 802.3af |
| Dimensions (W x D x H) |
8.9 x 3.9 x 2.2 in (226.6 x 100 x 54.7 mm) |
| Antennas |
2 x Detachable LTE Antennas |
Wireless Features
| Wireless Standards |
IEEE 802.11b/g/n |
| Frequency |
2.4 GHz |
| Signal Rate |
300 Mbps |
| Reception Sensitivity |
11g 54M: -74 dBm
11n HT20: -73 dBm
11n HT40: -70 dBm |
| Wireless Functions |
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| Wireless Security |
WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
Software Features
| Security |
DoS, IPv4 SPI Firewall, IP and MAC Address Binding |
| Operating Modes |
3G/4G Router, Wireless Router |
| WAN Type |
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Management Features |
Local Management, Remote Management |
| DHCP |
Server, DHCP Client List, Address Reservation |
| Port Forwarding |
ALG, Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
TP-Link, DynDns, NO-IP |
| Protocols |
IPv4, IPv6 |
| Guest Network |
2.4 GHz guest network |
| Administration |
Upgrade Firmware, Factory Default, System Log, Diagnostic Tools |
Backed by a 3 year TP-Link warranty.
