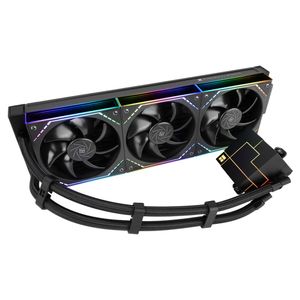

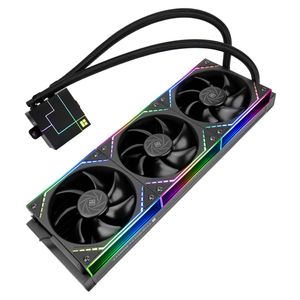

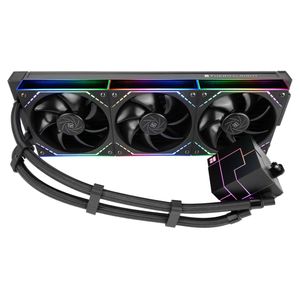

The CORE-MATRIX-360-BLACK-V2 features a 360 mm aluminium radiator paired with three PWM TL-K12 fans, offering up to 69 CFM airflow per fan at 2 150 RPM for strong heat dissipation. Its pump runs at up to 2 800 RPM and supports both Intel (LGA115x, 1200, 1700, 1851, 2011, 2066) and AMD (AM4, AM5) sockets for wide compatibility.
Features
Robust 360 mm Radiator Design
Features a 397×120×27 mm aluminium radiator that maximises heat dissipation across a large surface area.
High-Speed Pump Operation
Pump runs at up to 2,800 RPM ±10% to maintain efficient coolant circulation under load.
Triple TL-K12 120 mm PWM Fans
Includes three TL-K12 fans rated at 2,150 RPM ±10%, delivering up to 69 CFM and 2.87 mm H₂O static pressure using S-FDB V2 bearings for stable performance.
ARGB Lighting & Connectors
Supports 5 V/3-pin ARGB lighting synchronisation and 4-pin PWM control for harmonious system lighting and speed regulation.
Quiet and Efficient Operation
Maximum fan noise is rated at 27 dBA under full load, balancing cooling and acoustic performance.
Wide Socket Compatibility
Compatible with Intel LGA115x/1200/1700/1851 platforms and AMD AM4/AM5 with included mounting hardware.
Long-Term Reliability
Pump rated MTTF of 40,000 hours and backed by a 6-year manufacturer’s warranty.
Specifications
General Data
| Model Number |
CORE-MATRIX-360-BLACK-V2 |
| Colour |
Black |
| Pump Dimensions (W x D x H) |
66 mm x 66 mm x 60 mm |
| Radiator Dimensions (L x W x H) |
397 mm x 120 mm x 27 mm |
| Pump Rated Speed |
2800 RPM±10% (Max) |
| Pump Rated Voltage |
12V DC |
| Connector |
4 Pin PWM |
| ARGB Connector |
3 Pin 5V |
| Radiator |
Aluminium |
| Pump MTTF |
40000 Hours |
| Warranty |
3 Years |
| Compatibility |
Intel：LGA115X/1200/1700/1851
AMD：AM4/AM5 |
Fan
| Model |
TL-M12Q |
| Dimensions (L x W x H) |
124 mm x 120 mm x 25 mm |
| Rated Speed |
2000 RPM±10% (Max) |
| Noise Level |
28.2 dBA (Max) |
| Air Flow |
68.9 CFM (Max) |
| Air Pressure |
2.21 mm H₂O (Max) |
| Connector |
4 Pin PWM |
| ARGB Connector |
3 Pin 5V |
| Bearing Type |
S-FDB Bearing |
Backed by a 3 year Thermalright warranty.
