Ubiquiti Network Video Recorder Instant Kit

UNVR-INSTANT-KIT | Ubiquiti
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
$1229
Stock at Supplier We do not have this item in our warehouse, but stock is either already on its way or is generally available from the supplier.
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns

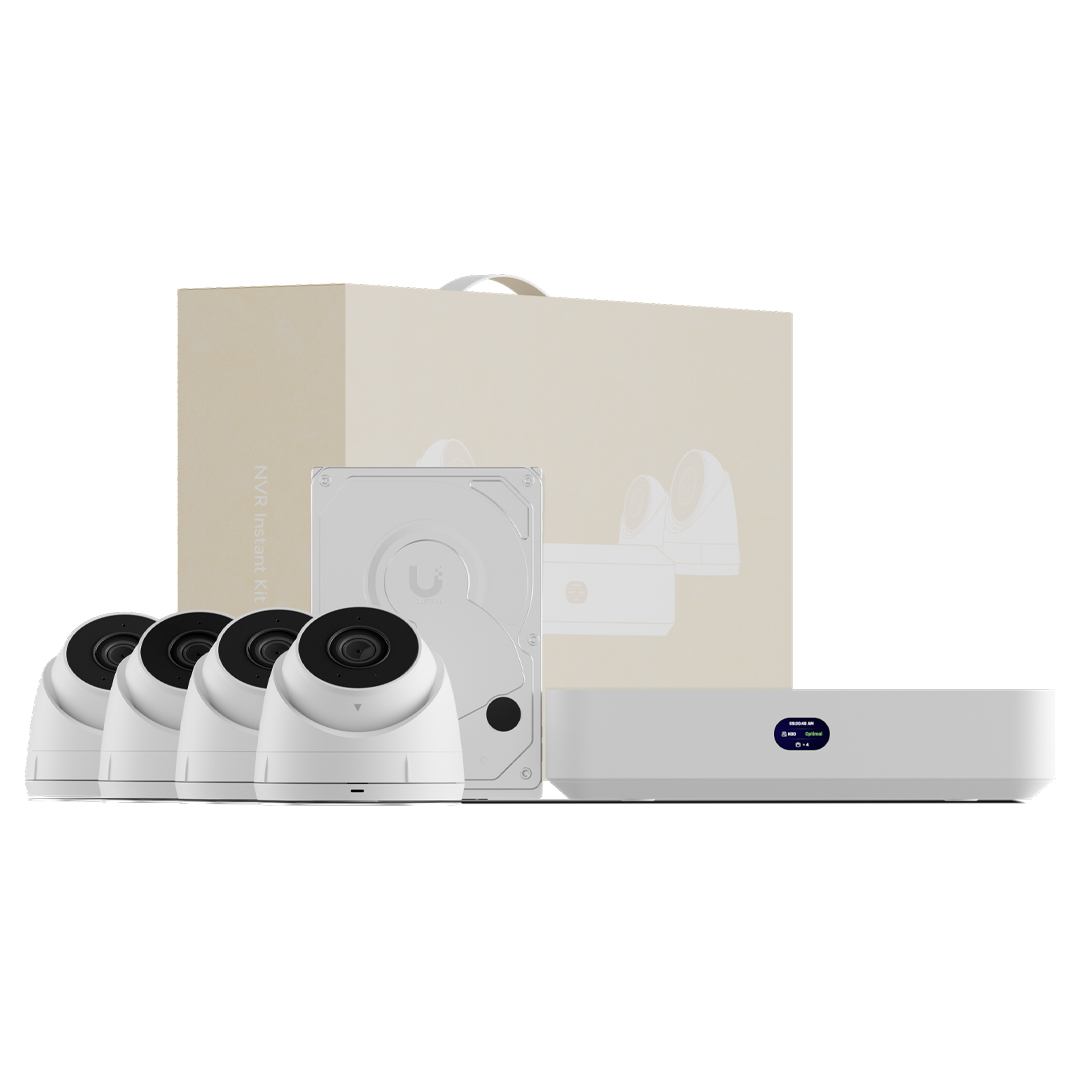

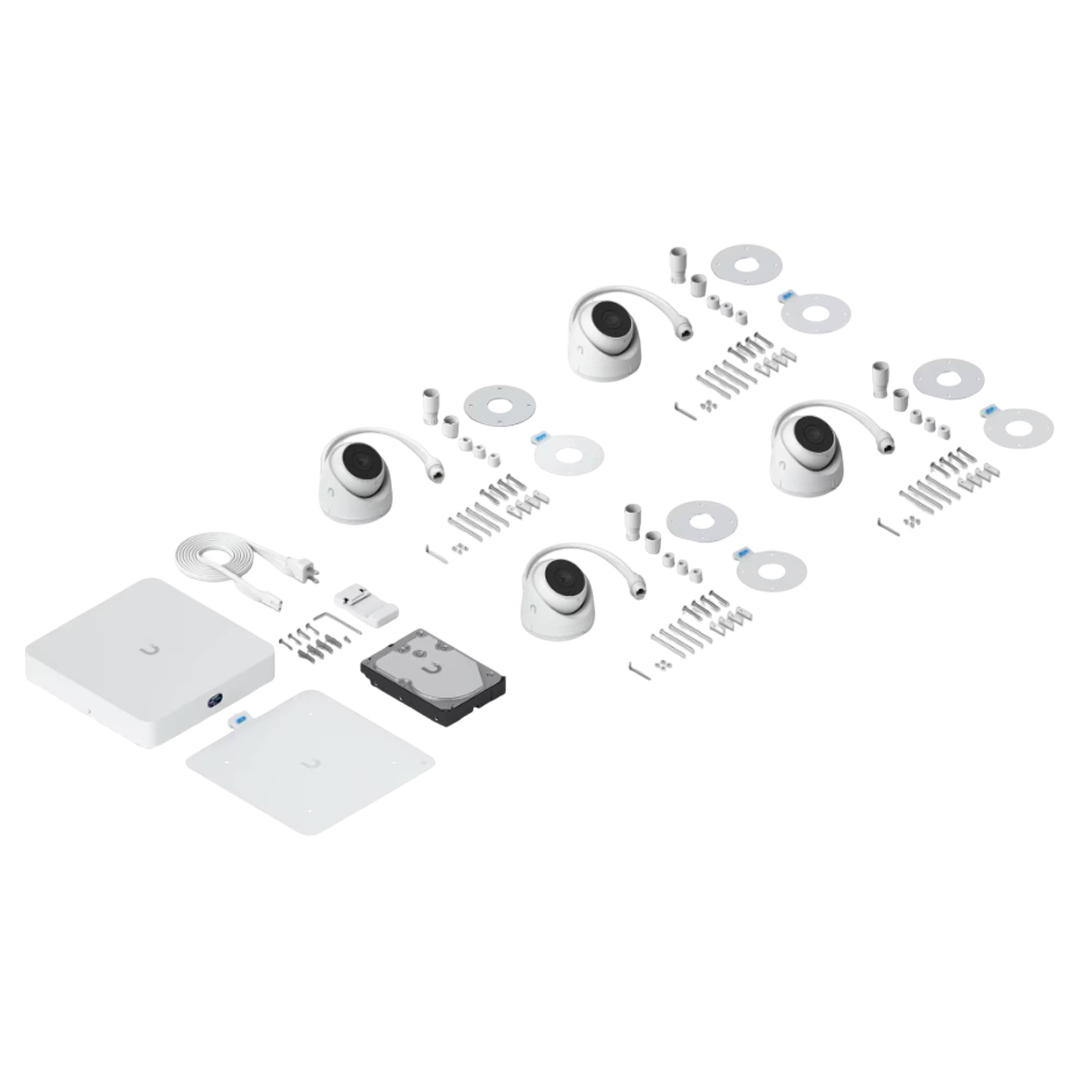

The Ubiquiti UniFi Network Video Recorder Instant Kit is a compact, all-in-one surveillance solution designed for quick and easy deployment. It includes the UniFi Protect NVR Instant, four G5 Turret Ultra cameras, and a pre-installed 1TB HDD, providing a complete setup for small businesses and residential applications.

Features

Network Video Recorder Instant

Ubiquiti Network Video Recorder Instant Kit Feature 1

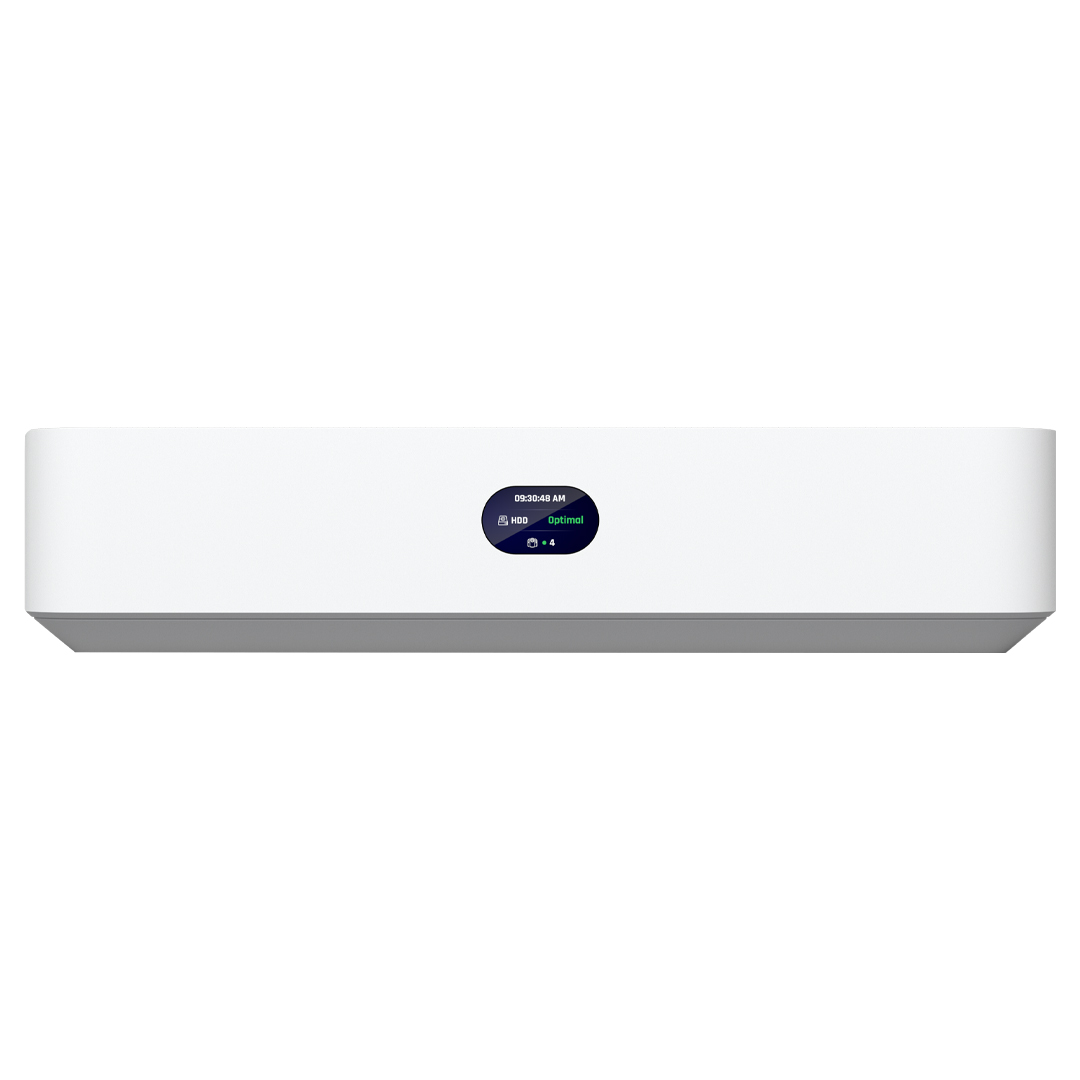

Front View

Ubiquiti Network Video Recorder Instant Kit Feature 2

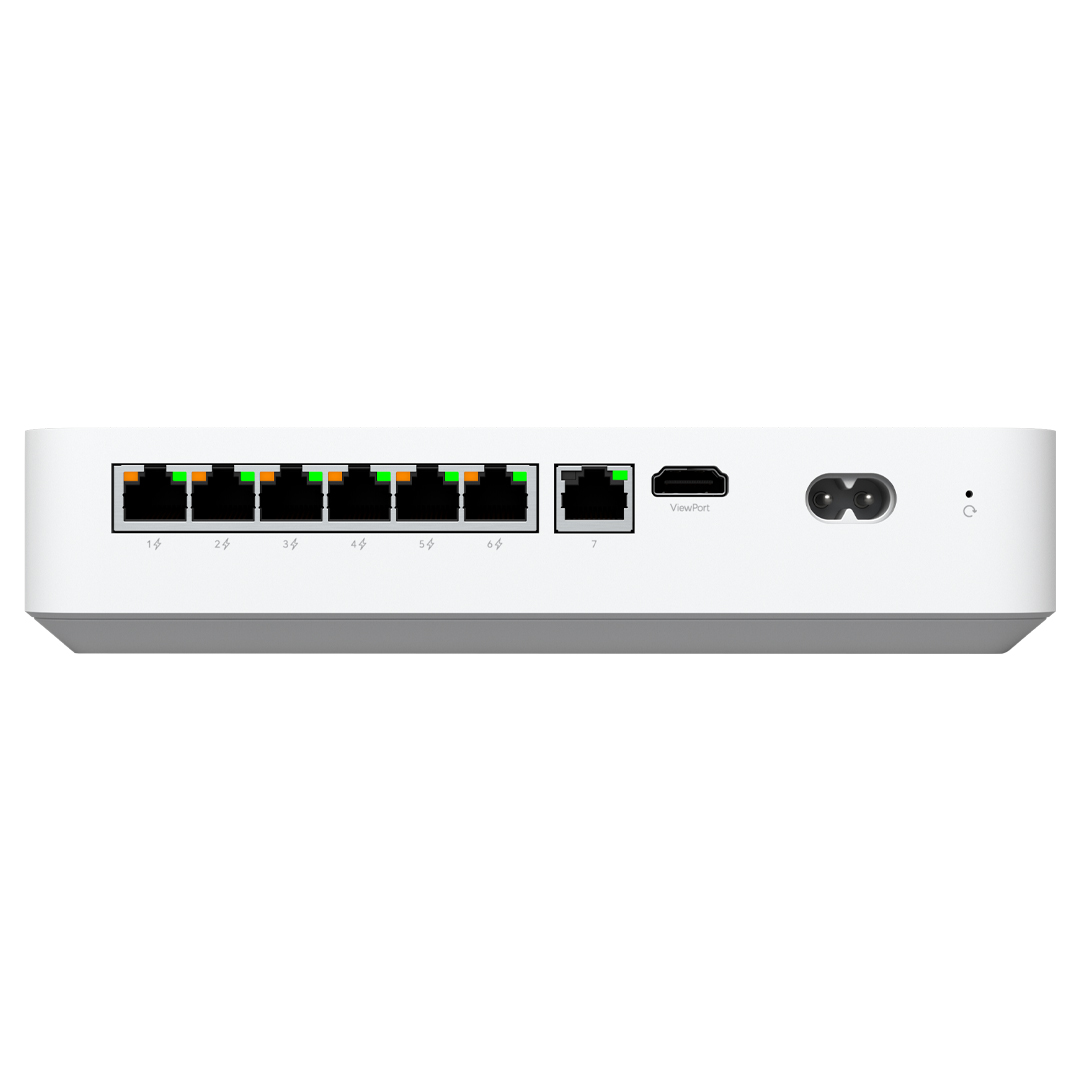

Back View

Ubiquiti Network Video Recorder Instant Kit Feature 3

Dimensions

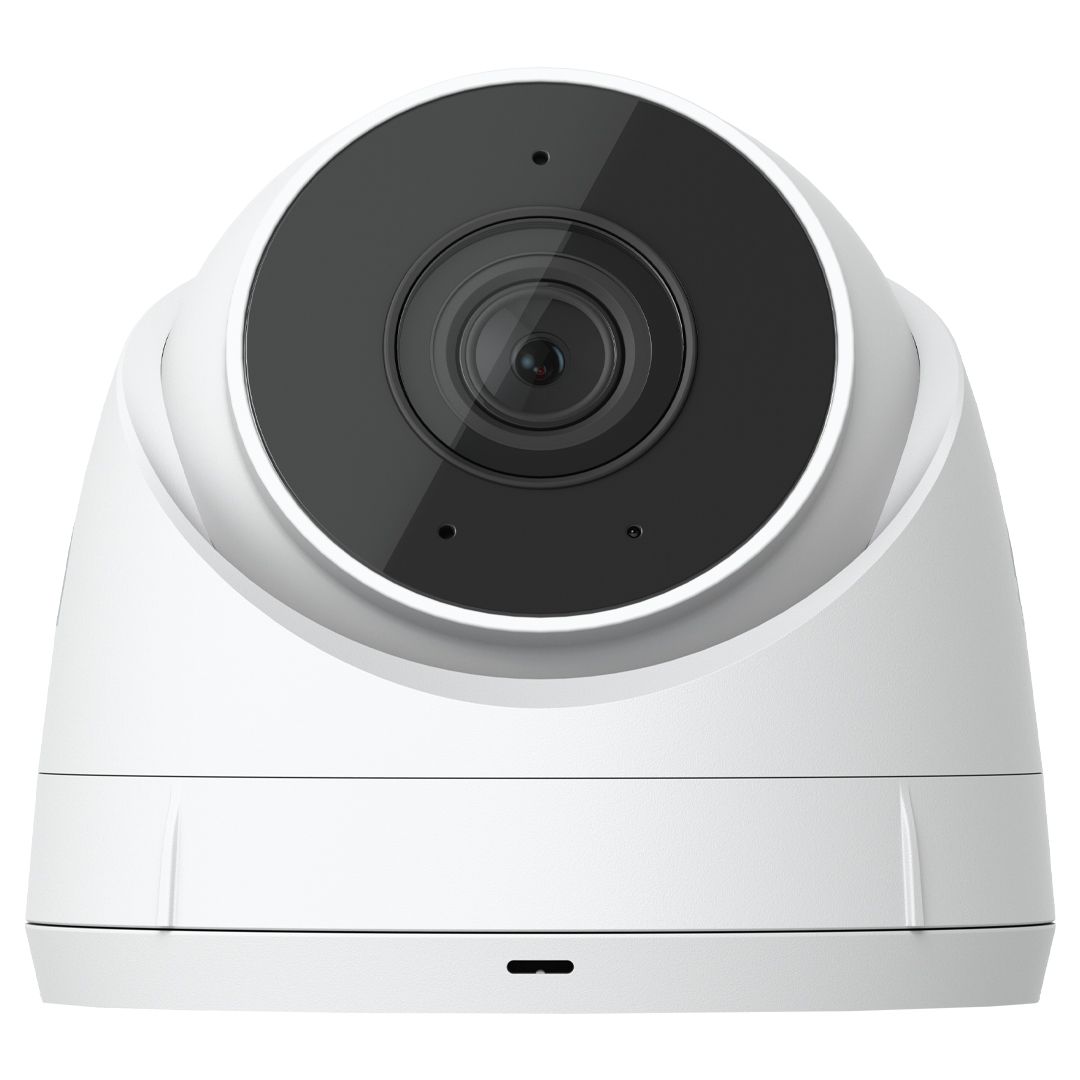

G5 Turret Ultra

Ubiquiti Network Video Recorder Instant Kit Feature 4

Side View

Ubiquiti Network Video Recorder Instant Kit Feature 5

Back View

Ubiquiti Network Video Recorder Instant Kit Feature 6

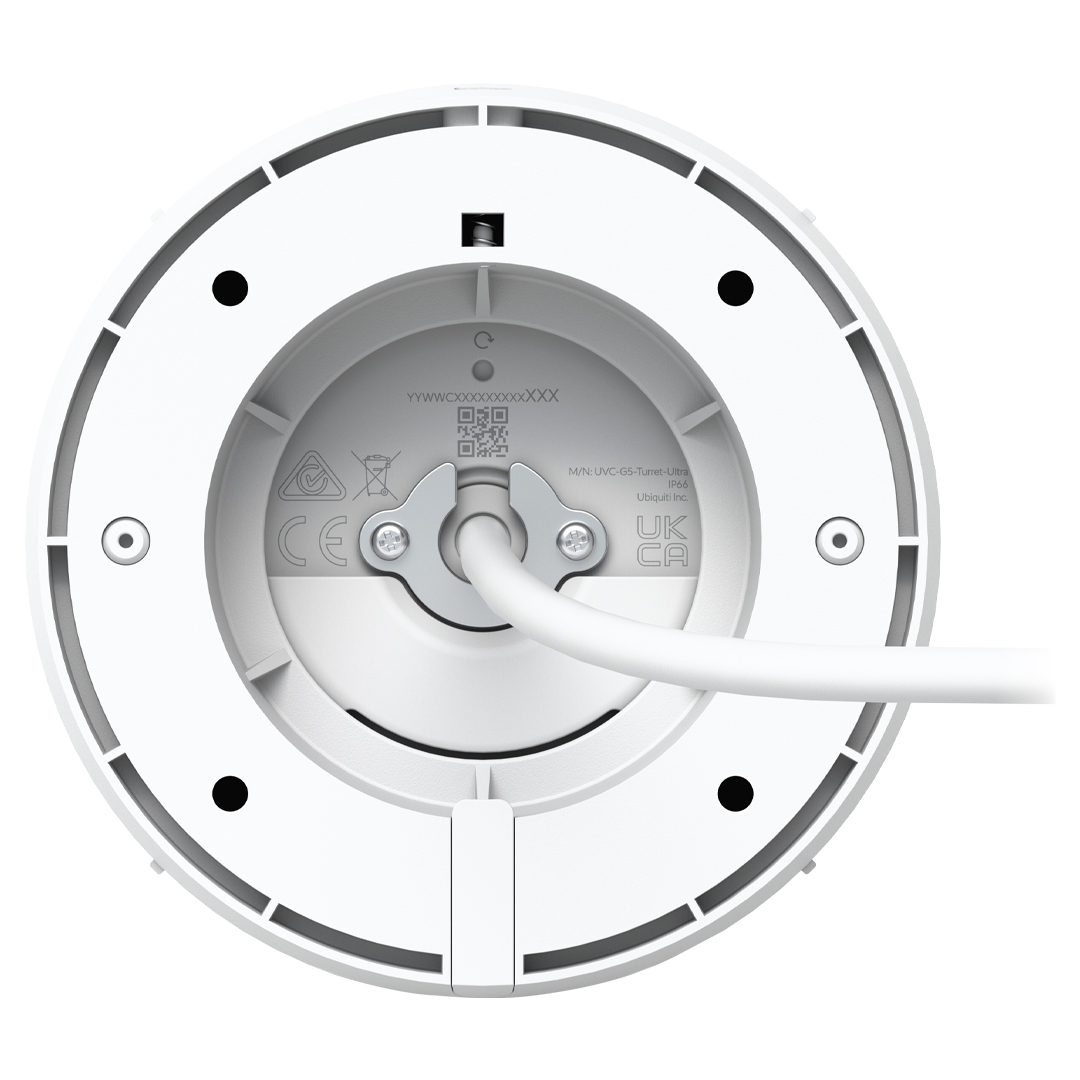

Bottom View

Specifications

General Data

Model Number UNVR-INSTANT-KIT

Network Video Recorder Instant

Dimensions 220 x 220 x 47 mm (8.7 x 8.7 x 1.9")
UniFi Application Suite Protect: Yes
Access: Yes
Managed Cameras (15) HD
(8) 2K
(6) 4K
Storage Capacity (1) 3.5" drive bay
Data Protection Yes
Vantage Point Yes
Networking Interface (1) GbE RJ45 uplink port
(6) GbE PoE RJ45 downlink ports
(1) HDMI port (Viewport)
Form Factor Compact Desktop
Mounting Wall, Din rail mount (Included)
Door Access Support Yes
Hard Drive Capacity (1) 3.5" HDD support
Max. Power Budget for Drives 11W
Max. Power Consumption 9W (Excluding PoE output & HDD power consumption)
Power Method Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz
Power Supply AC/DC, Internal, 60W
PoE Budget 40W
Max. PoE Wattage per Port by PSE PoE: 15.4W
Voltage Range PoE Mode 44–57V
Processor Quad-core ARM® Cortex®-A55 at 1.7 GHz
Memory 4 GB
Management Ethernet
Bluetooth
Display 1.14" screen
Weight 1.04 kg (2.3 lb)
Enclosure Material Polycarbonate
Mount Material Polycarbonate
LEDs Ethernet: Yes
PoE: Yes
Ambient Operating Temperature 0 to 40° C (32 to 104° F)
Ambient Operating Humidity 5 to 95% noncondensing
NDAA Compliant Yes
Certifications FCC, IC, CE, Electrical Safety

G5 Turret Ultra

Dimensions Ø90 x 71.2 mm (Ø3.5 x 2.8")
IR Night Vision 30 m (98 ft)
Smart Detections (People, Vehicles, Animals) Yes
Resolution 4K
Field of View H: 102.4°, V: 54.9°, D: 120.6°
Audio Microphone
Weatherproofing IP66
Tamper Resistance IK04
Mounting Wall, ceiling mount (Included)
Junction box, arm mount (Optional)
Networking Interface 10/100 MbE RJ45 port
Video Image Settings: Colour, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
Max. Frame Rate: 30 FPS
Resolution: 4MP 2688 x 1512 (16:9)
Optics Sensor: 1/2.4" CMOS
Lens: Fixed focal length
Night Mode: Built-in IR LED illumination and IR cut filter
Max. Power Consumption 4W
Supported Voltage Range 37–57V DC
Power Method PoE
Processor Dual-core Arm® Cortex®-A7 based chip
Weight 330 g (11.6 oz)
Enclosure Material Aluminium alloy, UV-stabilised polycarbonate
Mount Material Polycarbonate
Button (1) Factory-reset
Cable Cable Connector Type: RJ45
Cable Diameter: 5 mm (0.2")
Cable Length: 30 cm (1 ft)
Jacket Material: Polycarbonate
Jacket Enclosure Dimensions: Ø20 x 70.6 mm (0.8 x 2.8")
Jacket Enclosure Material: Thermoplastic elastomer, polycarbonate, silicone rubber
Ambient Operating Temperature -30 to 50º C (-22 to 122º F)
Ambient Operating Humidity 0 to 90% noncondensing
NDAA Compliant Yes
Certifications CE, FCC, IC

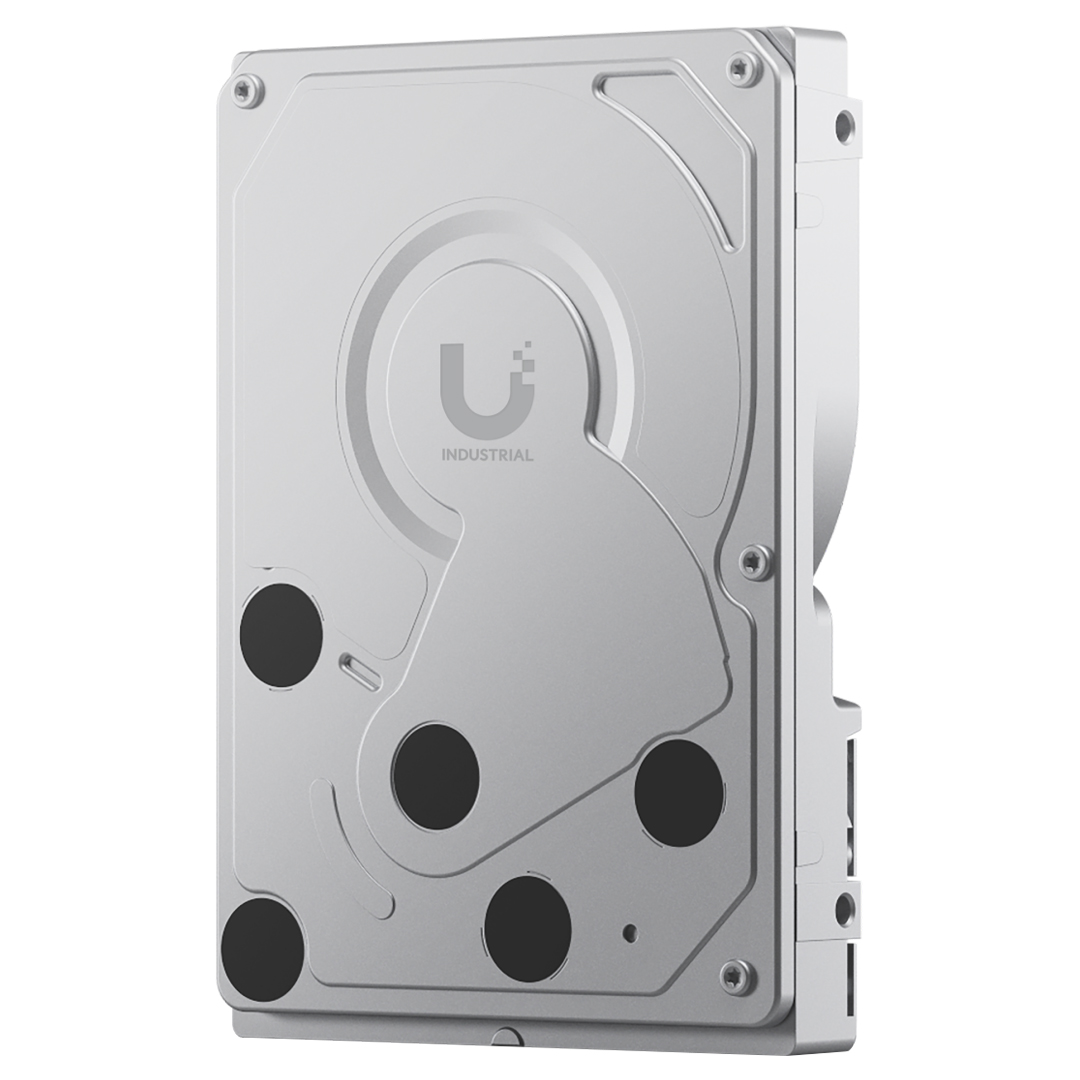

HDD

Dimensions 147 x 101.6 x 26.1 mm (5.75 x 4 x 1")
Hard Disk Form Factor 3.5-inch
Weight 0.45 kg (0.99 lb)
Storage Capacity 1 TB
Power Method 5V/12V input
Management Interface SATA 6 Gb/s
Rotation Speed 5400 RPM
Workload Rating 180 TB/year
Mean Time Between Failure (MTBF) 1,000,000 h
Ambient Operating Temperature 0 to 65° C (32 to 149° F)
Ambient Operating Humidity 5 to 95% noncondensing
NDAA Compliant Yes
Certifications FCC, CE, UL, TUV, RCM, KC, BSMI
Backed by a 1 year Ubiquiti warranty.
