The Ubiquiti UniFi Network Video Recorder Instant is a compact, standalone NVR designed for seamless integration with UniFi Protect systems. It supports up to six 4K cameras or 15 Full HD cameras, includes a 6-port PoE switch, and features a 3.5-inch HDD bay for scalable storage. The device is powered by a quad-core ARM Cortex-A55 processor at 1.7 GHz and offers a 1.14-inch display for local management. It is housed in a polycarbonate enclosure and operates within an ambient temperature range of 0 to 40degC.
Features
Network Video Recorder Instant
Compact UniFi Protect NVR with 3.5" HDD support, featuring an integrated 6-port PoE switch, integrated HDMI View Port, and a capacity for (6) 4K cameras or (15) Full HD cameras.
Deployment
Build Features

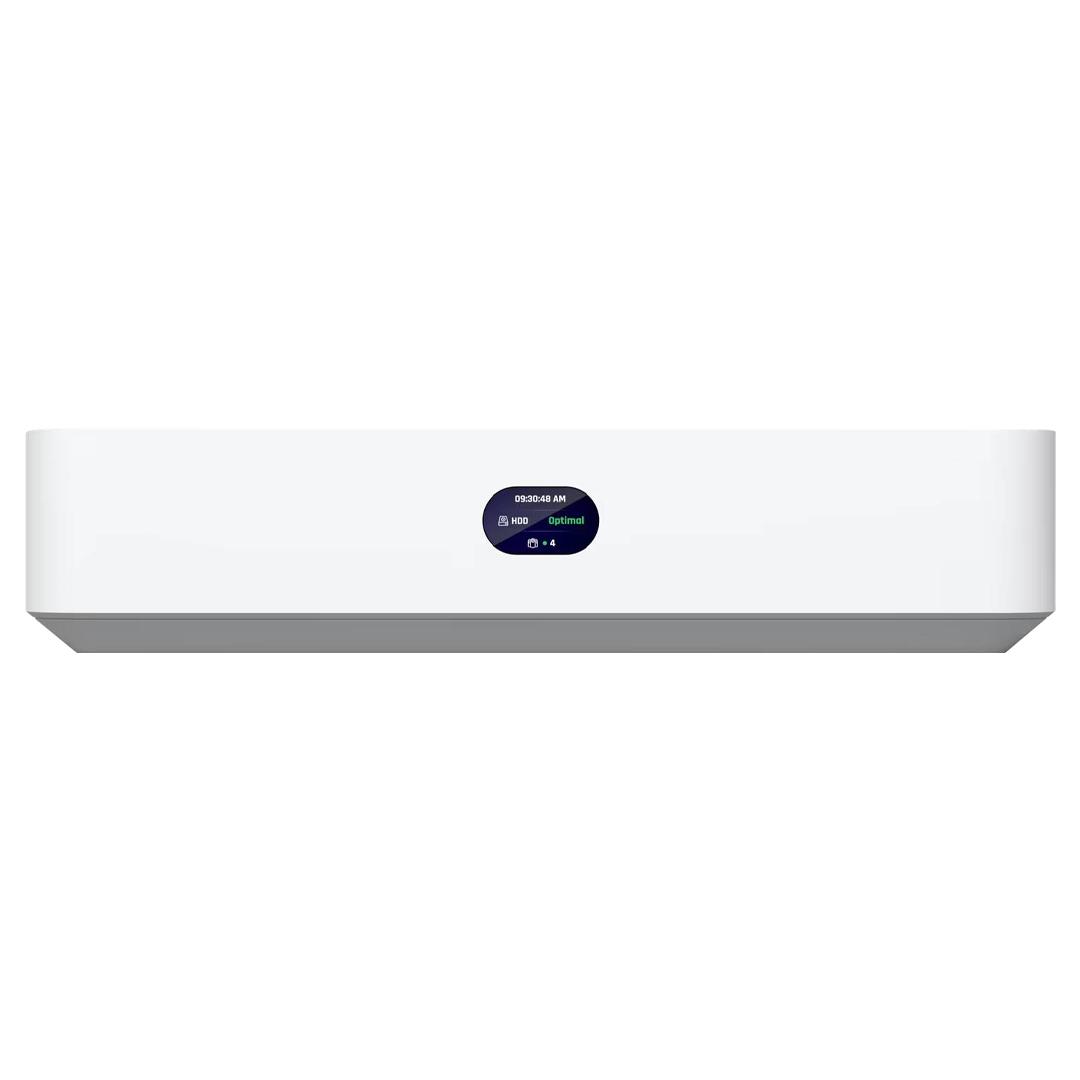

Front View

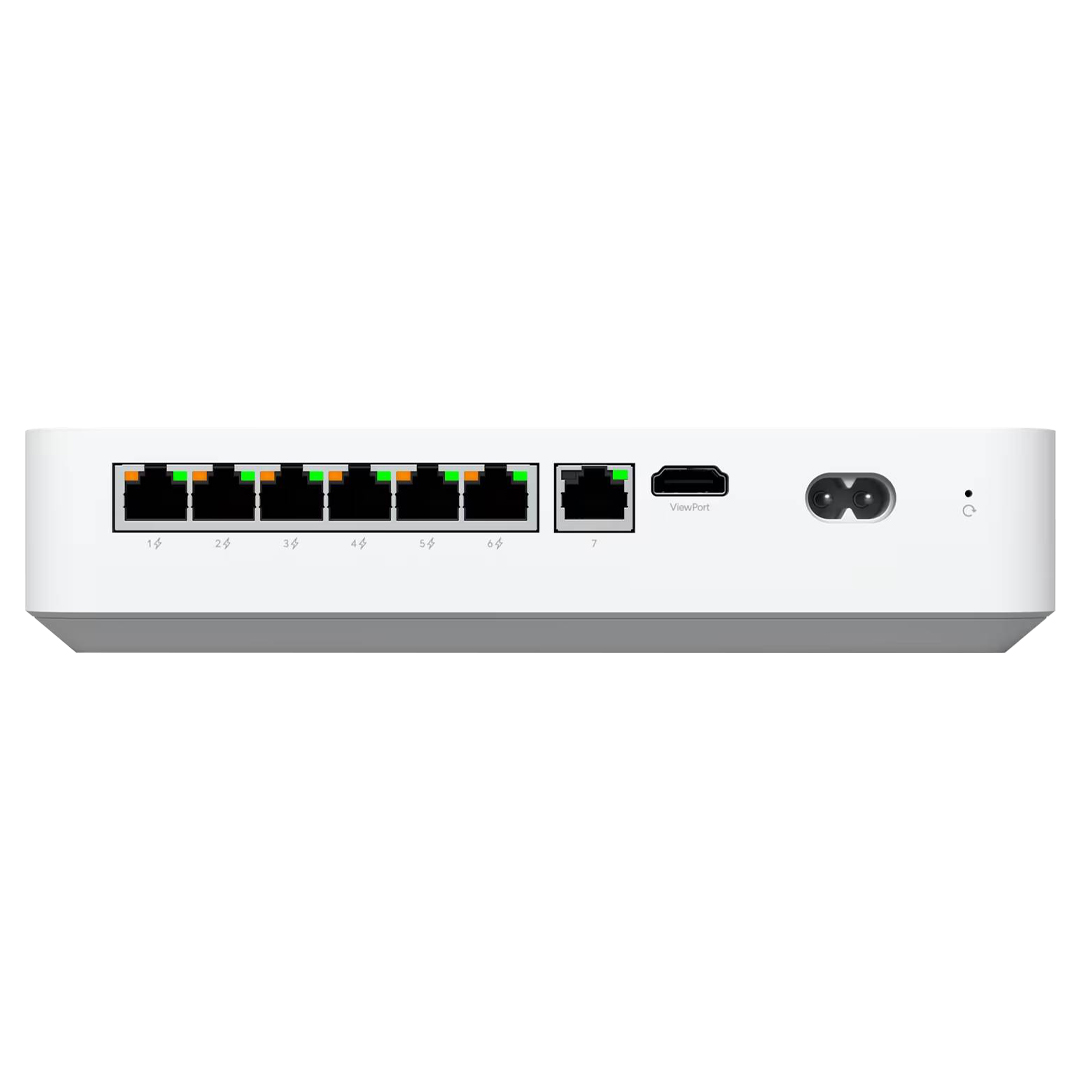

Back View
Dimensions
Notes
- Requires connection to a Gateway or Layer 3 switch.
Specifications
General Data
| Model Number |
UNVR-INSTANT |
| Dimensions |
220 x 220 x 47 mm (8.7 x 8.7 x 1.9") |
| UniFi Application Suite |
Protect: Yes
Access: Yes |
| Managed Cameras |
(15) HD
(8) 2K
(6) 4K |
| Storage Capacity |
(1) 3.5" drive bay |
| Data Protection |
Yes |
| Vantage Point |
Yes |
| Networking Interface |
(1) GbE RJ45 uplink port
(6) GbE PoE RJ45 downlink ports
(1) HDMI port (Viewport) |
| Form Factor |
Compact Desktop |
| Mounting |
Wall, Din rail mount (Included) |
| Door Access Support |
Yes |
Hardware
| Hard Drive Capacity |
(1) 3.5" HDD support |
| Max. Power Budget for Drives |
11W |
| Max. Power Consumption |
9W (Excluding PoE output & HDD power consumption) |
| Power Method |
Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz |
| Power Supply |
AC/DC, Internal, 60W |
| PoE Budget |
40W |
| Max. PoE Wattage per Port by PSE |
PoE: 15.4W |
| Voltage Range PoE Mode |
44–57V |
| Processor |
Quad-core ARM® Cortex®-A55 at 1.7 GHz |
| Memory |
4 GB |
| Management |
Ethernet
Bluetooth |
| Display |
1.14" screen |
| Weight |
1.04 kg (2.3 lb) |
| Enclosure Material |
Polycarbonate |
| Mount Material |
Polycarbonate |
| LEDs |
Ethernet: Yes
PoE: Yes |
| Ambient Operating Temperature |
0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
FCC, IC, CE, Electrical Safety |
Backed by a 1 year Ubiquiti warranty.
