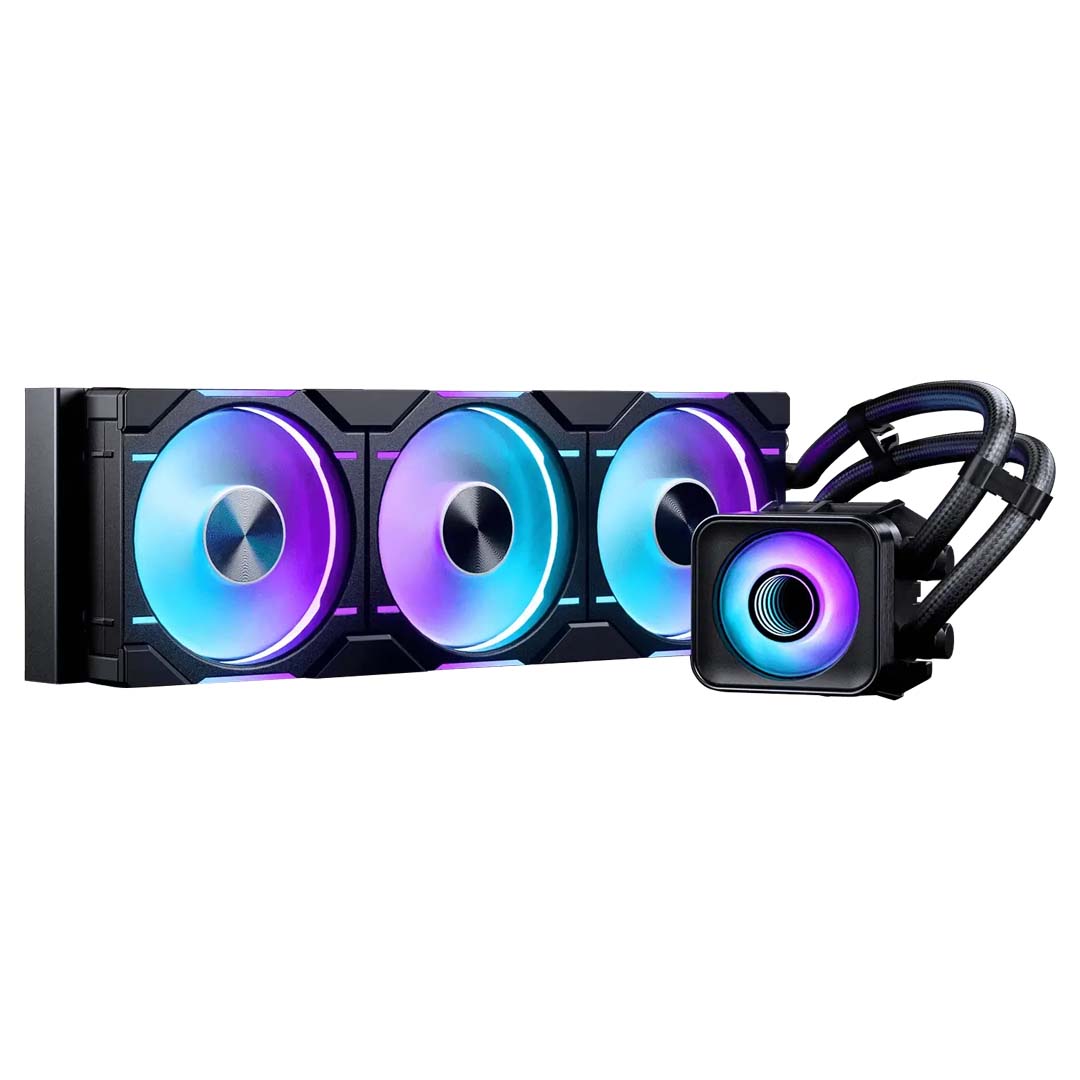

The Phanteks Glacier One 360D30 X2 features a 360mm radiator paired with three 30mm thick D30-120 D-RGB fans for high-performance cooling in modern PC builds. It includes an Evolv X2-design aluminium pump cover with an integrated fan to cool nearby VRMs and M.2 SSDs, and supports Intel LGA 115x/1200/1700/1851 and AMD AM4/AM5 sockets for broad compatibility. The AIO offers full-spectrum D-RGB lighting, daisy-chained fan and RGB control for cleaner cable management and a sleek, modern aesthetic.
Features
Glacier One 360D30 X2 High Performance Cooling
The Glacier One D30 X2 AIO Liquid CPU Cooler is a high-performance CPU cooling solution. Equipped with D30 fans that interconnect into a single 360 frame, simplifying cable management, while D-RGB lighting and fan control are streamlined through one cable. The large copper base and fin array efficiently cool high-end CPUs, even under heavy loads.
With a design that maximises clearance for motherboard and RAM components, it also features an aluminium cap cover with an integrated fan for extra cooling to surrounding VRMs and M.2 SSDs. This makes it perfect for users seeking optimal cooling and a clean, sleek setup.
High-Performance Cooling Solution
- Designed for gamers and PC enthusiasts.

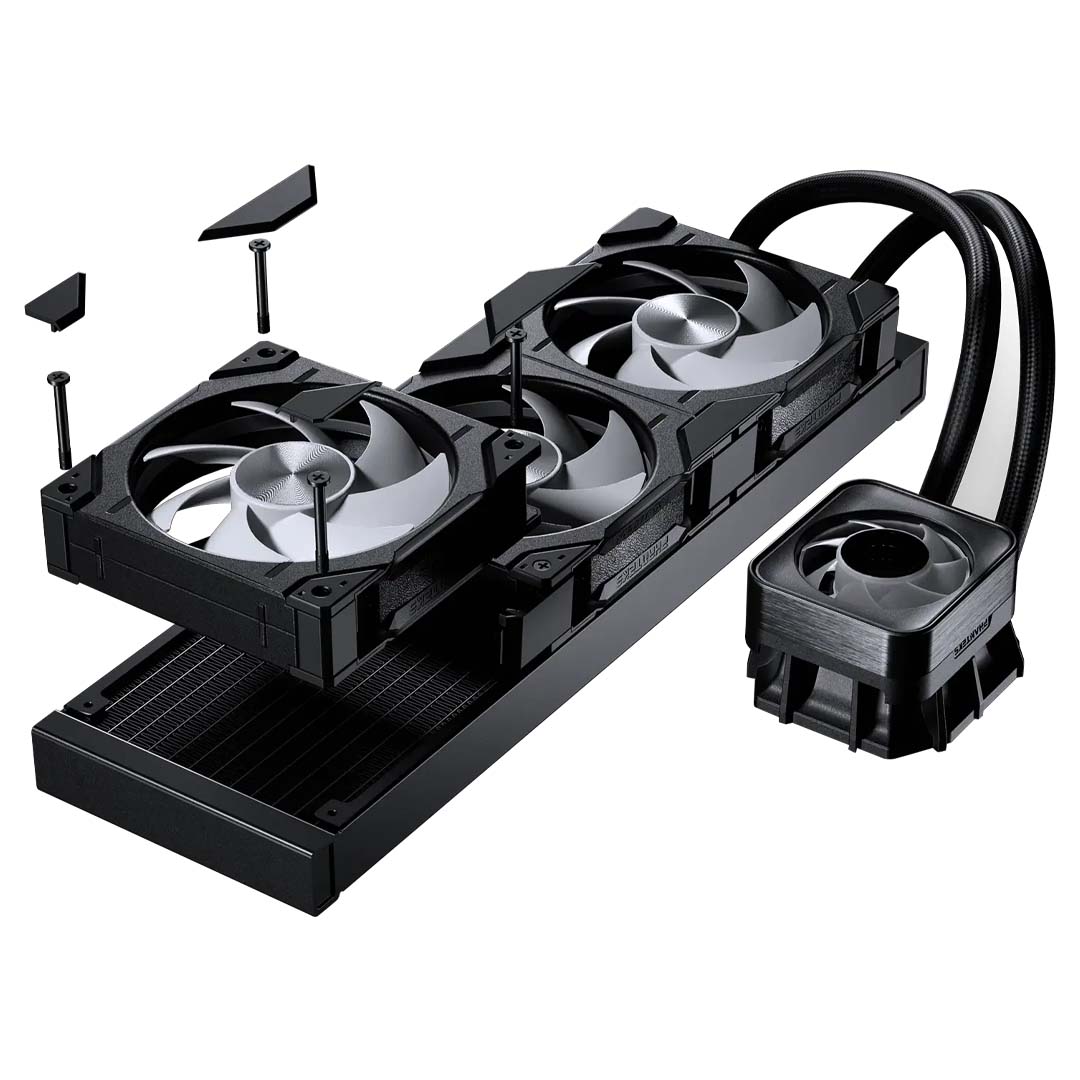

- Equipped with D30 fans that can interconnect into a single frame for easier cable management.
Cool the Mainboard Components

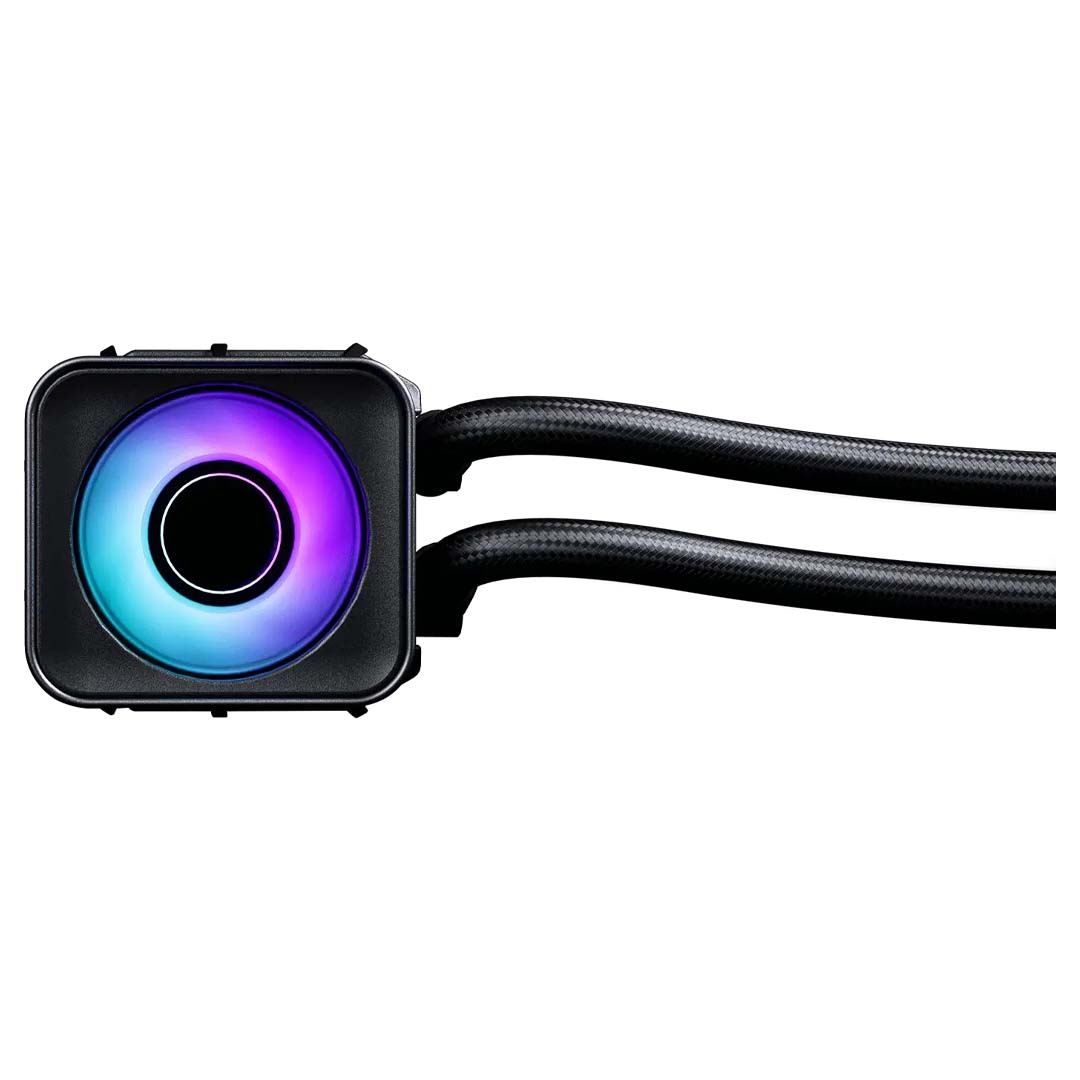

- Evolv X2-design brushed aluminium pump cover with integrated fan cools surrounding VRMs and M.2 SSD.
- Maximum clearance design for compatibility with mainboard and RAM components.
- Supports Intel LGA 1700, 1200, 115x, and AMD AM4, AM5 sockets.
Integrated Lighting
- The integrated D-RGB lighting is visible from all sides of the D30 frame.
- The AIO fan has an infinity mirror for a more immersive experience.
To operate the D-RGB lighting, it must be connected to a Phanteks controller or an A-RGB equipped mainboard, Phanteks strive to make it as easy to use and compatible as possible.
Specifications
General Data
| Model Number |
PH-GO360D30_DBK02 |
| Colour |
Black |
| Materials |
Aluminium | ABS plastic | Copper |
| Intel Compatibility |
LGA 115x | 1200 | 1700 | 1851 |
| AMD Compatibility |
AM4 | AM5 |
| Radiator Dimensions (L x W x H) |
397 x 120 x 27mm | 15.62 x 4.72 x 1.06 in |
| Pump Dimensions (L x W x H) |
85.5 x 80.9 x 65.9 mm | 3.36 x 3.18 x 2.59 in |
| Net Weight |
1.87 kg | 4.12 lbs |
| Warranty |
5 Years limited |
| Screws |
12x 36 mm 6-32 UNC Radiator screws
12x 6 mm 6-32 UNC Radiator screws |
| Scope of Delivery |
1x Glacier One 360D30 X2 (Pre-applied thermal paste)
3x D30-120 fans |
| Accessory Box |
3x Tube clip
1x Linq6 Mainboard adaptor cable (500 mm) |
| Mounting Hardware |
1x LGA 115X | 1200 | 1700 | 1851 Bracket
1x LGA 115X | 1200 | 1700 | 1851 Plastic backplate
4x LGA 1700 | 1851 Stand-off screws
4x LGA 115X | 1200 Stand-off screws
4x Thumb nuts
1x AM4 | AM5 Bracket
4x AM4 | AM5 Stand-off screws |
| D30 Fan Components |
2x Screw cover R
2x Screw cover L
4x Screw cover M
1x Corner clip connector
3x Corner clip
2x Bridge clip connector
2x Bridge clip |
Pump Details
| Motor Speed |
3100 RPM ± 10% (100% Duty Cycle) |
| Power |
12V | 0.28A – 0.45A | 3.36W – 3.96W |
| Pump DC Cable |
400 + 10 mm | 15.74 + 0.39 in |
| Sound Level |
20.0 dBA |
| Material |
Copper | ABS | Aluminium rim |
| D-RGB Connector |
Linq6 |
| D-RGB Cable Length |
470 + 105 ± 10 mm | 18.50 + 4.13 ± 0.39 in |

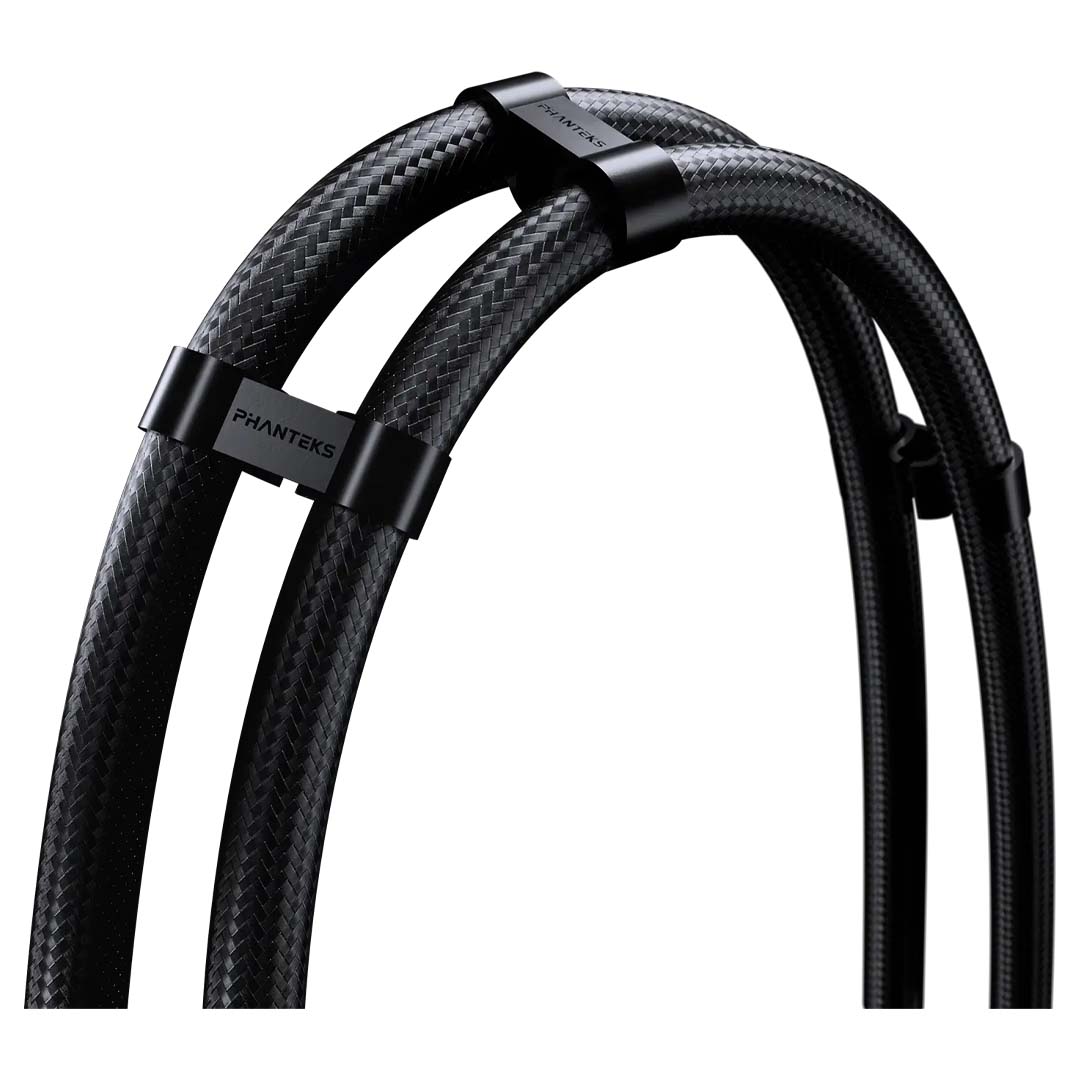

Tube Details
| Length |
400 mm | 15.74 in |
| Diameter |
12.5 mm ?| 0.49 in ? |
| Tube Clips |
3x |
| Material |
CIIR rubber| Braided sleeves |
Fans (D30-120)
| Fan Model |
D30-120 D-RGB |
| Dimensions (L x W x H) |
120 x 120 x 30 mm | 4.72 x 4.72 x 1.18 in |
| Speed |
250 – 2000 ± 10% RPM |
| Air Flow |
72.72 CFM |
| Fan Static Pressure |
3.01 mm H2O |
| Sound Level |
35.13 dBA |
| MTFB |
150.000 Hours |
| Connector |
4-Pin PWM |
| Cable Length |
700 mm | 27.55 in Daisy-chain |
Backed by a 5 year limited Phanteks warranty.
