The Ubiquiti PowerBeam 5AC Gen2 features a 25 dBi antenna and 5 GHz radio for long range point to point links over 15 km. It delivers speeds over 450 Mbps and is powered by 24V Passive PoE with a single Gigabit Ethernet port. The unit is weather resistant and designed for stable outdoor operation in a wide temperature range.
Features
airMAX PowerBeam 5AC ISO
5 GHz WiFi bridge with a 450+ Mbps real TCP/IP throughput rate and enhanced surge protection.
Build Features

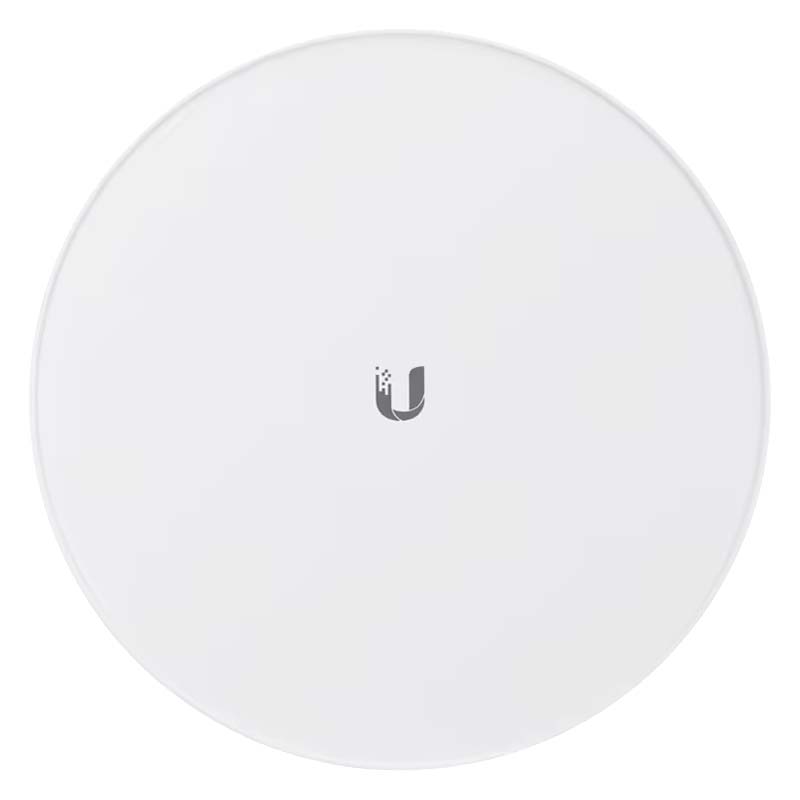

Front View
*Compatible with airMAX devices.

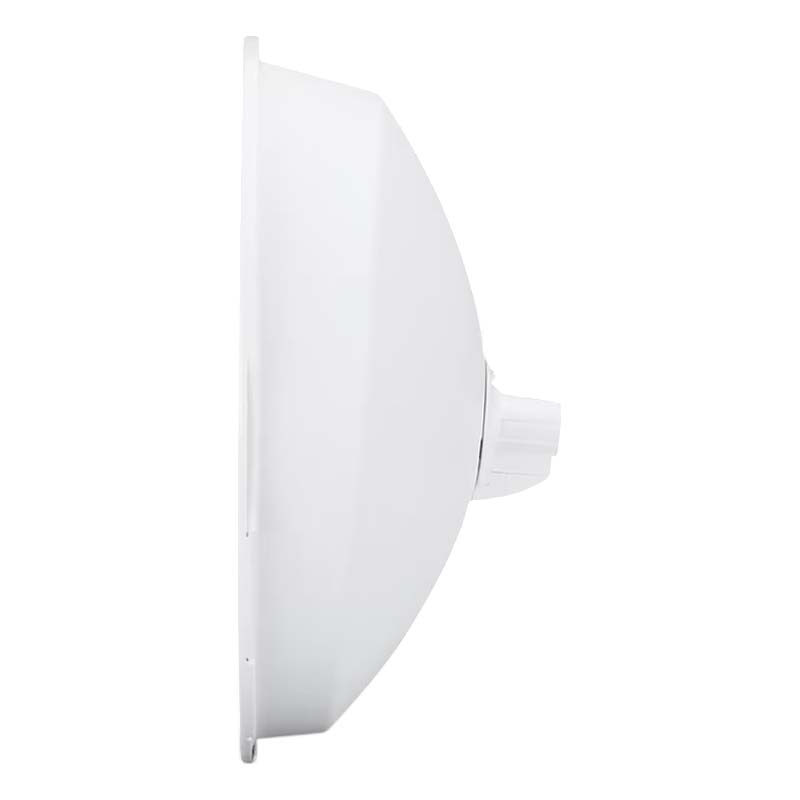

Side View
**24V DC, 0.5A GbE PoE adaptor included.
Specifications
General Data
| Model Number |
PBE-5AC-ISO-GEN2 |
| Dimensions |
420 x 420 x 230 mm (16.5 x 16.5 x 9.1") |
| Weight |
2.2 kg (4.9 lbs) |
| Enclosure Material |
UV-stabilised plastic, powder-coated SPCC |
| Mounting |
Pole Mount Kit (Included) |
| Wind Loading |
380 N at 200 km/h (85.4 lbf at 125 mph) |
| Wind Survivability |
200 km/h (125 mph) |
| Warranty |
1 Year |
Hardware
| Networking Interface |
(1) GbE RJ45 Port |
| Power Method |
Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply |
24V, 0.5A Gigabit PoE Adaptor (Included) |
| Supported Voltage Range |
20—27 V DC |
| Max. Power Consumption |
8.5W |
| ESD/EMP Protection |
Air/Contact: ± 24 kV |
| LEDs |
Power, Ethernet, (4) Signal Strength |
| Salt Fog Test |
IEC 68-2-11 (ASTM B117)
EQUIVALENT: MIL-STD-810 G Method 509.5 |
| Vibration Test |
IEC 68-2-6 |
| Temperature Shock Test |
IEC 68-2-14 |
| UV Test |
IEC 68-2-5 At 40° C (104° F)
EQUIVALENT: ETS 300 019-1-4 |
| Wind-Driven Rain Test |
ETS 300 019-1-4
EQUIVALENT: MIL-STD-810 G Method 506.5 |
| Ambient Operating Temperature |
-40 To 70° C (-40 To 158° F) |
| Ambient Operating Humidity |
5 - 95% Noncondensing |
| Certifications |
CE, FCC, IC, RoHS |
System
| Gain |
25 dBi |
| Channel Sizes |
PtP Mode: 10/20/30/40/50/60/80 MHz
PtMP Mode: 10/20/30/40 MHz |
| Operating Frequency (MHz) |
Worldwide: 5150 - 5875 MHz
USA
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHz |
Management Radio (MHz)
| Worldwide |
2412 - 2472 MHz |
| USA |
2412 - 2462 MHz |
Backed by a 1 year Ubiquiti warranty.
