The Ubiquiti U7 Outdoor Access Point features WiFi 7 with speeds up to 4.3 Gbps on 5 GHz and 688 Mbps on 2.4 GHz. It has a 2.5 Gbps PoE port, supports over 200 devices and covers up to 465 square metres in open areas. The weather resistant design includes internal and external antennas for flexible mounting on walls or poles.
Features
Deployment
Build Features

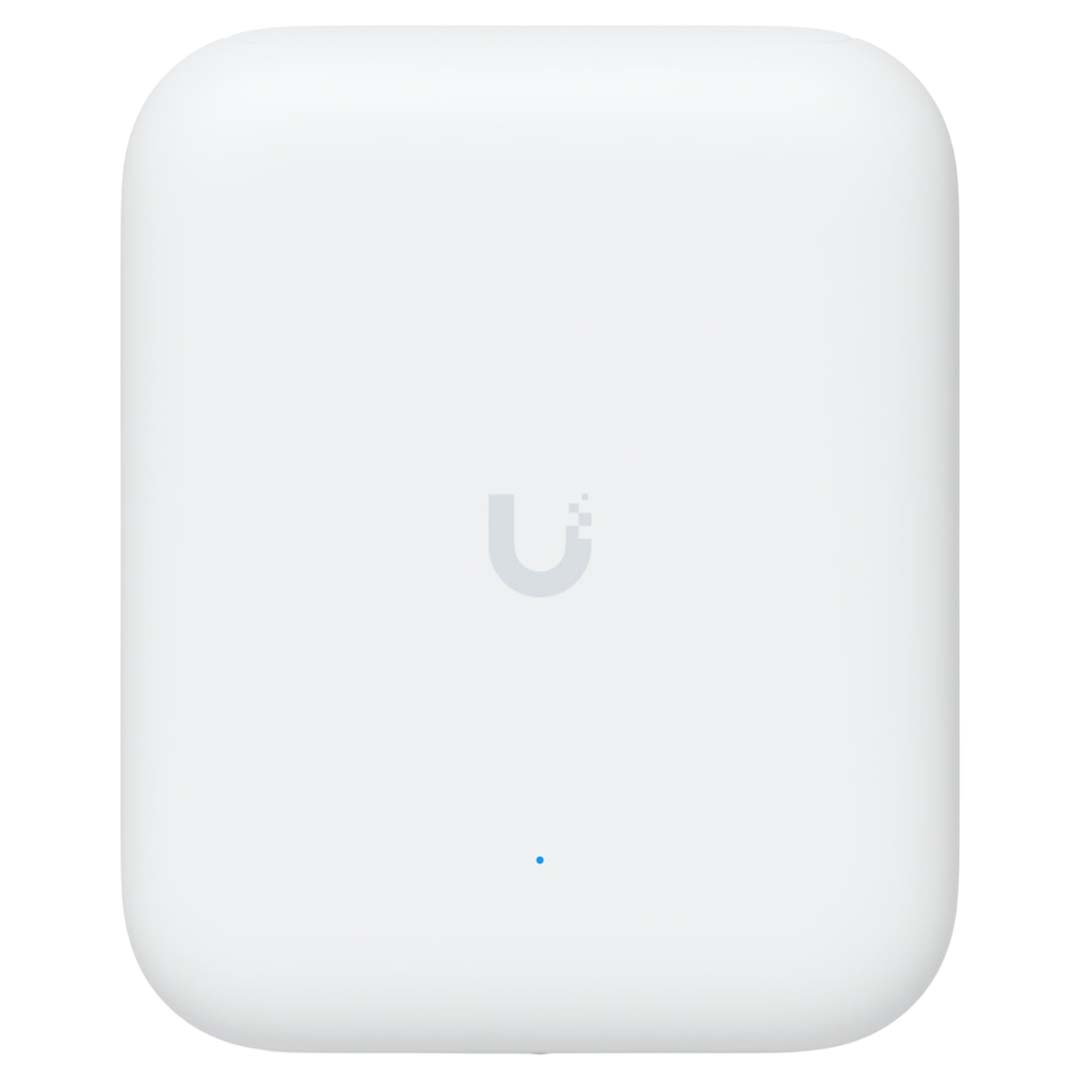

Front View

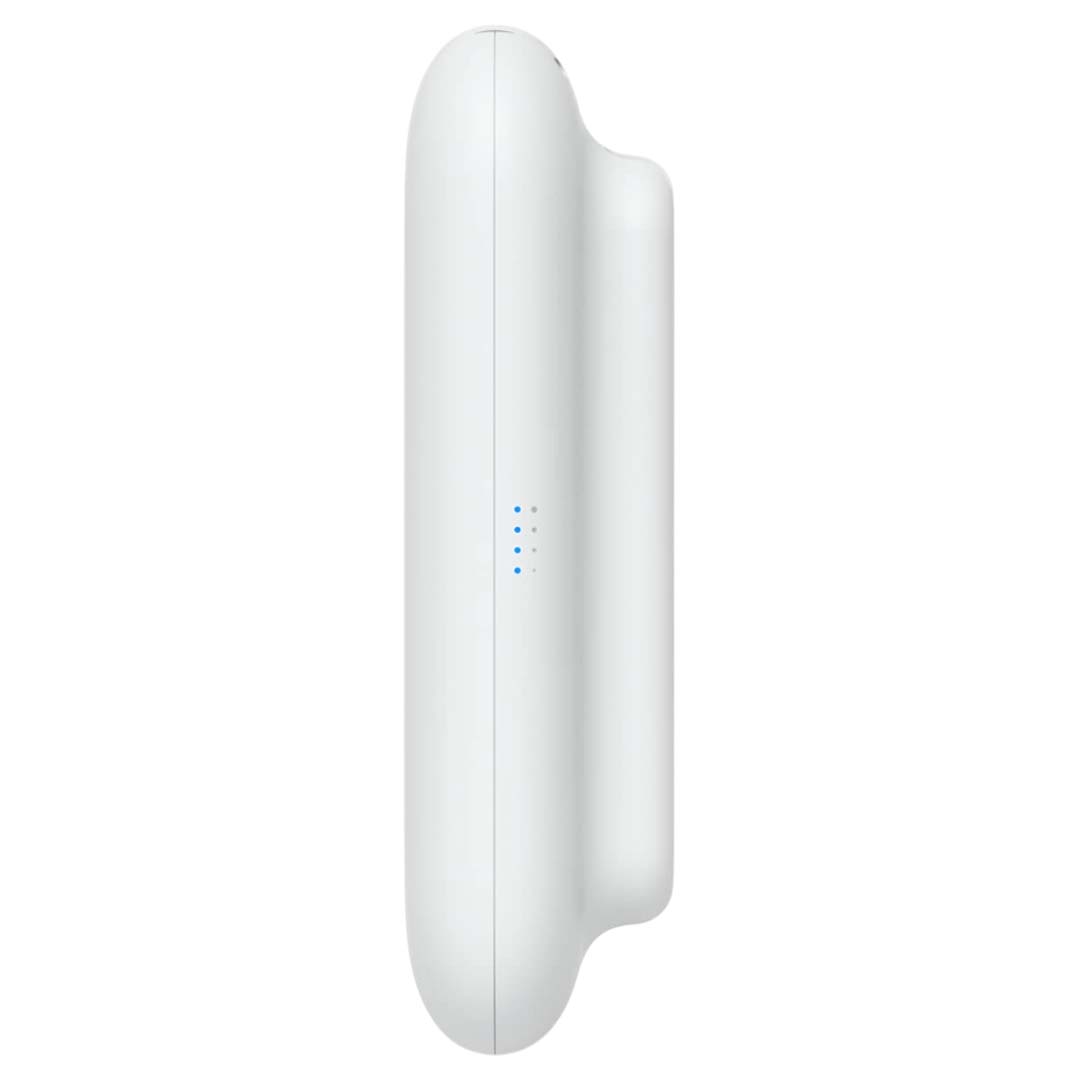

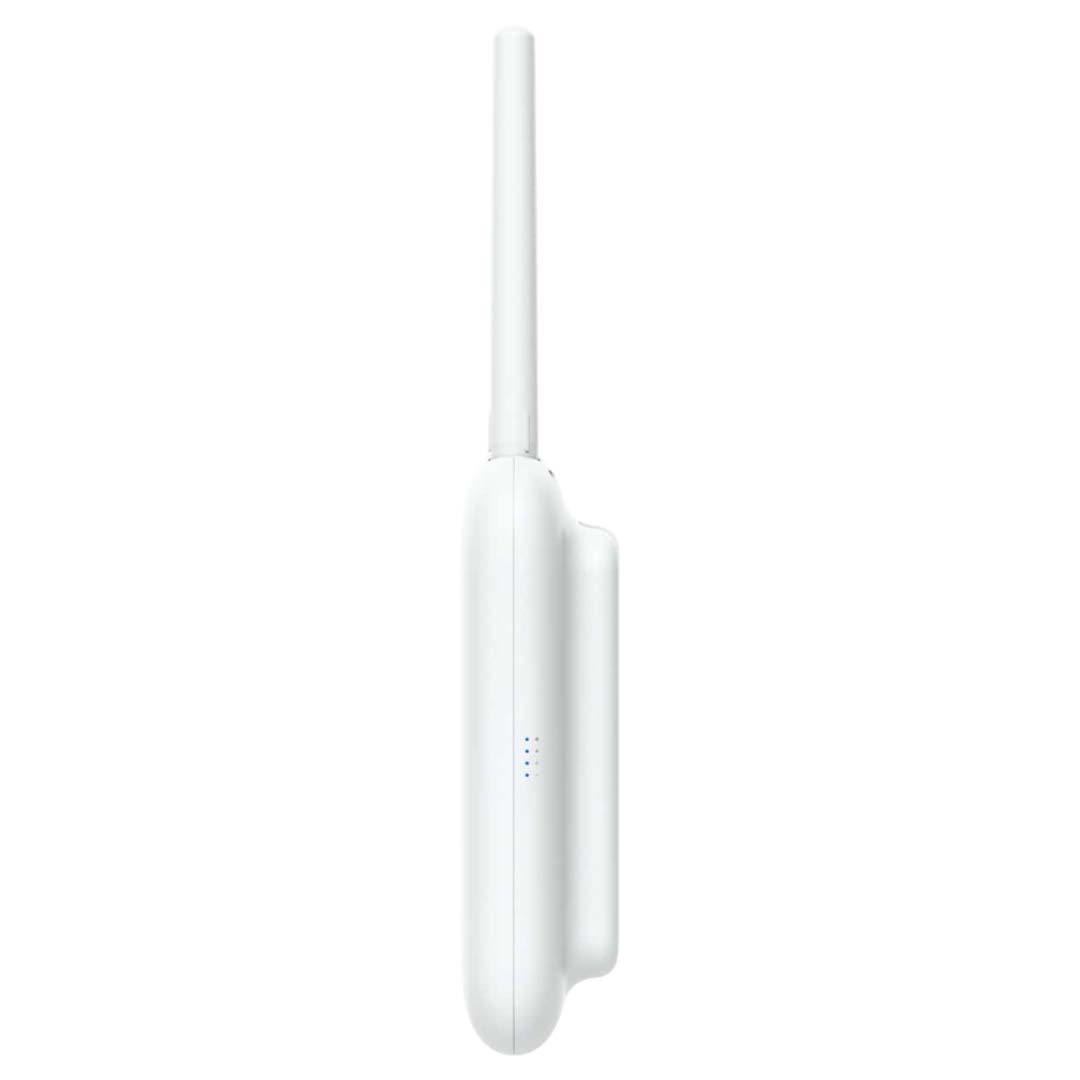

Side View

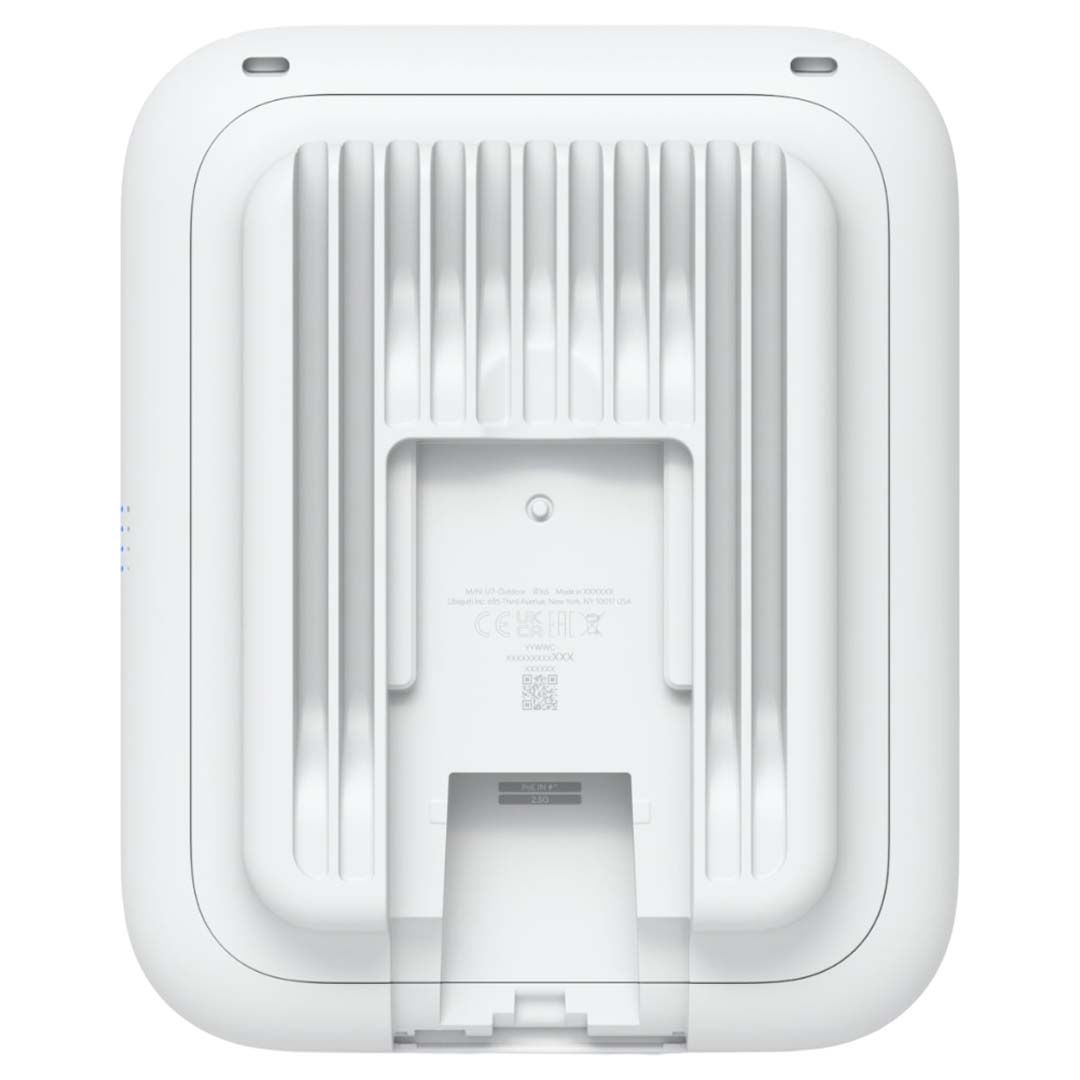

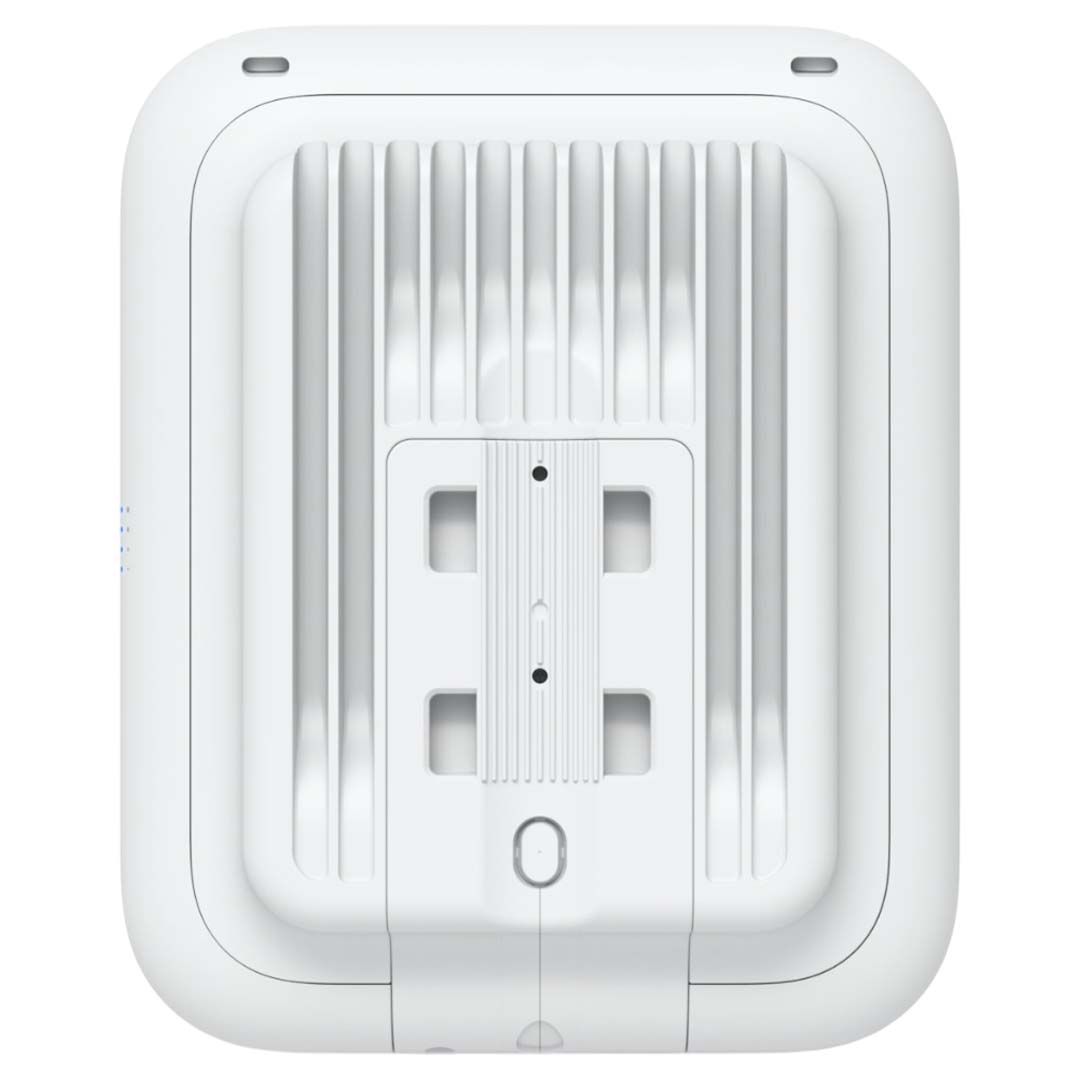

Back View

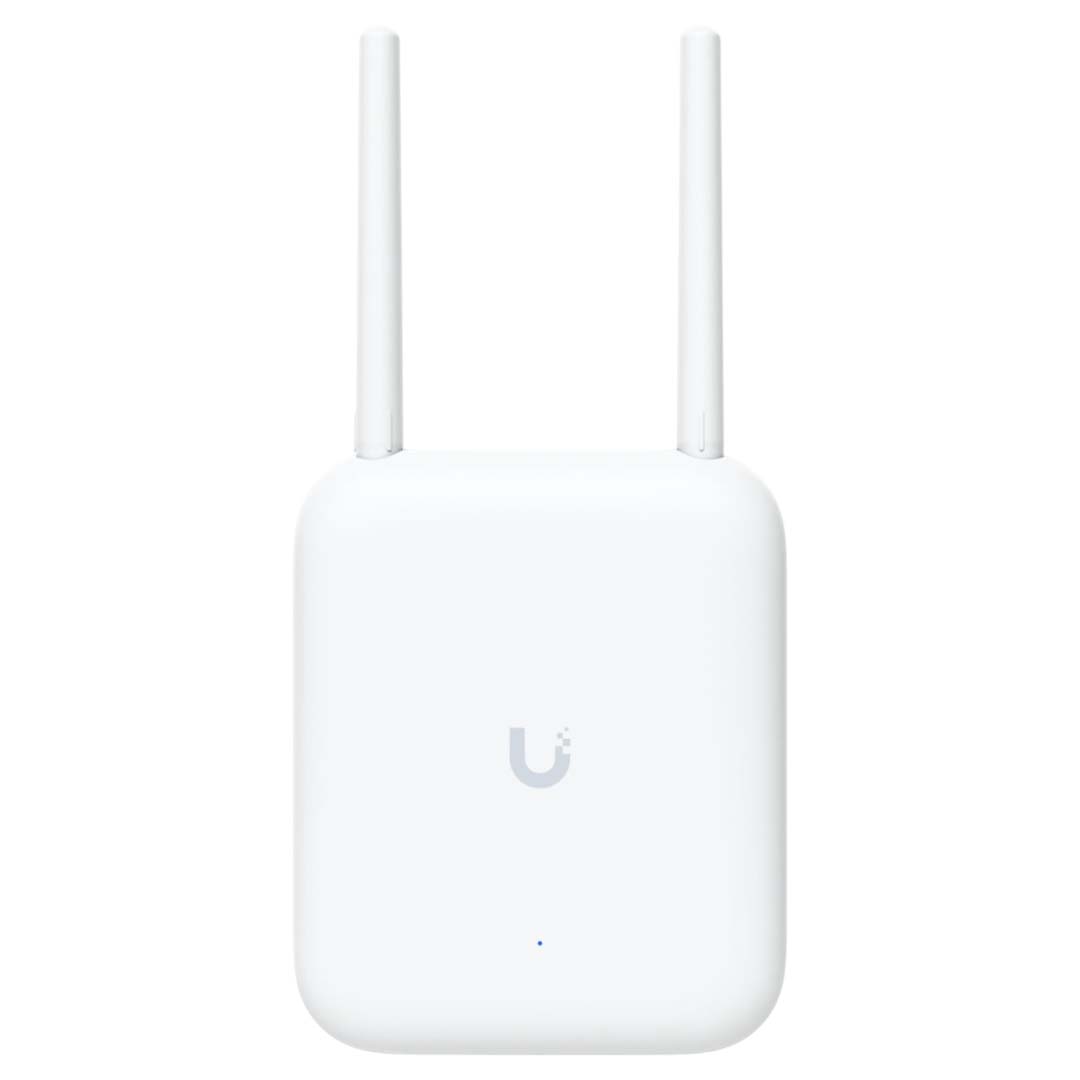

*Includes external omni antennas.
Dimensions
Specifications
General Data
| Model Number |
U7-OUTDDOR |
| Dimensions |
170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1") |
| WiFi Standard |
WiFi 7 |
| Spatial Streams |
4 |
| Coverage Area |
465 m² (5,000 ft²) |
| Max. Client Count |
250+ |
| Uplink |
2.5 GbE |
| Mounting |

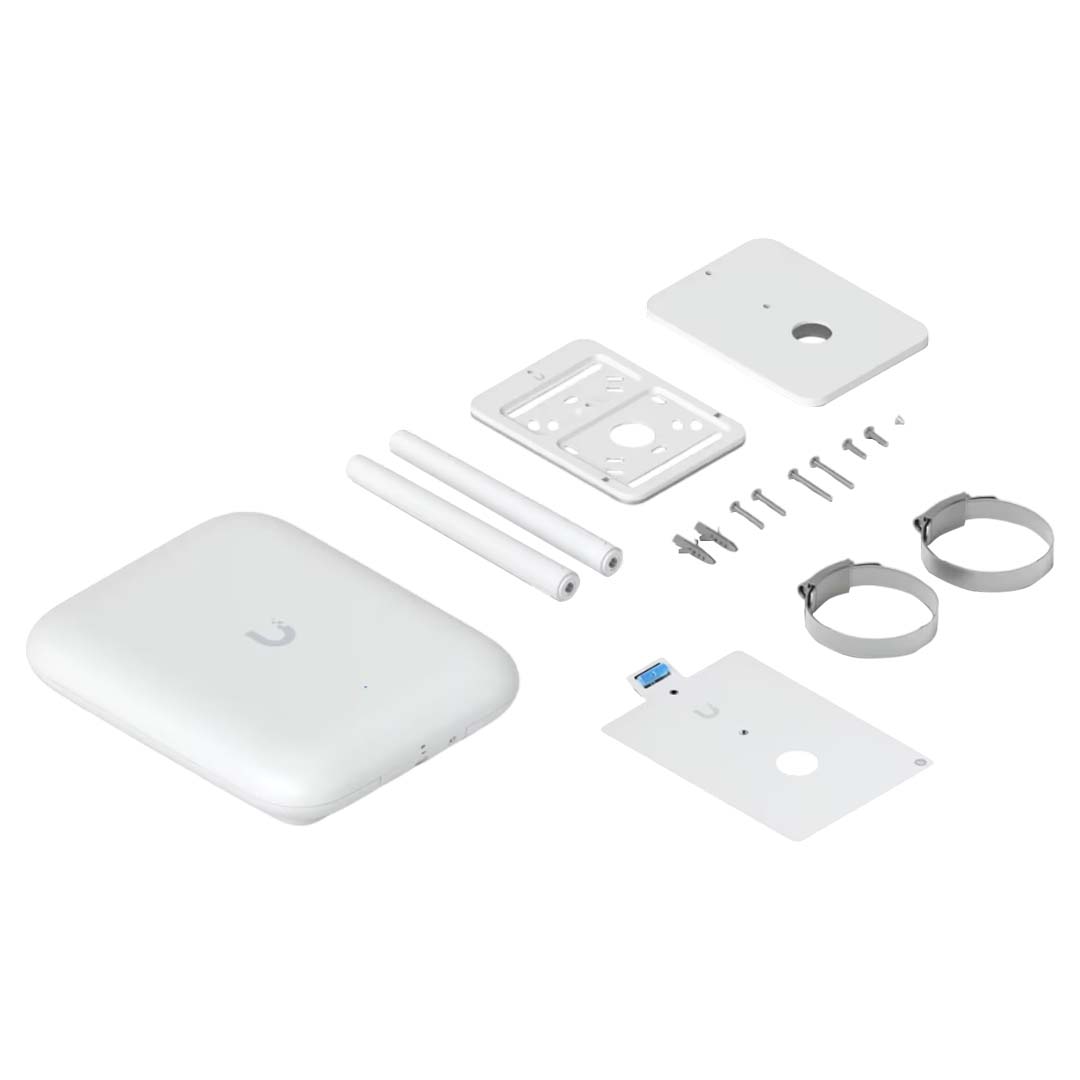

Wall, Pole (Mounts Included) |
| Weatherproofing |
IPX6 |
| Power Method |
PoE+ |
| Warranty |
1 Year |
Performance
| MIMO |
5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate |
5 GHz: 4.3 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40) |
| Antenna Gain |
5 GHz
Directional internal: 12.5 dBi, 45° x 45°
External omni: 4 dBi, 360° x 30°
2.4 GHz
Directional internal: 8 dBi, 90° x 90°
External omni: 3 dBi, 360° x 30° |
| Max. TX Power |
5 GHz: 26 dBm
2.4 GHz: 23 dBm |
| Max. BSSIDs |
8 per Radio |
| Supported Data Rates |
802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
Features
| Wireless Meshing |
Yes |
| Band Steering |
Yes |
| 802.11v BSS Transition Management |
Yes |
| 802.11r Fast Roaming |
Yes |
| 802.11k Radio Resource Management (RRM) |
Yes |
| Advanced Radio Management |
Yes |
| Passpoint (Hotspot 2.0) |
Yes |
| Captive Hotspot Portal |
Custom Branding Landing Page: Yes
Voucher Authentication: Yes
Payment-Based Authentication: Yes
External Portal Server Support: Yes
Password Authentication: Yes
Guest Network Isolation: Yes |
| Private Pre-Shared Key (PPSK) |
Yes |
| WiFi Speed Limiting |
Yes |
| Client Device Isolation |
Yes |
| WiFi Schedules |
Yes |
| RADIUS Over TLS (RadSec) |
Yes |
| Dynamic RADIUS-assigned VLAN |
Yes |
Hardware
| Max. Power Consumption |
19 W |
| Supported Voltage Range |
42.5—57 V DC |
| Networking Interface |
(1) 1/2.5 GbE RJ45 Port |
| Weight |
1.2 kg (2.6 lb) |
| Wind Loading |
74.6 N at 200 km/h (16.8 lbf at 125 mph) |
| Pole Mount Diameter |
1–2.36" (25–60 mm) |
| Antennas |
(1) Directional Internal Antenna
(2) External Omni Antennas
(2) RP-SMA Connectors for External Antenna |
| Antenna Beamwidth |
5 GHz: 45°
2.4 GHz: 90° |
| Management |
Ethernet |
| Enclosure Material |
UV-Stabilised Polycarbonate, Aluminium Alloy |
| Mount Material |
Polycarbonate, SGCC Steel |
| LEDs |
System
(1) Power: White/Blue
(1) System: White/Blue
(4) Mesh Signal: Blue |
| Channel Bandwidth |
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz) |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, Anatel |
| Operating Frequency |
US/CA:
2400 - 2472 MHz
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHz
Worldwide:
2400 - 2483.5 MHz
5150 - 5725 MHz |
| Ambient Operating Temperature |
-30 To 60° C (-22 To 140° F) |
| Ambient Operating Humidity |
5 To 95% Noncondensing |
Software
| Application Requirements |
UniFi Network Version 8.2.93 And Later |
Backed by a 1 year Ubiquiti warranty.
