Ubiquiti UniFi U6 Enterprise In Wall WiFi 6E Access Point
U6-ENTERPRISE-IW | UbiquitiThis product has been discontinued
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
The Ubiquiti UniFi U6 Enterprise In Wall WiFi 6E Access Point features tri band WiFi across 2.4, 5 and 6 GHz with speeds up to 10.2 Gbps. It includes a 2.5 Gbps PoE port and a built in 4 port Gigabit switch with one PoE output. The access point is wall mounted, covers around 115 square metres and supports over 600 connected devices.
Features
Deployment
Build Features

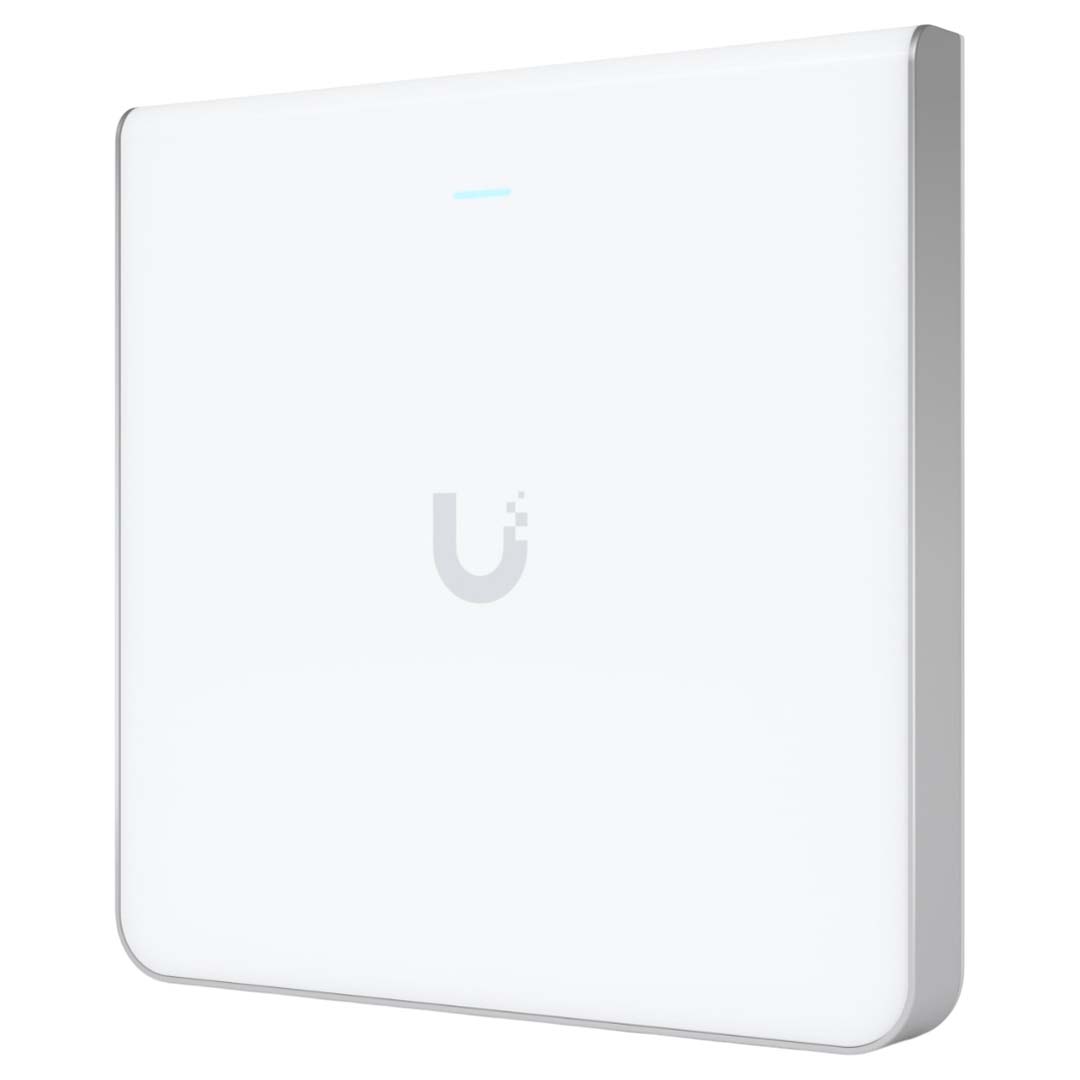

Front View

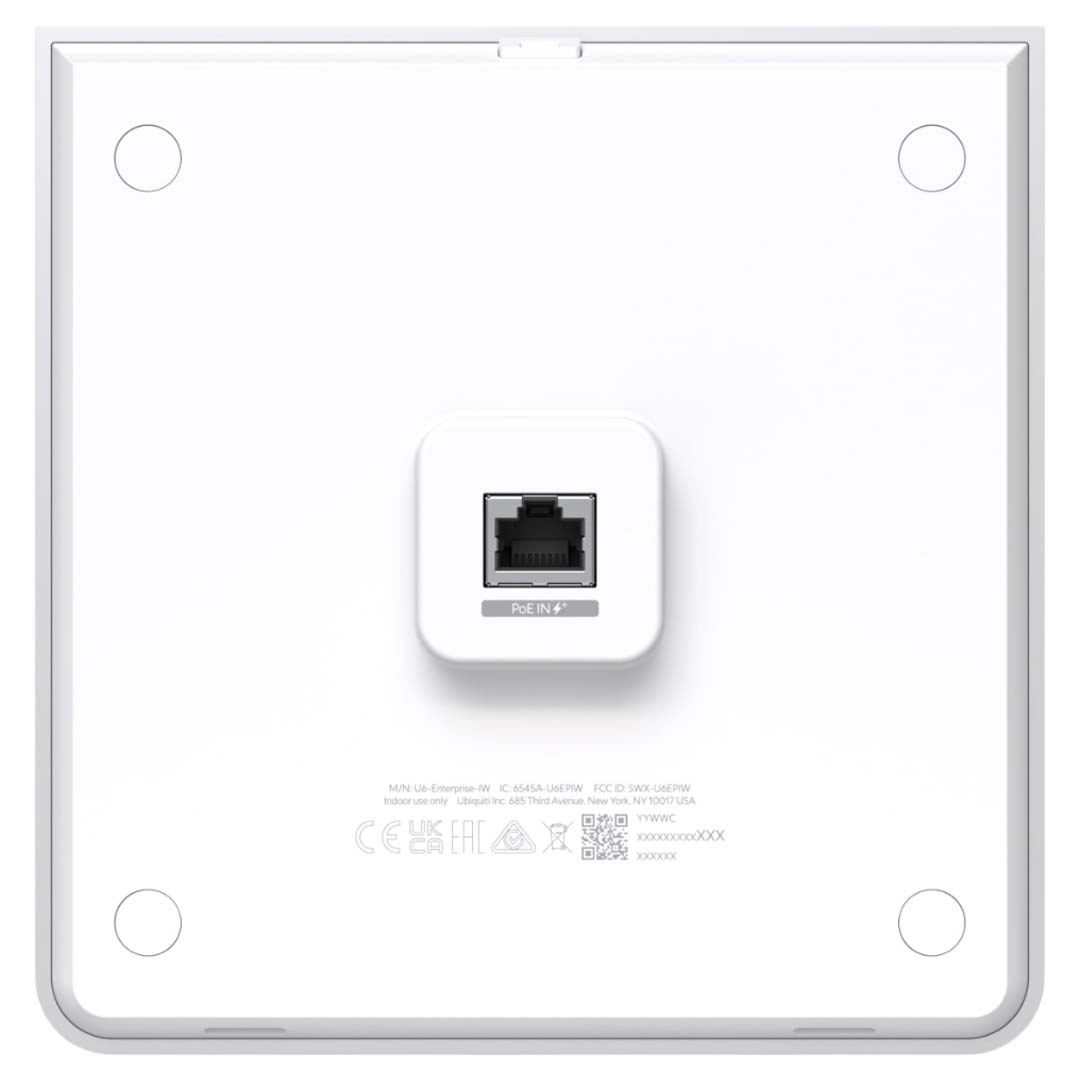

Back View

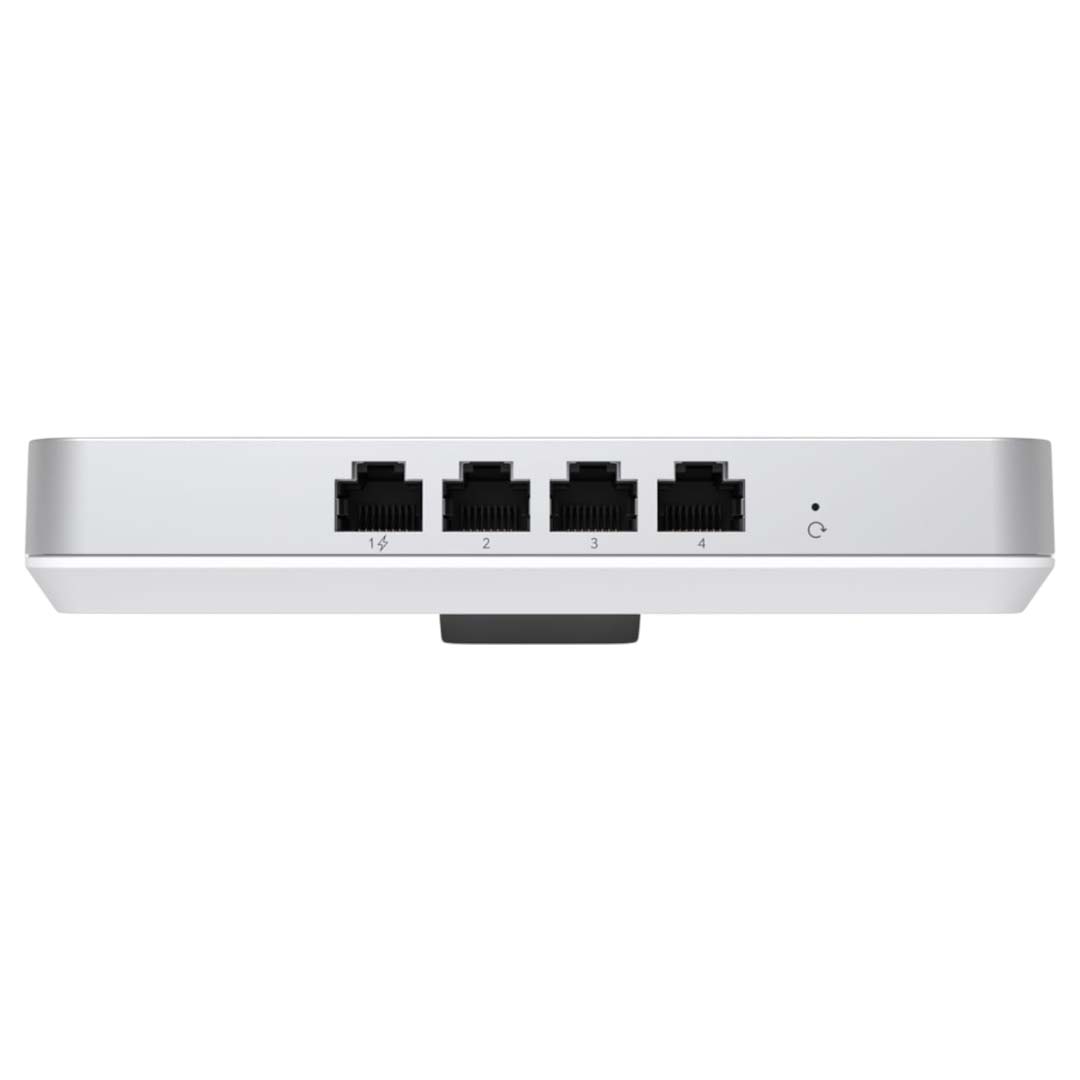

Bottom View
*PoE+ input required for single-port PoE output.
Dimensions
Specifications
General Data
| Model Number | U6-ENTERPRISE-IW |
| Dimensions | 159.7 x 156.7 x 33.8 mm (6.3 x 6.2 x 1.3") |
| WiFi Standard | WiFi 6E |
| Spatial Streams | 10 |
| Coverage Area | 115 m² (1,250 ft²) |
| Max. Client Count | 600+ |
| Uplink | 2.5 GbE |
| Mounting | Wall (Mount Included) |
| Power Method | PoE+ PoE++ (Required for PoE Output) |
| Warranty | 1 Year |
Performance
| MIMO | 6 GHz: 4 x 4 (DL/UL MU-MIMO) 5 GHz: 4 x 4 (DL/UL MU-MIMO) 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate | 6 GHz: 4.8 Gbps (BW160) 5 GHz: 4.8 Gbps (BW160) 2.4 GHz: 573.5 Mbps (BW40) |
| Antenna Gain | 6 GHz: 5.8 dBi 5 GHz: 5.8 dBi 2.4 GHz: 4 dBi |
| Max. TX Power | 6 GHz: 26 dBm 5 GHz: 26 dBm 2.4 GHz: 22 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | 802.11ax (WiFi 6/6E): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) 802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11n: 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
Features
| Wireless Meshing | Yes |
| Band Steering | Yes |
| 802.11v BSS Transition Management | Yes |
| 802.11r Fast Roaming | Yes |
| 802.11k Radio Resource Management (RRM) | Yes |
| Advanced Radio Management | Yes |
| Passpoint (Hotspot 2.0) | Yes |
| Captive Hotspot Portal | Custom Branding Landing Page: Yes Voucher Authentication: Yes Payment-Based Authentication: Yes External Portal Server Support: Yes Password Authentication: Yes Guest Network Isolation: Yes |
| Private Pre-Shared Key (PPSK) | Yes |
| WiFi Speed Limiting | Yes |
| Client Device Isolation | Yes |
| WiFi Schedules | Yes |
| RADIUS Over TLS (RadSec) | Yes |
| Dynamic RADIUS-assigned VLAN | Yes |
Hardware
| Max. Power Consumption | 21 W (Excluding PoE Output) |
| Supported Voltage Range | 44—57 V DC |
| Networking Interface | (1) Data In: 1/2.5 GbE RJ45 Port (4) Data Out: GbE RJ45 Ports |
| Weight | 884 g (1.9 lb) |
| Management | Ethernet Bluetooth |
| Built-In Switch | (4) GbE Ports With (1) PoE Output |
| Enclosure Material | Polycarbonate, Aluminium |
| Mount Material | Aluminium |
| LEDs | System White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz) |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel |
| Operating Frequency | US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 to U-NII-8: 5925 - 7125 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5725 MHz 5925 - 7125 MHz |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% Noncondensing |
Software
| Application Requirements | UniFi Network Version 6.0.45 And Later |
Backed by a 1 year Ubiquiti warranty.
