The Ubiquiti UniFi Pro XG 48-Port 10GbE PoE Switch is a professional-grade Layer 3 managed switch designed for high-performance networking environments. It features 32 10GbE RJ45 ports, 16 2.5GbE RJ45 PoE++ ports, and 4 25G SFP28 uplink ports, providing a total PoE budget of 1080W. The switch offers a non-blocking switching throughput of 460 Gbps and a forwarding rate of 684 million packets per second. It is equipped with a 1.3-inch touchscreen for management and supports advanced features such as VLANs, QoS and inter-VLAN routing.
Features
Deployment
Build Features

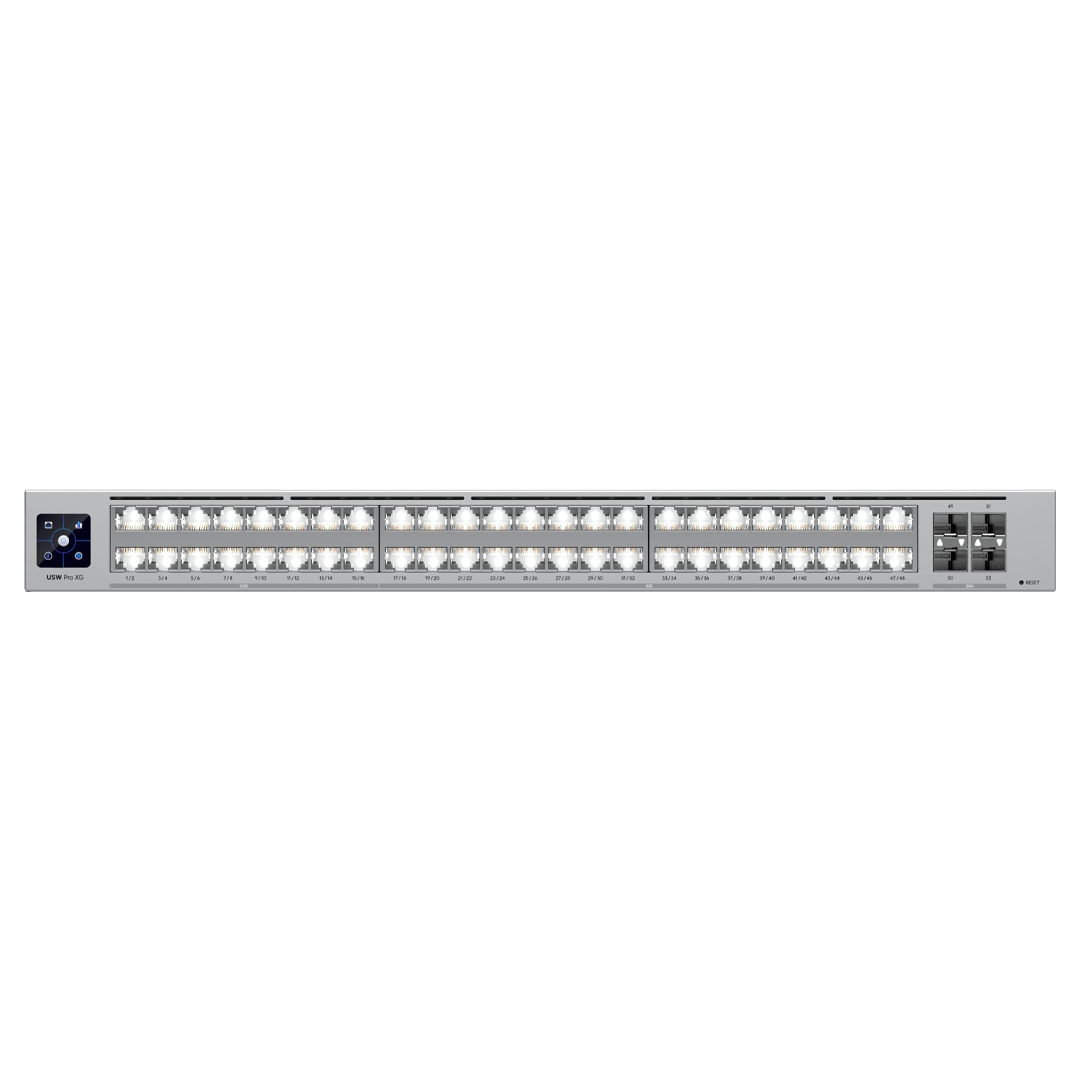

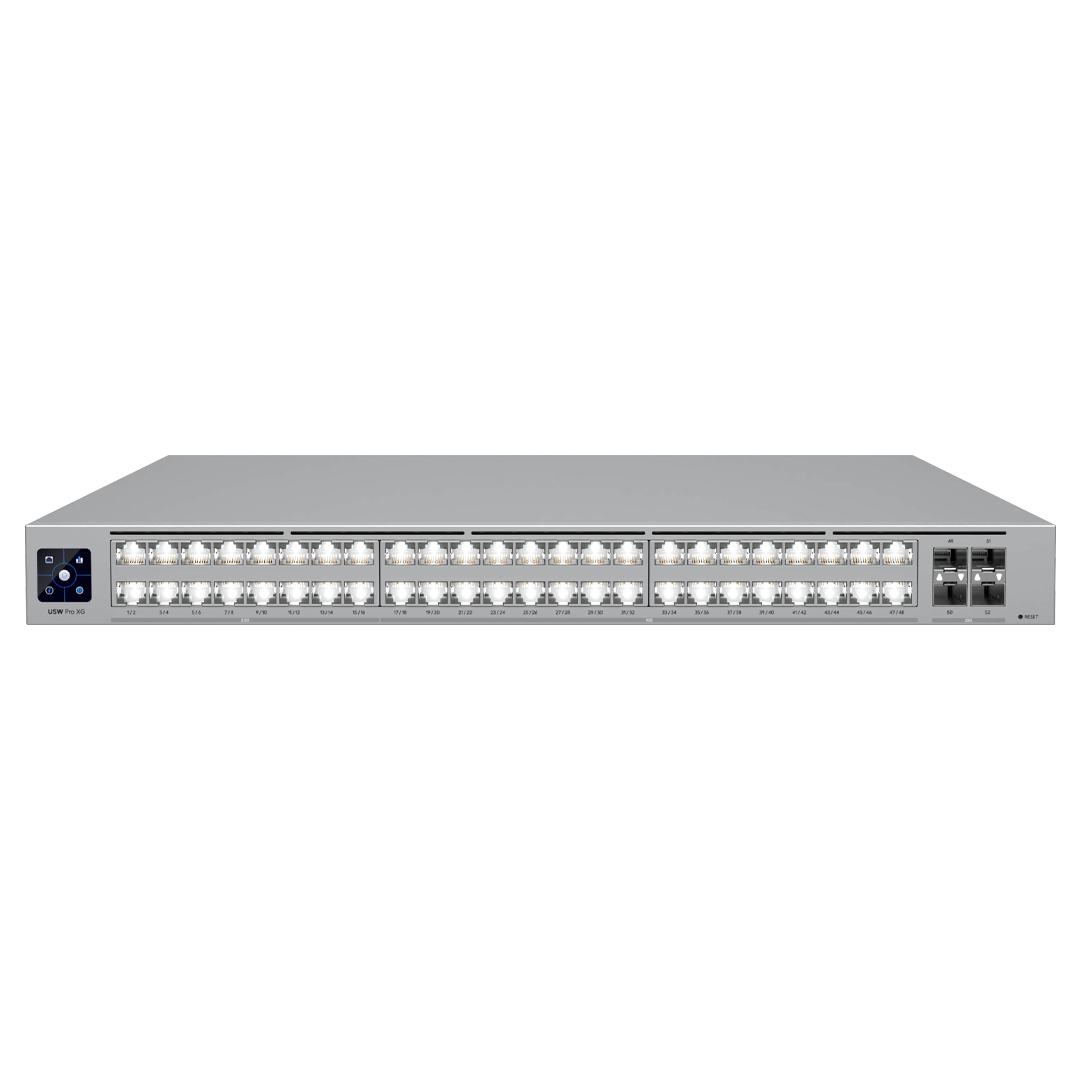

Front View

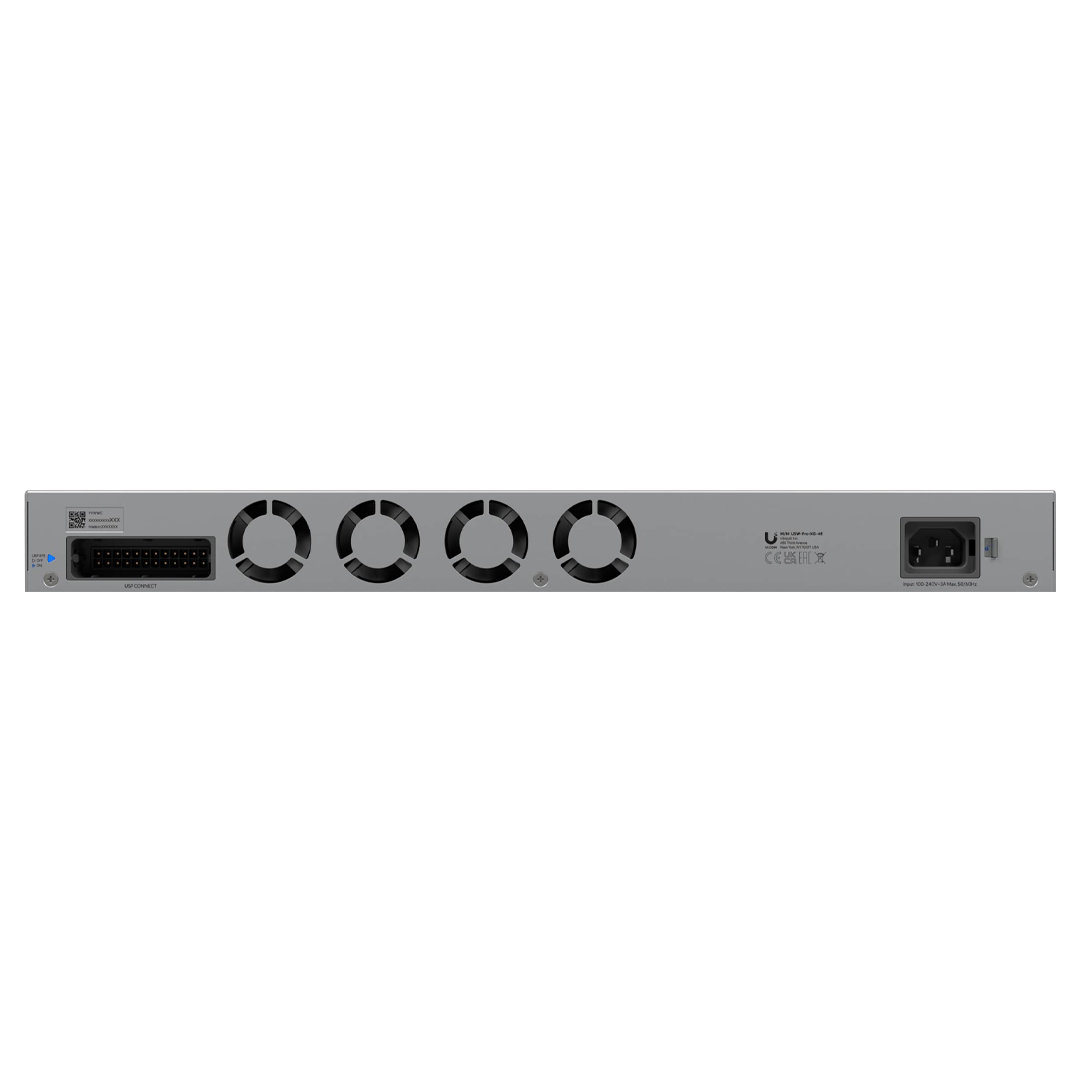

Back View
*Require UniFi Power Backup.

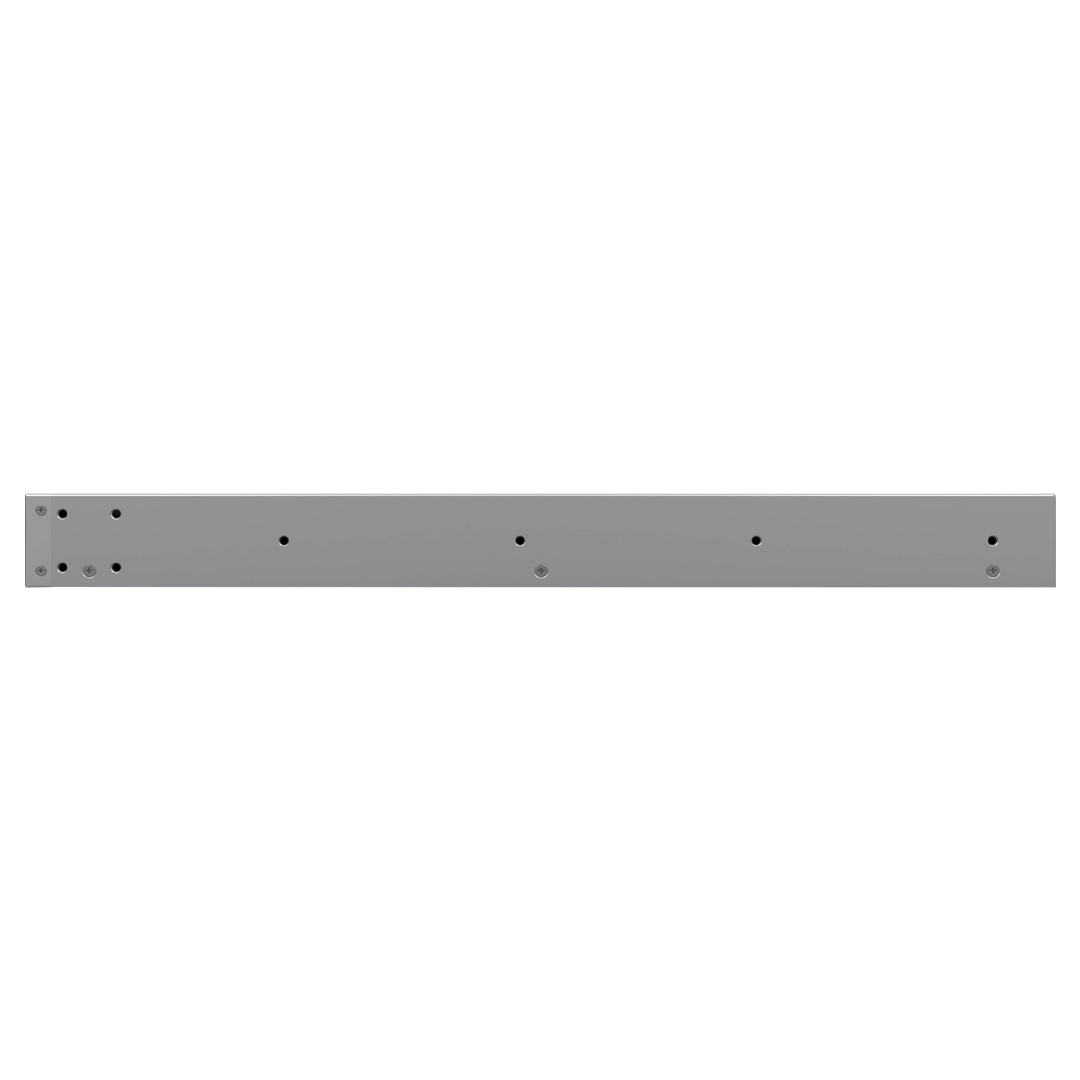

Side View
**Pair with UniFi Etherlighting Patch Cables for optimal brightness.
Specifications
General Data
| Model Number |
USW-PRO-XG-48 |
| Dimensions |
442 x 480 x 44 mm (17.4 x 18.9 x 1.7") |
| Port Layout |
2.5 GbE RJ45
16
(2.5G/1G/100M/10M)
10 GbE RJ45
32
(10G/5G/2.5G/1G/100M/10M)
25G SFP28
4
(25G/10G/1G) |
| Redundancy |
DC Power Backup |
| Layer 3 |
Yes |
| Form Factor |
Rack Mount (1U) |
| Etherlighting™ |
Yes |
| Warranty |
1 Year |
Performance
| Switching Capacity |
920 Gbps |
| Total Non-Blocking Throughput |
460 Gbps |
| Forwarding Rate |
684 Mpps |
| Supported VLANs |
1,000 |
| MAC Address Table Size |
128,000 |
| L3 Table Size |
ARP Entries: 128,000
IPv4 Routes: 256,000 |
| Packet Buffer Size |
8 MB |
| Access Lists |
IPv4: 256
MAC: 256 |
Layer 3 Features
| DHCP Server (Local Networks) |
Yes |
| DHCP Relay |
Yes |
| Inter-VLAN Routing (Local Networks) |
Yes |
| Static Routing (Local Networks) |
Yes |
Layer 2 Features
| LACP Port Aggregation |
Yes |
| STP & RSTP |
Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) |
Yes |
| IGMP Snooping |
Yes |
| 802.1X Control |
Yes |
| MAC-Based ACLs & Device Isolation |
Yes |
| DHCP Snooping & Guarding |
Yes |
| Egress Rate Limit |
Yes |
| Flow Control |
Yes |
| Storm Control |
Yes |
| Multicast & Broadcast Rate Limiting |
Yes |
| MAC Address Blocking |
Yes |
| IP-Based ACLs & Network Isolation |
Yes |
| MAC-Based Port Restriction |
Yes |
| Port Isolation |
Yes |
| Port Mirroring |
Yes |
| Jumbo Frames |
Yes |
| LLDP-MED |
Yes |
| Voice VLAN |
Yes |
| Loop Protection |
Yes |
Hardware
| Max. Power Consumption |
250 W |
| Power Method |
(1) Universal Input, 100—240 V AC, 50/60 Hz
(1) USP RPS DC Input |
| Power Input Method |
AC Input |
| Power Supply |
AC/DC, Internal, 300 W |
| Supported Voltage Range |
100—240 V AC |
| Management |
Ethernet
AR |
| Weight |
Without Mounting Brackets: 7.5 kg (16.5 lb)
With Mounting Brackets: 7.6 kg (16.8 lb) |
| Enclosure Material |
SGCC Steel |
| Mount Material |
SGCC Steel |
| Supported Rack Depth |
482.6 mm (19") Four-Post Racks
Posts Depths Ranging From 600 To 1,066 mm (23.6-42”) |
| LCM Display |
1.3" Touchscreen |
| ESD Protection |
Air: ± 30 kV, Contact: ± 14 kV |
| Ambient Operating Temperature |
-5 To 40° C (23 To 104° F) |
| Ambient Operating Humidity |
10 To 90% Noncondensing |
| LEDs |
RPS: Yes |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC |
Software
| Application Requirements |
UniFi Network: Version 9.0.114 And Later |
Backed by a 1 year Ubiquiti warranty.
