The Ubiquiti UniFi Pro XG 10-Port 10GbE PoE Switch is a 1U Layer 3 managed switch with ten 10GbE RJ45 ports supporting PoE+++ and two 10G SFP+ fibre uplinks. It provides 240 Gbps switching capacity and supports VLAN, QoS, and advanced network management through the UniFi Network Controller.
Features
Deployment
Build Features

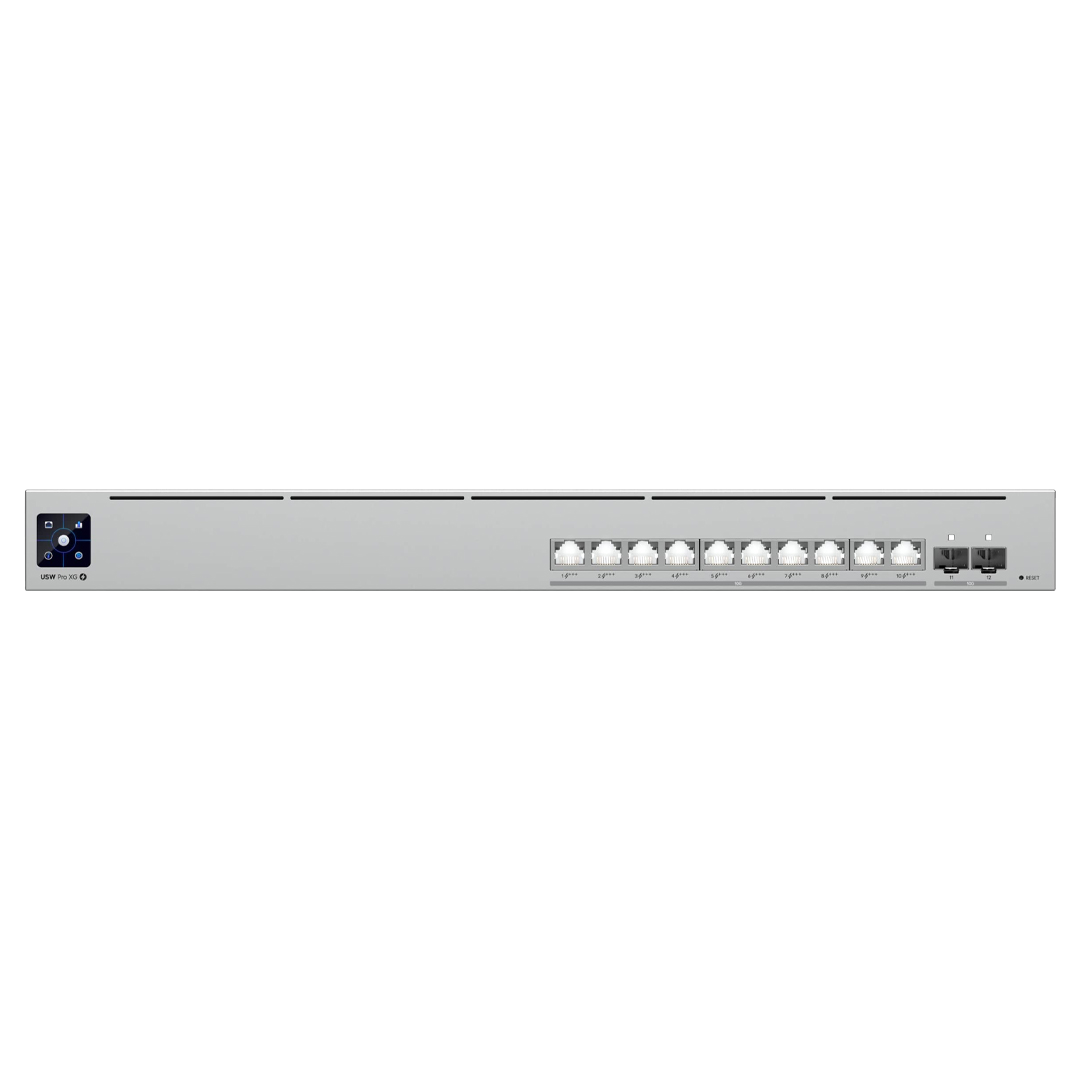

Front View
Back View
*Require UniFi RPS

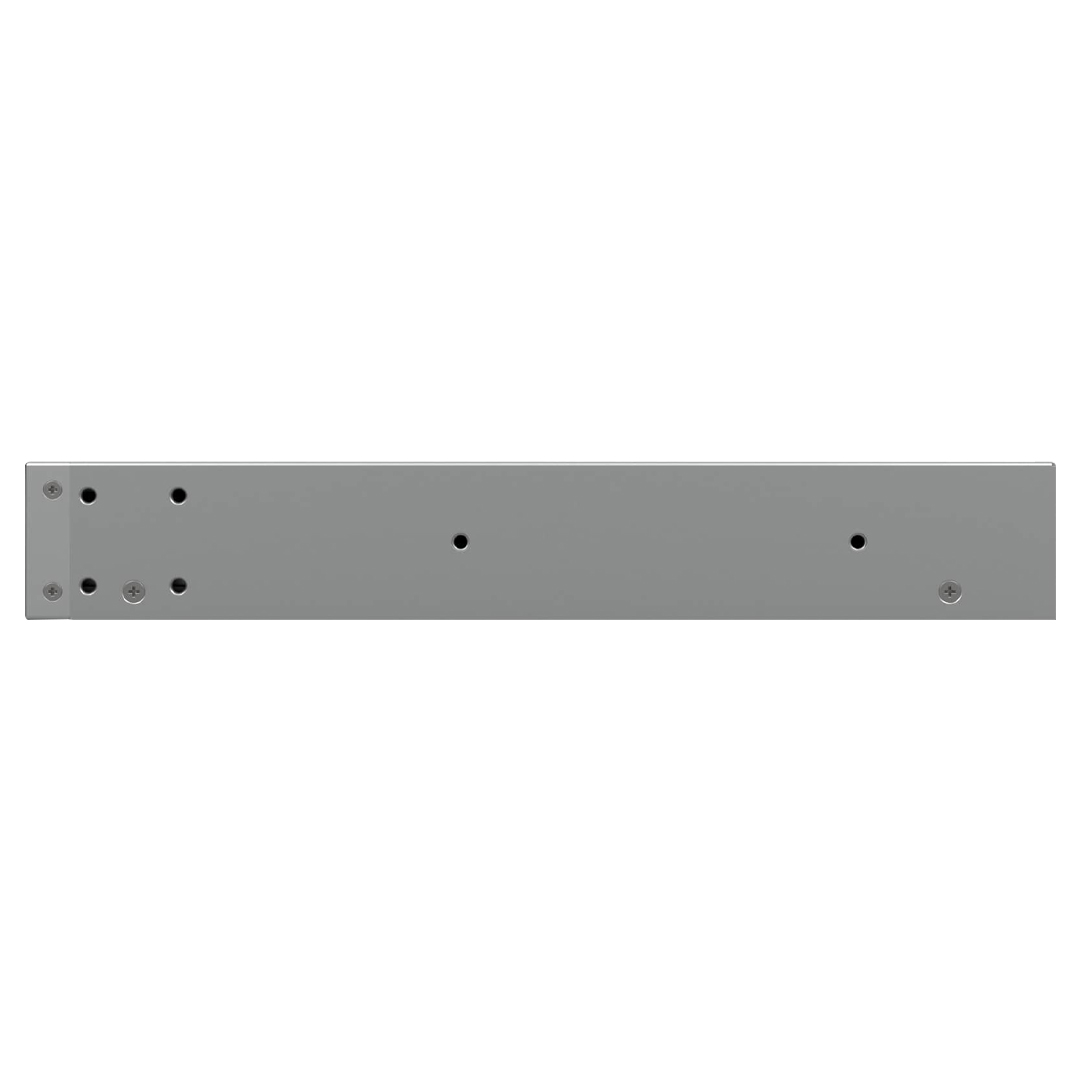

Side View
**Pair with UniFi Etherlighting Patch Cables for optimal brightness.
Specifications
General Data
| Model Number |
USW-PRO-XG-10-POE |
| Dimensions |
442.4 x 285 x 44 mm (17.4 x 11.2 x 1.7") |
| Port Layout |
10 GbE RJ45
10 (All PoE+++)
(10G/5G/2.5G/1G/100M)
10G SFP+
2(10G/1G) |
| Max. PoE Output |
Up to PoE+++ |
| Total PoE Availability |
400 W |
| Redundancy |
DC Power Backup |
| Layer 3 |
Yes |
| Form Factor |
Rack mount (1U) |
| Etherlighting™ |
Yes |
| Warranty |
1 Year |
Performance
| Switching Capacity |
240 Gbps |
| Total Non-Blocking Throughput |
120 Gbps |
| Forwarding Rate |
179 Mpps |
| Supported VLANs |
1,000 |
| MAC Address Table Size |
32,000 |
| L3 Table Size |
ARP Entries: 12,000
IPv4 Routes: 12,000 |
| Packet Buffer Size |
2 MB |
| Access Lists |
IPv4: 128
MAC: 128 |
Layer 3 Features
| DHCP Server (Local Networks) |
Yes |
| DHCP Relay |
Yes |
| Inter-VLAN Routing (Local Networks) |
Yes |
| Static Routing (Local Networks) |
Yes |
Layer 2 Features
| LACP Port Aggregation |
Yes |
| STP & RSTP |
Yes |
| QoS (DSCP) |
Yes |
| Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) |
Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) |
Yes |
| IGMP Snooping |
Yes |
| 802.1X Control |
Yes |
| MAC-Based ACLs & Device Isolation |
Yes |
| DHCP Snooping & Guarding |
Yes |
| Egress Rate Limit |
Yes |
| Flow Control |
Yes |
| Storm Control |
Yes |
| Multicast & Broadcast Rate Limiting |
Yes |
| MAC Address Blocking |
Yes |
| IP-Based ACLs & Network Isolation |
Yes |
| MAC-Based Port Restriction |
Yes |
| Port Isolation |
Yes |
| Port Mirroring |
Yes |
| Jumbo Frames |
Yes |
| LLDP-MED |
Yes |
| Voice VLAN |
Yes |
| Loop Protection |
Yes |
Hardware
| PoE Ports |
PoE+++: 10 |
| Max. PoE Wattage Per Port By PSE |
PoE: 15.4 W
PoE+: 30 W
PoE++: 60 W
PoE+++: 90 W |
| Max. Power Consumption |
65 W (Excluding PoE output)
520 W (Including PoE output) |
| Power Method |
(1) Universal input, 100—240 V AC, 50/60 Hz
(1) USP RPS DC input |
| Power Input Method |
AC input |
| Power Supply |
AC/DC, internal, 550 W |
| Supported Voltage Range |
100—240 V AC |
| Management |
Ethernet
AR |
| Weight |
Without mounting brackets: 4.6 kg (10.14 lb)
With mounting brackets: 4.7 kg (10.36 lb) |
| Enclosure Material |
SGCC steel |
| Mount Material |
SGCC steel |
| Supported Rack Depth |
400~1200 mm
(15.7-47.2"") |
| LCM Display |
1.3" touchscreen |
| ESD Protection |
Air: ± 30 kV, contact: ± 30 kV |
| Ambient Operating Temperature |
-5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity |
10 to 90% noncondensing |
| Etherlighting™ |
Ethernet: Yes
SFP+: Yes |
| LEDs |
RPS: Yes
System: Yes |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC |
Software
| Application Requirements |
UniFi Network: Version 9.1.120 and later |
Backed by a 1 year Ubiquiti warranty.
