The Ubiquiti UniFi Pro Aggregation 28-Port Switch is a Layer 3 managed switch designed for high-capacity networking environments. It features 28 10G SFP+ ports and 4 25G SFP28 uplink ports, providing a total switching capacity of 760 Gbps. The switch is rack-mountable with dimensions of 442x325x44mm and weighs approximately 4.6 kg. It operates within an ambient temperature range of -5 to 40degC and supports a universal power input of 100-240V AC. The device is managed via the UniFi Network Controller and is compatible with UniFi Network version 6.1.25 and later. It also includes a 1.3 inch touchscreen for local management and diagnostics.
Features
Deployment
Build Features

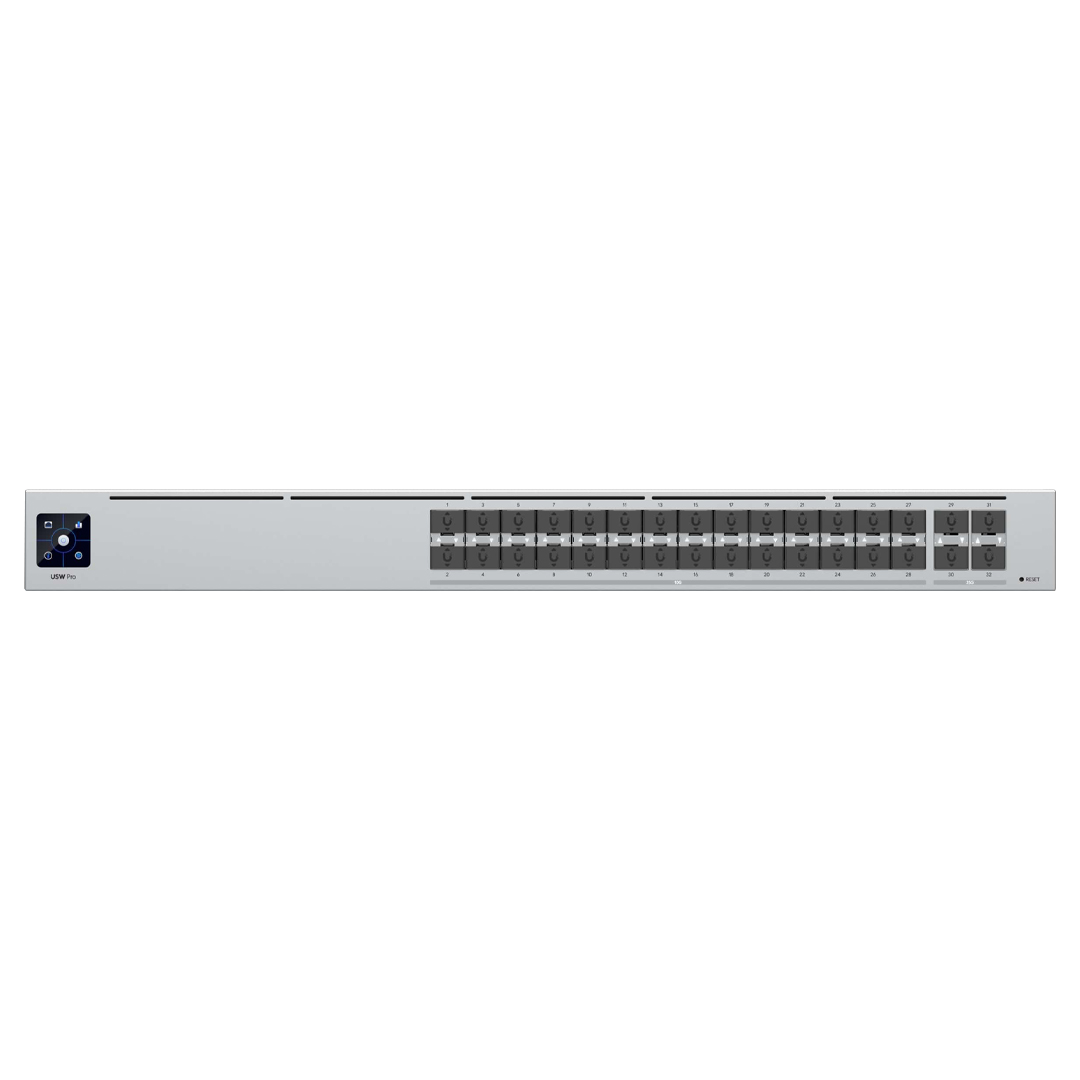

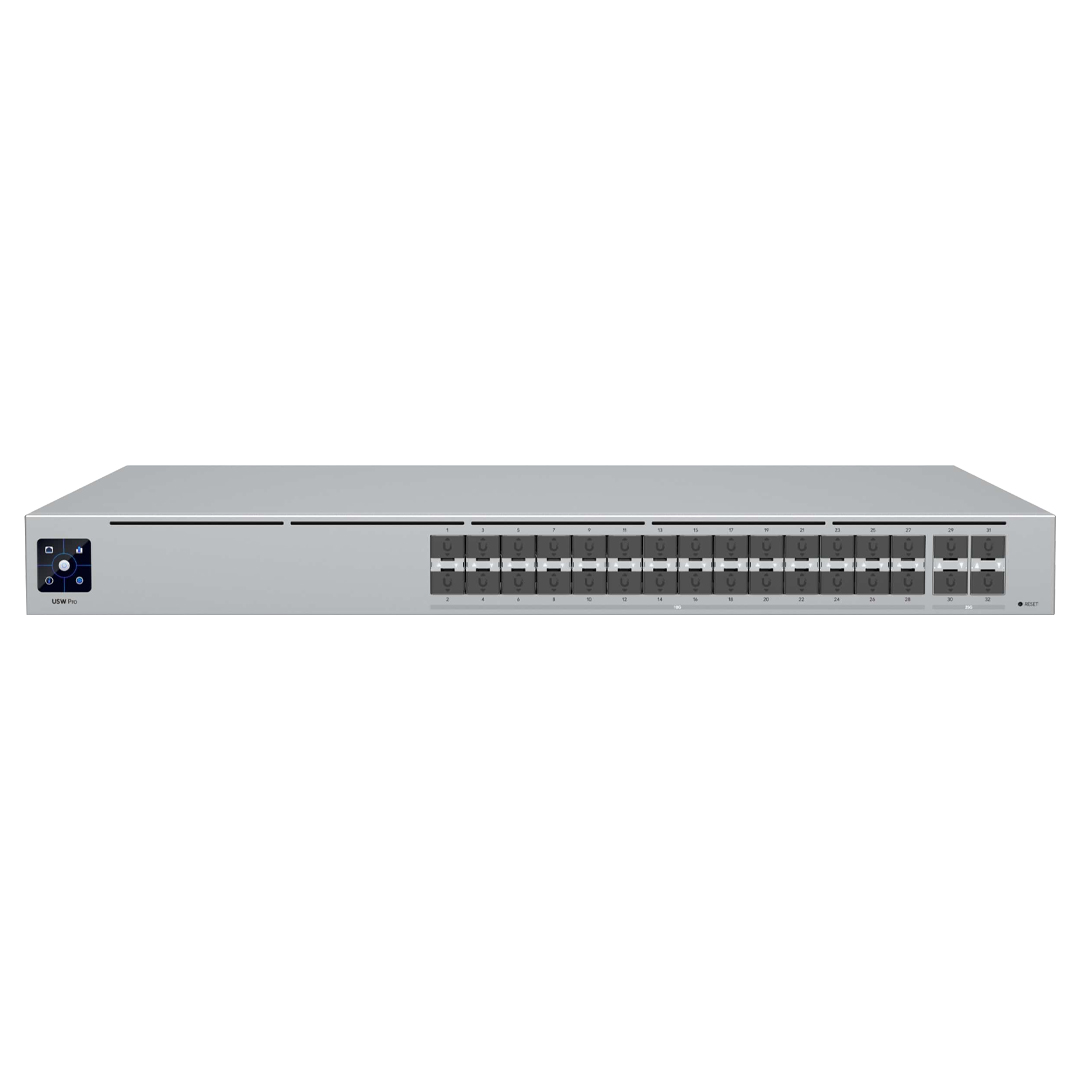

Front View

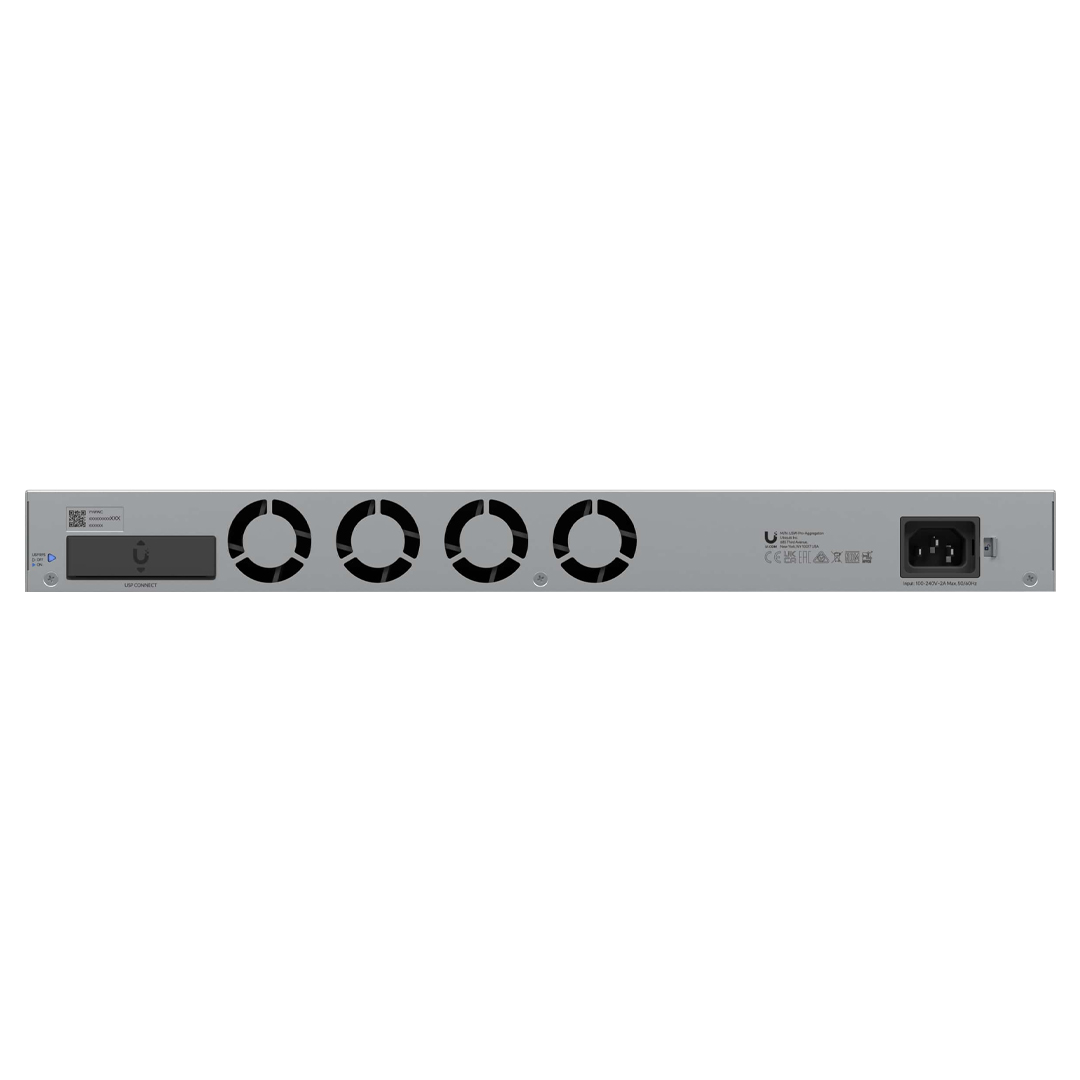

Back View
*Require UniFi Power Backup.
Dimensions
Specifications
General Data
| Model Number |
USW-PRO-AGGREGATION |
| Dimensions |
442 x 325 x 44 mm (17.4 x 12.8 x 1.7") |
| Port Layout |
10G SFP+
28 (10G/1G)
25G SFP28
4 (25G/10G/1G) |
| Redundancy |
DC Power Backup |
| Layer 3 |
Yes |
| Form Factor |
Rack mount (1U) |
| Warranty |
1 Year |
Performance
| Switching Capacity |
760 Gbps |
| Total Non-Blocking Throughput |
380 Gbps |
| Forwarding Rate |
565 Mpps |
| Supported VLANs |
1,000 |
| MAC Address Table Size |
32,000 |
| L3 Table Size |
ARP Entries: 16,000
IPv4 Routes: 16,000 |
| Packet Buffer Size |
4 MB |
| Access Lists |
IPv4: 128
MAC: 128 |
Layer 3 Features
| DHCP Server (Local Networks) |
Yes |
| DHCP Relay |
Yes |
| Inter-VLAN Routing (Local Networks) |
Yes |
| Static Routing (Local Networks) |
Yes |
Layer 2 Features
| LACP Port Aggregation |
Yes |
| STP & RSTP |
Yes |
| QoS (DSCP) |
Yes |
| Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) |
Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) |
Yes |
| IGMP Snooping |
Yes |
| 802.1X Control |
Yes |
| MAC-Based ACLs & Device Isolation |
Yes |
| DHCP Snooping & Guarding |
Yes |
| Egress Rate Limit |
Yes |
| Flow Control |
Yes |
| Storm Control |
Yes |
| Multicast & Broadcast Rate Limiting |
Yes |
| MAC Address Blocking |
Yes |
| IP-Based ACLs & Network Isolation |
Yes |
| MAC-Based Port Restriction |
Yes |
| Port Isolation |
Yes |
| Port Mirroring |
Yes |
| Jumbo Frames |
Yes |
| LLDP-MED |
Yes |
| Voice VLAN |
Yes |
| Loop Protection |
Yes |
Hardware
| Max. Power Consumption |
100 W |
| Power Method |
(1) Universal input, 100—240 V AC, 50/60 Hz
(1) USP RPS DC input |
| Power Input Method |
AC input |
| Power Supply |
AC/DC, internal, 100 W |
| Supported Voltage Range |
100—240 V AC |
| Management |
Ethernet
AR |
| Heat Dissipation (Excluding PoE Output) |
341.2 BTU/hr |
| Weight |
Without mounting brackets: 4.6 kg (10.1 lb)
With mounting brackets: 4.7 kg (10.4 lb) |
| Enclosure Material |
SGCC steel |
| Mount Material |
SGCC steel |
| Supported Rack Depth |
400~1200 mm (15.7-47.2") |
| LCM Display |
1.3" touchscreen |
| ESD Protection |
Air: ± 16 kV, contact: ± 12 kV |
| Ambient Operating Temperature |
-5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity |
10 to 90% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, Anatel |
Software
| Application Requirements |
UniFi Network: Version 6.1.25 and later |
Backed by a 1 year Ubiquiti warranty.
