Ubiquiti UniFi USW Pro Gen2 48 Port Switch

USW-PRO-48 | Ubiquiti
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
$1189
Stock at Supplier We do not have this item in our warehouse, but stock is either already on its way or is generally available from the supplier.
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
The Ubiquiti UniFi USW Pro Gen2 48 Port Switch features 48 Gigabit Ethernet ports and 4 high-speed 10G SFP+ ports for fast uplinks and expansion. It includes a 1.3" touchscreen for easy monitoring, and supports advanced network management tools for smooth, reliable performance. Built with a sturdy rack-mount design and redundancy backup power support, it's perfect for growing networks that need speed, stability, and scalability.

Features

Ubiquiti UniFi USW Pro Gen2 48-Port Switch Feature 1

Deployment

Build Features

Ubiquiti UniFi USW Pro Gen2 48-Port Switch Feature 2

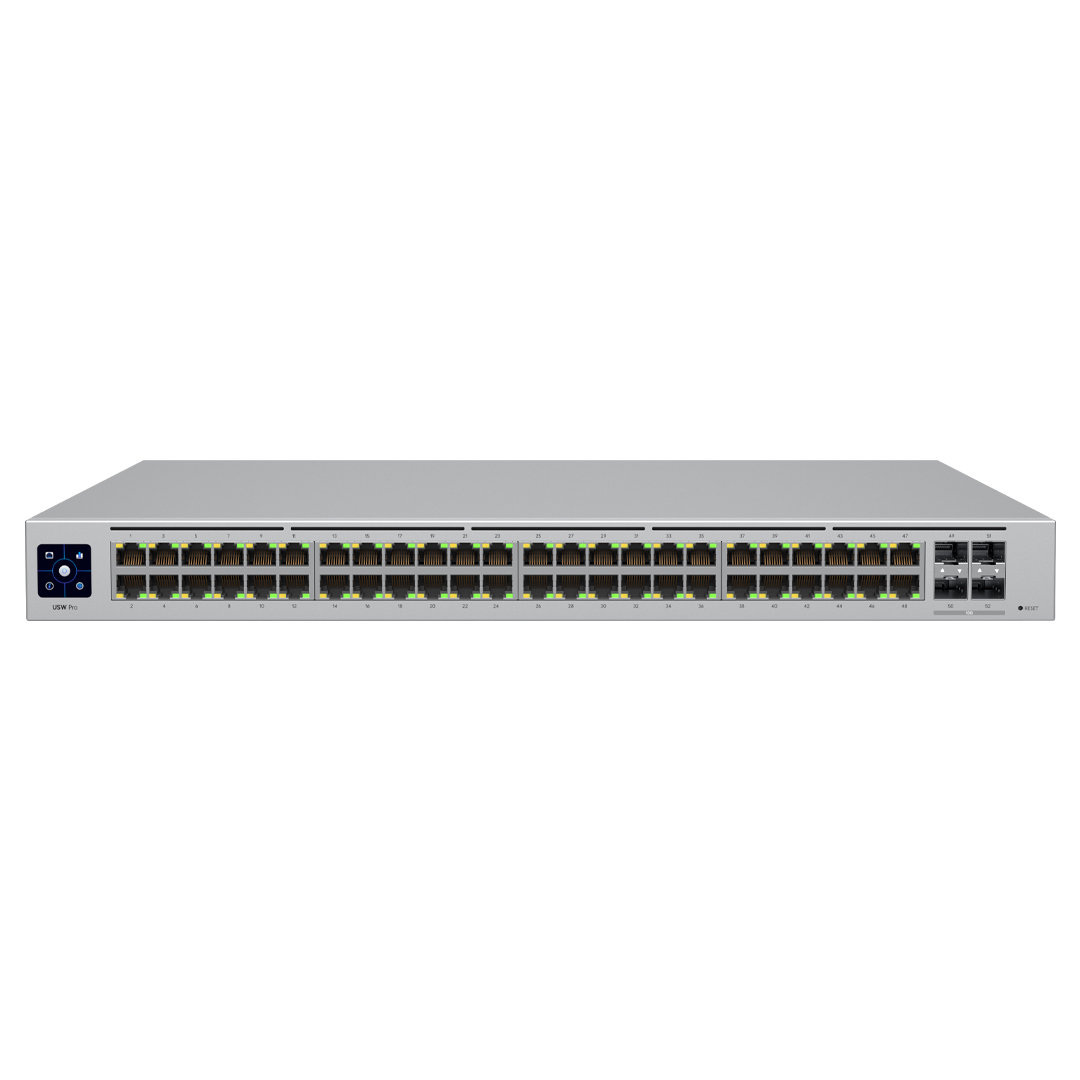

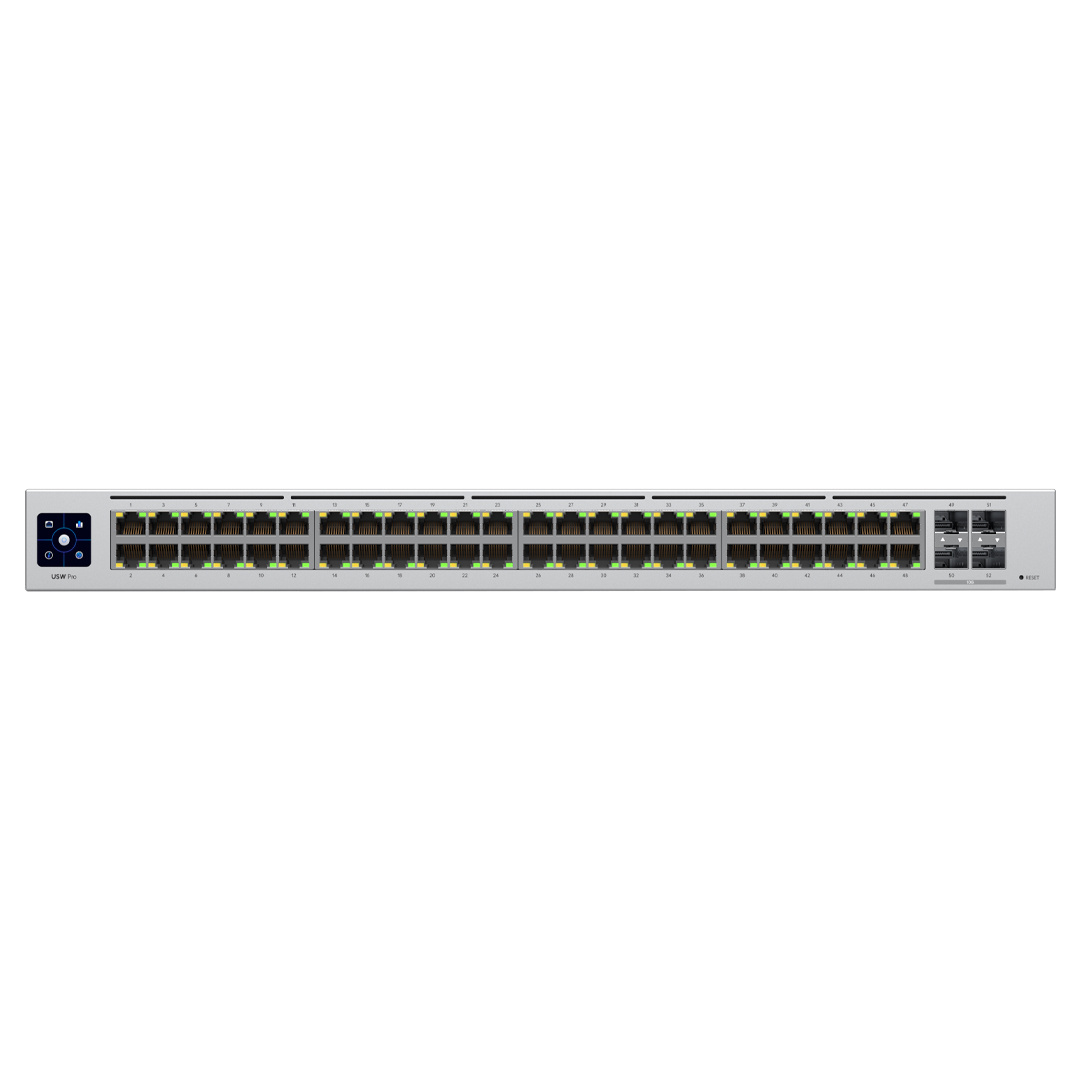

Front View

Ubiquiti UniFi USW Pro Gen2 48-Port Switch Feature 3

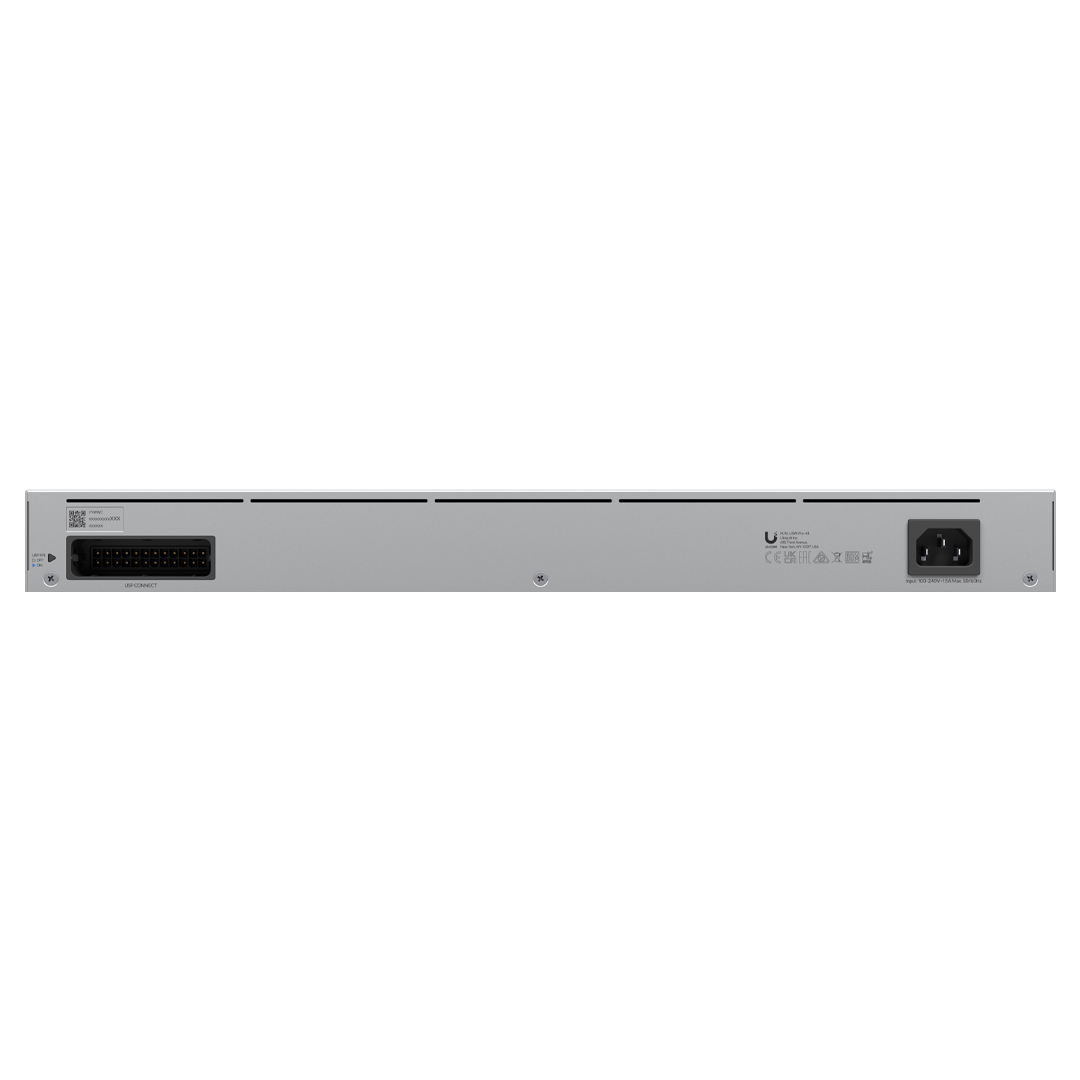

Back View

*Require UniFi Power Backup.

Ubiquiti UniFi USW Pro Gen2 48-Port Switch Feature 4

Dimensions

Specifications

General Data

Model Number USW-PRO-48
Dimensions 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
Port Layout 1 GbE RJ45: 48 (1G/100M/10M)
10G SFP+: 4 (10G/1G)
Redundancy DC Power Backup
Layer 3 Yes
Form Factor Rack mount (1U)
Warranty 1 Year

Performance

Switching Capacity 176 Gbps
Total Non-Blocking Throughput 88 Gbps
Forwarding Rate 131 Mpps
Supported VLANs 1,000
MAC Address Table Size 16,000
L3 Table Size ARP Entries: 4,000
IPv4 Routes: 1,000
Packet Buffer Size 4 MB
Access Lists IPv4: 128
MAC: 128

Layer 3 Features

DHCP Server (Local Networks) Yes
DHCP Relay Yes
Inter-VLAN Routing (Local Networks) Yes
Static Routing (Local Networks) Yes

Layer 2 Features

LACP Port Aggregation Yes
STP & RSTP Yes
Advanced IGMP Configuration (Querier, Fast Leave, Router Port) Yes
IGMP Snooping Yes
802.1X Control Yes
MAC-Based ACLs & Device Isolation Yes
DHCP Snooping & Guarding Yes
Egress Rate Limit Yes
Flow Control Yes
Storm Control Yes
Multicast & Broadcast Rate Limiting Yes
MAC Address Blocking Yes
IP-Based ACLs & Network Isolation Yes
MAC-Based Port Restriction Yes
Port Isolation Yes
Port Mirroring Yes
Jumbo Frames Yes
LLDP-MED Yes
Voice VLAN Yes
Loop Protection Yes

Hardware

Max. Power Consumption 60W
Power Method (1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input
Power Input Method AC input
Power Supply AC/DC, internal, 60W
Supported Voltage Range 100—240V AC
Management Ethernet
AR
Heat Dissipation (Excluding PoE Output) 204.72 BTU/hr
Weight Without mounting brackets: 4 kg (8.8 lb)
With mounting brackets: 4.1 kg (9 lb)
Enclosure Material SGCC steel
Mount Material SGCC steel
Supported Rack Depth 400~1200 mm (15.7-47.2")
LCM Display 1.3" touchscreen
ESD Protection Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature -5 to 40° C (23 to 104° F)
Ambient Operating Humidity 10 to 90% noncondensing
NDAA Compliant Yes
Certifications CE, FCC, IC, Anatel

Software

Application Requirements UniFi Network: Version 5.12.11 and later
Backed by a 1 year Ubiquiti warranty.
