Ubiquiti Enterprise 8-Port PoE+ Managed Switch

USW-ENTERPRISE-8-POE | Ubiquiti
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
$895
In stock
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
The Ubiquiti Enterprise 8-Port PoE+ Managed Switch features 8 PoE+ ports, 2x 10G SFP+ ports and a 120W total PoE supply for access points and other PoE devices. Including an extensive suite of both Layer 2 and 3 switching protocols, while offering a user friendly 1.3" touch LCM to provide status.

Features

Ubiquiti Enterprise 8-Port PoE+ Managed Switch Feature 1

Deployment

Build Features

Ubiquiti Enterprise 8-Port PoE+ Managed Switch Feature 2

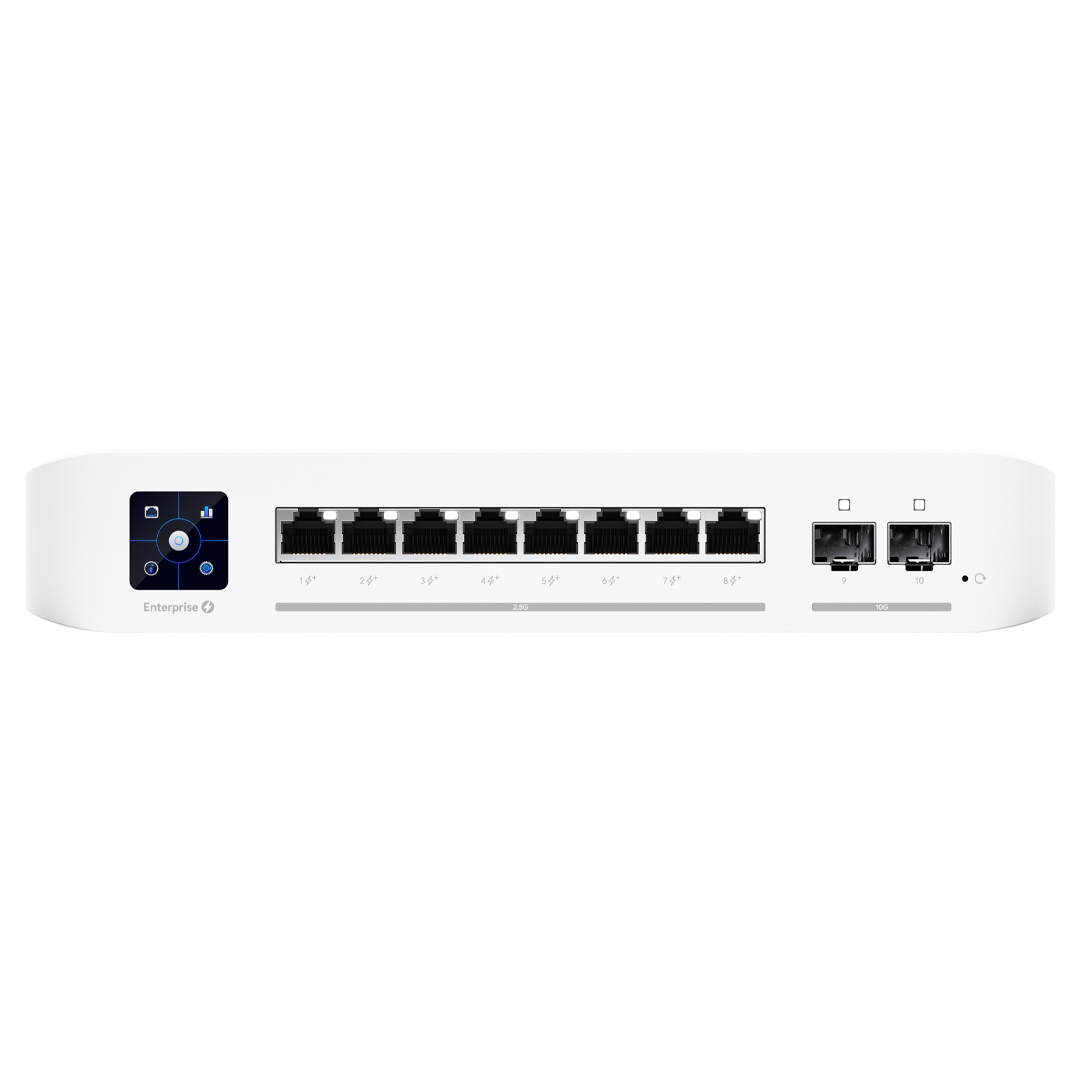

Front View

Ubiquiti Enterprise 8-Port PoE+ Managed Switch Feature 3

Back View

Ubiquiti Enterprise 8-Port PoE+ Managed Switch Feature 4

Dimensions

Specifications

General Data

Model Number USW-ENTERPRISE-8-POE
Dimensions 200 x 248 x 44 mm (7.9 x 9.8 x 1.7")
Port Layout 2.5 GbE RJ45: 8 (All PoE+) (2.5G/1G/100M)
10G SFP+: 2 (10G/1G)
Max. PoE Output Up to PoE+
Total PoE Availability 120W
Layer 3 Yes
Form Factor Compact desktop
Warranty 1 Year

Performance

Switching Capacity 80 Gbps
Total Non-Blocking Throughput 40 Gbps
Forwarding Rate 60 Mpps
Supported VLANs 1,000
MAC Address Table Size 16,000
L3 Table Size ARP Entries: 512
IPv4 Routes: 512
Packet Buffer Size 1.5 MB
Access Lists IPv4: 12
MAC: 10

Layer 3 Features

DHCP Server (Local Networks) Yes
Inter-VLAN Routing (Local Networks) Yes
Static Routing (Local Networks) Yes

Layer 2 Features

LACP Port Aggregation Yes
STP & RSTP Yes
Advanced IGMP Configuration (Querier, Fast Leave, Router Port) Yes
IGMP Snooping Yes
802.1X Control Yes
MAC-Based ACLs & Device Isolation Yes
DHCP Snooping & Guarding Yes
Egress Rate Limit Yes
Flow Control Yes
Storm Control Yes
Multicast & Broadcast Rate Limiting Yes
MAC Address Blocking Yes
IP-Based ACLs & Network Isolation Yes
MAC-Based Port Restriction Yes
Port Isolation Yes
Port Mirroring Yes
Jumbo Frames Yes
LLDP-MED Yes
Voice VLAN Yes
Loop Protection Yes

Hardware

PoE Ports PoE+: 8
Max. PoE Wattage per Port by PSE PoE+: 32W
Max. Power Consumption 30W (Excluding PoE Output)
150W (Including PoE Output)
Power Method Universal input, 100—240V AC, 50/60 Hz
Power Input Method AC input
Power Supply AC/DC, internal, 150W
Supported Voltage Range 100—240V AC
Management Ethernet
AR
Heat Dissipation (Excluding PoE Output) 102.36 BTU/hr
Weight 2.4 kg (5.3 lb)
Enclosure Material Polycarbonate
Mount Material Polycarbonate
Supported Rack Depth 400~1200 mm (15.7-47.2")
LCM Display 1.3" touchscreen
ESD Protection Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature -5 to 45° C (23 to 113° F)
Ambient Operating Humidity 10 to 90% noncondensing
NDAA Compliant Yes
Certifications CE, FCC, IC, Anatel

Software

Application Requirements UniFi Network: Version 6.3.51 and later
Backed by a 1 year Ubiquiti warranty.
