The Ubiquiti UniFi 48 Port Managed Switch is a configurable Gigabit Layer 2 switch with 48 Gigabit Ethernet ports including 4 SFP ports. It provides Gigabit links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. Including a 1.3" touch LCM to provide status.
Features
Standard 48
A 48-port, Layer 2 switch with a silent, fanless cooling system.
Deployment
Build Features

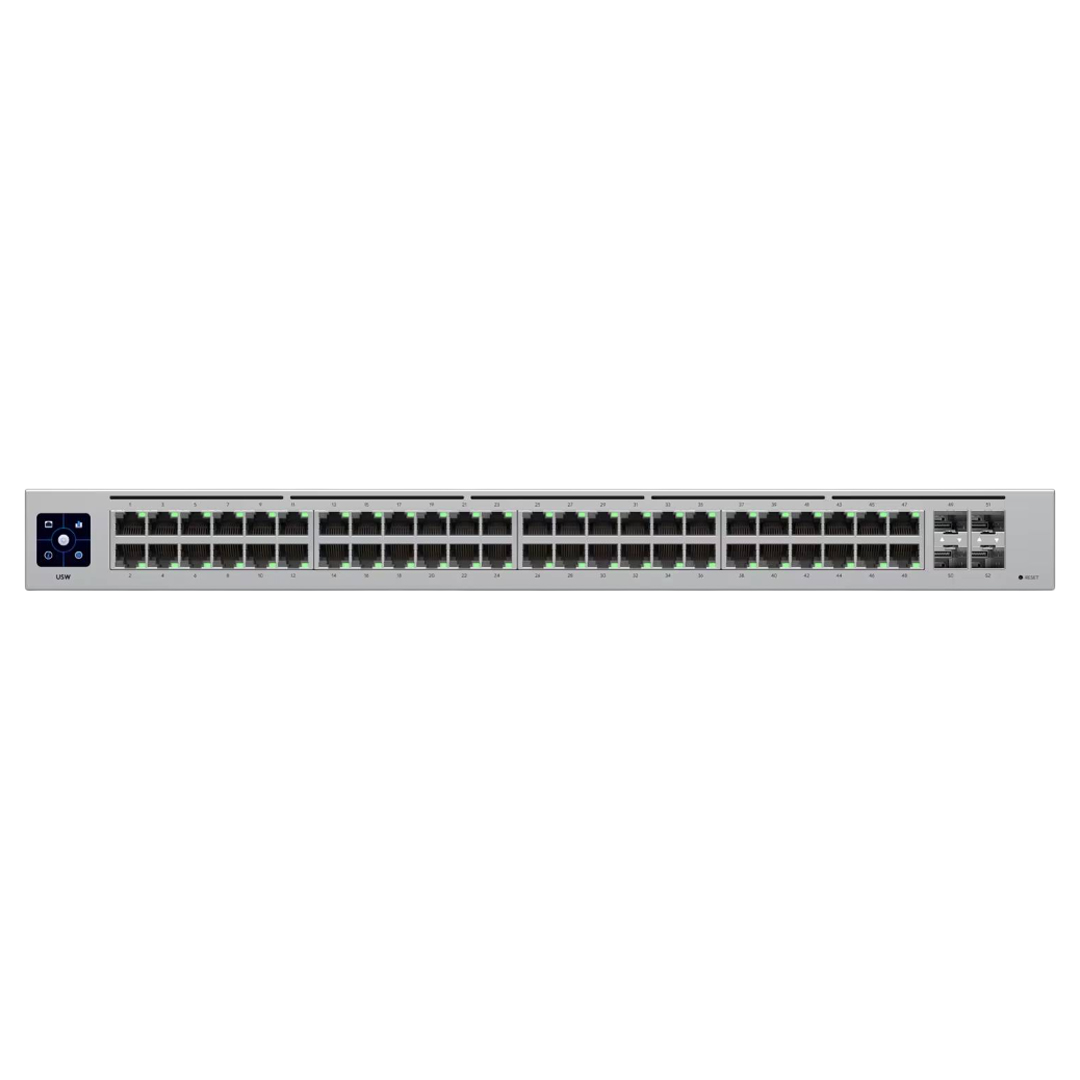

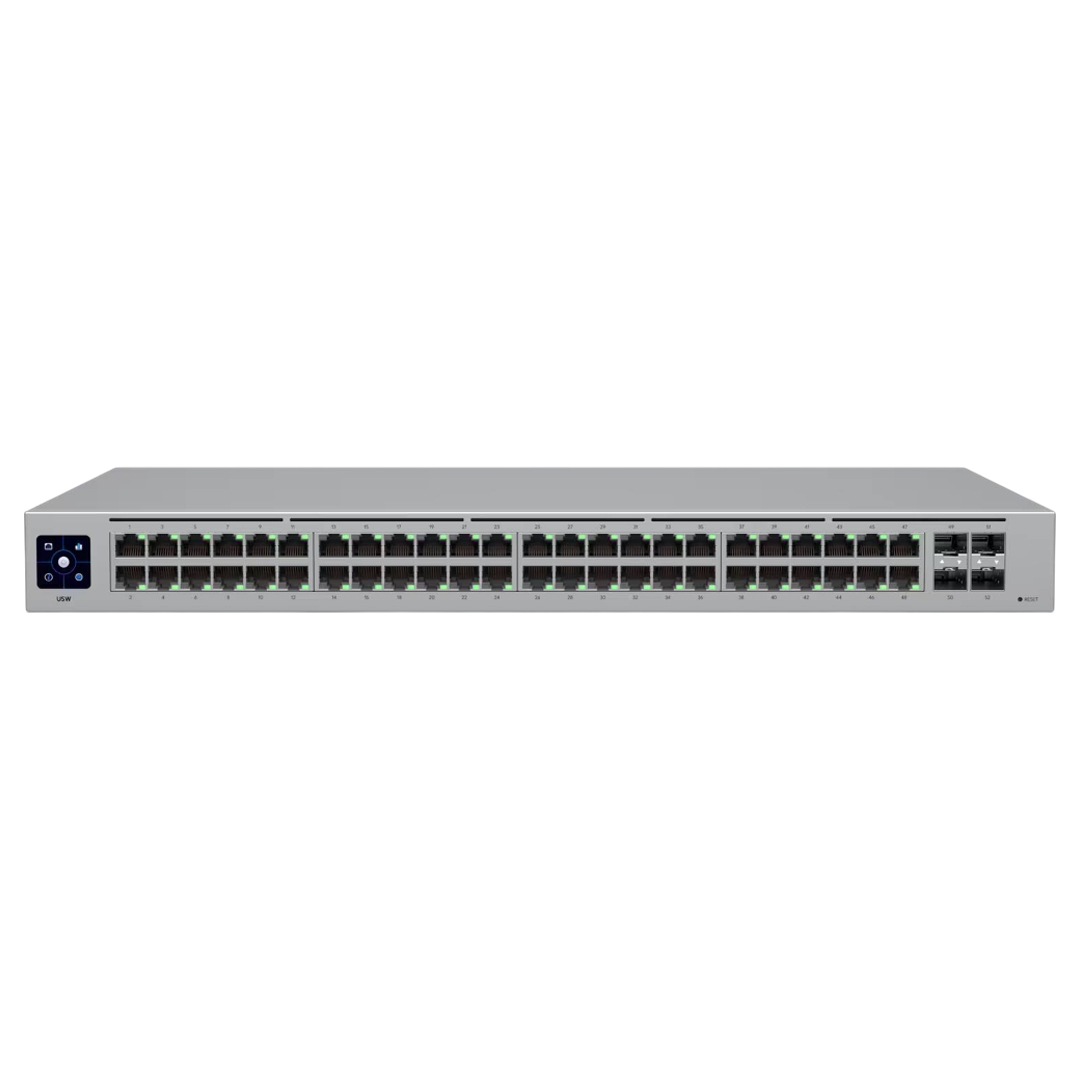

Front View

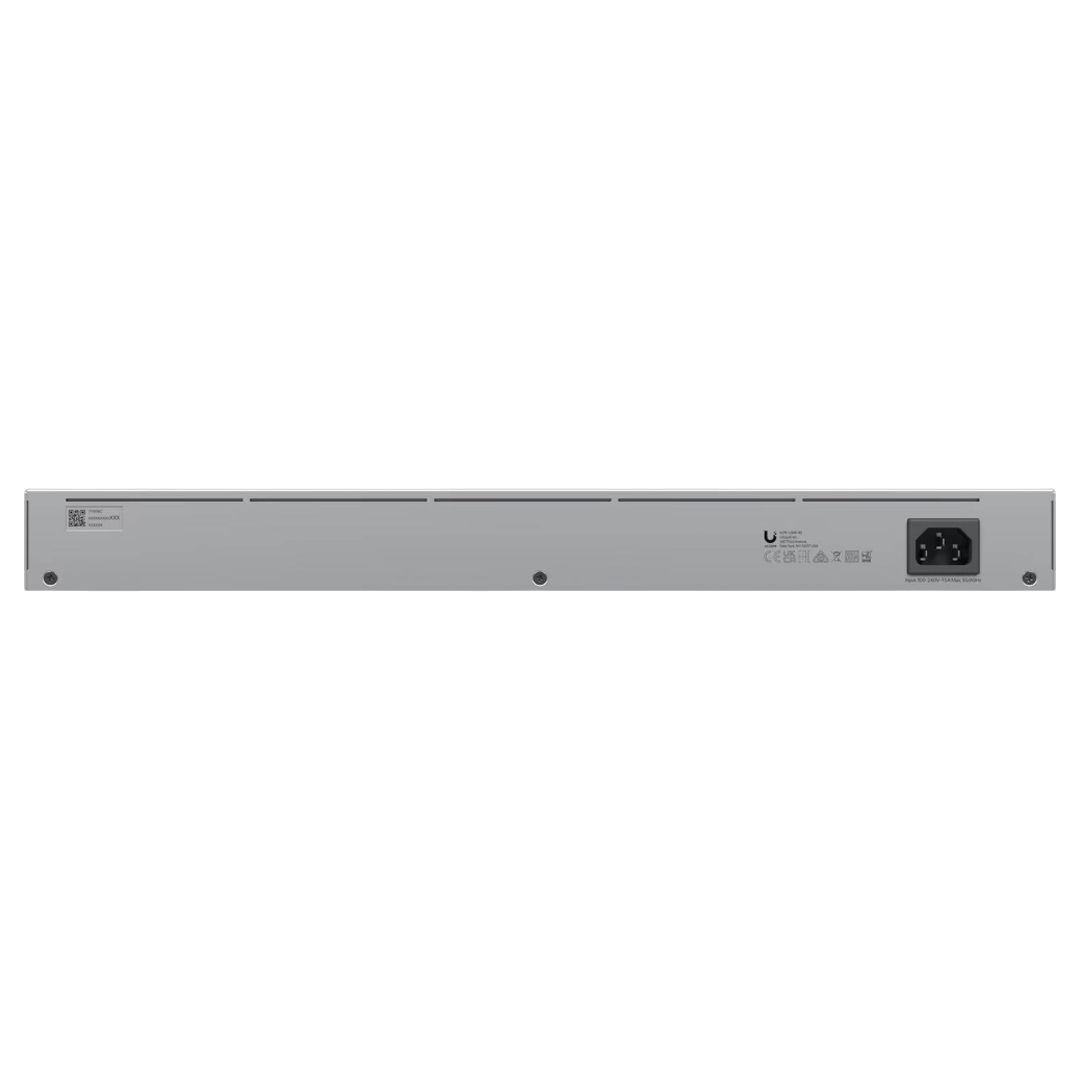

Back View
Dimensions
Specifications
General Data
| Model Number |
USW-48 |
| Dimensions |
442 x 285 x 44 mm (17.4 x 11.2 x 1.7") |
| Port Layout |
1 GbE RJ45: 48 (1G/100M/10M)
1G SFP: 4 (1G) |
| Form Factor |
Rack mount (1U) |
| Warranty |
1 Year |
Performance
| Switching Capacity |
104 Gbps |
| Total Non-Blocking Throughput |
52 Gbps |
| Forwarding Rate |
77 Mpps |
| Supported VLANs |
1,000 |
| MAC Address Table Size |
16,000 |
| Packet Buffer Size |
1.5 MB |
| Access Lists |
IPv4: 128
MAC: 128 |
Layer 2 Features
| LACP Port Aggregation |
Yes |
| STP & RSTP |
Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) |
Yes |
| IGMP Snooping |
Yes |
| 802.1X Control |
Yes |
| MAC-Based ACLs & Device Isolation |
Yes |
| DHCP Snooping & Guarding |
Yes |
| Egress Rate Limit |
Yes |
| Flow Control |
Yes |
| Storm Control |
Yes |
| Multicast & Broadcast Rate Limiting |
Yes |
| MAC Address Blocking |
Yes |
| IP-Based ACLs & Network Isolation |
Yes |
| MAC-Based Port Restriction |
Yes |
| Port Isolation |
Yes |
| Port Mirroring |
Yes |
| Jumbo Frames |
Yes |
| LLDP-MED |
Yes |
| Voice VLAN |
Yes |
| Loop Protection |
Yes |
Hardware
| Max. Power Consumption |
40W |
| Power Method |
Universal input, 100—240V AC, 50/60 Hz |
| Power Input Method |
AC input |
| Power Supply |
AC/DC, internal, 60W |
| Supported Voltage Range |
100—240V AC |
| Management |
Ethernet
AR |
| Heat Dissipation (Excluding PoE Output) |
136.48 BTU/hr |
| Weight |
Without mounting brackets: 3.9 kg (8.6 lb)
With mounting brackets: 4 kg (8.8 lb) |
| Enclosure Material |
SGCC steel |
| Mount Material |
SGCC steel |
| Supported Rack Depth |
400~1200 mm (15.7-47.2") |
| LCM Display |
1.3" touchscreen |
| Ambient Operating Temperature |
-15 to 40° C (5 to 104° F) |
| Ambient Operating Humidity |
10 to 90% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, Anatel |
Software
| Application Requirements |
UniFi Network: Version 7.2.94 and later |
Backed by a 1 year Ubiquiti warranty.
