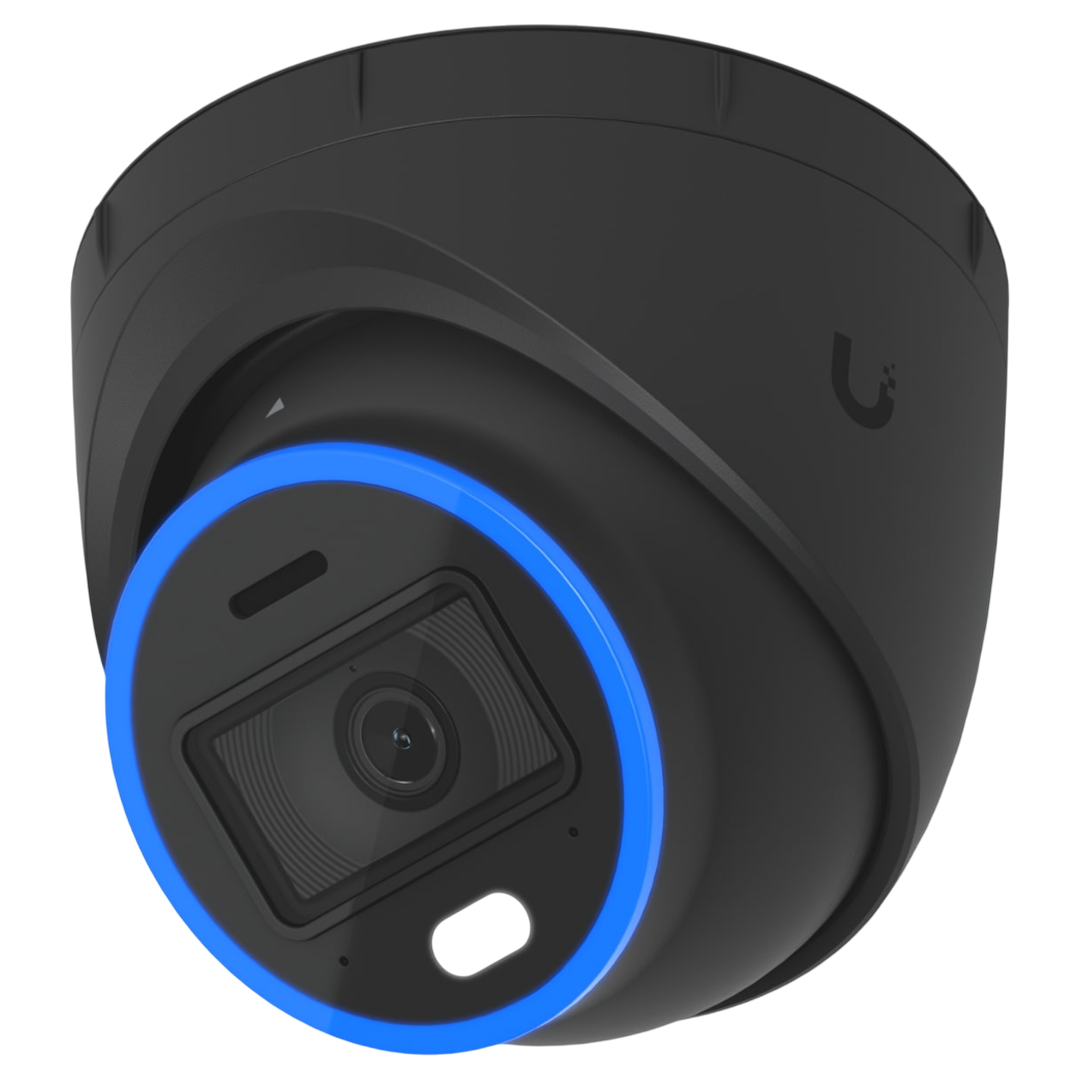

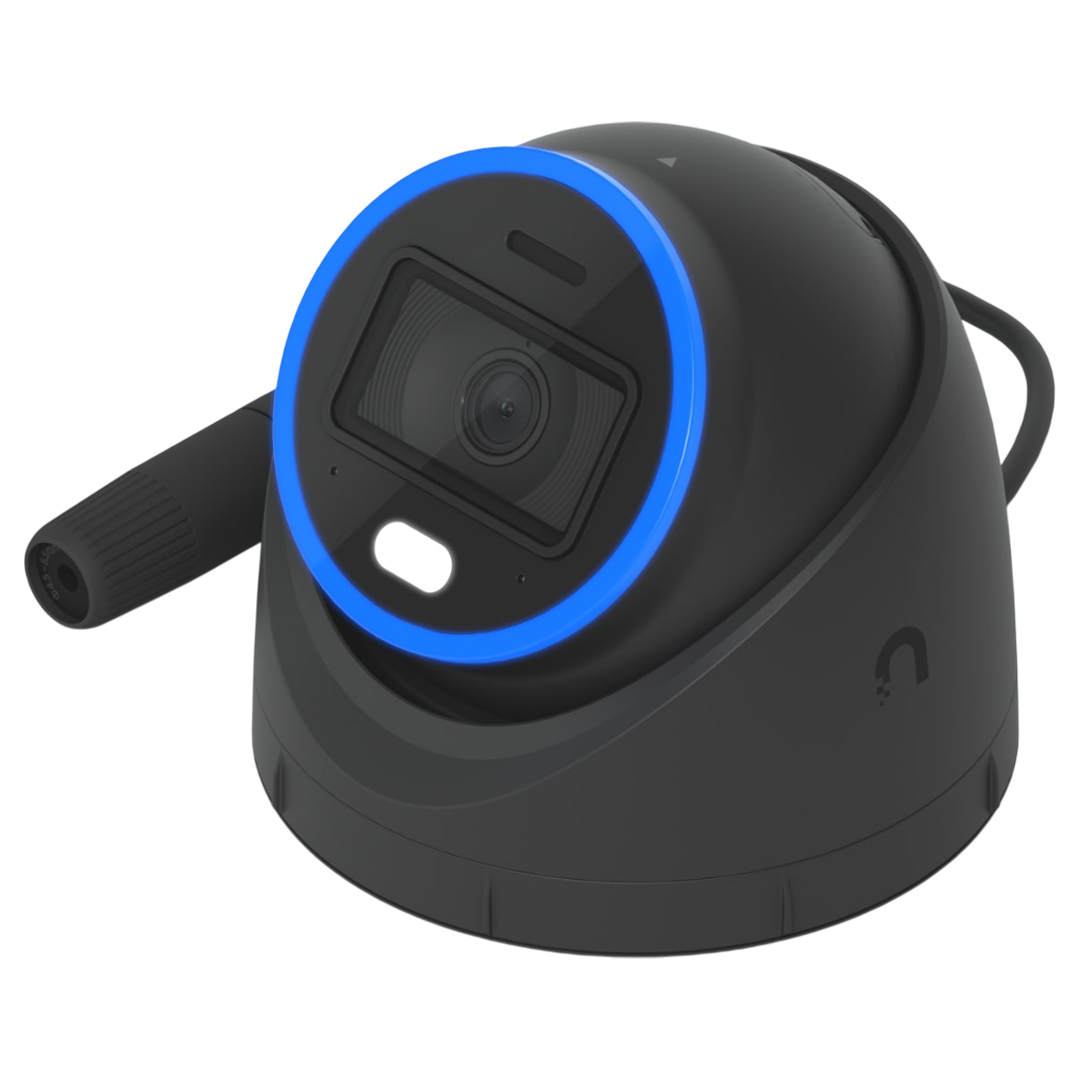

The Ubiquiti AI Turret Black features 4K (8MP) video resolution at 30 frames per second, delivering ultra-clear surveillance footage. Its 109.9 degree horizontal field of view and 40 metre infrared night vision ensure expansive coverage day and night. The camera supports Power over Ethernet Plus for easy installation and is built with an all-weather, vandal-proof casing for reliable outdoor performance.
Features
Deployment
Build Features

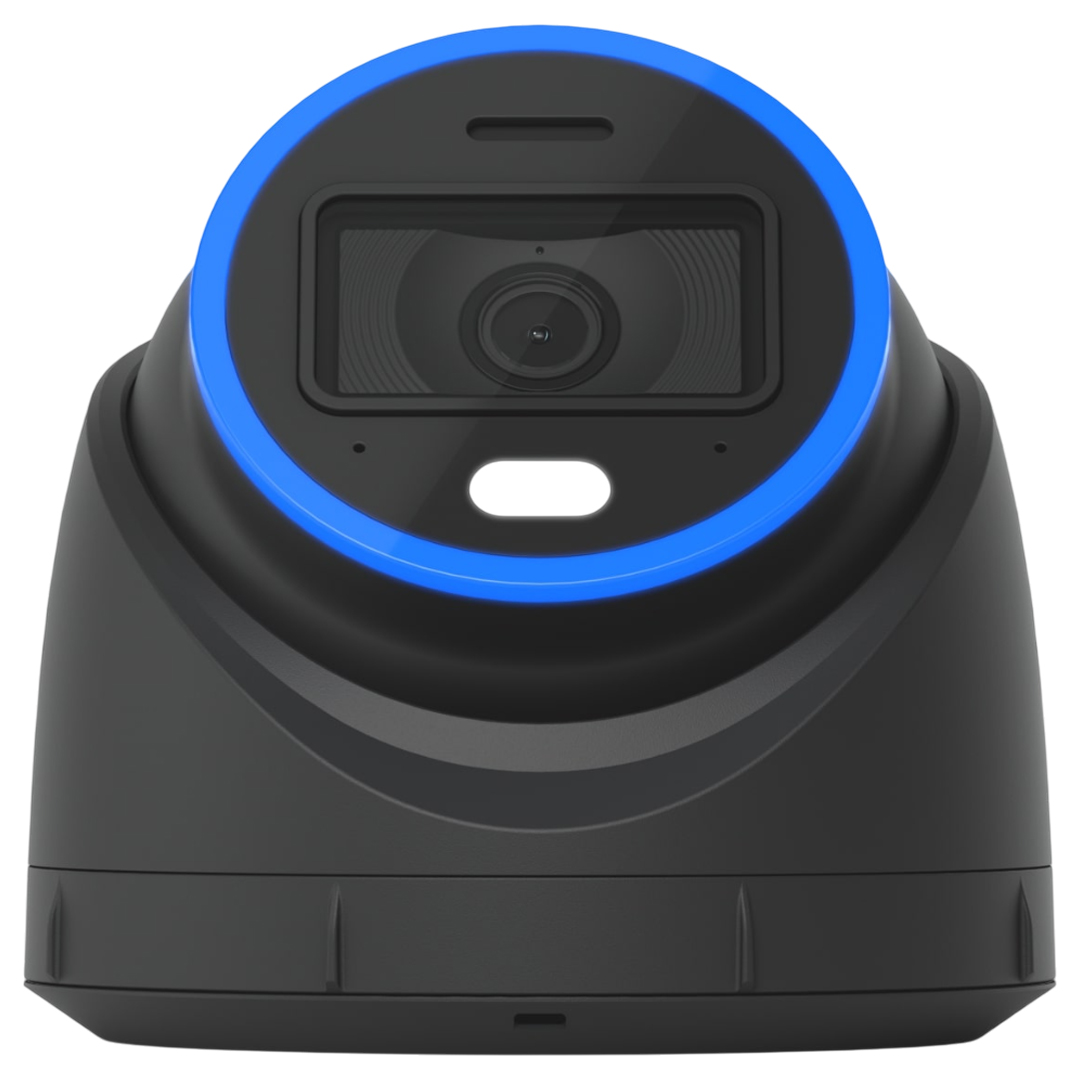

Front View

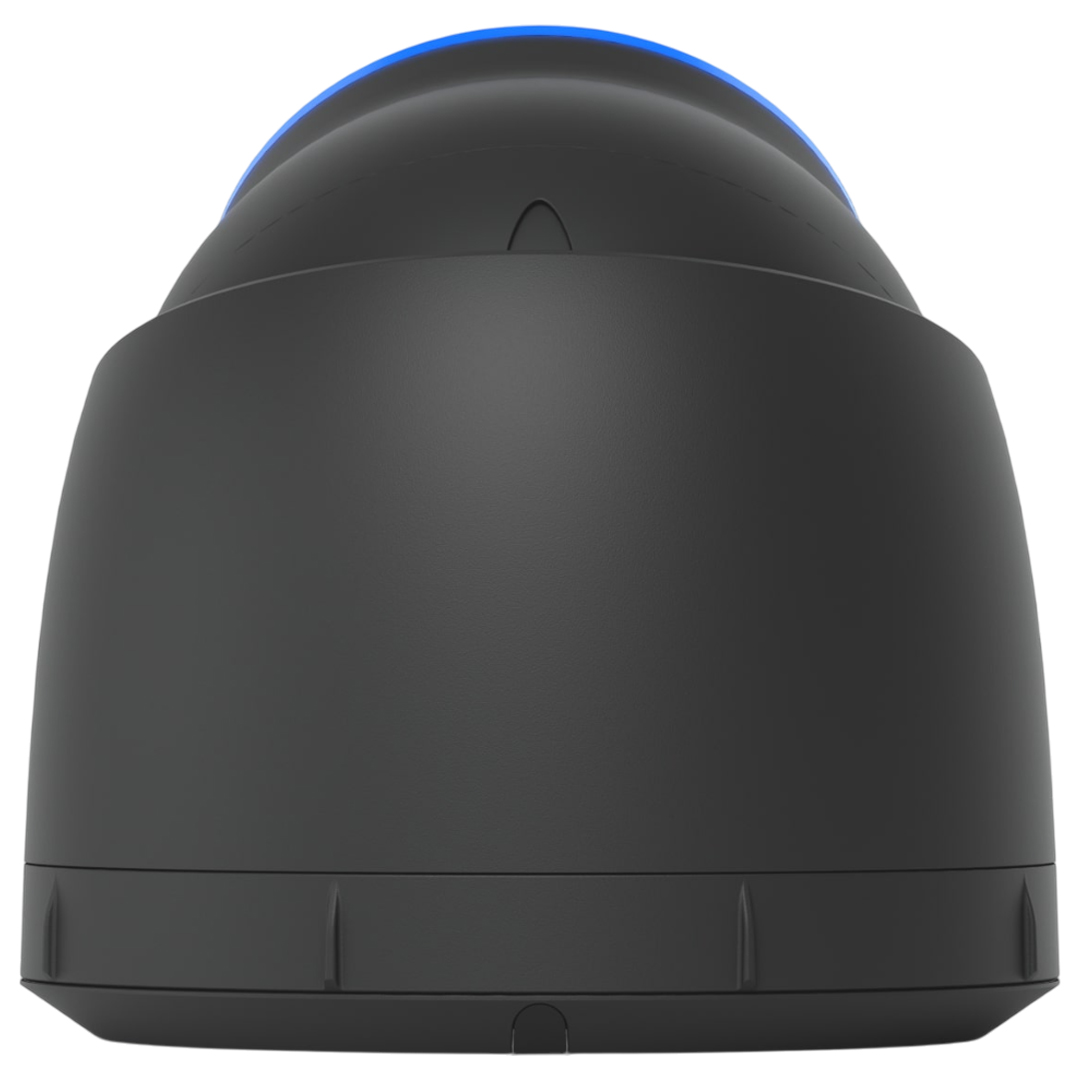

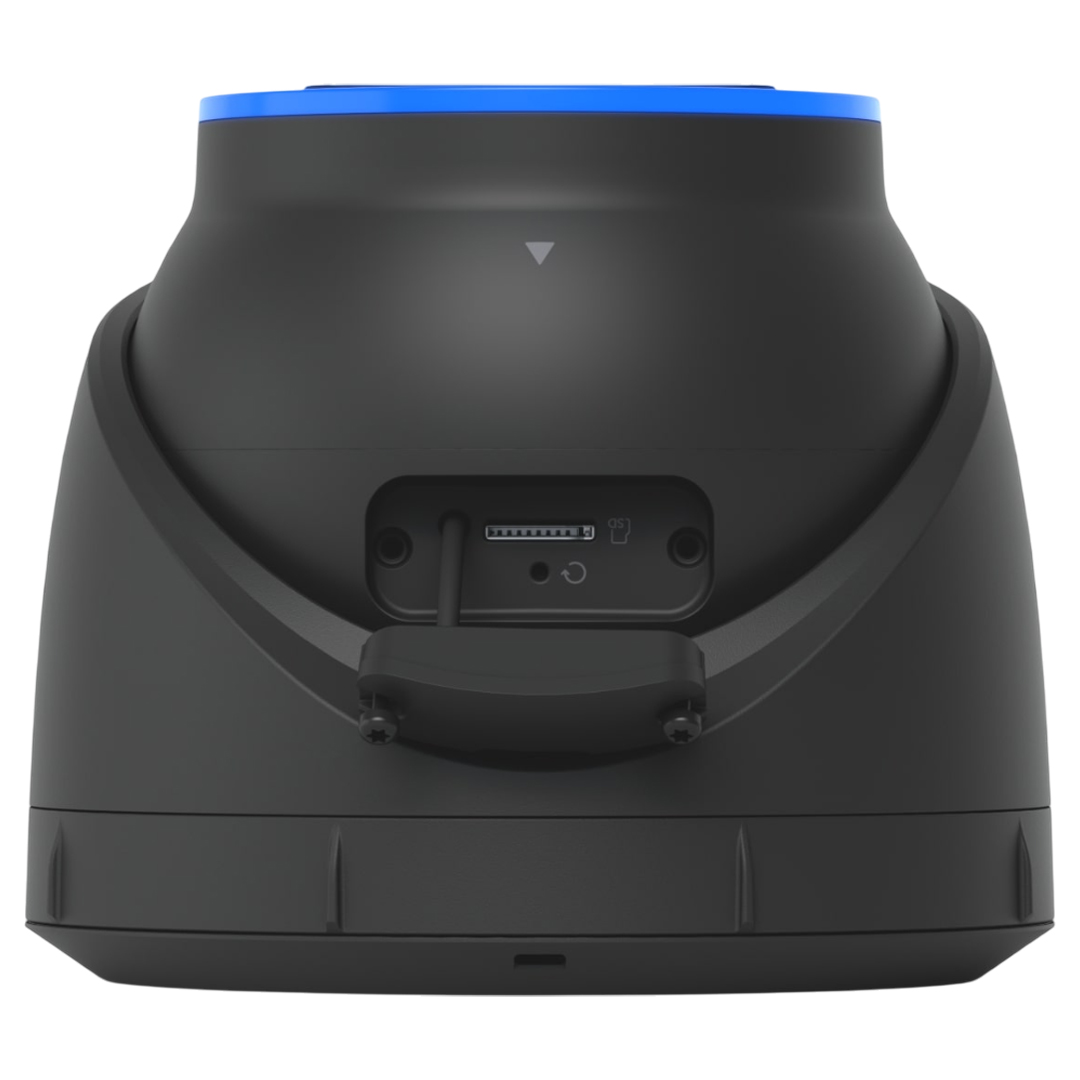

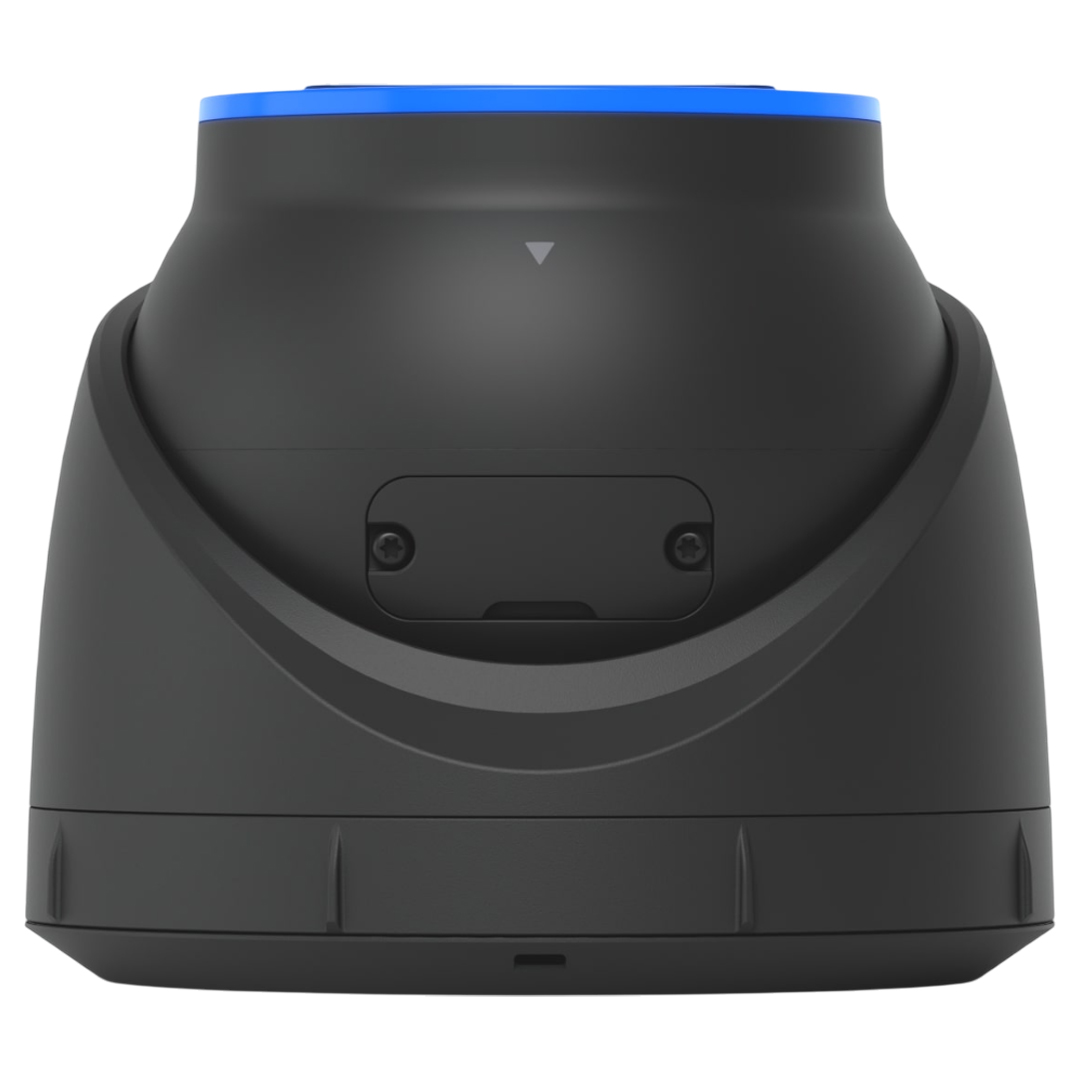

Back View

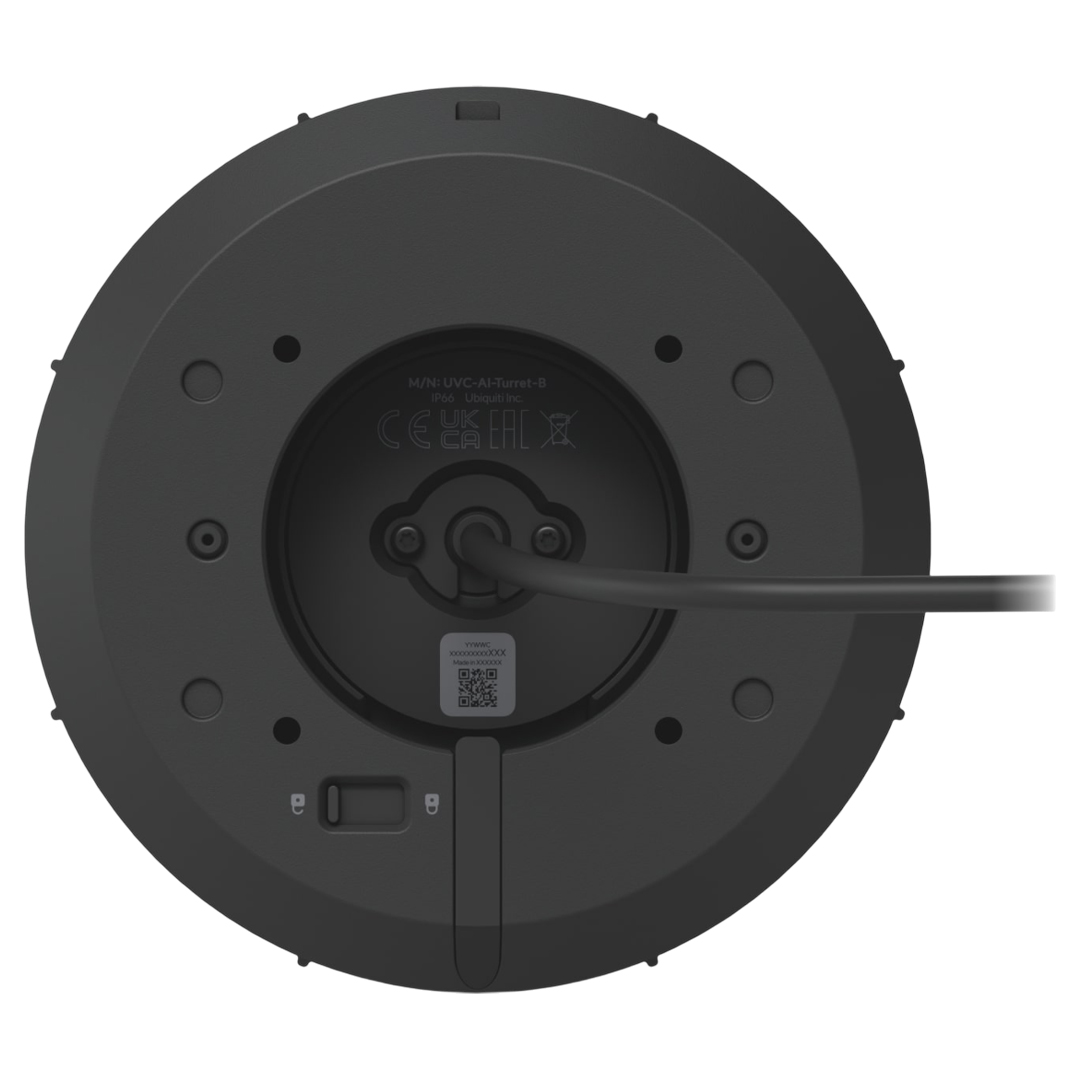

Bottom View
Specifications
General Data
| Model Number |
UVC-AI-TURRET-B |
| Colour |
Black |
| Dimensions |
Ø118 x 111 mm (Ø4.6 x 4.4") |
| IR Night Vision |
40 m (131 ft) |
| Face Recognition |
Yes |
| Licence Plate Recognition |
Yes |
| Smart Detections (People, Vehicles, Animals) |
Yes |
| Resolution |
4K |
| Field of View |
H: 109.9°, V: 56.7°, D: 134.1° |
| Audio |
Two-way audio |
| Weatherproofing |
IP66 |
| Tamper Resistance |
IK08 |
| Mounting |
Ceiling, arm, wall, pendant mount, junction box |
| Warranty |
1 Year |
Performance
| Networking Interface |
GbE RJ45 port |
| Video |
Image Settings
Colour, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
Max. Frame Rate: 30 FPS
Resolution: 8 MP 3840 x 2160 (16:9) |
| Optics |
Sensor: 1/1.8" 8MP
Lens: Fixed focal length
Night Mode: Built-in IR LED illumination and IR cut filter |
Hardware
| Max. Power Consumption |
20 W |
| Supported Voltage Range |
42.5—57 V DC |
| Power Method |
PoE+ |
| Processor |
Quad-core Arm® Cortex®-A53 based chip |
| Weight |
990 g (2.2 lb) |
| Enclosure Material |
Aluminium alloy, polycarbonate |
| Expansion Slot |
MicroSD Card |
| Button |
(1) Factory-reset |
| Cable |
Cable Connector Type: RJ45
Cable Diameter: 4.5 mm (0.2")
Cable Length: 30 cm (1 ft)
Jacket Material: Thermoplastic elastomer
Jacket Enclosure Dimensions: Ø20 x 70.6 mm (0.8 x 2.8")
Jacket Enclosure Material: Thermoplastic elastomer, polycarbonate, silicone rubber |
| Ambient Operating Temperature |
-30 to 50º C (-22 to 122º F) |
| Ambient Operating Humidity |
0 to 90% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC |
Backed by a 1 year Ubiquiti warranty.
