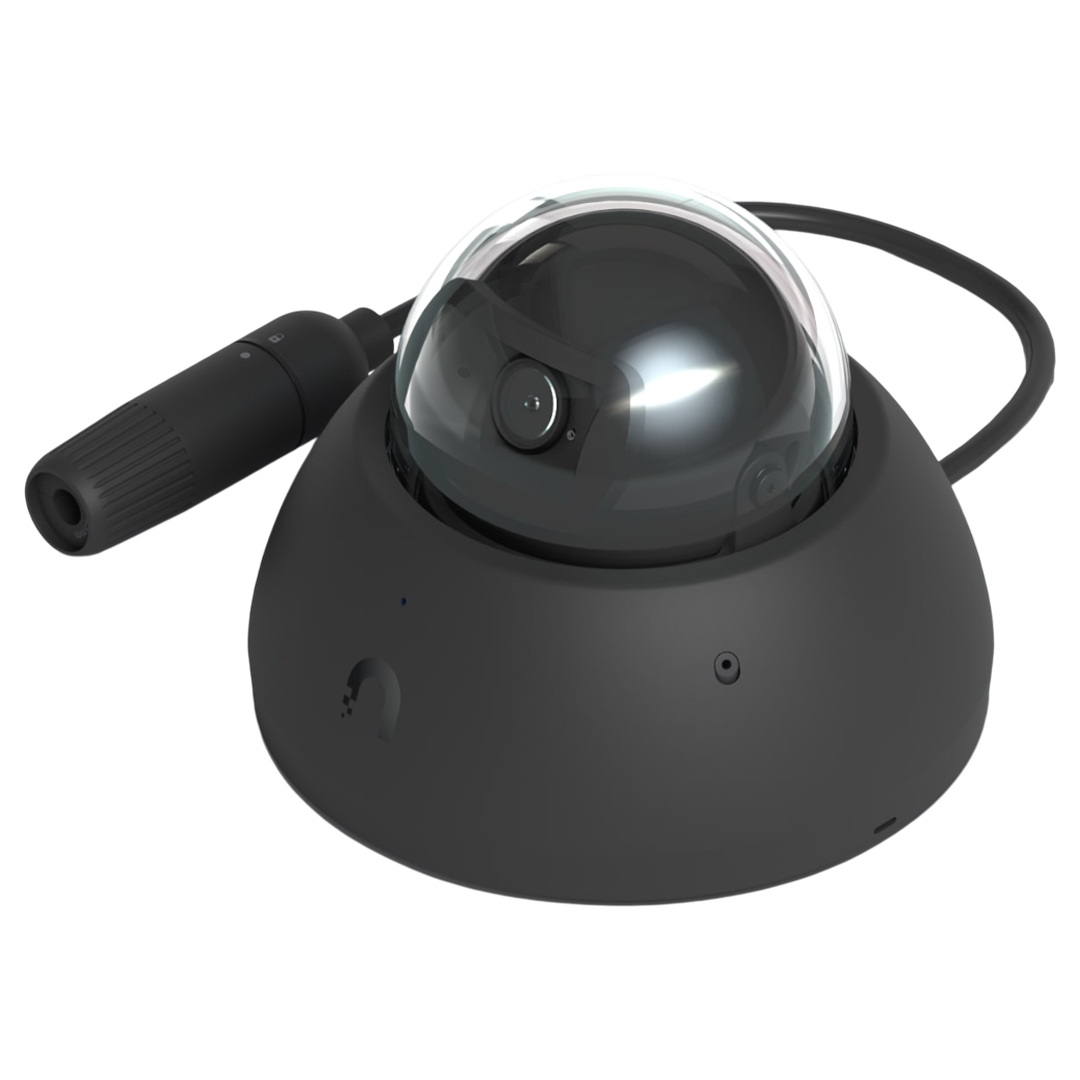

The Ubiquiti AI Dome Black features 4K (8MP) video resolution at 30 frames per second, providing ultra-clear surveillance footage. Its 109.9deg horizontal field of view and 40-metre infrared night vision ensure comprehensive coverage day and night. It supports Power over Ethernet for easy installation and is built with an all-weather casing for reliable outdoor performance.
Features
Deployment
Build Features

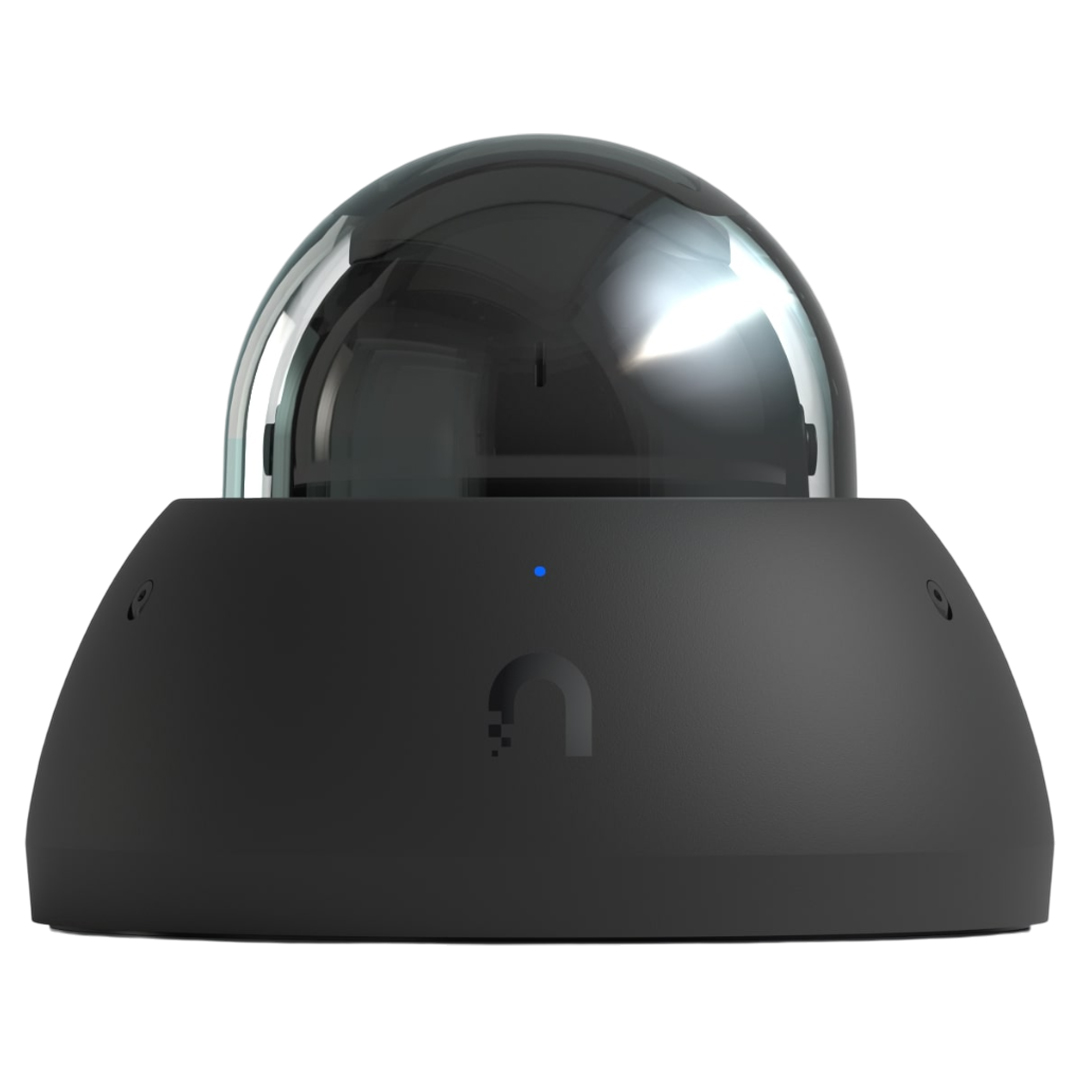

Front View

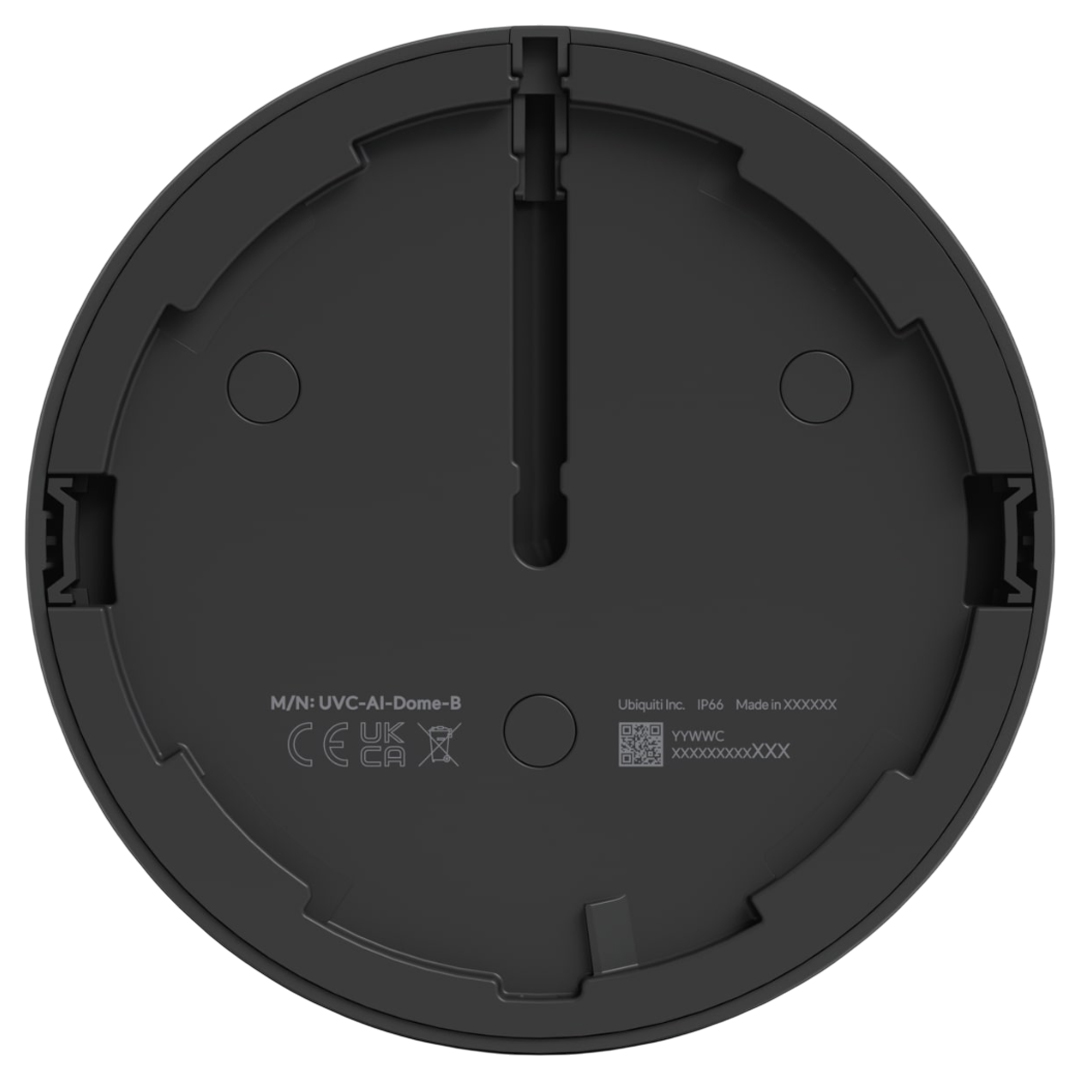

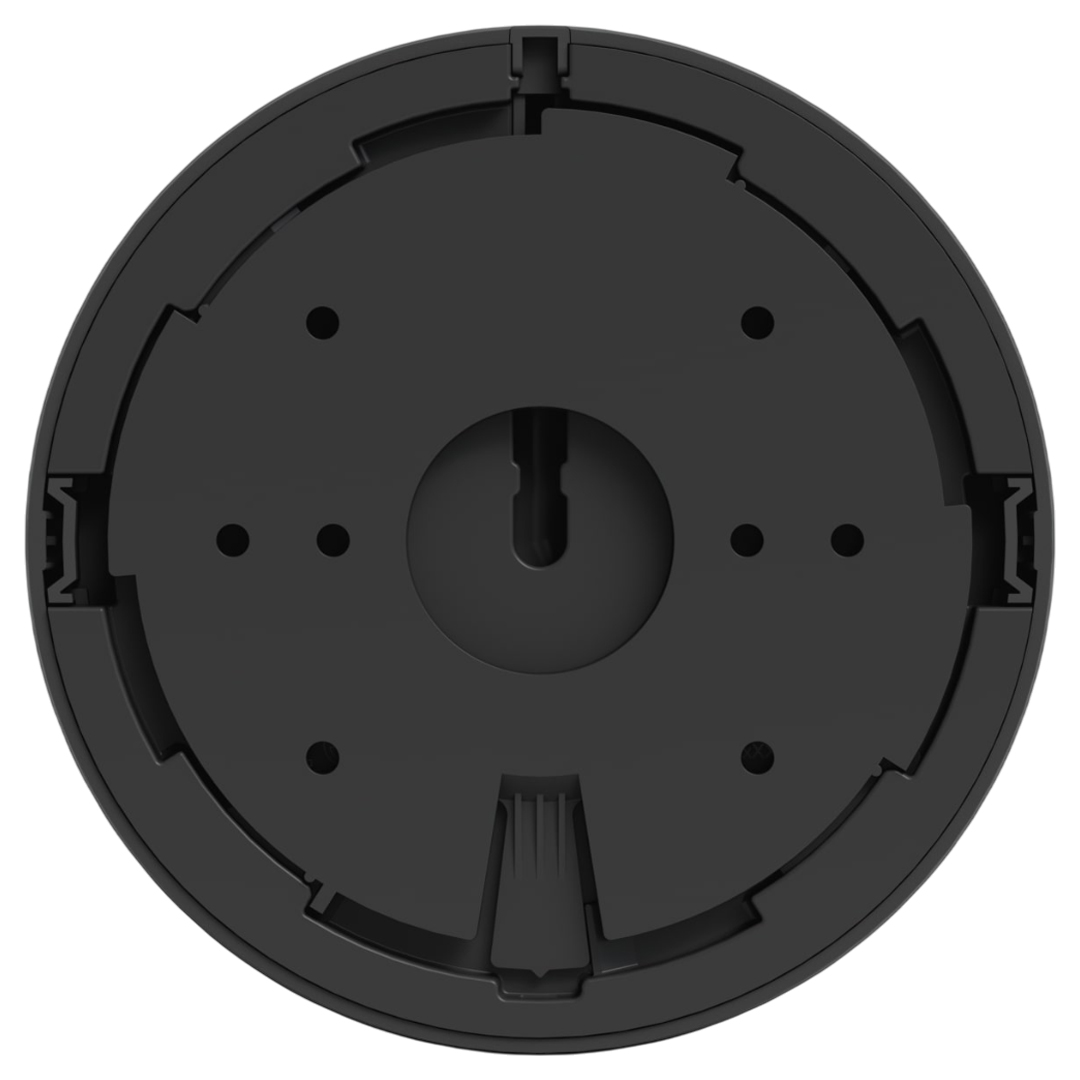

Back View

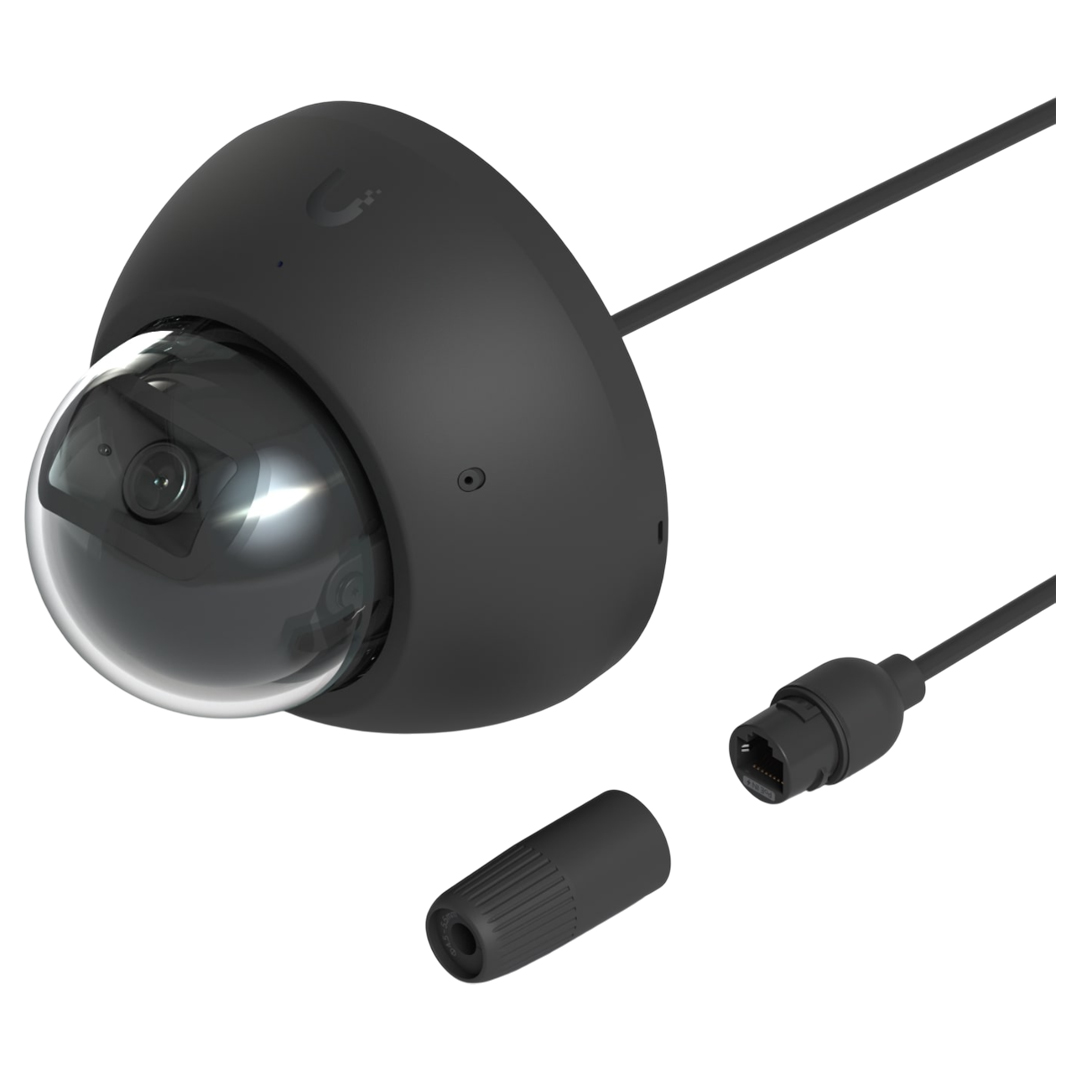

Side View
Specifications
General Data
| Model Number |
UVC-AI-DOME-B |
| Colour |
Black |
| Dimensions |
Ø118 x 90.8 mm (Ø4.6 x 5.5") |
| IR Night Vision |
40 m (131 ft) |
| Face Recognition |
Yes |
| License Plate Recognition |
Yes |
| Smart Detections (People, Vehicles, Animals) |
Yes |
| Resolution |
4K |
| Field of View |
H: 109.9°, V: 56.7°, D: 134.1° |
| Audio |
Microphone |
| Weatherproofing |
IP66 |
| Tamper Resistance |
IK10 |
| Mounting |
Arm, ceiling , pendant, wall mount, junction box |
| Warranty |
1 Year |
Performance
| Networking Interface |
GbE RJ45 port |
| Video |
Image Settings
Colour, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
Max. Frame Rate: 30 FPS
Resolution: 8MP 3840 x 2160 (16:9) |
| Optics |
Sensor: 1/1.8" 8MP
Lens: Fixed focal length
Night Mode: Built-in IR LED illumination and IR cut filter |
Hardware
| Max. Power Consumption |
10 W |
| Supported Voltage Range |
42.5—57 V DC |
| Power Method |
PoE |
| Processor |
Quad-core Arm® Cortex®-A53 based chip |
| Weight |
700 g (1.5 lb) |
| Enclosure Material |
Aluminium alloy, polycarbonate |
| Mount Material |
Surface mount: polycarbonate |
| Expansion Slot |
MicroSD Card |
| Button |
(1) Factory-reset |
| Cable |
Cable Connector Type: RJ45
Cable Diameter: 4.5 mm (0.2")
Cable Length: 30 cm (1 ft)
Jacket Material: Thermoplastic elastomer
Jacket Enclosure Dimensions: Ø20 x 70.6 mm (0.8 x 2.8")
Jacket Enclosure Material: Thermoplastic elastomer, polycarbonate, silicone rubber |
| Ambient Operating Temperature |
-30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity |
0 to 90% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC |
Backed by a 1 year Ubiquiti warranty.
