The Ubiquiti UniFi G5 Turret Ultra 2K Camera Black features 4MP (2688 x 1512) video resolution, delivering clear and detailed footage. Its ultra-wide 102.4 degree horizontal field of view ensures expansive coverage, while the built-in IR LEDs provide up to 30 metres of night vision.
Features
Deployment
Build Features

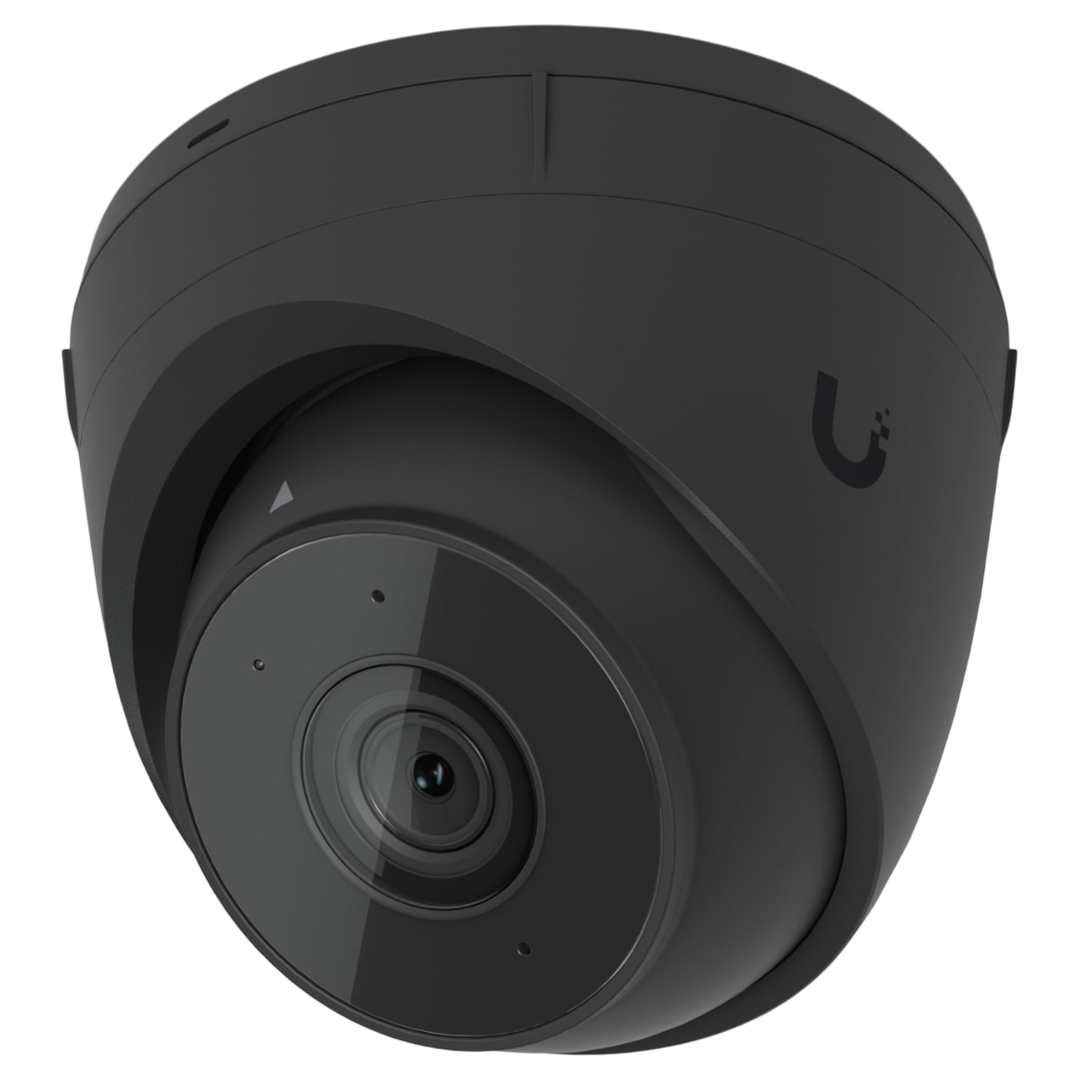

Front View

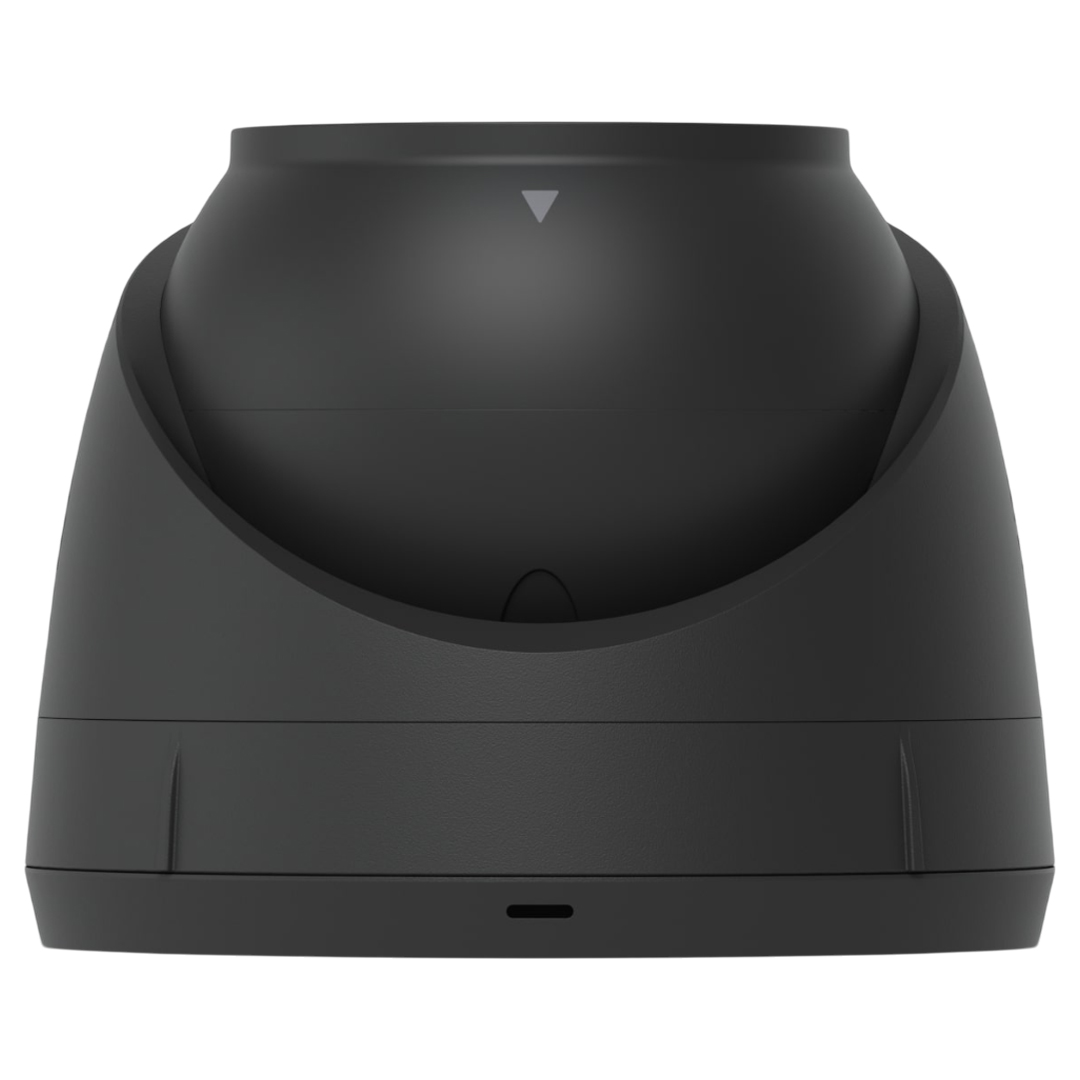

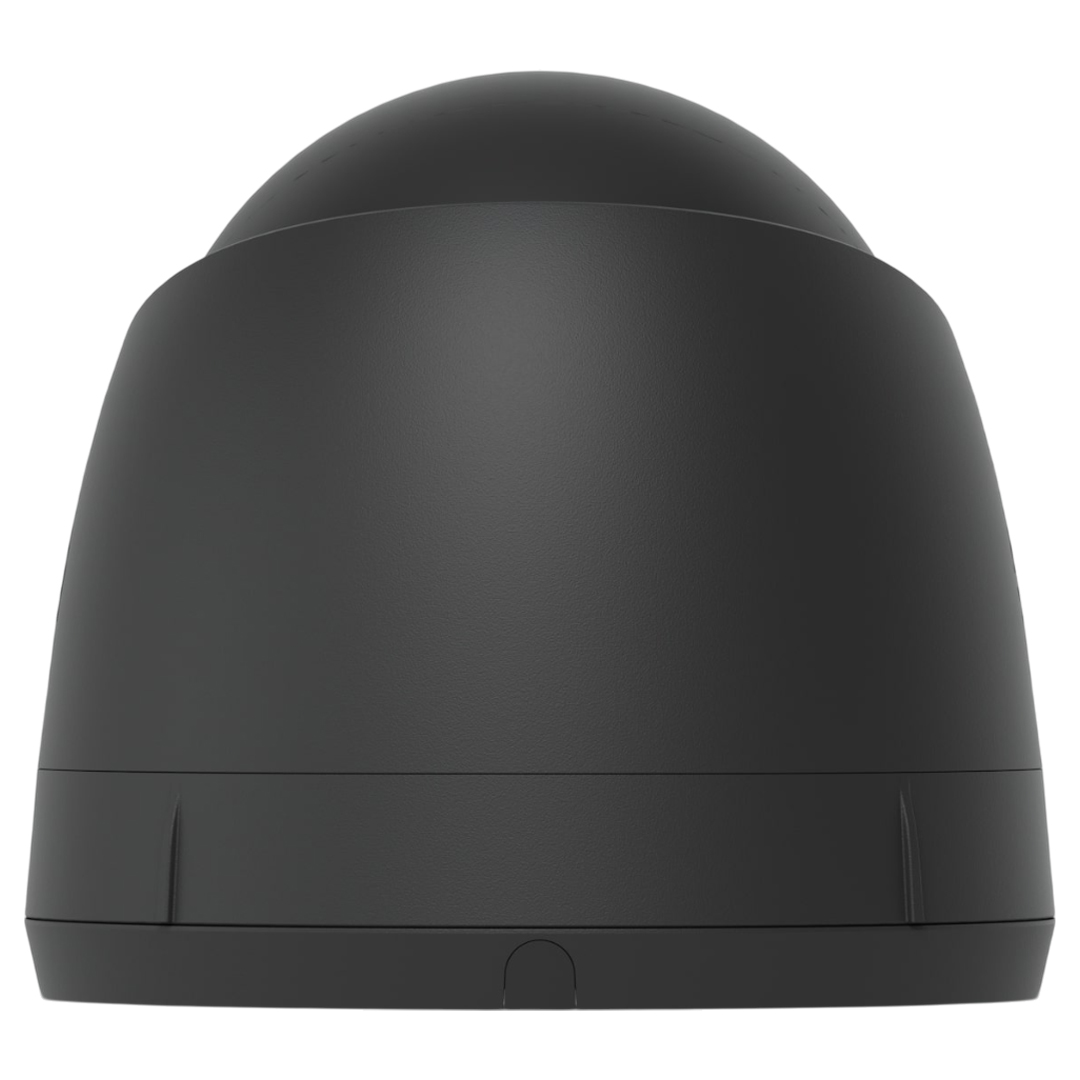

Back View

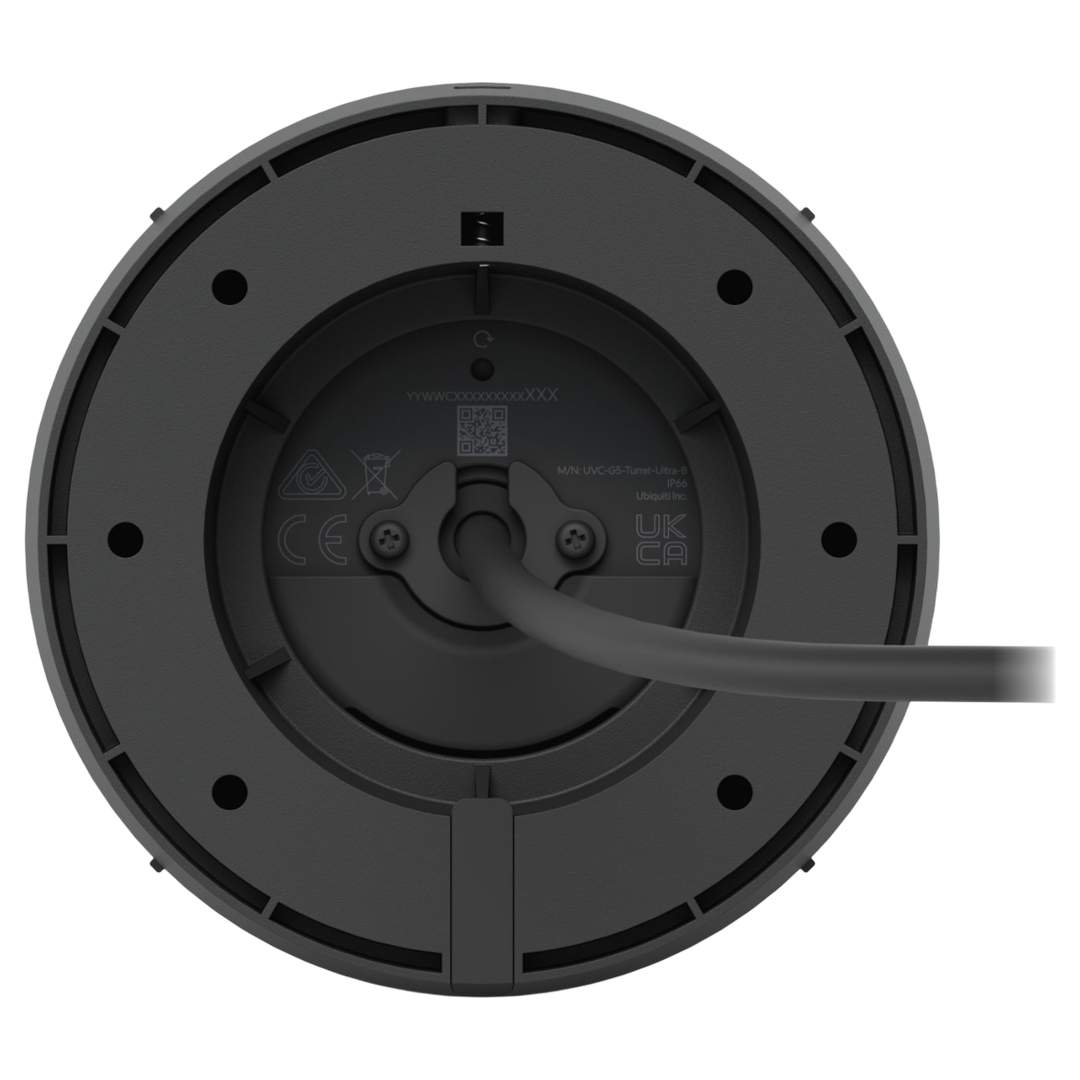

Bottom View
Specifications
General Data
| Model Number |
UVC-G5-TURRET-ULTRA-B |
| Colour |
Black |
| Dimensions |
Ø90 x 71.2 mm (Ø3.5 x 2.8") |
| IR Night Vision |
30 m (98 ft) |
| Smart Detections (People, Vehicles, Animals) |
Yes |
| Resolution |
2K |
| Field of View |
H: 102.4°, V: 54.9°, D: 120.6° |
| Audio |
Microphone |
| Weatherproofing |
IP66 |
| Tamper Resistance |
IK04 |
| Mounting |
Wall, ceiling mount (Included)
Junction box, arm mount (Optional) |
| Warranty |
1 Year |
Performance
| Networking Interface |
10/100 MbE RJ45 port |
| Video |
Image Settings
Colour, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
Max. Frame Rate: 30 FPS
Resolution: 4MP 2688 x 1512 (16:9) |
| Optics |
Sensor: 1/2.4" CMOS
Lens: Fixed focal length
Night Mode: Built-in IR LED illumination and IR cut filter |
| Sensor |
1/2.4" CMOS |
| Lens |
Fixed focal length |
| Night Mode |
Built-in IR LED illumination and IR cut filter |
Hardware
| Max. Power Consumption |
4 W |
| Supported Voltage Range |
37—57 V DC |
| Power Method |
PoE |
| Processor |
Dual-core Arm® Cortex®-A7 based chip |
| Weight |
330 g (11.6 oz) |
| Enclosure Material |
Aluminium alloy, UV-stabilised polycarbonate |
| Mount Material |
Polycarbonate |
| Button |
(1) Factory-reset |
| Cable |
Cable Connector Type: RJ45
Cable Diameter: 5 mm (0.2")
Cable Length: 30 cm (1 ft)
Jacket Material: Polycarbonate
Jacket Enclosure Dimensions: Ø20 x 70.6 mm (0.8 x 2.8")
Jacket Enclosure Material: Thermoplastic elastomer, polycarbonate, silicone rubber |
| Ambient Operating Temperature |
-30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity |
0 to 90% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC |
Backed by a 1 year Ubiquiti warranty.
