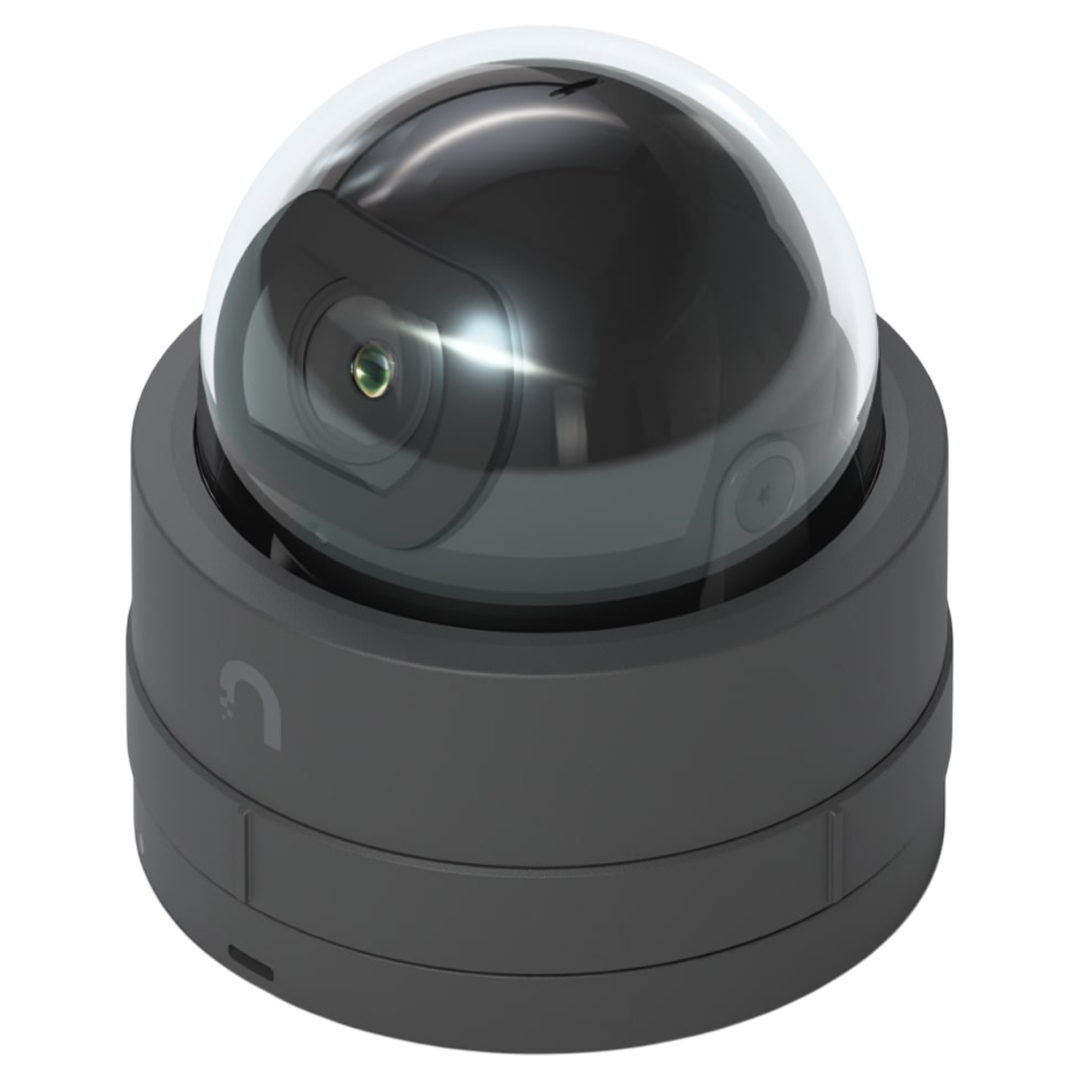

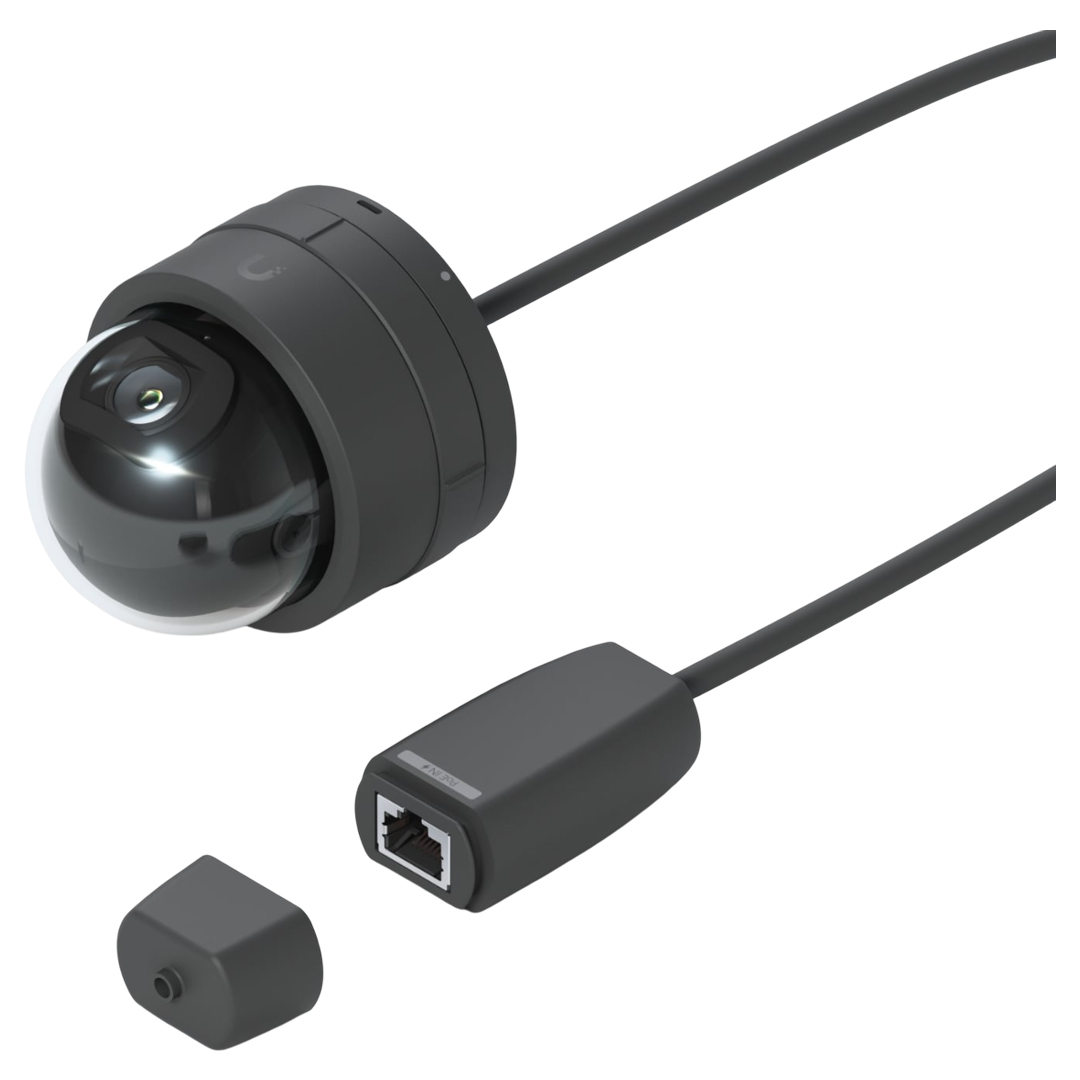

The Ubiquiti G5 Dome Ultra Ceiling Camera Black features 4MP resolution at 2688 x 1512 pixels, delivering clear and detailed 2K video. Its ultra-compact design and tamper-resistant IK06-rated enclosure make it ideal for discreet indoor surveillance.
Features
Deployment
Build Features

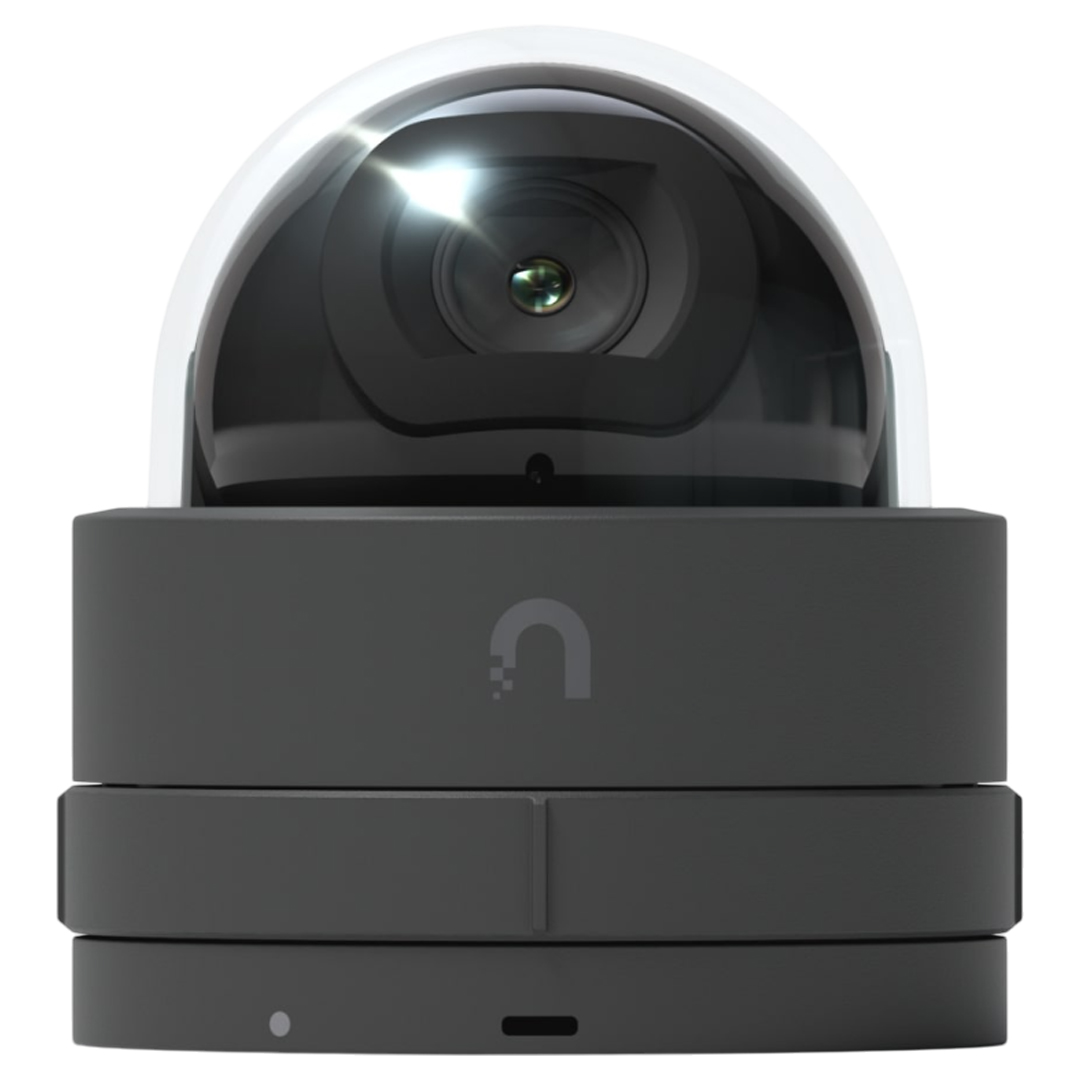

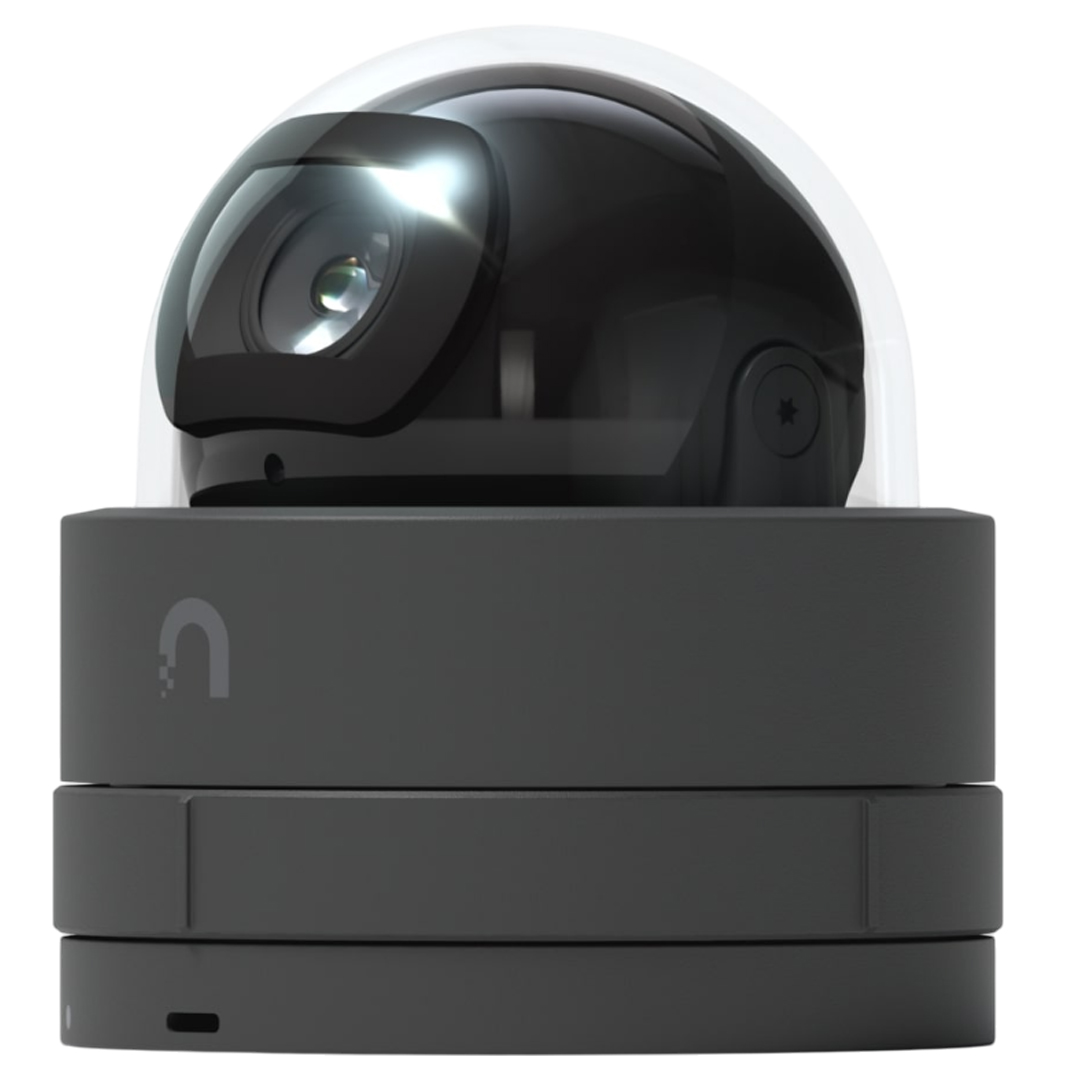

Front View

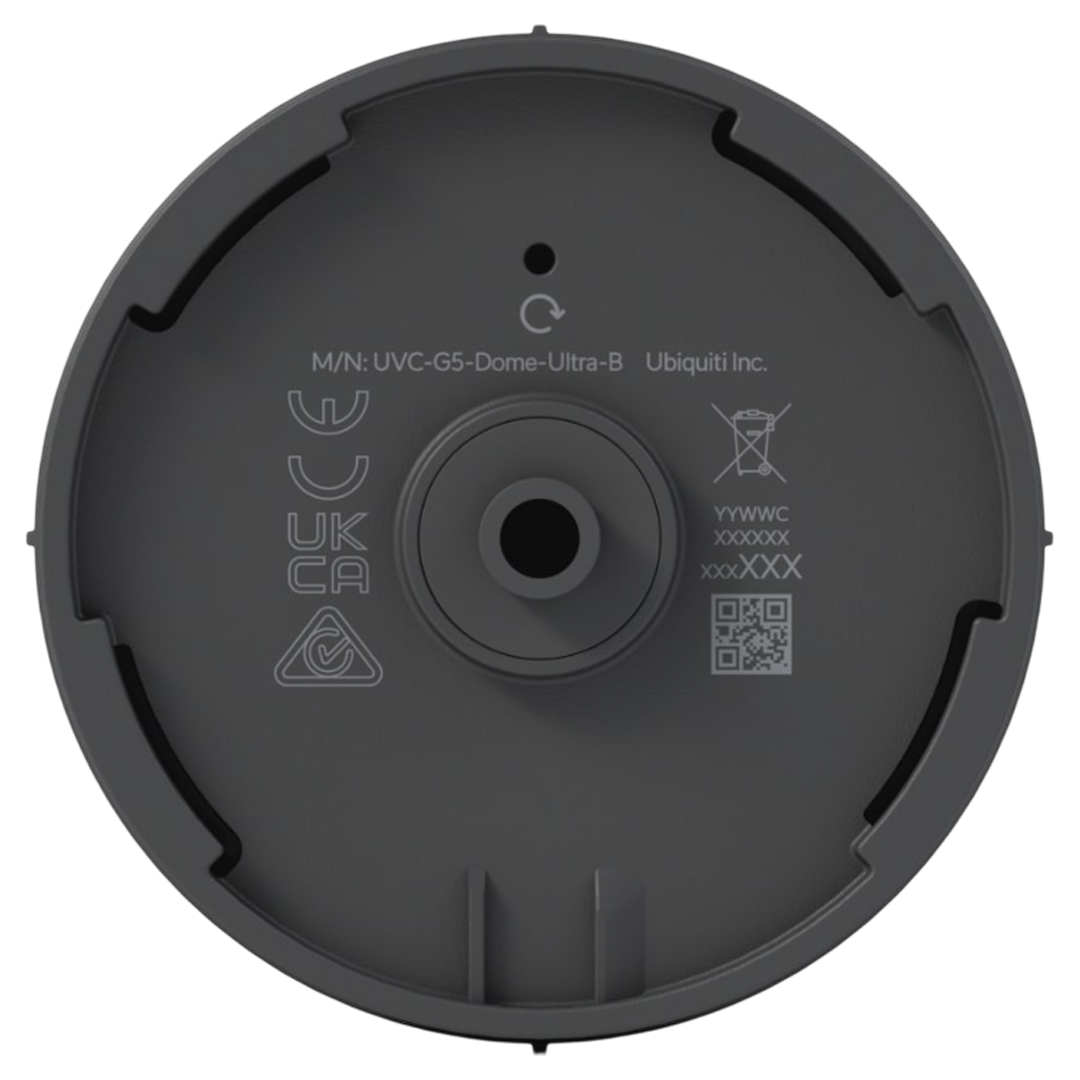

Back View

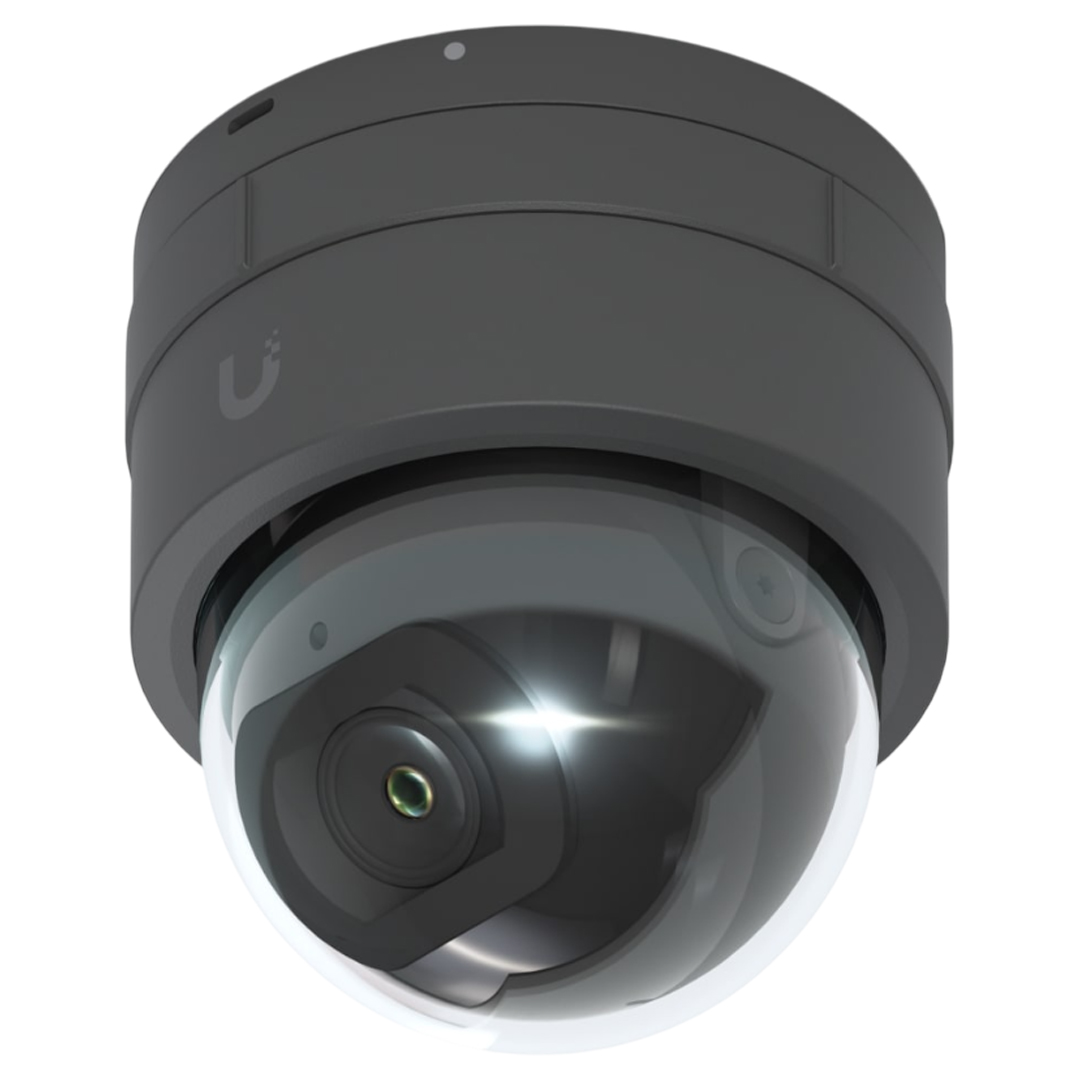

Bottom View
Specifications
General Data
| Model Number |
UVC-G5-DOME-ULTRA-B |
| Colour |
Black |
| Dimensions |
Ø63.6 x 68.2 mm (Ø2.5 x 2.7") |
| IR Night Vision |
20 m (65 ft) |
| Smart Detections (People, Vehicles, Animals) |
Yes |
| Resolution |
2K |
| Field of View |
H: 102.4°, V: 54.9°, D: 120.6° |
| Tamper Resistance |
IK06 |
| Mounting |
Surface mount (Included)
Junction box, Ultra Flush mount (Optional) |
| Warranty |
1 Year |
Performance
| Networking Interface |
10/100 MbE RJ45 port |
| Video |
Image Settings
Colour, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
Max. Frame Rate: 30 FPS
Resolution: 4MP 2688 x 1512 (16:9) |
| Optics |
Sensor: 1/2.4" CMOS
Lens: Fixed focal length
Night Mode: Built-in IR LED illumination and IR cut filter |
Hardware
| Max. Power Consumption |
4.2 W |
| Supported Voltage Range |
37—57 V DC |
| Power Method |
PoE |
| Processor |
Dual-core Arm® Cortex®-A7 based chip |
| Weight |
175 g (6.2 oz) |
| Enclosure Material |
Aluminium alloy, polycarbonate |
| Mount Material |
Stainless steel |
| Button |
(1) Factory-reset |
| Ambient Operating Temperature |
-20 to 40° C (-4 to 104° F) |
| Ambient Operating Humidity |
10 to 90% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC |
Backed by a 1 year Ubiquiti warranty.
